ABB 086318-002 Spare for ACS/DCS Series Automation

ABB 086318-002 Spare for ACS/DCS Series Automation: Spare Replacement & Industrial Downtime Risk Control

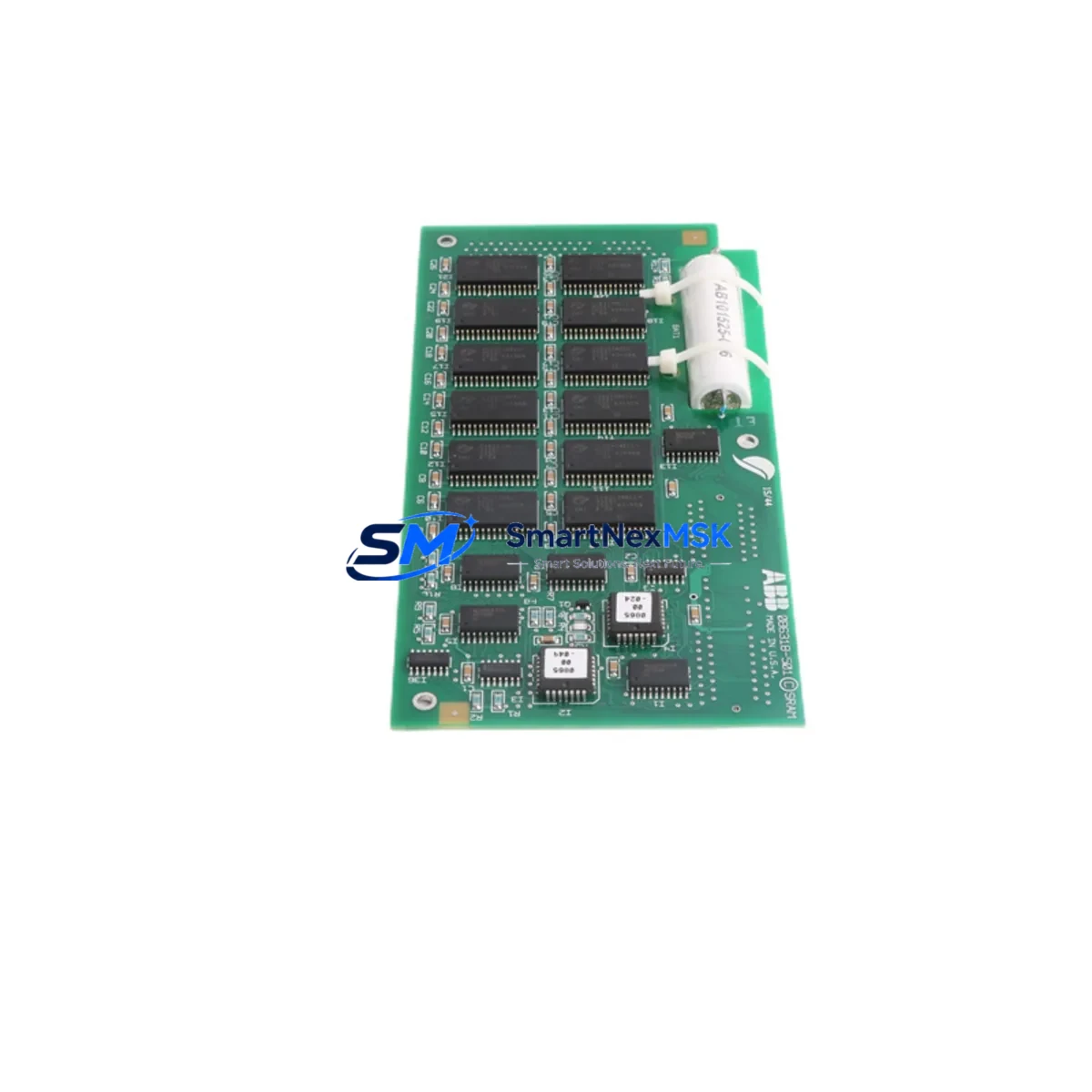

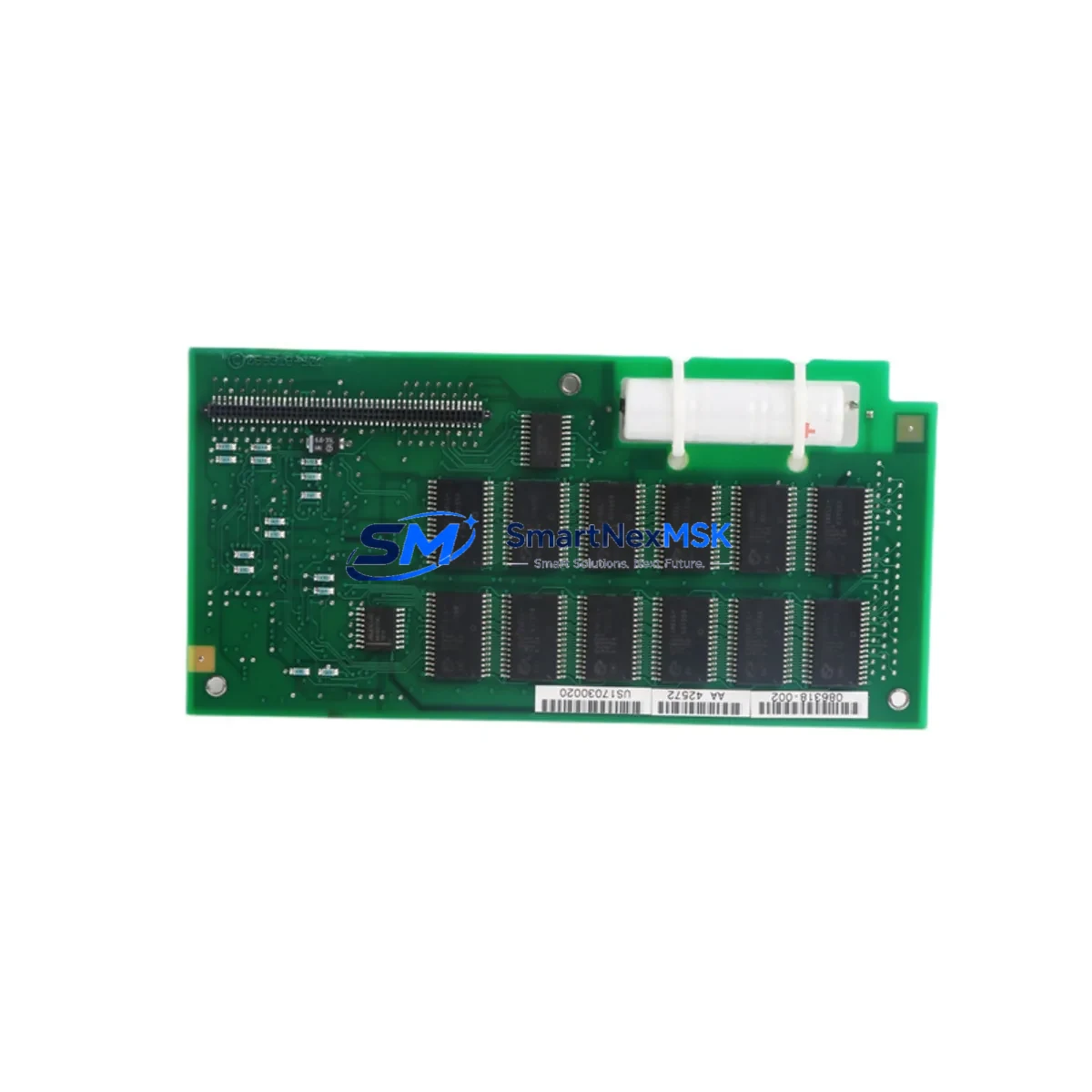

The ABB 086318-002 is an original drive control board designed for ABB ACS and DCS series variable frequency and DC drive systems. In industrial maintenance environments, this board is a critical spare component — its failure can halt production lines, conveyor systems, pump stations, compressor banks, and motor-driven processes without warning. Sourcing a verified, tested replacement unit in advance is the single most effective strategy for minimizing unplanned downtime and protecting operational continuity.

For maintenance engineers managing aging ABB drive cabinets, the 086318-002 board governs core drive logic: speed reference processing, feedback signal conditioning, fault detection, and communication with upstream PLC or DCS controllers. When this board degrades — often presenting as intermittent fault codes, erratic speed response, or complete drive lockout — the entire drive unit becomes non-functional until the board is replaced. Keeping a spare on the shelf eliminates the lead-time risk associated with sourcing obsolete or low-volume ABB drive components.

Procurement engineers should note that the 086318-002 is compatible across multiple ABB ACS and DCS drive frame sizes. Before finalizing a replacement order, confirm the drive firmware version and any hardware revision markings on the existing board. Our team provides pre-shipment compatibility verification and functional testing on every unit dispatched.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB 086318-002 drive control board, a thorough maintenance engineer will treat the event as an opportunity to audit the entire drive cabinet and associated electrical circuit. Drive control board failures rarely occur in isolation — they are often preceded or accompanied by stress on adjacent components.

Begin by inspecting the ABB AINT-02C or AINT-11C interface board, which handles the fiber-optic DDCS communication link between the control board and the inverter bridge. A degraded interface board can cause recurring control board faults even after replacement. Next, check the APOW-01C power supply module that feeds the control electronics; voltage ripple or dropout on the 24 VDC rail is a common root cause of control board damage.

Examine all I/O terminal blocks and wiring harnesses connected to the control board. Loose or corroded terminals on analog input channels (speed reference, feedback) and digital I/O (run/stop, fault reset) can introduce signal noise that stresses the board’s input circuitry. If the drive communicates via PROFIBUS or Modbus RTU, inspect the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter for secure seating and connector integrity.

For drives integrated into a broader ABB DCS800 or ACS880 system, verify the RDCO-03 DDCS communication option board and any RAIO-01 analog I/O extension modules are functioning correctly. These modules share the same backplane power and communication bus as the control board, and a fault in one can mask or mimic a control board failure.

Do not overlook the drive’s main fuses and DC bus capacitors. Capacitor aging increases ripple voltage, which accelerates control board wear. If the drive is more than 8–10 years old, a proactive capacitor replacement alongside the control board swap is sound maintenance practice. Finally, check the panel cooling fans and air filters — thermal stress is the leading cause of premature PCB failure in enclosed drive cabinets.

For sites running ABB drives alongside third-party PLCs or DCS controllers, confirm that signal isolators on analog reference and feedback lines are intact. A failed isolator can allow ground loops or voltage spikes to reach the drive control board, causing repeated failures after replacement.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow your site’s lockout/tagout (LOTO) procedure. Confirm the DC bus is fully discharged before opening the drive cabinet (minimum 5 minutes after power-off for most ACS/DCS frame sizes).

Step 2 — Document existing configuration. Before removing the 086318-002 board, photograph all wiring connections, note any DIP switch or jumper settings, and record the drive parameter set if accessible via the panel-mounted CDP-312R control panel or connected DriveWindow software.

Step 3 — ESD precautions. Use a grounded wrist strap and anti-static mat. The 086318-002 is a sensitive PCB assembly; electrostatic discharge during handling can cause latent damage that only manifests under load.

Step 4 — Board swap. Remove the faulty board by releasing the retaining clips and disconnecting ribbon cables and connectors in sequence. Install the replacement 086318-002, ensuring all connectors are fully seated. Restore DIP switch and jumper settings to match the original configuration.

Step 5 — Parameter restore and commissioning. Power up the drive and restore the parameter set. Verify that the drive responds correctly to start/stop commands, speed reference, and fault reset signals. Run a no-load test before reconnecting the motor load.

Step 6 — System validation. Confirm communication with the upstream PLC or DCS is re-established. Check all analog and digital I/O signals for correct scaling and response. Log the replacement in your maintenance management system (CMMS) and update the spare parts inventory.

This workflow applies equally to legacy ACS550 and ACS800 installations and to current-generation ACS880 and DCS800 systems, making the 086318-002 a versatile spare that supports long-term system life extension without requiring drive replacement.

Spare Parts Support FAQ

Q1: What is the shelf life of the ABB 086318-002 spare board, and how should it be stored?
When stored in its original anti-static packaging in a dry, temperature-controlled environment (10–40°C, <75% RH, non-condensing), the 086318-002 board has an effective shelf life of 5–7 years. Inspect the board annually for any signs of corrosion on connector pins. Our units are dispatched in sealed ESD bags with desiccant to support long-term storage.

Q2: How do I verify compatibility with my specific ABB drive model and firmware version?
Provide us with your drive’s full model number (e.g., ACS800-01-0016-3), hardware revision (found on the drive nameplate), and current firmware version (readable from the CDP-312R panel or DriveWindow). Our technical team will confirm compatibility before shipment. We do not dispatch units where compatibility cannot be verified.

Q3: What pre-shipment testing is performed on each 086318-002 unit?
Every unit undergoes functional power-on testing and signal integrity verification before dispatch. Units that fail any test parameter are quarantined and not sold. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q4: Can you support ongoing spare parts supply for our ABB drive fleet beyond a single order?
Yes. We maintain stock of ABB ACS and DCS series spare components and can establish a framework supply agreement for maintenance teams managing multiple drive cabinets. Long-term supply, scheduled replenishment, and priority allocation for critical spares are all available. Contact our team to discuss your fleet’s requirements.
