ABB 086351-504 Retrofit-Ready Drive Control for ACS Control Systems

ABB 086351-504 Retrofit-Ready Drive Control for ACS Control Systems

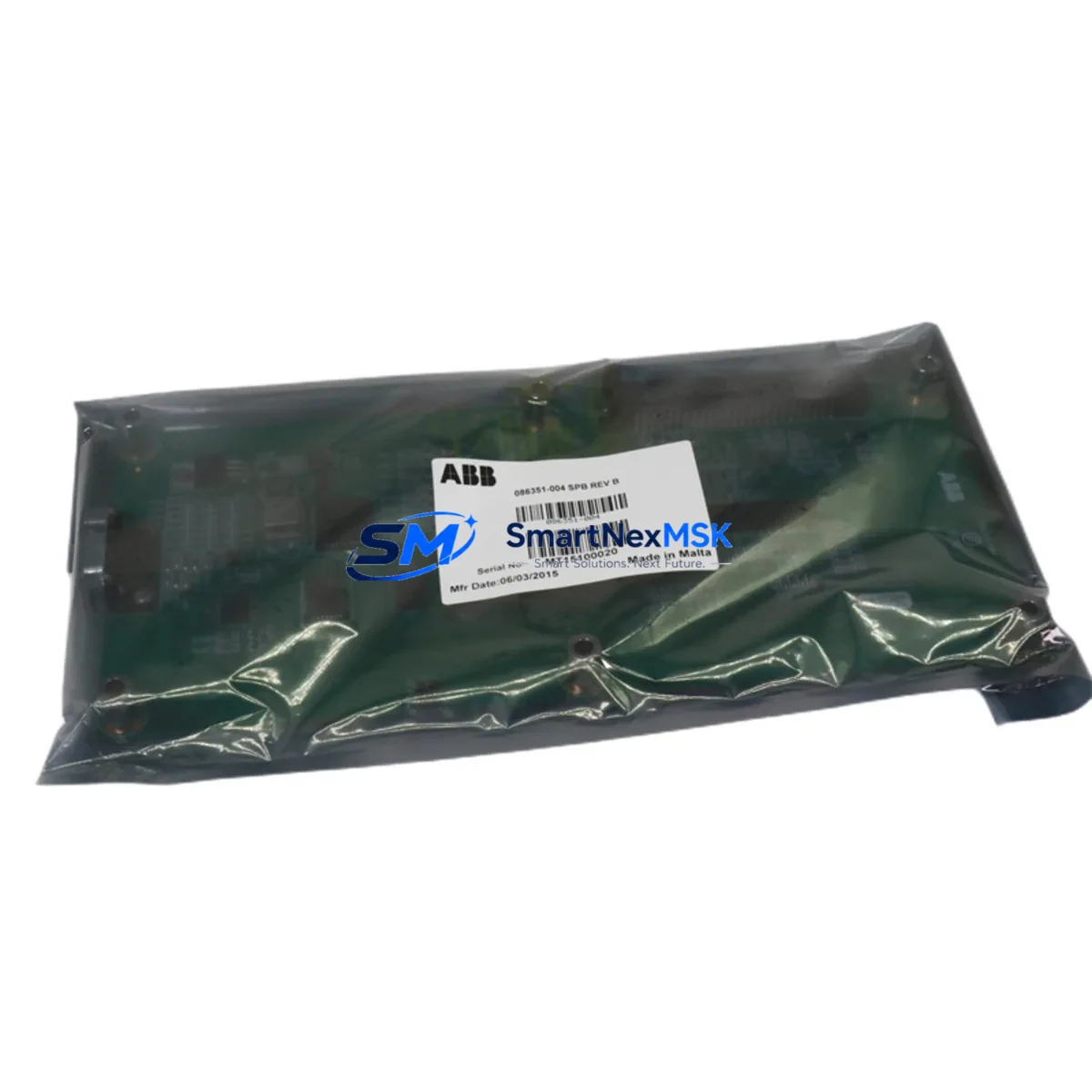

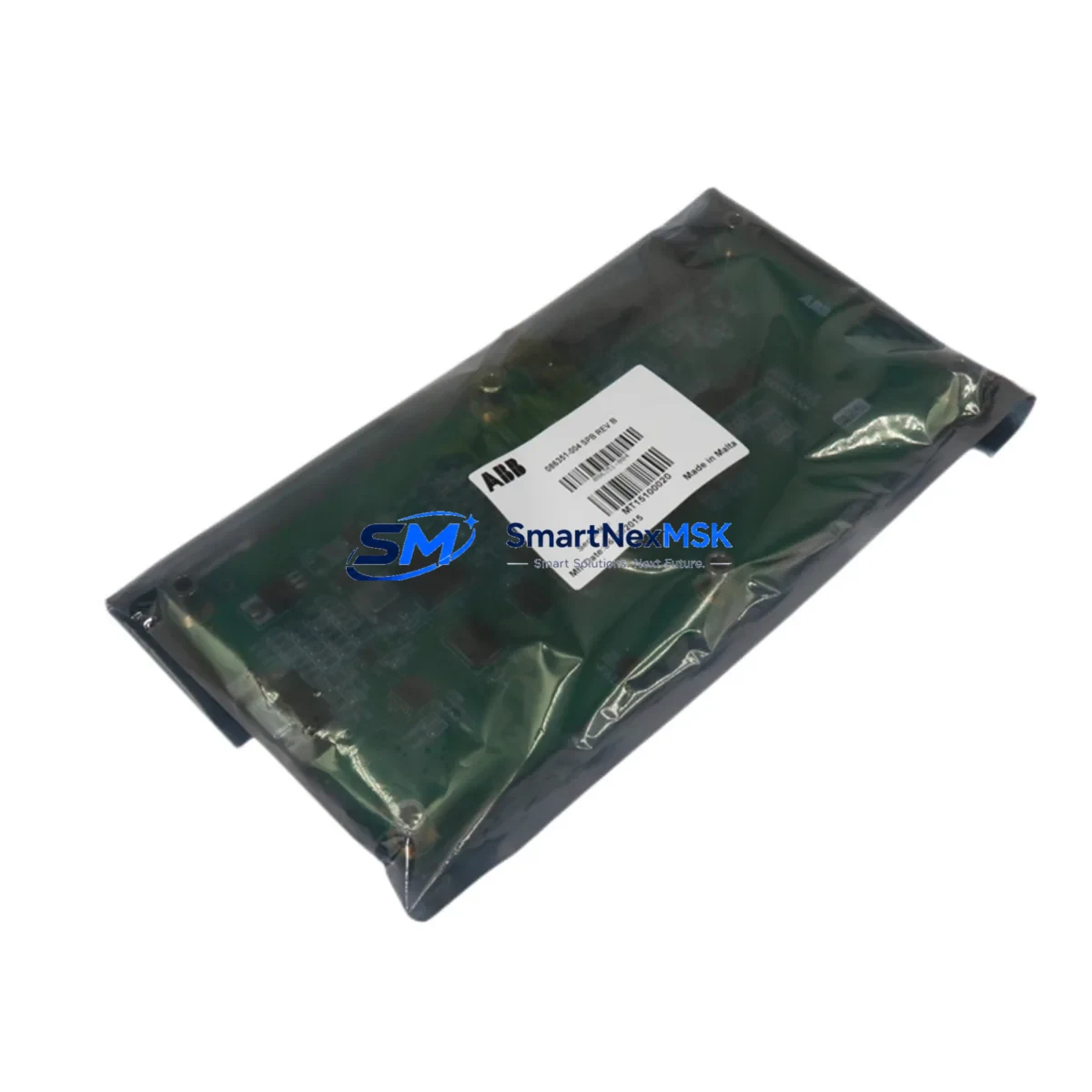

The ABB 086351-504 is a retrofit-ready drive control board engineered for seamless compatibility with ABB ACS series variable frequency drives. As a direct functional replacement for the discontinued 086351-004, this PCB module restores full drive operation without requiring firmware re-engineering or mechanical cabinet modifications. For facilities managing aging ACS400, ACS550, or ACS600 drive platforms, the 086351-504 represents a cost-effective path to system continuity — eliminating the need for full drive replacement while preserving existing motor control logic, parameter sets, and field wiring.

Industrial sites running legacy ABB drives frequently encounter obsolescence challenges: original control boards fail, OEM repair lead times stretch beyond acceptable downtime windows, and full drive replacements disrupt production schedules. The 086351-504 addresses this directly. Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 086351-504 into an existing control cabinet begins well before the physical swap. Engineers should first audit the drive’s current firmware version using the CDP312R control panel or the DriveWindow Light software interface. Firmware compatibility between the replacement control board and the existing AINT power interface board must be confirmed — mismatched firmware revisions between the control and power sections are a common source of post-replacement fault codes.

Terminal wiring on the X1 and X2 I/O connector blocks should be documented with photographs before disassembly. In most ACS550 and ACS600 installations, the analog input channels (AI1, AI2), digital inputs (DI1–DI6), relay outputs (RO1–RO3), and the 24 VDC auxiliary power terminals retain their original pinout on the 086351-504, eliminating the need for rewiring. However, sites using optional fieldbus adapter modules — such as the RPBA-01 PROFIBUS adapter or the RMBA-01 Modbus RTU adapter — should verify that the adapter slot on the replacement board is mechanically and electrically compatible before proceeding.

For control cabinets housing multiple drives on a common DC bus or sharing a single ACS600 inverter unit with a separate rectifier, the control board replacement must be coordinated with the overall bus isolation procedure. In these architectures, the AINT-02 or AINT-11 power interface board communicates directly with the control board via the fiber optic DDCS link — this link must be re-established and verified after board installation using the drive’s diagnostic menu.

Sites migrating from older ACS400 platforms to ACS550 or ACS600 architecture as part of a broader modernization project will often find that the 086351-504 serves as an interim stabilization measure — keeping existing ACS drives operational while new control infrastructure (including updated ACS880 drives, revised FENA-21 Ethernet adapter modules, or new AC500 PLC control platforms) is being commissioned in parallel. This phased approach minimizes production disruption and allows engineering teams to validate new control logic before full cutover.

I/O expansion requirements should also be assessed during retrofit planning. If the existing application requires additional analog outputs or high-speed digital inputs beyond the base board’s capacity, the RAIO-01 analog I/O extension module or RDIO-01 digital I/O extension can be integrated without modifying the core control board. Parameter group 98 (Option Modules) in the ACS drive parameter set governs the activation of these extension modules and must be reconfigured after board replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control board replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the full parameter set of the existing drive should be uploaded and saved — either to the CDP312R keypad memory or to a PC running DriveWindow Light. This backup preserves motor data (group 99), application macro settings (group 10–14), PID control parameters (group 40), and any custom fault response configurations that have been tuned to the specific process.

During the physical replacement, the drive should be fully isolated from both the supply voltage and the motor terminals. Capacitor discharge time for ACS series drives typically ranges from 5 to 15 minutes depending on drive rating — this must be observed before any board-level work begins. The fiber optic DDCS cables connecting the control board to the AINT power section should be handled carefully and labeled before disconnection to ensure correct re-termination.

After the 086351-504 is seated and secured, the parameter set should be restored from backup before the first power-on. On initial energization, the drive will typically display a fault or warning related to motor data — this is expected and is resolved by running the motor identification routine (parameter 99.15 set to 1 = Standard ID Run). Once the ID run completes successfully, relay output logic, analog scaling, and fieldbus node address settings should be verified against the original configuration documentation before returning the drive to automatic control.

For critical production lines where even a brief unplanned stop carries significant cost, maintaining a pre-tested spare 086351-504 in the site’s spare parts inventory is strongly recommended. A tested spare — one that has been powered up, parameter-loaded, and verified on a bench drive unit — can reduce emergency replacement time from hours to under 30 minutes.

Retrofit Support FAQ

Q1: Is the ABB 086351-504 a direct replacement for the 086351-004?
Yes. The 086351-504 is the current production revision superseding the 086351-004. The board retains the same connector layout, I/O terminal pinout, and backplane interface. No mechanical modifications to the drive cabinet are required. Firmware compatibility should be confirmed against the drive’s existing AINT board revision before installation.

Q2: What commissioning steps are required after installing the 086351-504?
After physical installation, restore the saved parameter set via the CDP312R keypad or DriveWindow Light. Verify fieldbus adapter node address (if applicable), run the motor ID routine (parameter 99.15), confirm relay output assignments, and test the drive in local control mode before returning to remote/automatic operation. Document all settings post-commissioning.

Q3: Will my existing field wiring need to be modified?
In standard ACS400, ACS550, and ACS600 installations, the terminal block layout on the 086351-504 matches the original board. Analog inputs, digital inputs, relay outputs, and 24 VDC auxiliary terminals retain their original positions. Sites using non-standard wiring configurations or custom I/O extension modules should verify terminal compatibility against the drive’s wiring diagram before installation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, environmental contamination, or operation outside the drive’s rated parameters. Pre-shipment functional testing is performed on all units prior to dispatch.
