ABB 1SFB536068D1001 Maintenance-Ready Spare AF Series Automation

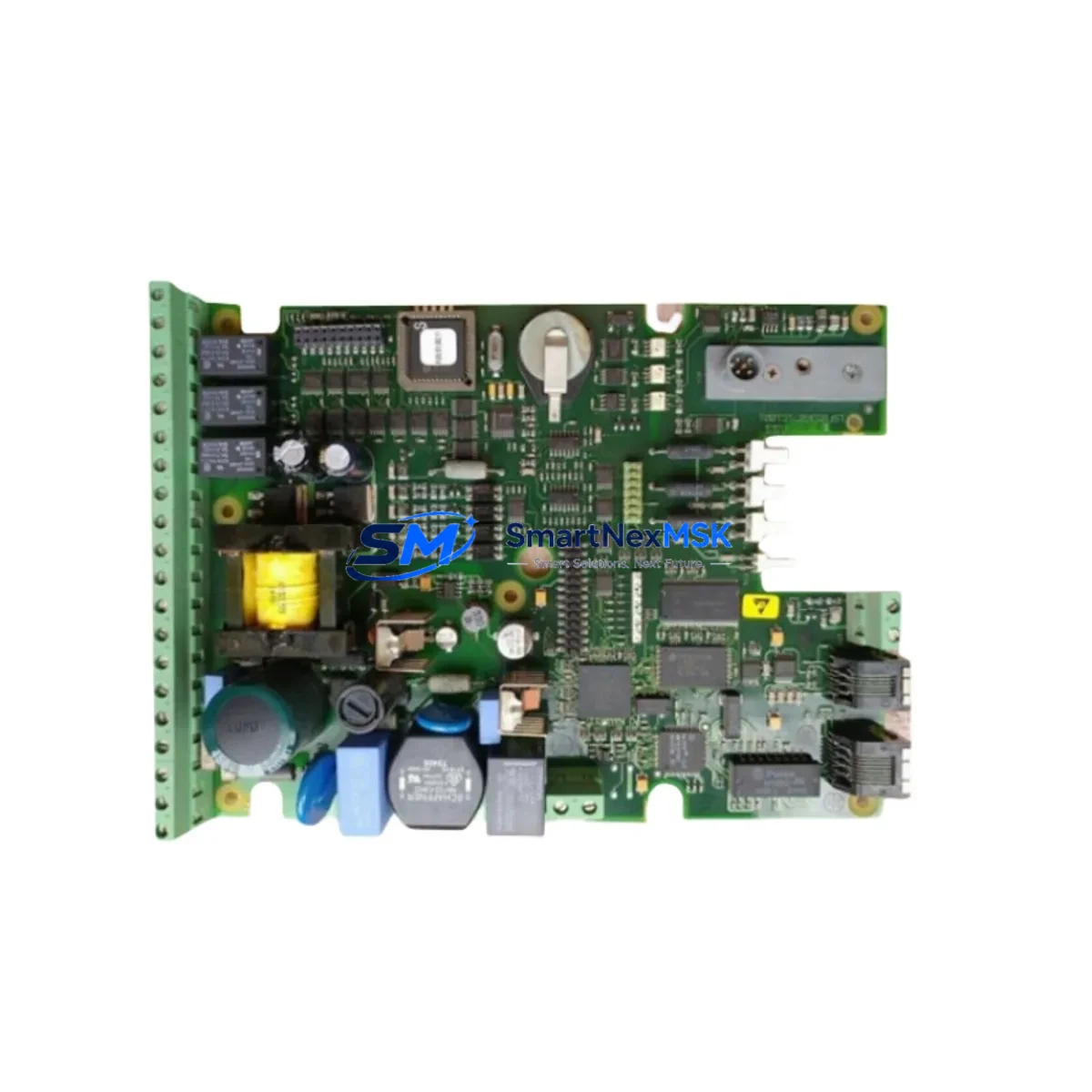

The ABB 1SFB536068D1001 is an original control PCB designed for ABB’s AF Series electronic contactor platform, covering the AF09 through AF96 contactor range. This board governs coil drive logic, voltage sensing, and soft-start control — making it a mission-critical component in motor control centers, switchgear panels, and distributed automation cabinets. When this PCB fails, the contactor loses its intelligent switching capability, resulting in immediate process interruption. Stocking a verified replacement unit of the 1SFB536068D1001 is the most effective strategy for minimizing unplanned downtime in AF Series-dependent systems.
For maintenance engineers managing aging AF Series installations, this spare part enables rapid board-swap recovery without requiring full contactor replacement. The 1SFB536068D1001 is factory-tested, ships with full electrical verification, and is backed by a 12-month warranty covering functional defects under normal operating conditions. Each unit is inspected prior to dispatch to confirm output signal integrity, coil voltage compatibility, and PCB trace continuity.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 1SFB536068D1001 |
| Brand | ABB |
| Series Compatibility | AF Series (AF09–AF96 Electronic Contactors) |
| Component Type | Control PCB / Coil Drive Logic Board |
| Coil Voltage Range | 24–500 V AC/DC (wide-range input per AF Series spec) |
| Mounting | Internal snap-fit to AF Series contactor body |
| Operating Temperature | -25°C to +60°C |
| Application Environment | Industrial switchgear, MCC panels, automation cabinets |
| Origin | Germany (DE) |
| Maintenance Role | Direct board-swap replacement; no re-parameterization required |
| Pre-shipment Testing | Functional electrical verification on every unit |
| Warranty | 12 Months — covers functional defects under normal use |
Maintenance Planning for Continuous Operation
When a 1SFB536068D1001 control PCB is flagged during routine inspection or fails in service, a disciplined maintenance engineer will not stop at replacing the board alone. The AF Series contactor operates as part of an integrated electrical circuit, and adjacent components are subject to the same thermal and electrical stress cycles that degrade the PCB over time.
Begin by inspecting the AF Series contactor coil assembly itself — if the PCB has failed due to voltage transients, the coil may show signs of insulation breakdown. Check the ABB S-series or MS-series motor protection relay upstream, as nuisance tripping or relay misoperation can accelerate PCB wear through repeated inrush events. Verify the 24 VDC or 110/230 VAC control power supply module feeding the contactor coil circuit; a supply with poor regulation or ripple will shorten PCB service life significantly.
Inspect the terminal block wiring and ferrule crimps on the coil control circuit — loose connections generate micro-arcing that introduces voltage spikes directly to the PCB input stage. If the panel includes an ABB CM-series or UMC100 motor management relay, confirm that its output contacts are within specification, as degraded relay contacts can produce abnormal switching transients. For systems using PROFIBUS or Modbus RTU communication modules to command the contactor, verify bus termination and cable shielding integrity, since communication faults can cause erratic coil energization cycles.
During planned shutdown windows, also inspect the ABB OT-series or OETL disconnect switch upstream of the MCC section, and check fuse holders and NH fuse links for signs of thermal discoloration. Where signal isolators or 4–20 mA loop isolators are used in the same cabinet, confirm their output accuracy, as signal drift can cause false start/stop commands to the contactor. Finally, review the ABB CP-series DIN rail power supply output voltage under load — a sagging supply rail is a common root cause of repeated PCB failures in high-cycle applications.
Site Replacement Workflow
Replacing the 1SFB536068D1001 in the field is a straightforward board-swap procedure that does not require contactor re-parameterization or software reconfiguration. The AF Series electronic contactor stores no user-adjustable parameters on the PCB itself — coil voltage sensing and soft-start behavior are hardware-defined by the board design.
Step 1 — Isolation: De-energize the control circuit and verify zero voltage at the coil terminals using a calibrated multimeter. Lock out the upstream disconnect per site LOTO procedures.
Step 2 — Board Removal: Release the PCB retaining clips on the AF Series contactor body. Disconnect the coil lead wires, noting polarity and terminal labeling. Remove the defective 1SFB536068D1001 board.
Step 3 — Inspection: Before installing the replacement, visually inspect the contactor body for arc erosion on the main contacts. If contact wear exceeds manufacturer limits, replace the full contactor rather than the PCB alone.
Step 4 — Installation: Seat the new 1SFB536068D1001 board into the contactor body until the retaining clips engage. Reconnect coil leads to the correct terminals.
Step 5 — Verification: Re-energize the control circuit and perform a functional test — apply rated coil voltage and confirm contactor pull-in, hold, and drop-out behavior. Verify no fault indication on the upstream motor protection relay.
This workflow supports legacy system life extension by allowing continued use of existing AF Series contactor frames, avoiding the cost and lead time of full contactor procurement. Documented replacement records should be maintained in the panel maintenance log for lifecycle tracking.
Spare Parts Support FAQ
Q1: Is the 1SFB536068D1001 compatible with all AF Series contactor sizes?
The 1SFB536068D1001 is designed for the ABB AF Series electronic contactor platform. Compatibility should be confirmed against the specific contactor model number (e.g., AF09, AF16, AF26, AF38, AF65, AF96) and the original PCB part number on the installed unit. Contact our technical team with your contactor nameplate data for confirmation before ordering.
Q2: What is included in the 12-month warranty?
The 12-month warranty covers functional defects arising under normal operating conditions, including PCB component failure, coil drive logic faults, and voltage sensing errors. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling. Warranty claims are processed with return of the defective unit for inspection.
Q3: How is each unit tested before shipment?
Every 1SFB536068D1001 unit undergoes functional electrical verification prior to dispatch. Testing confirms coil input voltage response, output signal integrity, and PCB trace continuity. A test record is available upon request for quality-critical procurement processes.
Q4: Can this PCB be used to extend the life of an older AF Series installation?
Yes. The 1SFB536068D1001 is the correct spare strategy for legacy AF Series systems where full contactor replacement is not yet justified. Board-swap replacement restores full contactor functionality at a fraction of the cost of new contactor procurement, supporting planned maintenance budgets and extending system service life by multiple years when combined with regular contact wear inspection.
