ABB 1SFB536068D1011 Spare for PST PSTB Automation: Backup-Ready Control Module for Industrial Soft Starter Systems

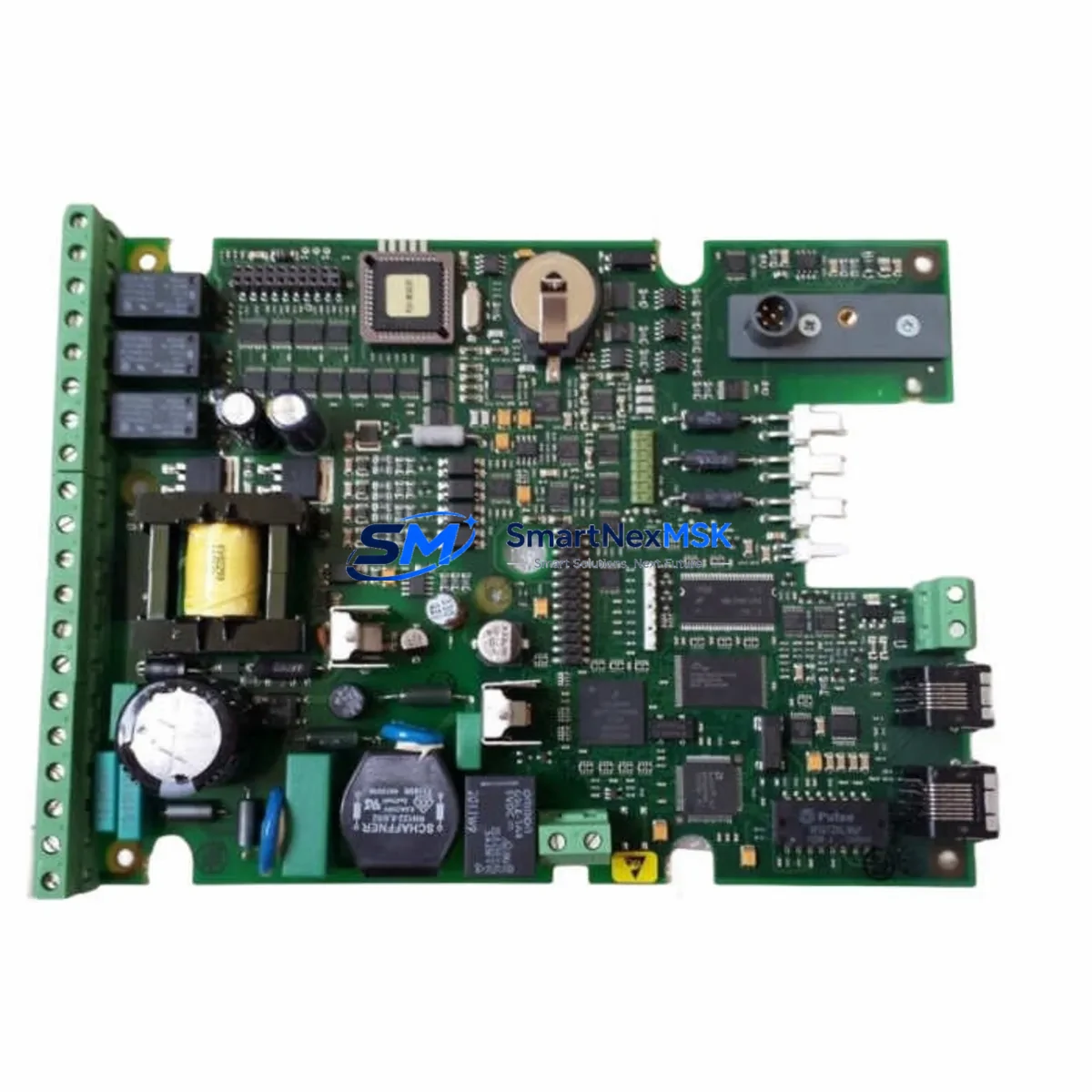

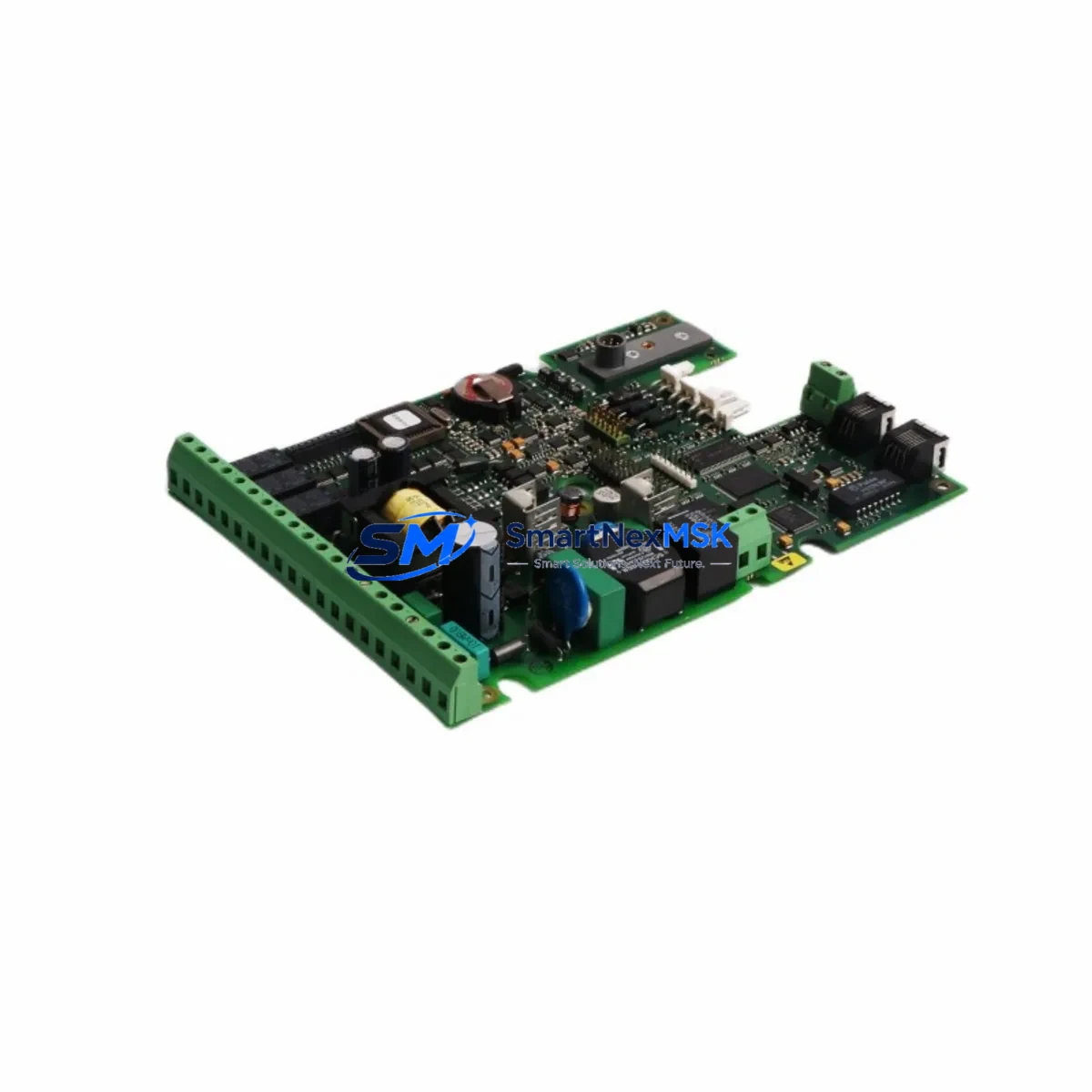

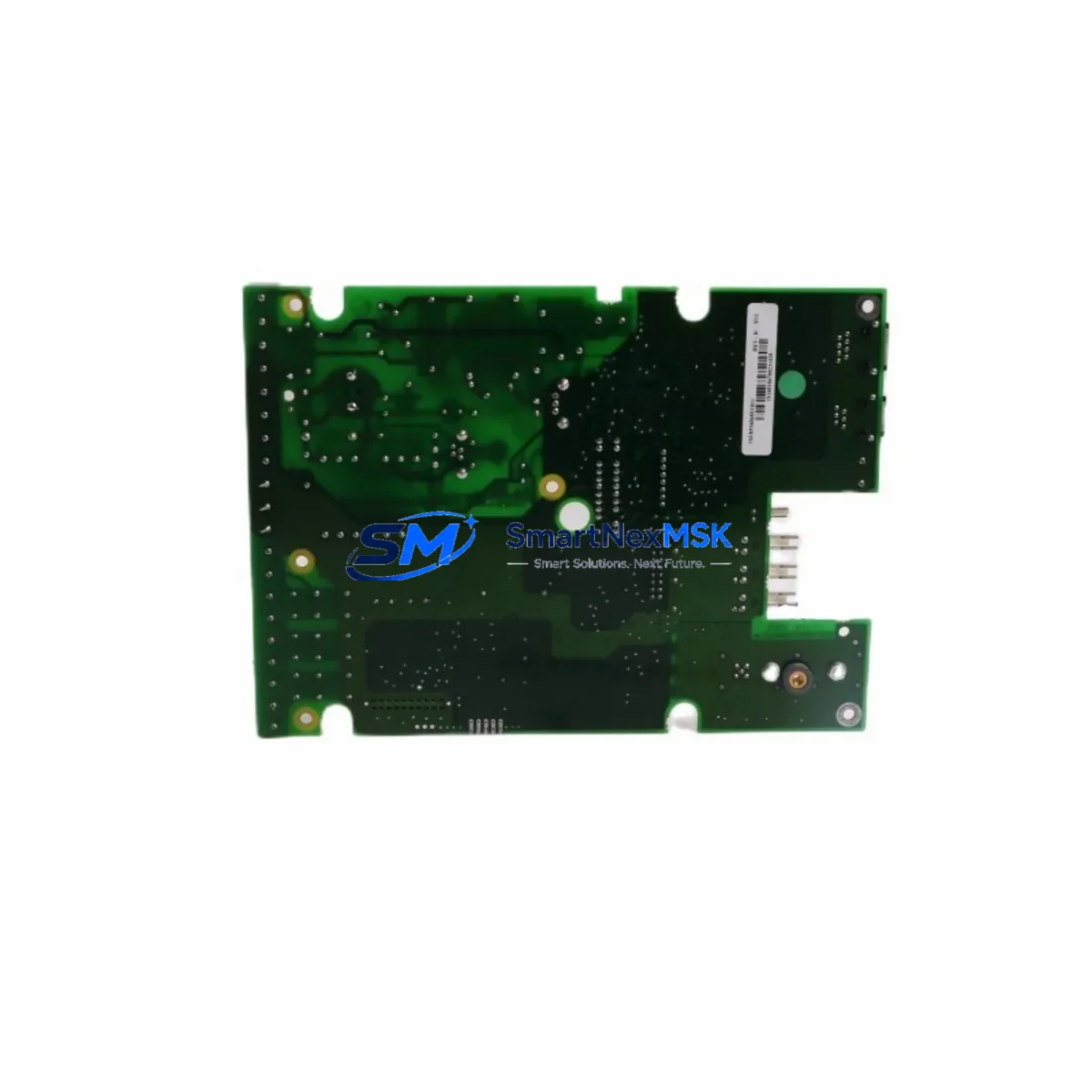

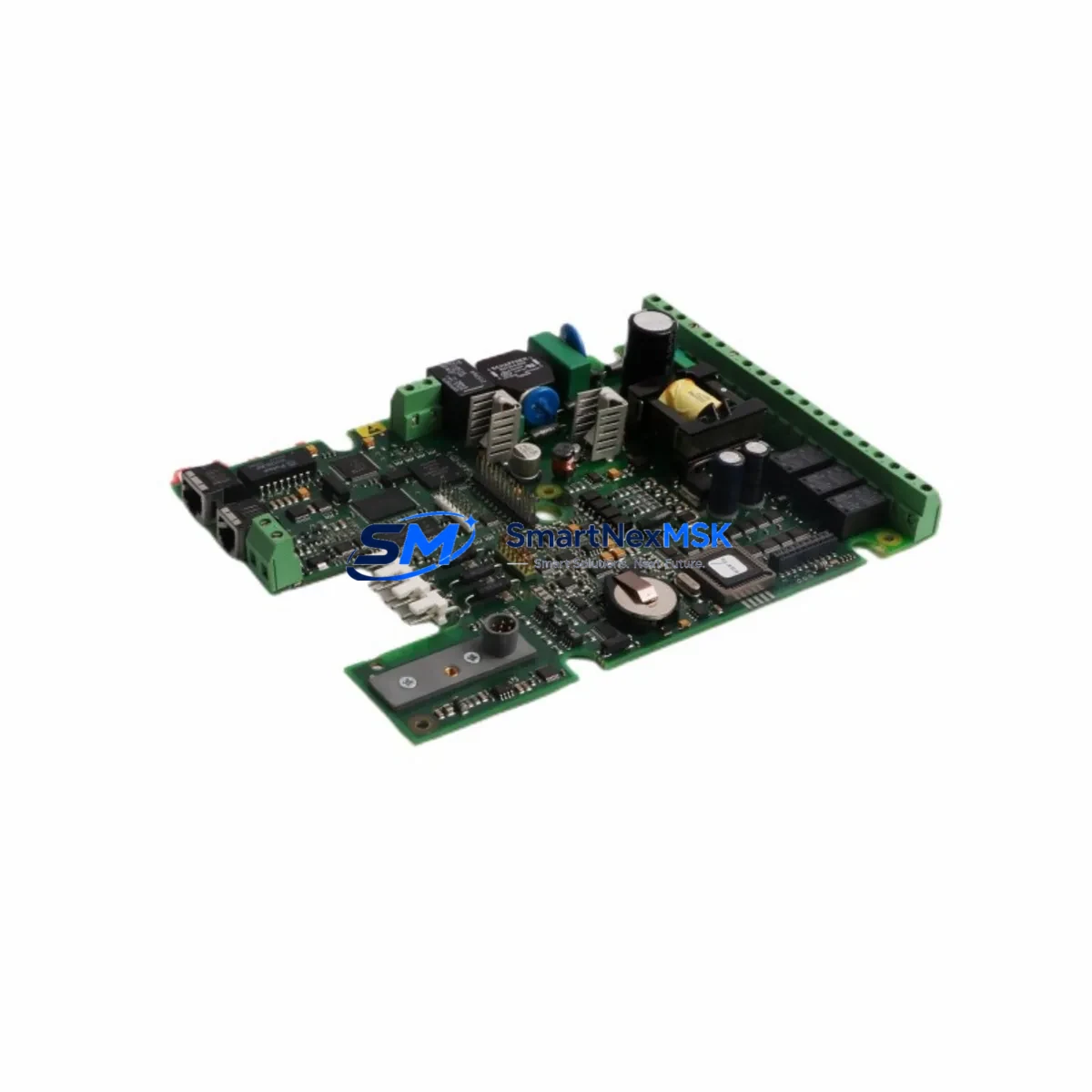

The ABB 1SFB536068D1011 is the original control module designed for the ABB PST and PSTB series soft starters — a critical component in motor protection and controlled starting applications across industrial automation environments. When this module fails or degrades, the entire soft starter becomes inoperative, exposing the facility to unplanned downtime, motor damage, and production loss. Stocking a verified replacement of the 1SFB536068D1011 is a fundamental element of any proactive maintenance strategy for plants running ABB soft starter technology.

This spare is sourced as an original ABB component, manufactured in Germany, and undergoes functional testing prior to shipment. It is compatible with the full PST and PSTB soft starter range and is suitable for direct field replacement without firmware reconfiguration in most standard installations. For maintenance engineers managing aging motor control centers (MCCs) or control cabinets with legacy ABB soft starters, this module provides a reliable path to rapid system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a soft starter control module such as the 1SFB536068D1011 is flagged for replacement during a planned shutdown or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the restored system operates reliably.

Begin with the 24 VDC auxiliary power supply feeding the control circuit — voltage instability or ripple is a common root cause of control module faults in PST/PSTB installations. Inspect the input and output power terminals and associated terminal blocks for signs of overheating, loose connections, or oxidation. The motor thermistor input circuit and any connected PTC thermistor relay should be verified for continuity and correct threshold settings, as a shorted thermistor input can trigger false module faults.

Check the control wiring harness between the control module and the power section — particularly the ribbon cable or plug connectors, which are subject to vibration fatigue in industrial environments. If the soft starter is integrated into a Profibus DP or Modbus RTU communication network, inspect the fieldbus communication module (e.g., ABB NPBA-12 or NMBP-01) for correct termination and address settings, as communication faults can be misdiagnosed as control module failures.

For installations where the PST/PSTB soft starter controls pump or fan motors, also inspect the bypass contactor and its associated auxiliary contacts — a worn bypass contactor can cause abnormal current signatures that stress the control module. The main fuses or semiconductor fuses protecting the soft starter power section should be tested for continuity and replaced if any signs of thermal stress are present.

In control cabinets housing multiple soft starters, a cabinet-level inspection should include the 24 VDC rail power supply module, DIN rail terminal strips, signal isolators on analog feedback loops, and any surge protection devices (SPDs) on the control voltage lines. For older systems approaching end-of-life, consider auditing the HMI operator panel connected to the soft starter network — outdated firmware or failing display units can complicate fault diagnosis during emergency replacements.

Site Replacement Workflow

Replacing the ABB 1SFB536068D1011 control module in the field follows a structured sequence to minimize downtime and avoid secondary damage:

1. Isolation and Lockout/Tagout (LOTO): De-energize the soft starter and apply LOTO procedures. Verify absence of voltage on both the power and control circuits before opening the enclosure.

2. Document Existing Configuration: Before removing the old module, photograph or record all parameter settings visible on the soft starter display or via the connected HMI. For PST/PSTB units with stored parameter sets, export the configuration if the communication module is still functional.

3. Module Removal: Disconnect the control module connectors in sequence. Note the orientation and labeling of all plugs. Remove the module from its mounting position — typically secured by retaining clips or screws on the PST/PSTB chassis.

4. Visual Inspection of Cavity: Inspect the module bay for debris, moisture ingress, or signs of arcing before installing the replacement 1SFB536068D1011.

5. Install Replacement Module: Seat the new module firmly, reconnect all plugs in correct sequence, and verify connector locking. Do not force connectors — misalignment can damage the module interface.

6. Parameter Restore and Commissioning Test: Re-enter or upload the saved parameter set. Perform a no-load test start before reconnecting the motor load. Verify fault-free operation across at least two full start/stop cycles.

7. Return to Service and Documentation: Log the replacement in the maintenance management system (CMMS), record the new module serial number, and update the spare parts inventory to trigger reorder of a replacement stock unit.

Spare Parts Support FAQ

Q1: Is the 1SFB536068D1011 compatible with all PST and PSTB soft starter models?
The 1SFB536068D1011 is the standard control module for the ABB PST/PSTB series. Compatibility depends on the specific soft starter model and hardware revision. Always cross-reference the host unit’s nameplate data and the ABB documentation for your exact PST or PSTB model before installation. Contact our technical team with your soft starter model number for confirmation prior to ordering.

Q2: How is each unit tested before shipment?
Every 1SFB536068D1011 unit undergoes functional testing prior to dispatch. This includes power-on verification, communication interface checks, and visual inspection for physical integrity. Units that do not pass testing are not shipped. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating parameters. Warranty claims are processed with return of the defective unit and provision of a fault description.

Q4: How should I manage spare parts inventory for PST/PSTB soft starters in a multi-line plant?
For plants operating multiple PST or PSTB soft starters, the recommended strategy is to maintain at least one 1SFB536068D1011 control module per five installed units, or one per critical production line — whichever results in a higher stock level. Given the lead times associated with industrial automation spares, holding a pre-tested replacement on-site eliminates the risk of extended downtime while awaiting procurement. Review and replenish spare stock immediately after any field replacement to maintain buffer inventory.
