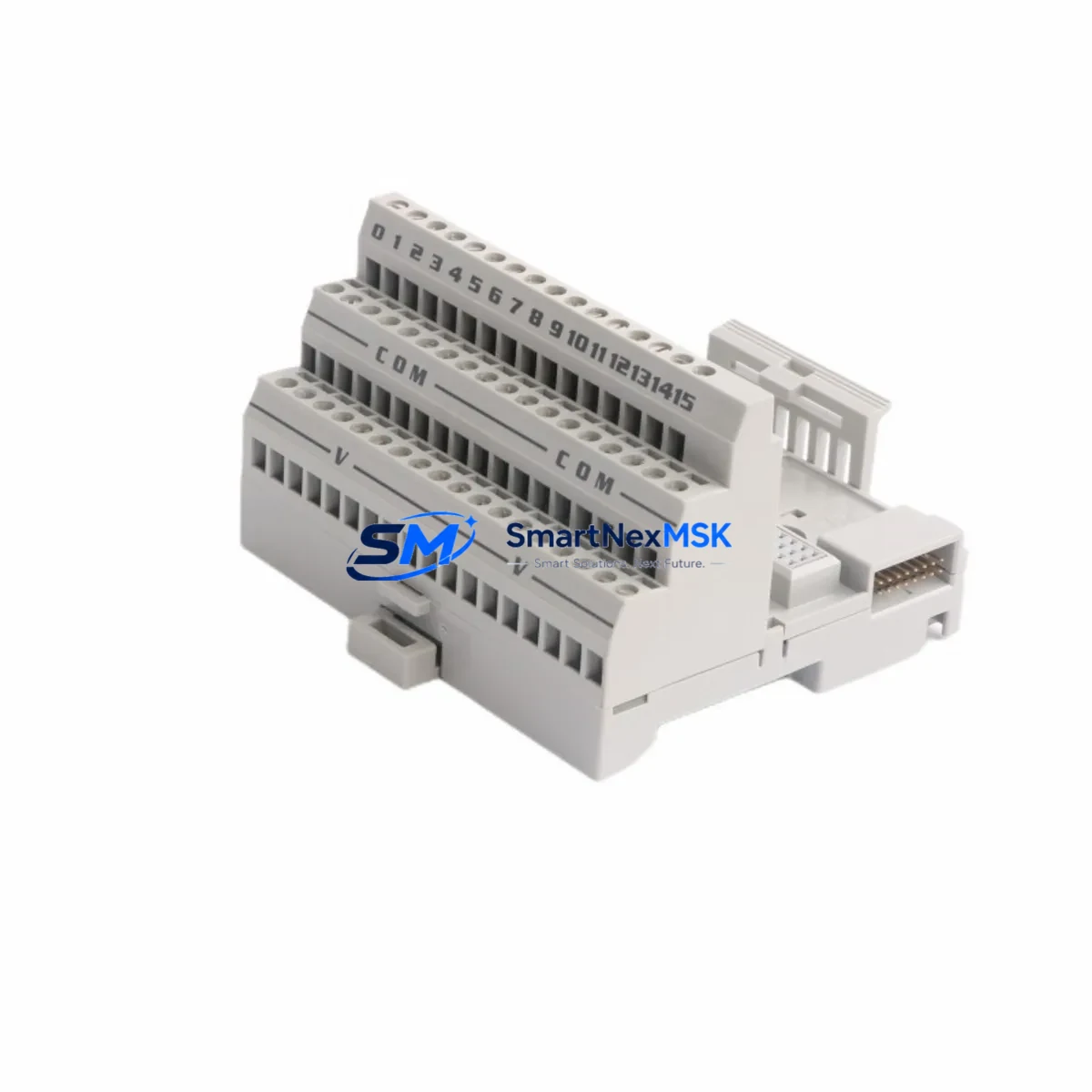

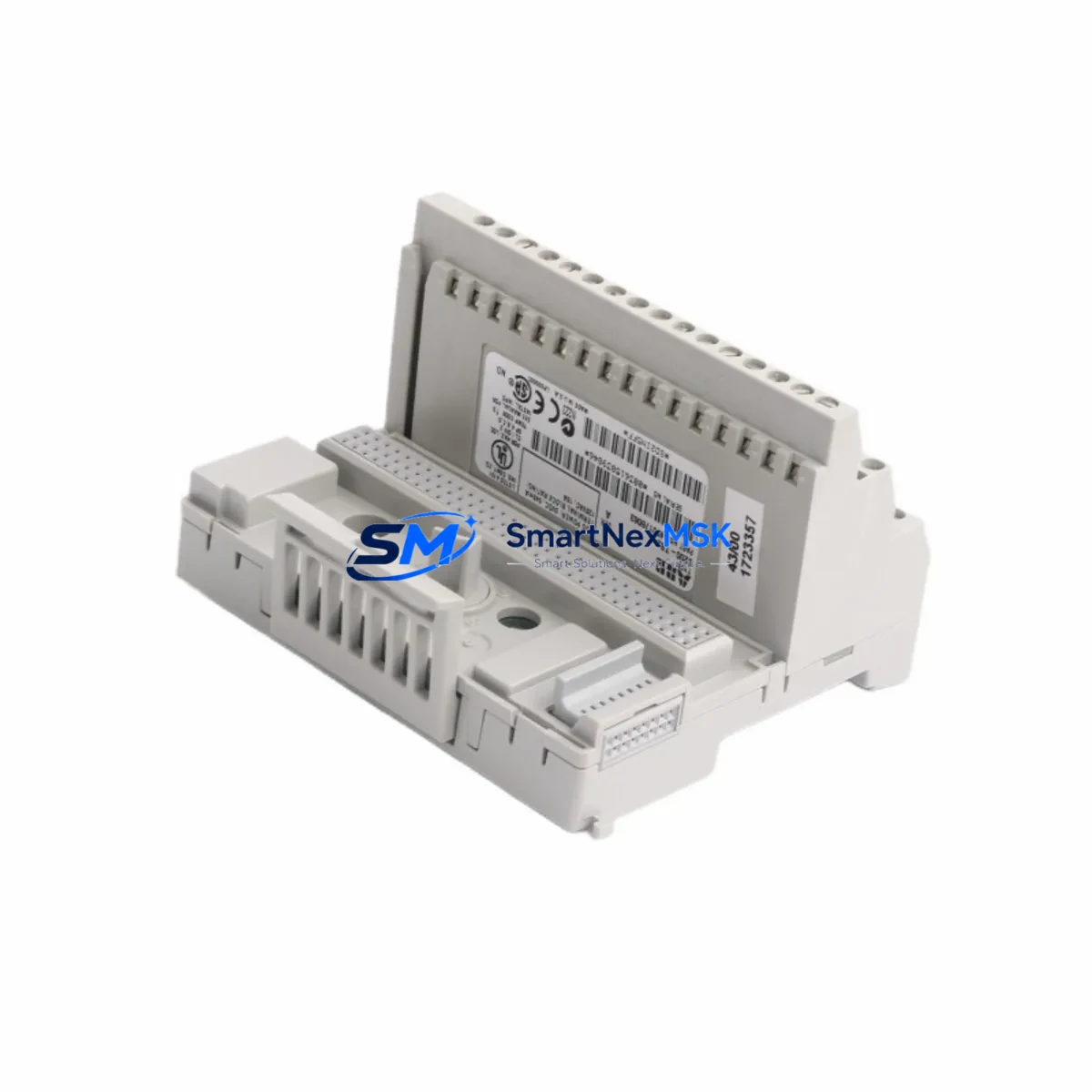

ABB 200-TB3 Maintenance-Ready Spare for SACE Automation

ABB 200-TB3 Maintenance-Ready Spare for SACE Automation

When a SACE series air circuit breaker trips unexpectedly or a terminal block shows signs of thermal stress, every minute of downtime translates directly into production loss. The ABB 200-TB3 terminal block is a precision-engineered original spare component designed to restore your SACE breaker assembly to full operational status with minimal intervention. Stocked, tested, and dispatched from SMARTNEXMSK, this part supports maintenance engineers and procurement teams who cannot afford to wait weeks for a critical replacement.

The 200-TB3 serves as the auxiliary terminal interface on ABB SACE Emax, Emax 2, and Tmax series air circuit breakers, providing secure, vibration-resistant termination points for control wiring, protection relay signals, and auxiliary contact outputs. In high-load switchgear panels and motor control centers, the integrity of these terminal connections is fundamental to reliable tripping, closing, and interlocking operations. A degraded or damaged terminal block can introduce intermittent signal loss, nuisance tripping, or complete loss of remote control — all of which carry serious safety and operational consequences in continuous process environments.

Maintenance teams working on aging SACE installations frequently encounter worn terminal screws, cracked insulation bodies, or corroded contact surfaces caused by years of thermal cycling and vibration. Rather than replacing the entire breaker assembly, sourcing the 200-TB3 as a targeted spare allows for a focused, cost-effective repair that restores the original electrical performance without disrupting the surrounding switchgear infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance of SACE circuit breaker assemblies requires a systems-level approach. When replacing the 200-TB3 terminal block, experienced maintenance engineers treat the intervention as an opportunity to inspect and verify the condition of all interconnected components within the same control cabinet or switchgear panel.

Begin by checking the ABB SACE Emax 2 auxiliary contact module (such as the S6N or S7S auxiliary contact set) mounted adjacent to the terminal block. These contacts feed trip and close status signals to the SCADA or PLC system, and worn contacts can cause false status readings even after the terminal block is replaced. Similarly, the ABB shunt trip coil and undervoltage release coil wired through the 200-TB3 should be tested for correct actuation voltage and coil resistance — a degraded coil will fail to trip the breaker under fault conditions regardless of terminal integrity.

The control wiring routed through the 200-TB3 typically connects to ABB CM-series monitoring relays or third-party protection relays for overcurrent, earth fault, and thermal overload supervision. Inspect the wiring ferrules and cable insulation at each terminal position for signs of heat damage or insulation breakdown. In panels where the SACE breaker is part of a bus coupler or tie-breaker scheme, also verify the condition of the ABB motor operator module (MOE or MOD type) and its associated limit switch wiring, as these share the same terminal rail.

For power supply integrity, confirm that the 24 VDC auxiliary power supply feeding the breaker’s electronic trip unit (ETU) and communication module is within tolerance. ABB CP-series DIN-rail power supplies are commonly used in these panels and should be load-tested during the maintenance window. If the installation includes an ABB Ekip communication module (Modbus, PROFIBUS, or Ethernet variant), verify that the module’s connector and terminal wiring are secure, as communication faults are frequently traced to loose auxiliary terminals rather than module failure.

End-terminal barriers, ABB SNK series end clamps, and Phoenix Contact or Weidmüller terminal markers used alongside the 200-TB3 should also be inspected and replaced if cracked or discolored. Maintaining a small buffer stock of 200-TB3 units alongside spare ETU modules, auxiliary contact sets, and shunt coils ensures that your maintenance team can complete a full breaker refurbishment within a single planned outage window, minimizing the risk of repeat interventions.

Site Replacement Workflow

Replacing the ABB 200-TB3 on-site follows a structured sequence that minimizes exposure time and ensures system compatibility is maintained throughout the process.

Step 1 — Isolation and Lockout: Open and lock out the SACE breaker in accordance with your site’s LOTO procedure. Verify absence of voltage on all poles using an approved voltage tester before proceeding.

Step 2 — Documentation: Photograph the existing terminal wiring layout before disconnecting any conductors. Label each wire with its terminal number using adhesive markers. This step is critical in older installations where as-built drawings may not reflect field modifications.

Step 3 — Terminal Block Removal: Using the appropriate screwdriver, loosen all terminal screws and carefully remove each conductor. Unclip or unscrew the 200-TB3 body from the breaker frame following ABB’s disassembly sequence for the specific SACE model. Inspect the breaker frame mounting points for damage.

Step 4 — New Unit Installation: Fit the replacement 200-TB3 into the breaker frame and secure it per the torque specification in the ABB SACE maintenance manual. Reconnect all conductors in the documented sequence, tightening each terminal screw to the rated torque (typically 0.5–0.8 Nm for auxiliary terminals).

Step 5 — Functional Verification: Before restoring power, perform a continuity check on all auxiliary circuits. After energizing, test the trip and close functions via the local pushbutton and remote control path. Verify that all status signals are correctly received at the PLC or SCADA system. Log the replacement in the equipment maintenance record.

This workflow applies equally to planned overhauls and emergency replacements. Having a pre-tested 200-TB3 unit on the shelf — verified by SMARTNEXMSK’s outgoing inspection — means the replacement step itself takes under 30 minutes, with the majority of downtime consumed by isolation, documentation, and functional testing.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ABB 200-TB3 supplied by SMARTNEXMSK?
All 200-TB3 units are covered by a 12-month warranty from the date of shipment. If the unit exhibits any manufacturing defect or fails under normal operating conditions within this period, SMARTNEXMSK will arrange a replacement or refund. Each unit undergoes outgoing electrical and mechanical inspection before dispatch.

Q2: How do I confirm compatibility with my specific SACE breaker model?
The 200-TB3 is designed for ABB SACE Emax, Emax 2, and Tmax XT series air circuit breakers. To confirm fitment for your exact frame size and rating, provide your breaker’s full type designation (e.g., E2.2N 1600 or T7S 1600) when contacting SMARTNEXMSK. Our technical team will cross-reference the part against ABB’s spare parts catalog to confirm compatibility before order confirmation.

Q3: Can the 200-TB3 be used to replace older SACE terminal block variants that are no longer available?
In many cases, yes. ABB has consolidated terminal block designs across SACE generations, and the 200-TB3 is a current-production part that serves as the recommended replacement for several discontinued variants. SMARTNEXMSK can advise on cross-reference compatibility based on your existing part number or breaker serial number.

Q4: What is SMARTNEXMSK’s lead time and long-term supply commitment for this part?
The 200-TB3 is maintained as a stocked item at SMARTNEXMSK. Standard orders ship within 1–3 business days. For customers requiring ongoing supply for fleet maintenance programs or annual MRO contracts, SMARTNEXMSK offers reserved stock arrangements and priority fulfillment to ensure continuity of supply for critical spare parts.

—
