ABB 3AFE64803689 Maintenance-Ready Spare for ACS800 Automation

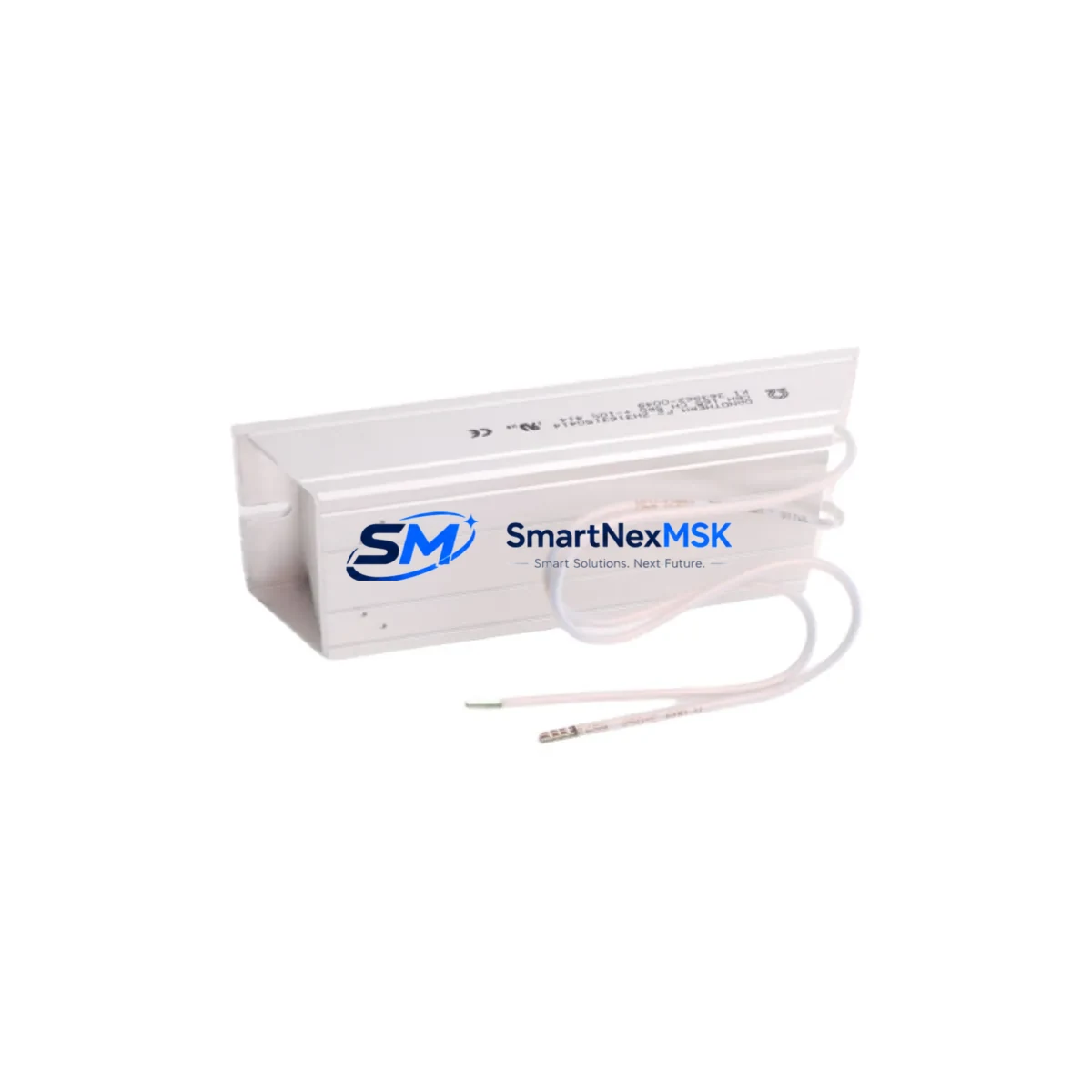

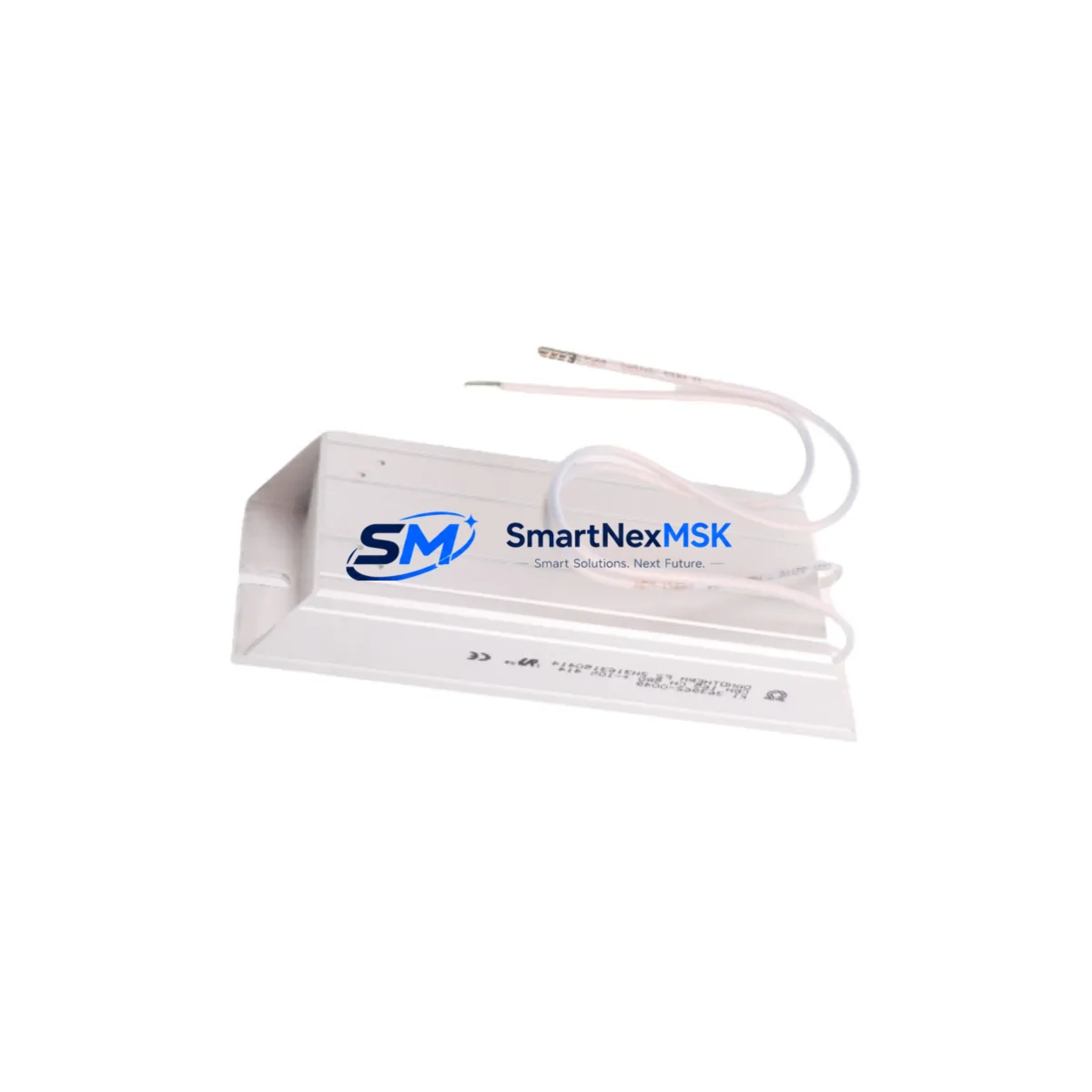

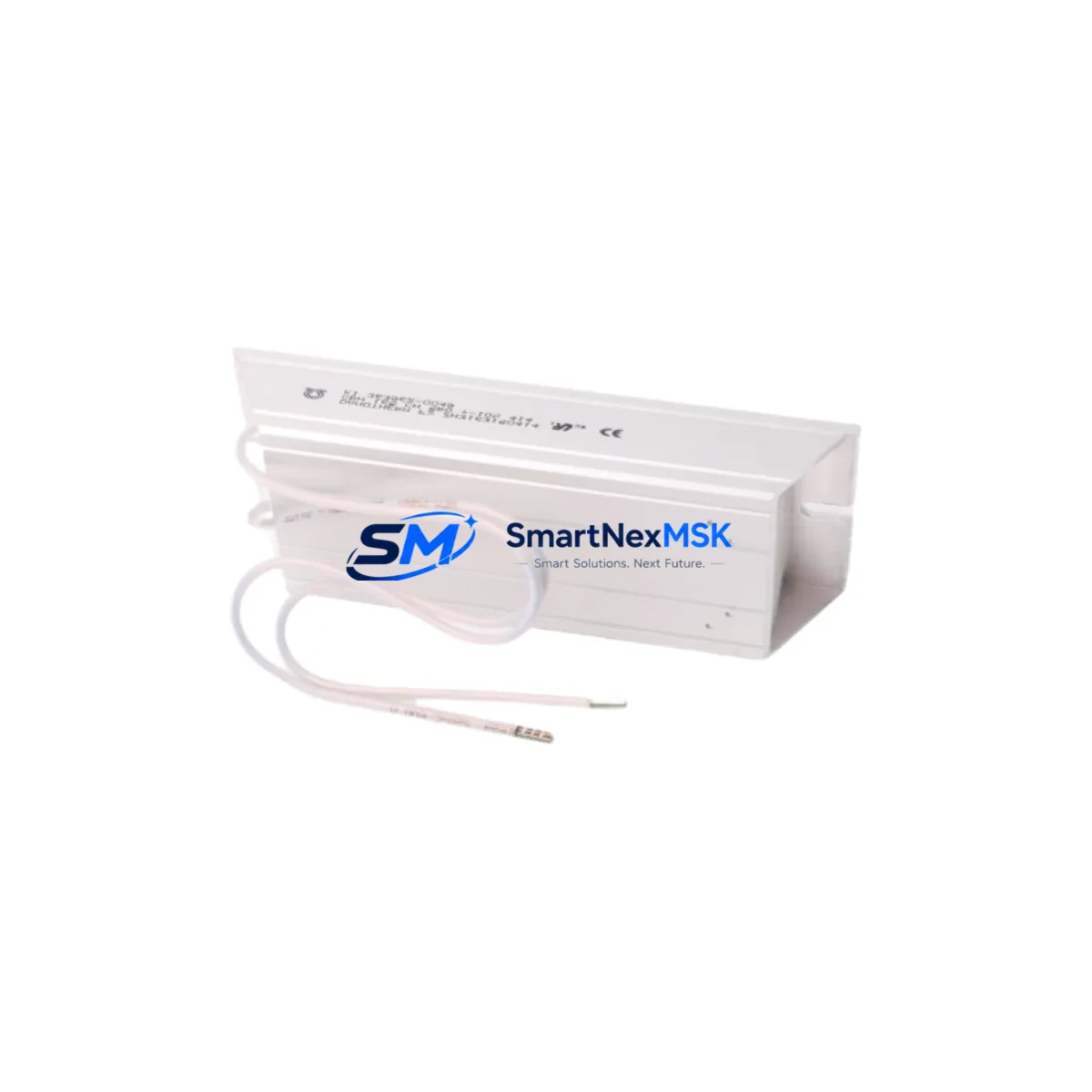

The ABB 3AFE64803689 is an original DC Bus Pre-Charge Resistor designed for the ACS800 series variable frequency drives. In industrial automation environments, the pre-charge resistor plays a critical role in limiting inrush current during drive power-up, protecting the DC bus capacitors and the entire drive power stack from surge damage. When this component fails or degrades, the ACS800 drive will typically fault on startup, triggering unplanned downtime in motor control applications across manufacturing, process automation, and material handling systems.
Sourced as a genuine ABB spare, the 3AFE64803689 is fully compatible with the ACS800 drive family and meets original factory electrical specifications. Each unit is inspected and tested prior to shipment, ensuring that maintenance teams receive a field-ready component that can be installed directly without additional calibration or configuration.
Spare Maintenance Table
| Part Number | 3AFE64803689 |
| Brand | ABB |
| Compatible Series | ACS800 Variable Frequency Drive Series |
| Component Type | DC Bus Pre-Charge Resistor |
| Function | Limits inrush current to DC bus capacitors during drive power-up |
| Origin | China (CN) — ABB authorized supply chain |
| Installation | Direct replacement; no parameter reconfiguration required |
| Application Environment | Industrial motor control panels, process automation, HVAC, material handling |
| Maintenance Recommendation | Inspect during scheduled drive maintenance; replace if resistance drift or thermal discoloration is observed |
| Pre-Shipment Testing | Electrically tested and verified before dispatch |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When replacing the 3AFE64803689 pre-charge resistor in an ACS800 drive, a thorough maintenance engineer will treat the replacement as an opportunity to audit the surrounding power and control circuit. The DC bus pre-charge circuit does not operate in isolation — its condition directly affects the reliability of the IGBT power module, the DC bus capacitor bank, and the drive’s soft-start behavior. Before closing the control cabinet, it is good practice to inspect the ACS800 main contactor and pre-charge relay, as contact wear or coil degradation can cause repeated resistor stress even after a fresh replacement.
The drive’s input rectifier bridge and input fuses (typically blade-type or NH-type fuses rated to the drive’s input current) should be checked for signs of overheating or asymmetric loading. A faulty rectifier can cause uneven DC bus charging, which places abnormal thermal stress on the pre-charge resistor. Similarly, the DC bus capacitors — often supplied as a capacitor bank assembly specific to the ACS800 frame size — should be measured for capacitance and ESR if the drive has been in service for more than five years.
On the control side, the ACS800 RMIO control board governs the pre-charge sequence through its relay outputs and digital I/O. If the drive is faulting intermittently during startup rather than consistently, the RMIO board’s relay outputs and the associated 24 VDC control power supply should be verified. The RDCO communication adapter (for DDCS or fiber-optic fieldbus) and RINT input/output extension modules should also be inspected for loose fiber connectors or damaged ribbon cables, as communication faults during startup can mask underlying power circuit issues.
For sites running older ACS800 units in legacy systems, the APBU branching unit and AINT interface boards are common wear items that should be included in the spare parts inventory alongside the pre-charge resistor. Procurement engineers managing multi-drive installations should also consider stocking the ACS800 fan assembly and thermistor relay, as thermal management failures are a leading cause of drive derating and unplanned shutdowns in high-ambient environments.
All replacement components are available with 12-month warranty coverage and are dispatched only after passing pre-shipment electrical verification.
Site Replacement Workflow
Replacing the ABB 3AFE64803689 on-site is a straightforward procedure for a qualified maintenance technician familiar with the ACS800 drive architecture. Begin by isolating the drive from the mains supply and verifying that the DC bus voltage has discharged below 50 VDC using a calibrated multimeter — this is a mandatory safety step before opening the power section. Locate the pre-charge resistor assembly within the drive’s power module compartment; in most ACS800 frame sizes, it is accessible after removing the front cover and the DC bus bar shield.
Disconnect the resistor’s terminal connections, noting the wire routing and any cable ties for reassembly. Install the 3AFE64803689 replacement, torque the terminals to the specification listed in the ACS800 hardware manual, and restore all covers before re-energizing. On first power-up, monitor the drive’s startup sequence via the ACS800 control panel (CDP312R or similar) or through the DriveWindow PC tool to confirm that the pre-charge phase completes without fault. If the drive previously logged fault code F-0022 (charging switch) or similar DC bus faults, clear the fault log after successful startup and document the replacement in the site maintenance record.
This replacement workflow is compatible across the ACS800 single-drive, multidrive, and cabinet-built variants, making the 3AFE64803689 a versatile spare that supports fleet-wide maintenance standardization without requiring model-specific variants.
Spare Parts Support FAQ
Q1: Is the 3AFE64803689 compatible with all ACS800 frame sizes?
The 3AFE64803689 is specified for the ACS800 series and is compatible across multiple frame sizes within that family. We recommend confirming the exact frame size and drive rating against the ABB ACS800 hardware manual or contacting our technical team with your drive nameplate data for final compatibility verification before ordering.
Q2: How is the spare tested before shipment?
Each 3AFE64803689 unit undergoes electrical resistance verification and visual inspection prior to dispatch. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.
Q3: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated parameters. Warranty claims are processed with priority to minimize site downtime.
Q4: Can this spare support long-term inventory for aging ACS800 systems?
Yes. The 3AFE64803689 is stocked specifically to support legacy ACS800 installations where OEM supply lead times may be extended. For sites managing multiple ACS800 drives, we recommend holding at least one unit per drive frame size in the on-site spare parts cabinet. Long-term supply agreements and volume pricing are available for procurement teams managing large installed bases.
