ABB 3BHB004661R0101 KUC711AE Retrofit-Ready Gate Unit for AC800M

ABB 3BHB004661R0101 KUC711AE Retrofit-Ready Gate Unit for AC800M: Compatible Modernization & Smooth Legacy System Upgrade

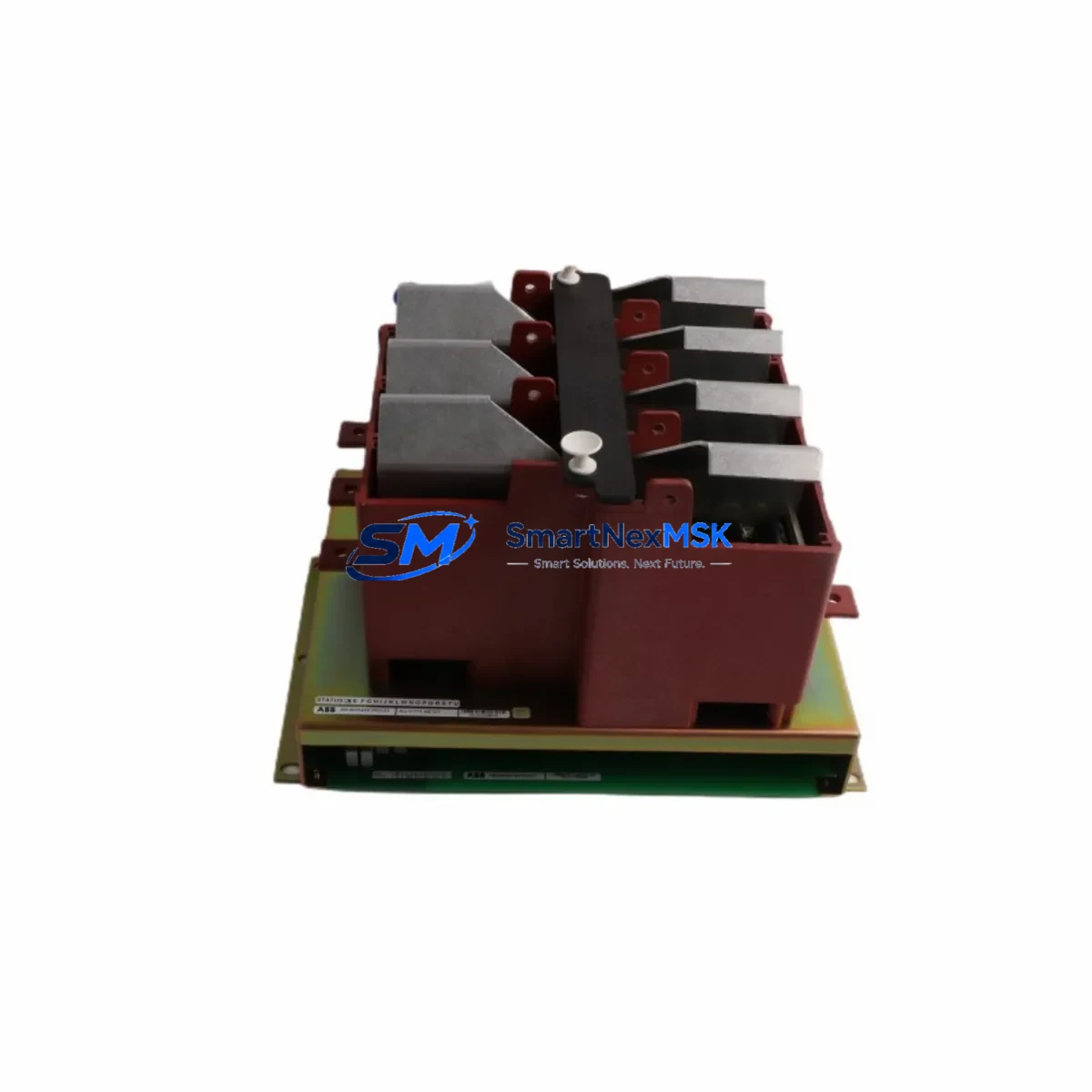

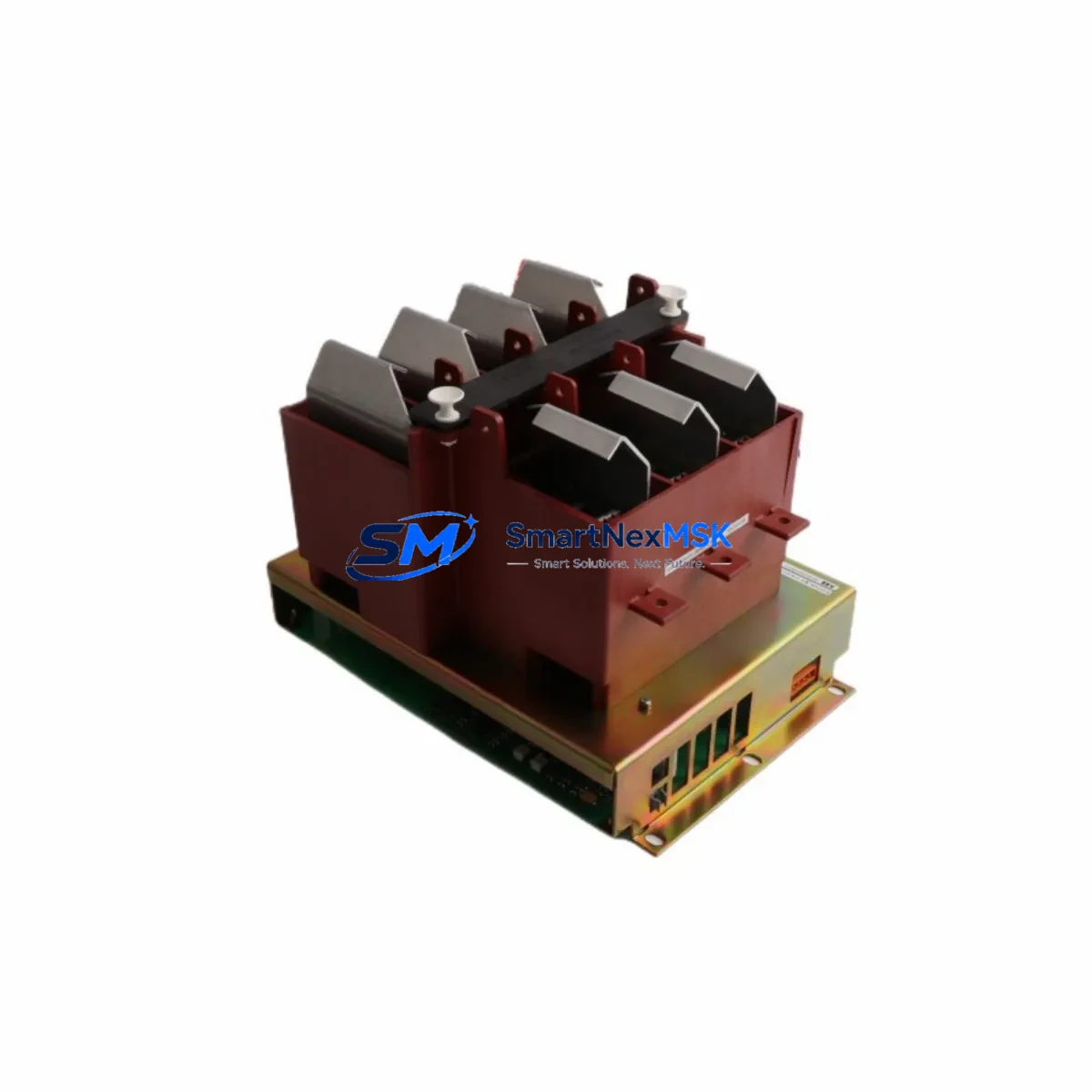

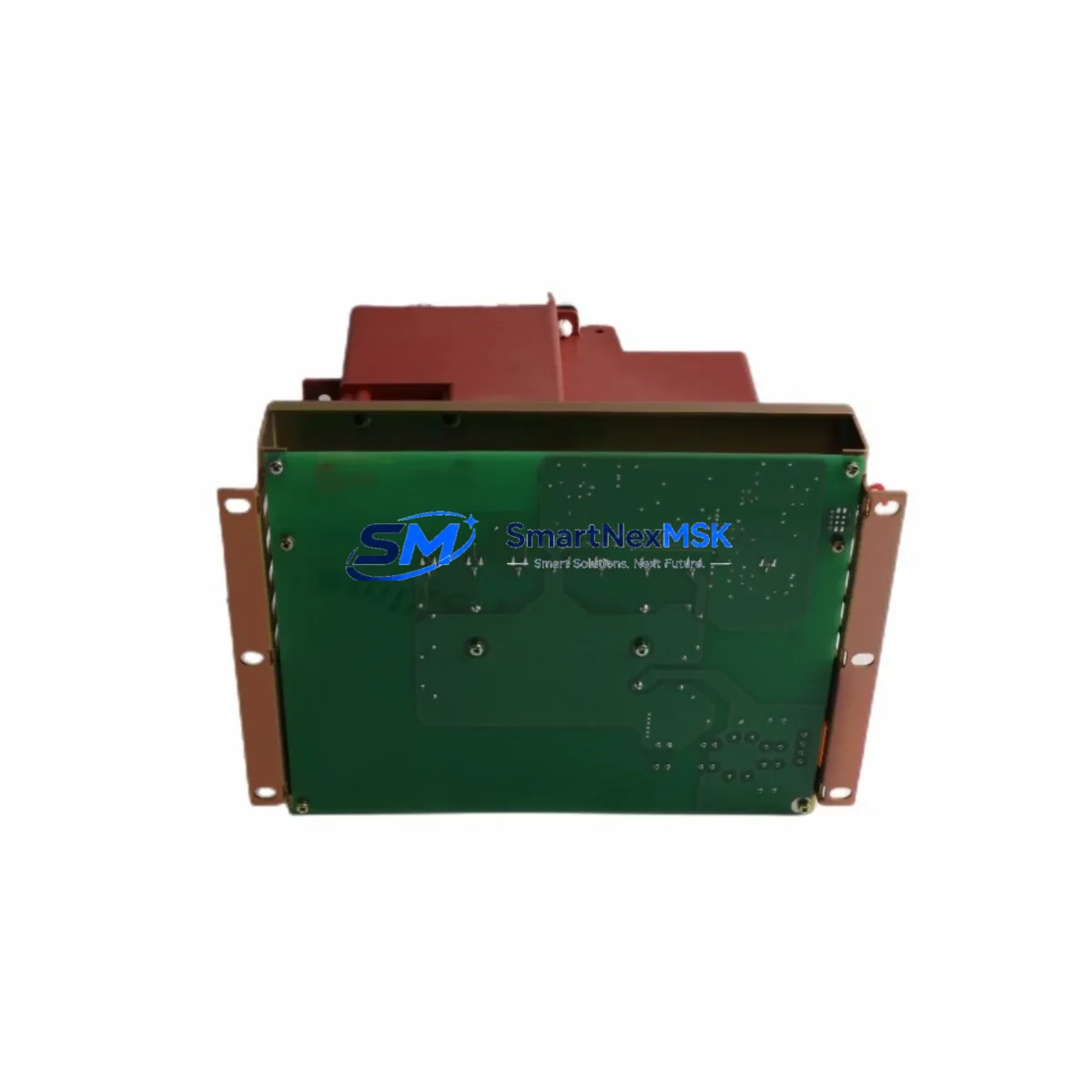

The ABB 3BHB004661R0101 KUC711AE is a gate unit power supply module engineered for IGCT-based medium-voltage drive systems and AC800M distributed control platforms. As original equipment reaches end-of-life and OEM spare parts become increasingly scarce, this module serves as a verified retrofit-ready replacement that allows plant engineers to restore full drive functionality without redesigning the control cabinet or rewriting the application program. Whether you are recovering from an unplanned drive fault, executing a scheduled control system upgrade, or migrating an aging production line to a more maintainable architecture, the 3BHB004661R0101 KUC711AE provides the electrical and mechanical compatibility required for a confident, low-risk changeover.

Sourced from authorized channels and subject to pre-shipment functional verification, each unit is inspected for gate pulse integrity, auxiliary power rail stability, and backplane interface continuity before dispatch. Stock is maintained to support urgent replacement scenarios, and orders are processed with priority handling to minimize production downtime. A 12-month warranty covering manufacturing defects and functional failure is included with every shipment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 3BHB004661R0101 KUC711AE begins well before the module arrives on site. Engineers should start by auditing the existing control cabinet to confirm available backplane slots, verify that the rack power budget can support the gate unit’s auxiliary draw alongside co-installed modules such as the PM865 processor module and the TB820 ModuleBus modem, and document the current wiring layout at the terminal block level. In many AC800M installations, the gate unit shares a rack with CI854 PROFIBUS communication interface modules and AI810 or AO810 analog I/O modules; confirming that these neighbors remain undisturbed during the swap is essential to avoiding cascading faults.

For IGCT drive cabinets running on ACS6000 or ACS1000 platforms, the replacement procedure also requires checking the fiber-optic gate pulse cables that connect the KUC711AE to the IGCT thyristor stack. These cables are sensitive to bend radius and connector seating; any misalignment will result in misfiring events that can damage the power semiconductors. It is advisable to have a spare set of IGCT gate cables on hand during the retrofit, along with the appropriate ABB commissioning tool (typically connected via a service laptop running Drive Composer or Control Builder M) to read back gate pulse waveforms and confirm firing symmetry across all IGCT devices in the stack.

Terminal wiring adaptation is another critical checkpoint. If the outgoing module used a different revision of the KUC711AE, terminal assignments may differ slightly between hardware revisions. Cross-reference the wiring diagram stored in the cabinet door against the module’s terminal labeling before energizing. Where the original installation used a CI857 HART communication module or a DI810 digital input module for process interlocks tied to the drive’s run-permit chain, verify that these interlock signals remain correctly routed after the gate unit swap. HMI screens built on ABB’s 800xA system or on a standalone PP865 operator panel should be reviewed to confirm that drive status tags, fault codes, and gate unit health indicators map correctly to the replacement module’s diagnostic outputs.

Finally, confirm that the module address configured via hardware DIP switches or software parameterization matches the address expected by the AC800M application program. A mismatch here will cause the controller to report a missing module fault at startup, preventing the drive from entering the ready state. Having the original project backup from Control Builder M available during commissioning allows the engineer to compare the hardware configuration tree against the physical installation and resolve any address conflicts before the first test run.

Downtime Control During System Migration

Minimizing production downtime during a gate unit replacement requires a structured pre-outage preparation phase. Before the scheduled maintenance window, the engineering team should export a full backup of the AC800M application project from Control Builder M, including all function block diagrams, sequential function charts, and hardware configuration files. This backup serves as the recovery baseline if the commissioning process encounters unexpected issues and a rollback is required.

During the outage, follow a defined sequence: isolate the drive from the medium-voltage bus, discharge the DC link capacitors to a safe level (confirmed by the drive’s built-in voltage measurement or an external meter), remove the faulty KUC711AE, install the replacement 3BHB004661R0101 KUC711AE, reconnect all gate pulse fiber cables and auxiliary power connectors, and restore the module address settings. The entire physical swap can typically be completed within 30 to 60 minutes by a trained technician familiar with the ACS6000 or ACS1000 cabinet layout.

Post-installation, bring the drive up in a no-load test mode if the process permits. Use Drive Composer or the AC800M diagnostic interface to verify that all gate unit health parameters are within specification before reconnecting the load. If the plant operates a redundant drive configuration, the migration can be staged so that one drive remains in service while the other undergoes the retrofit, eliminating the need for a full production stop. Maintaining a documented commissioning checklist — covering gate pulse verification, auxiliary voltage measurement, communication link status, and HMI tag validation — ensures that each step is traceable and that the system is returned to service in a controlled, auditable manner.

Retrofit Support FAQ

Q1: Is the 3BHB004661R0101 KUC711AE a direct drop-in replacement for all KUC711AE variants?
The 3BHB004661R0101 is the primary hardware revision of the KUC711AE gate unit power supply and is compatible with the standard ACS6000 and ACS1000 IGCT gate unit slot. If your existing installation uses a different R-suffix revision, verify the terminal wiring diagram and fiber connector type before installation. In most cases, the electrical and mechanical interface is identical across revisions, but a wiring cross-check takes less than 15 minutes and eliminates the risk of a miswiring fault.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, connect a service laptop running Drive Composer or Control Builder M to the drive’s service port. Verify that the gate unit is recognized in the hardware configuration tree, check auxiliary power rail voltages (±15 V and +5 V), confirm gate pulse waveform symmetry across all IGCT devices, and clear any latched fault codes. Run a no-load test cycle before reconnecting the process load. Total commissioning time is typically 1 to 3 hours depending on drive complexity.

Q3: How is pre-shipment testing performed, and what does the 12-month warranty cover?
Each 3BHB004661R0101 KUC711AE unit undergoes functional verification prior to shipment, including gate pulse output testing, auxiliary power rail measurement, and backplane interface continuity checks. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: Can this module be used in an AC800M system that has already migrated to a newer communication protocol?
Yes. The KUC711AE gate unit power supply operates independently of the higher-level communication protocol used by the AC800M controller. Whether your system communicates via PROFIBUS-DP through a CI854 interface, via AF100 through a CI810 fieldbus module, or via a proprietary ModuleBus backbone, the gate unit’s function — generating firing pulses for the IGCT stack and distributing auxiliary power within the drive rack — is not affected by the communication layer. Protocol migration projects that involve replacing CI modules or upgrading the PM processor do not require a simultaneous gate unit replacement unless the existing KUC711AE is already showing fault symptoms.
