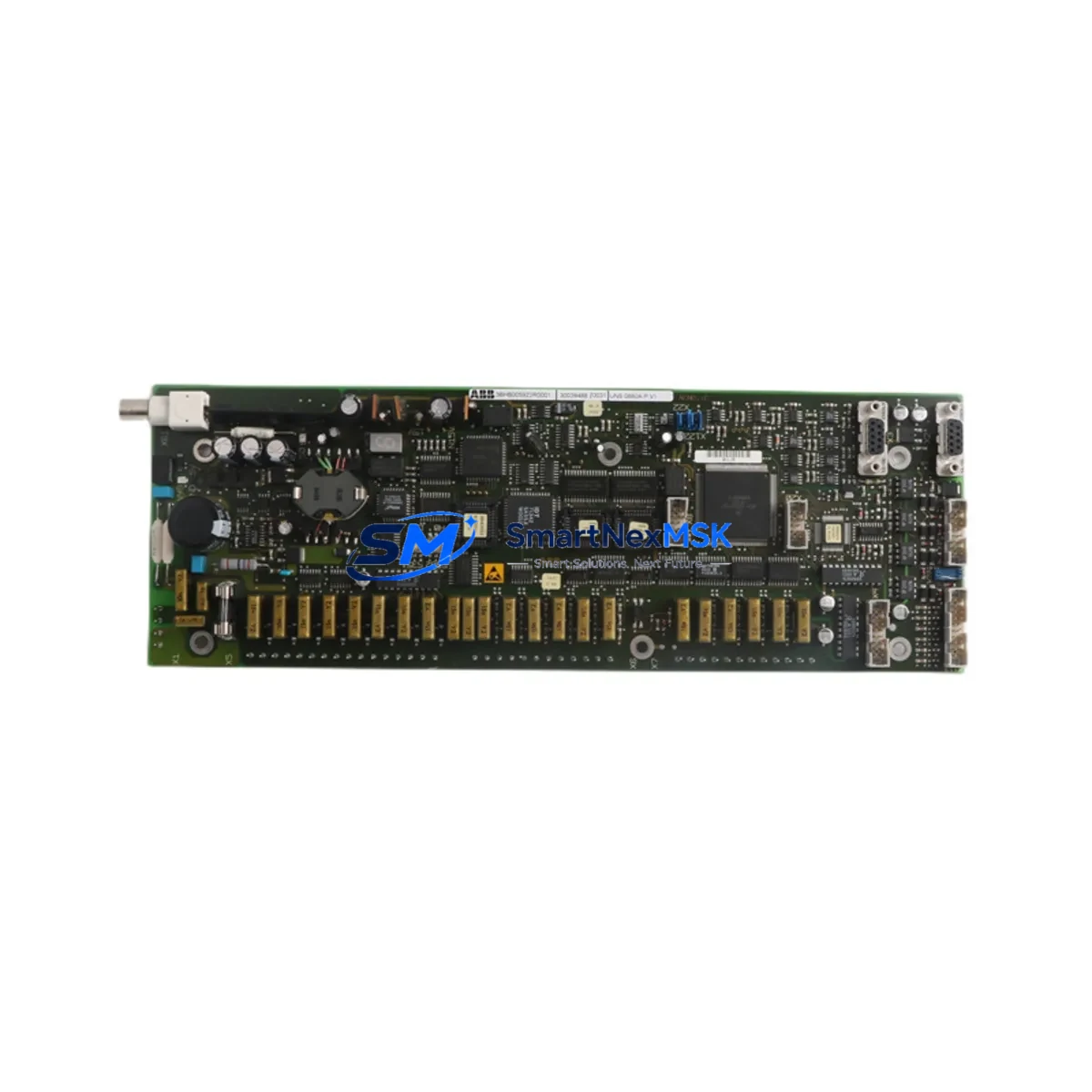

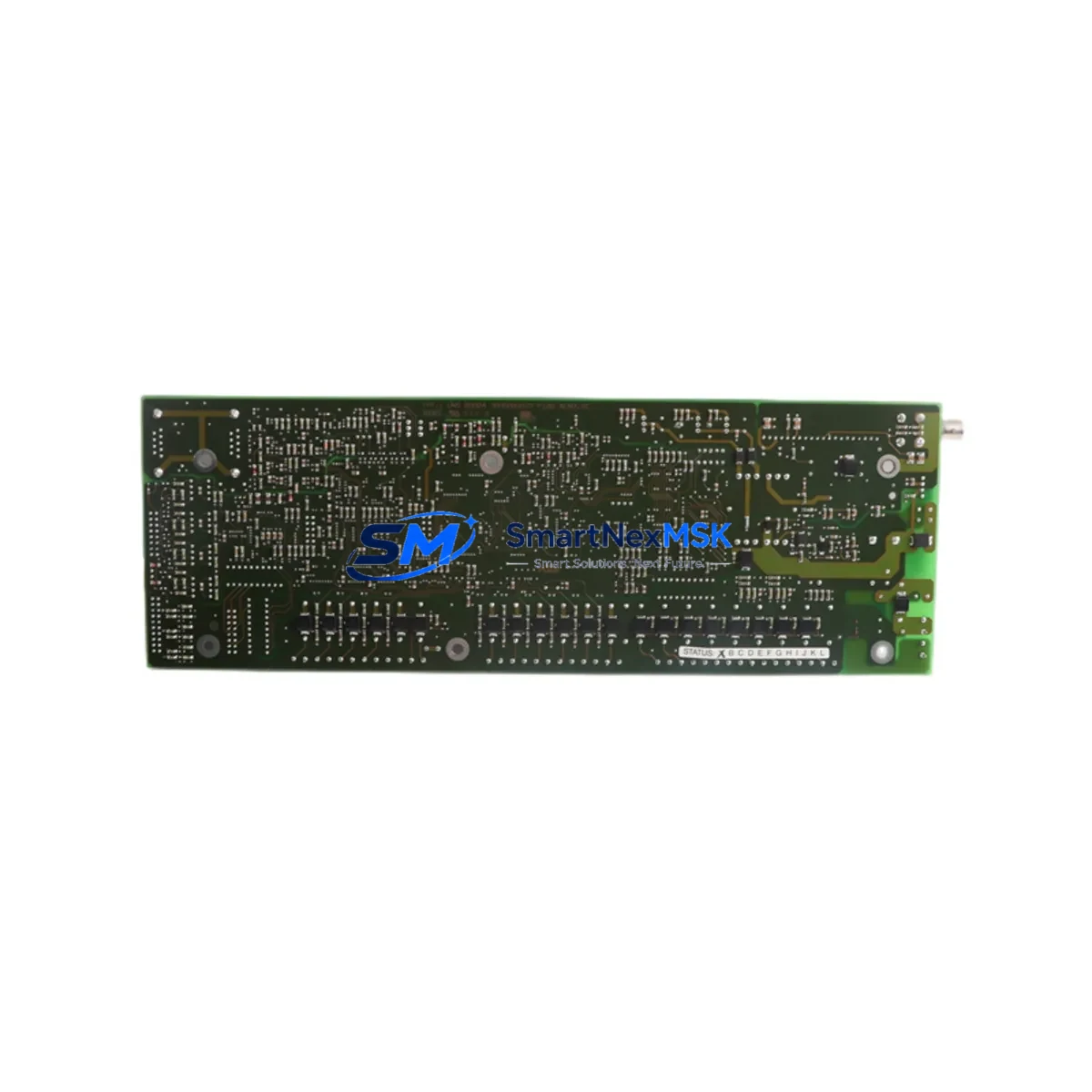

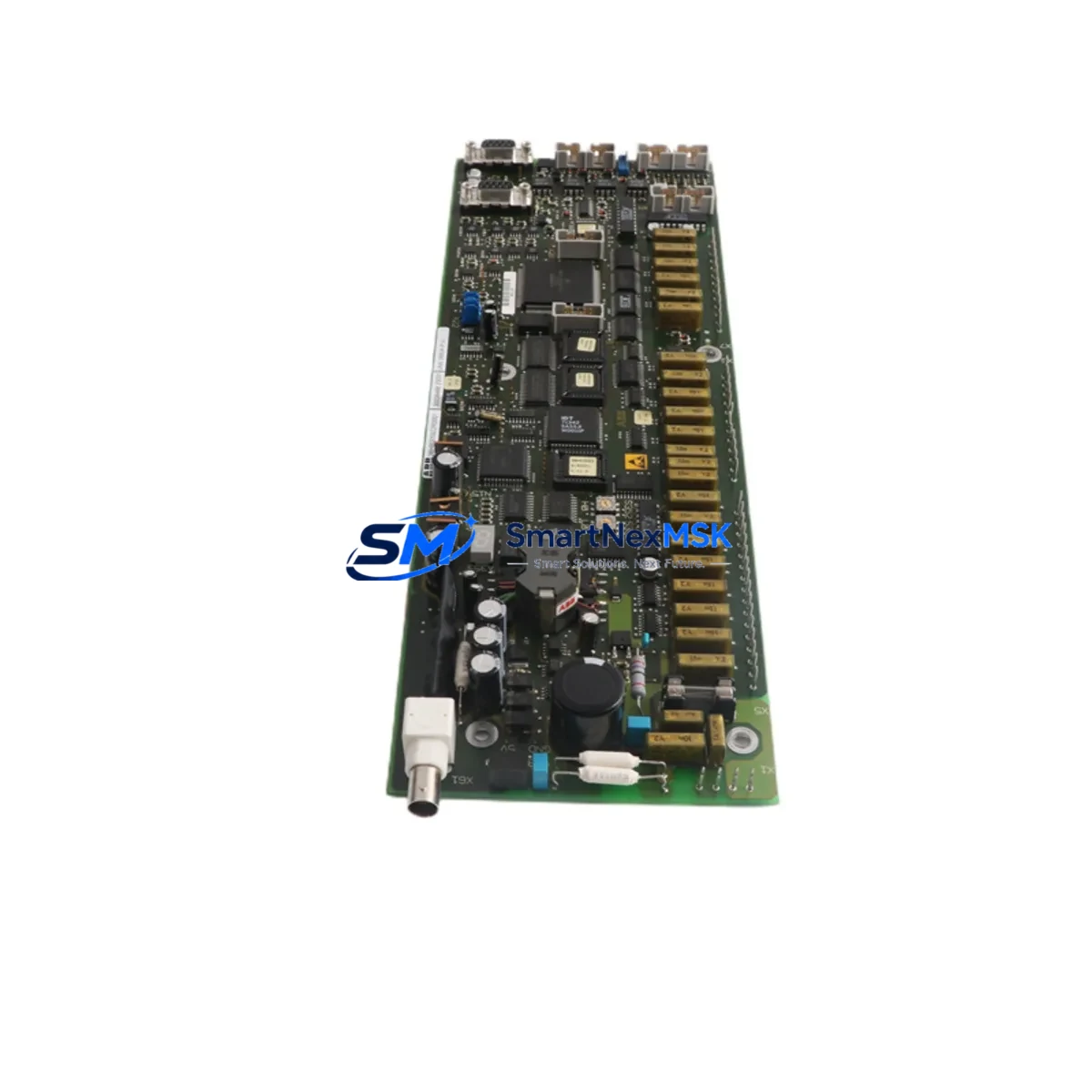

ABB 3BHB005922R0001 Retrofit-Ready DCS Interface Board for AC800M & AC450 Control Systems
The ABB 3BHB005922R0001 (UNS0880A-P) is a high-reliability DCS interface board engineered for seamless integration into ABB’s AC800M and AC450 distributed control system platforms. As legacy automation infrastructure ages and OEM support windows close, this module has become a critical retrofit component for process industries including power generation, oil & gas, pulp & paper, and chemical manufacturing. Whether you are replacing a failed board, upgrading a discontinued assembly, or modernizing a control cabinet that has been in service for over a decade, the 3BHB005922R0001 provides a verified drop-in solution that preserves your existing program logic, I/O mapping, and communication architecture.
Sourced from authorized channels and subjected to full functional testing prior to shipment, each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Fast global dispatch ensures minimal disruption to your production schedule, and our technical team is available to support pre-installation compatibility checks, terminal wiring verification, and post-installation commissioning guidance.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | 3BHB005922R0001 / UNS0880A-P |
| Brand | ABB |
| Compatible Platforms | AC800M, AC450, Advant OCS, MOD 300 |
| Interface Type | DCS Backplane Interface Board |
| Backplane Connector | Standard ABB DCS rack bus connector; verify slot position against rack drawing |
| Communication Compatibility | PROFIBUS-DP, Advant Fieldbus 100 (AF100), MasterBus 300 |
| Installation Requirement | Power-off installation; confirm 24 VDC or 48 VDC rail capacity before insertion |
| Replacement Recommendation | Direct replacement for UNS0880A-P; confirm firmware revision compatibility with controller |
| Commissioning Focus | Module address assignment, I/O channel mapping verification, HMI tag re-binding |
| Warranty | 12 Months — covers manufacturing defects and functional failures under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the ABB 3BHB005922R0001 begins well before the module arrives on-site. Engineers should start by auditing the existing rack assembly — typically an ABB DSBC 176 or DSBC 174 backplane — to confirm available slot positions and verify that the power supply module, such as the ABB DSQC 604 or equivalent 24 VDC unit, can sustain the additional load introduced by the replacement board. In multi-rack configurations using an ABB CI854 or CI857 communication interface module, the fieldbus segment load must be recalculated to ensure the new board does not exceed the maximum node count on the PROFIBUS-DP or AF100 segment.
Terminal wiring is a frequent source of commissioning delays. Before removing the failed UNS0880A-P, photograph or document all terminal connections on adjacent I/O modules — particularly any ABB AI810 analog input modules or DI810 digital input modules sharing the same marshalling cabinet. If the control system uses an ABB PM864A or PM866 controller module, retrieve the current application program backup from the controller’s flash memory before any hardware is disturbed. This protects against accidental program loss during power cycling.
For systems that include an ABB OP516 or Panel 800 HMI, verify that all process variable tags associated with the interface board’s I/O channels are correctly mapped in the HMI project database. After physical installation of the 3BHB005922R0001, a full tag scan and alarm point verification should be performed before returning the loop to automatic control. Communication links — especially those running over MasterBus 300 or Advant Fieldbus 100 — should be tested with a live node scan to confirm the new board is recognized at its assigned address without conflicts.
Where the retrofit involves migrating from an older Advant OCS or MOD 300 platform to a current AC800M architecture, the 3BHB005922R0001 often serves as a bridge component, allowing legacy I/O sub-systems to remain in service while the controller layer is upgraded. In these scenarios, the ABB NDSC-01 or equivalent communication adapter may be required to translate between legacy and current protocol stacks. All such configurations should be validated in a staging environment or during a planned maintenance window before live cutover.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any DCS retrofit project. When replacing the ABB 3BHB005922R0001 in a running plant, the recommended approach is to pre-configure the replacement board offline — assigning the correct module address, verifying jumper or DIP switch settings against the original board’s configuration record, and confirming that the firmware revision is compatible with the resident PM864A or PM866 controller firmware. This pre-staging step reduces the live swap window to under 30 minutes in most cases.
During the cutover, place the affected control loops in manual mode at the DCS operator station before isolating power to the rack. After installing the 3BHB005922R0001, restore power and allow the controller to perform its self-diagnostic cycle — typically 60 to 90 seconds — before attempting to bring I/O channels back online. Monitor the system event log for any address conflict or communication fault alarms. If the system uses redundant controller pairs, the standby controller should remain active throughout the swap to maintain supervisory control continuity.
Once the new board is confirmed online and all I/O channels are reading correctly, transfer control loops back to automatic mode one at a time, verifying process variable stability at each step. Document the completed swap in the plant’s maintenance management system, including the serial number of the replaced unit, the date of installation, and the firmware versions of both the board and the controller. This record supports future warranty claims and simplifies the next scheduled maintenance review.
Retrofit Support FAQ
Q1: Is the ABB 3BHB005922R0001 a direct replacement for the UNS0880A-P without any hardware modification?
In the majority of AC800M and AC450 installations, the 3BHB005922R0001 is a direct plug-in replacement for the UNS0880A-P. However, you should verify the firmware revision of your resident controller module and confirm that the backplane slot assignment matches the original board’s address configuration before installation.
Q2: What wiring checks are required before installing the replacement board?
Confirm that all terminal connections on adjacent I/O modules are documented, that the 24 VDC or 48 VDC power rail has sufficient capacity for the additional load, and that any shielded signal cables are properly grounded at the marshalling cabinet. Do not re-energize the rack until all terminal screws are torqued to the manufacturer’s specification.
Q3: How is the replacement board tested before shipment?
Each ABB 3BHB005922R0001 unit undergoes a full functional test on a live DCS test bench prior to dispatch. The test covers power-on self-diagnostics, backplane communication handshake, I/O channel continuity, and communication protocol response. A test report is available upon request.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures arising under normal operating conditions, including backplane communication faults, I/O channel failures, and power regulation issues. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.
