ABB 3BHE004573R0141 Retrofit-Ready Interface Board

ABB 3BHE004573R0141 Retrofit-Ready Interface Board for UFC760 Control Systems

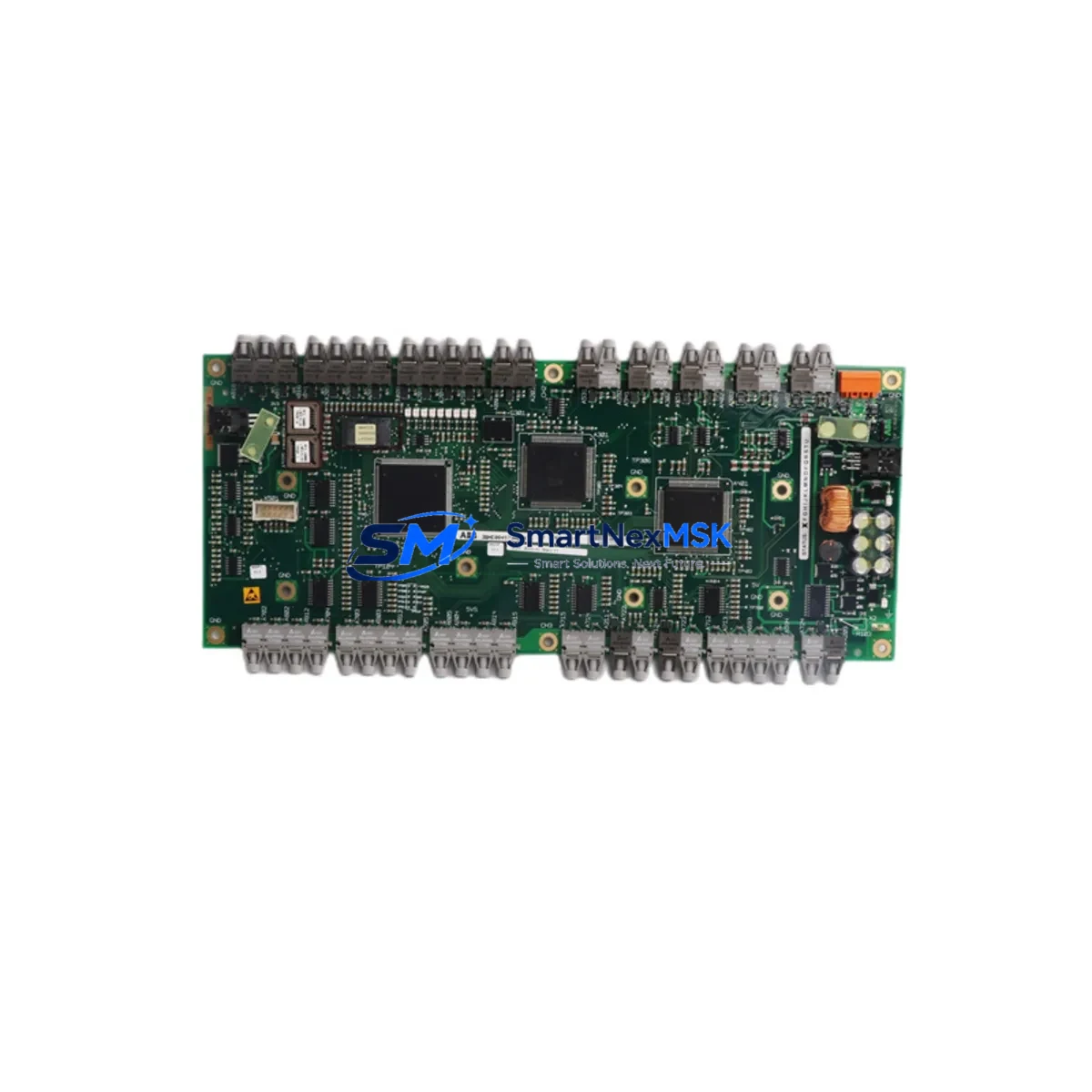

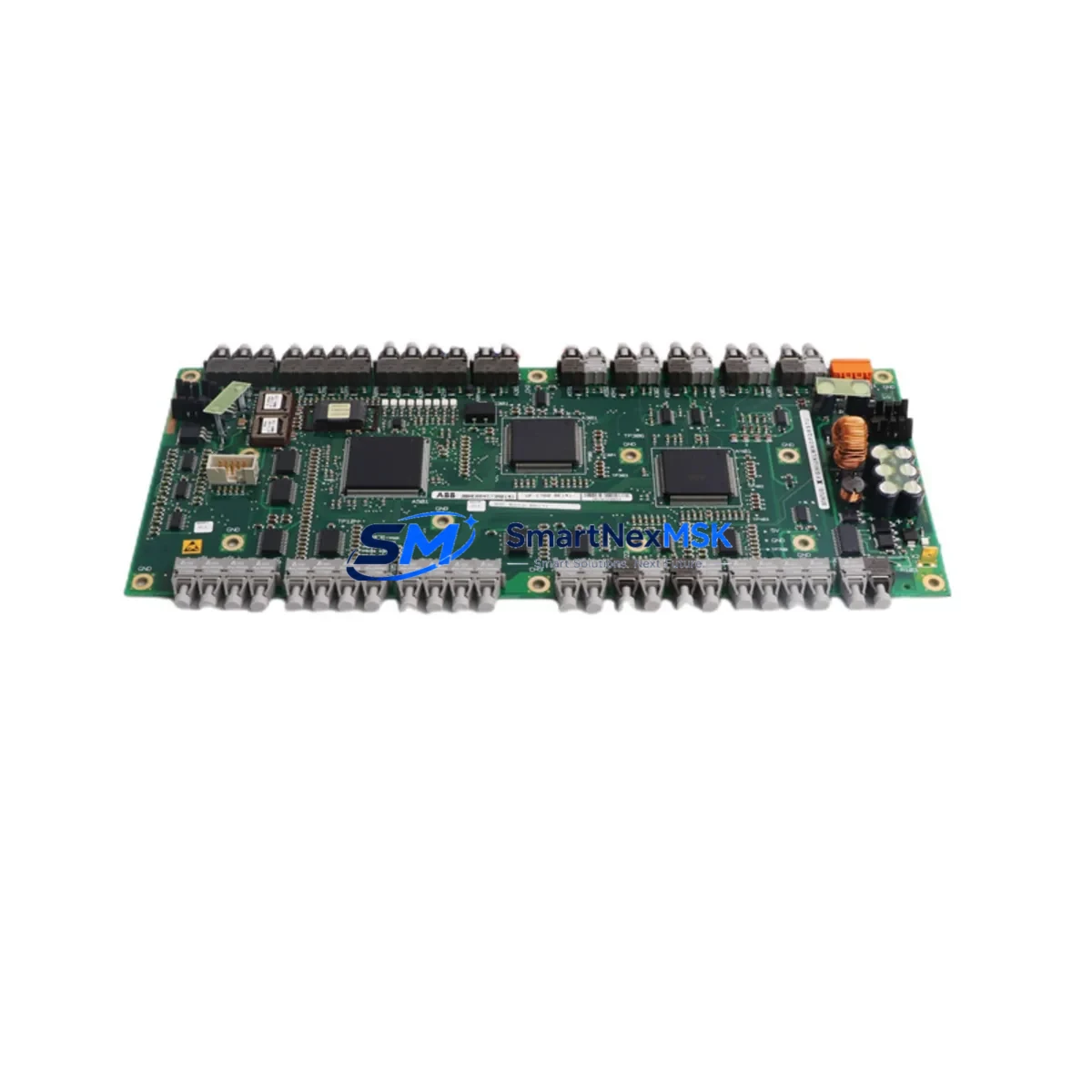

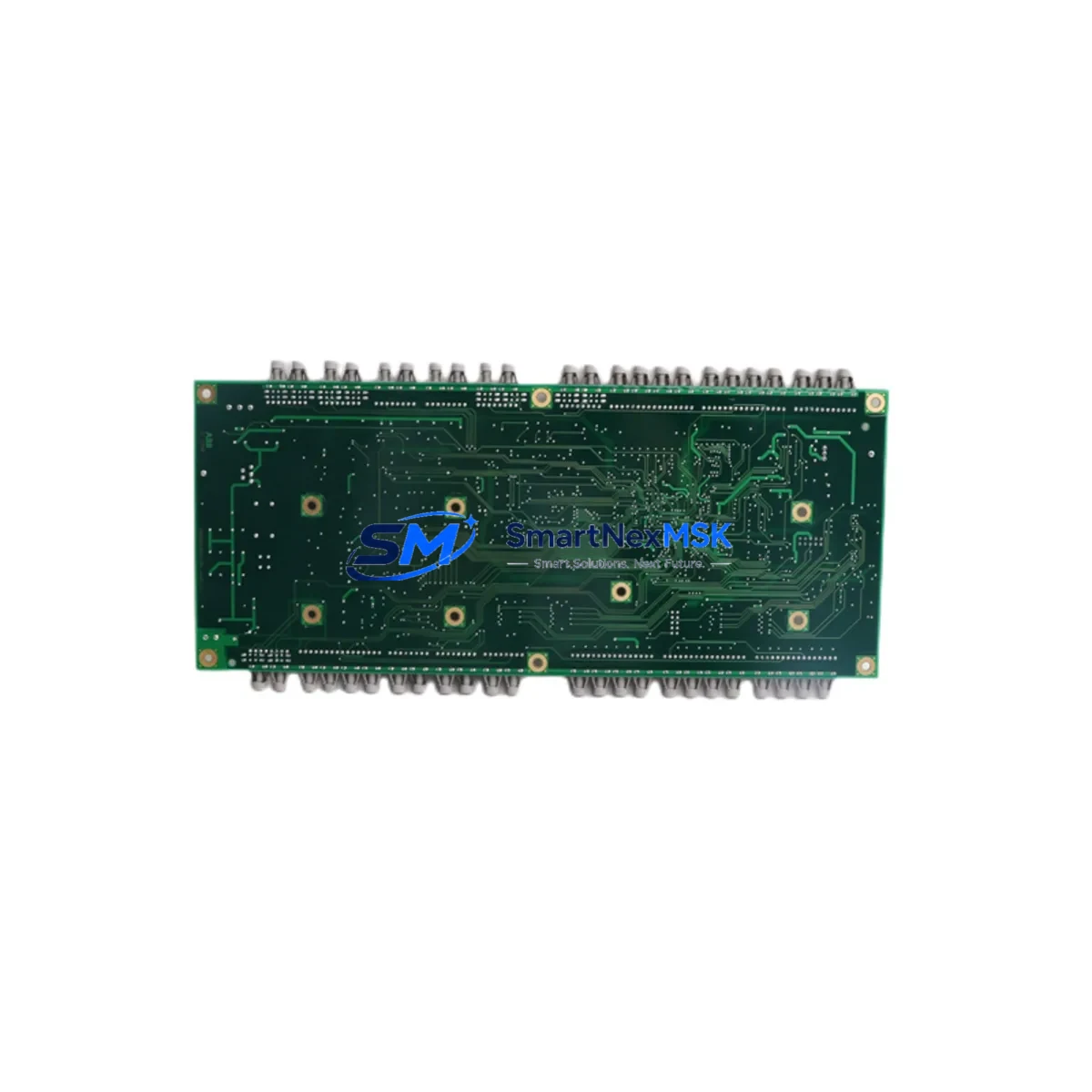

The ABB 3BHE004573R0141 (UFC760 BE141) is a high-reliability interface board engineered for seamless integration into ABB’s excitation and drive control platforms. As legacy UFC760-series hardware reaches end-of-life, this module serves as the definitive retrofit solution for engineers managing aging UNITROL 5000, UNITROL 6000, and AC800M-based control architectures. Whether you are replacing a failed board, upgrading a discontinued spare, or executing a planned control system modernization, the 3BHE004573R0141 delivers verified electrical compatibility and drop-in mechanical fit.

Procurement teams and maintenance engineers across power generation, heavy industry, and process automation rely on this board to restore excitation control continuity without requiring full system replacement. The UFC760 BE141 interfaces directly with the ABB excitation controller backplane, maintaining signal integrity across analog reference channels, digital I/O lines, and internal communication buses. Its robust design tolerates the thermal cycling and vibration profiles typical of generator control rooms and motor drive cabinets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3BHE004573R0141 begins well before the module arrives on-site. Engineers should audit the existing control cabinet to confirm available slot positions in the S800 I/O rack or the dedicated UFC760 chassis. Verify that the ABB PM865 or PM891 processor module firmware is at a revision level that supports the BE141 board variant — mismatched firmware can prevent the module from being recognized during startup. If the site runs an older PM803F controller, a firmware upgrade path should be evaluated before committing to the swap.

Terminal wiring is a critical checkpoint. The BE141 board uses a standard ABB TB820 or TB840 terminal base; confirm that the existing base is mechanically sound and that all field wiring labels match the updated I/O list in the application program. Where the original installation used a CI840A or CI854A communication interface module for PROFIBUS connectivity, verify that the network address and baud rate settings are preserved in the replacement configuration. Any change to the module slot address will require a corresponding update in the ABB Control Builder M hardware configuration tree and a full program download.

For sites integrating HMI visualization, confirm that the ABB Panel 800 or third-party SCADA system tag database references the correct I/O channel addresses after the swap. Excitation setpoint signals, AVR feedback channels, and fault relay outputs are commonly mapped in HMI graphics and must be re-validated against the new module’s channel assignments. Where a UNITROL 6080 or UNITROL 6800 excitation controller is in service, the BE141 board’s analog reference inputs should be re-calibrated using the ABB UNITROL commissioning tool to ensure voltage regulation accuracy is maintained within specification.

Power supply capacity is another pre-installation check. The UFC760 rack draws regulated 24 VDC from the system power supply — typically an ABB SD831 or SD832 power supply module. Confirm that the total rack load, including the replacement BE141 board, does not exceed the supply’s rated output current. If the cabinet also houses an AO820 analog output module or additional DI810 digital input modules, recalculate the power budget before energizing the rack.

Finally, document the existing program backup from the ABB Control Builder M project archive before any hardware change. Store a copy of the SFC, FBD, and ST program files, along with the hardware configuration export, so that the original logic can be restored immediately if the retrofit encounters an unexpected compatibility issue during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing the ABB 3BHE004573R0141 UFC760 BE141 in a live production environment. The recommended approach is a planned maintenance window during a scheduled outage, with all preparatory steps — firmware verification, program backup, wiring audit, and spare parts staging — completed in advance.

Where a hot-standby or redundant controller configuration is in place, such as a dual PM891 redundancy pair, the replacement can be executed on the standby channel while the primary channel maintains process control. After the new board is seated and the application program is downloaded to the standby controller, a controlled switchover transfers control to the updated channel with minimal process disturbance. This approach is strongly recommended for continuous processes such as generator excitation control, where even a brief interruption can trigger protection relay trips.

For single-controller installations, coordinate the replacement with the process team to identify the shortest acceptable outage window. Pre-stage the replacement 3BHE004573R0141 board, the ABB programming cable (typically a TK212A USB-to-serial adapter), and a laptop with Control Builder M pre-loaded with the verified program backup. With all materials ready, the physical swap, program download, I/O verification, and return-to-service sequence can typically be completed within two to four hours, depending on the complexity of the I/O list and the number of analog channels requiring re-calibration.

After the system is returned to service, monitor the excitation controller’s diagnostic logs and HMI alarm pages for at least one full operating cycle to confirm that all analog signals are within expected ranges and that no latent wiring or configuration errors are present. All retrofit work is supported by a 12-month warranty on the supplied module, covering manufacturing defects and functional failure under normal operating conditions.

Retrofit Support FAQ

Q1: Is the ABB 3BHE004573R0141 a direct drop-in replacement for the original UFC760 BE141?
In most cases, yes. The 3BHE004573R0141 is the current ABB part number for the UFC760 BE141 interface board and is designed for direct slot replacement in compatible racks. However, you should verify the firmware revision of your processor module (PM865, PM891, or PM803F) against ABB’s compatibility matrix before installation, as certain early firmware versions may require an update to recognize the replacement board correctly.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, re-download the application program from your Control Builder M project archive to ensure the hardware configuration is synchronized with the new module. Verify all analog input scaling factors, PID controller parameters, and digital I/O assignments. For excitation control applications, re-run the AVR calibration routine using the UNITROL commissioning tool and confirm that voltage regulation setpoints and protection relay thresholds are correctly restored.

Q3: How is the 12-month warranty handled for this module?
All modules supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement or repair will be arranged promptly to minimize your system downtime.

Q4: Can this board be used in a PROFIBUS network alongside CI840A communication modules?
Yes. The UFC760 BE141 interface board is compatible with ABB’s CI840A and CI854A PROFIBUS-DP communication interface modules when installed in the same S800 I/O rack. Ensure that the PROFIBUS node address assigned to the rack is unique on the network segment and that the GSD file loaded in your PROFIBUS master configuration matches the rack’s hardware revision. After the swap, perform a PROFIBUS network scan to confirm that the rack is recognized and that all I/O data is exchanged correctly before returning the system to automatic control.
