ABB 3BHE009017R0102 XVC724 BE102 Spare for AC800M Automation

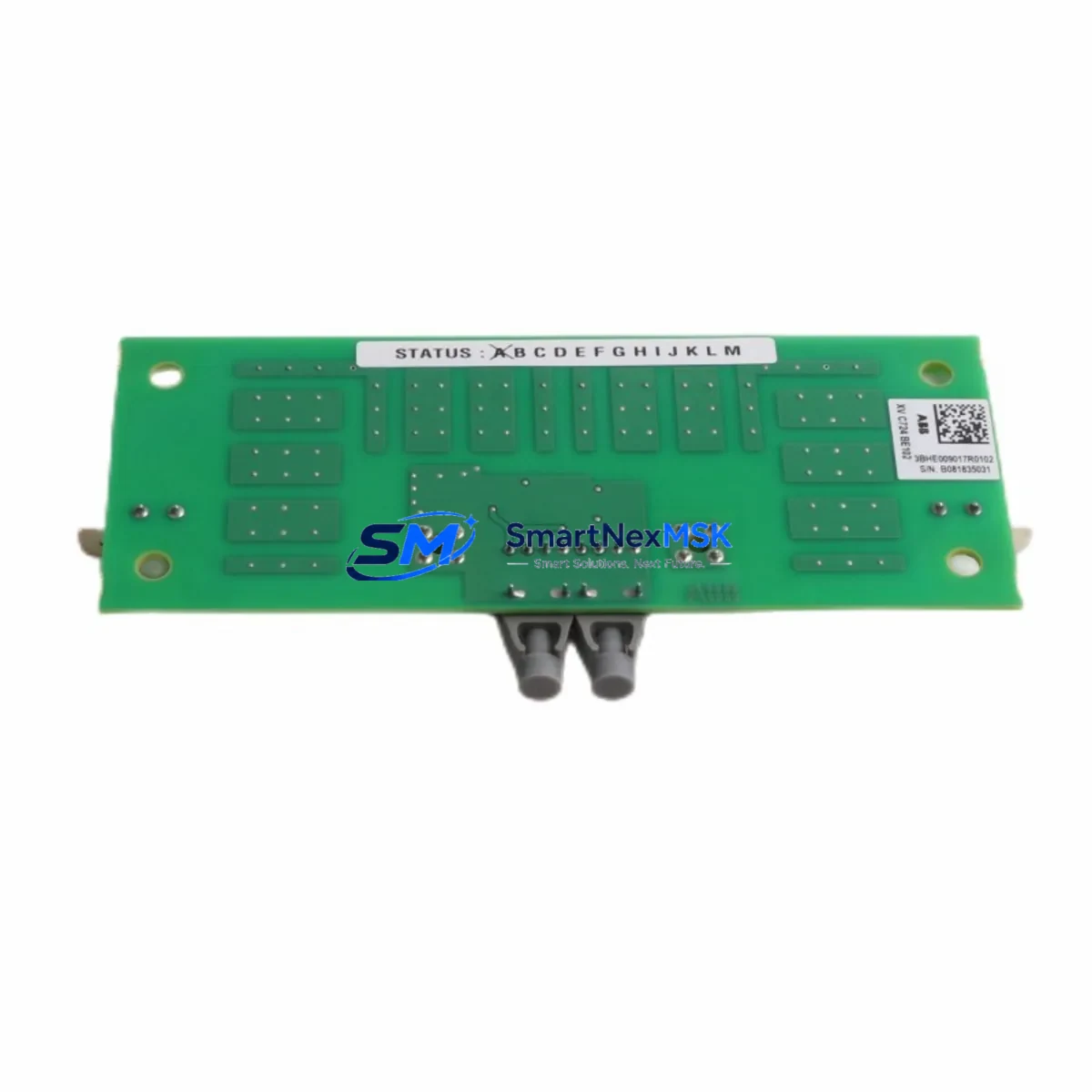

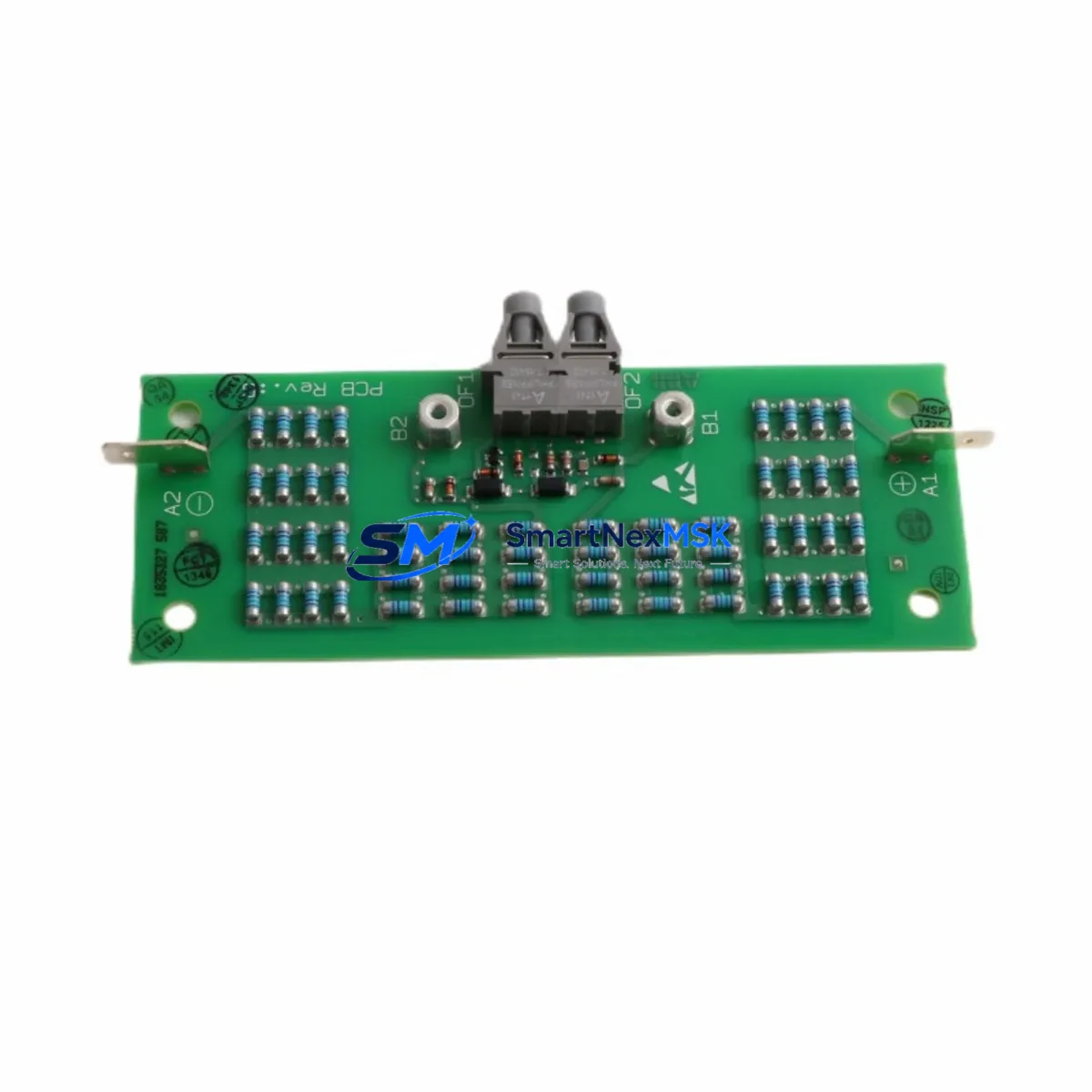

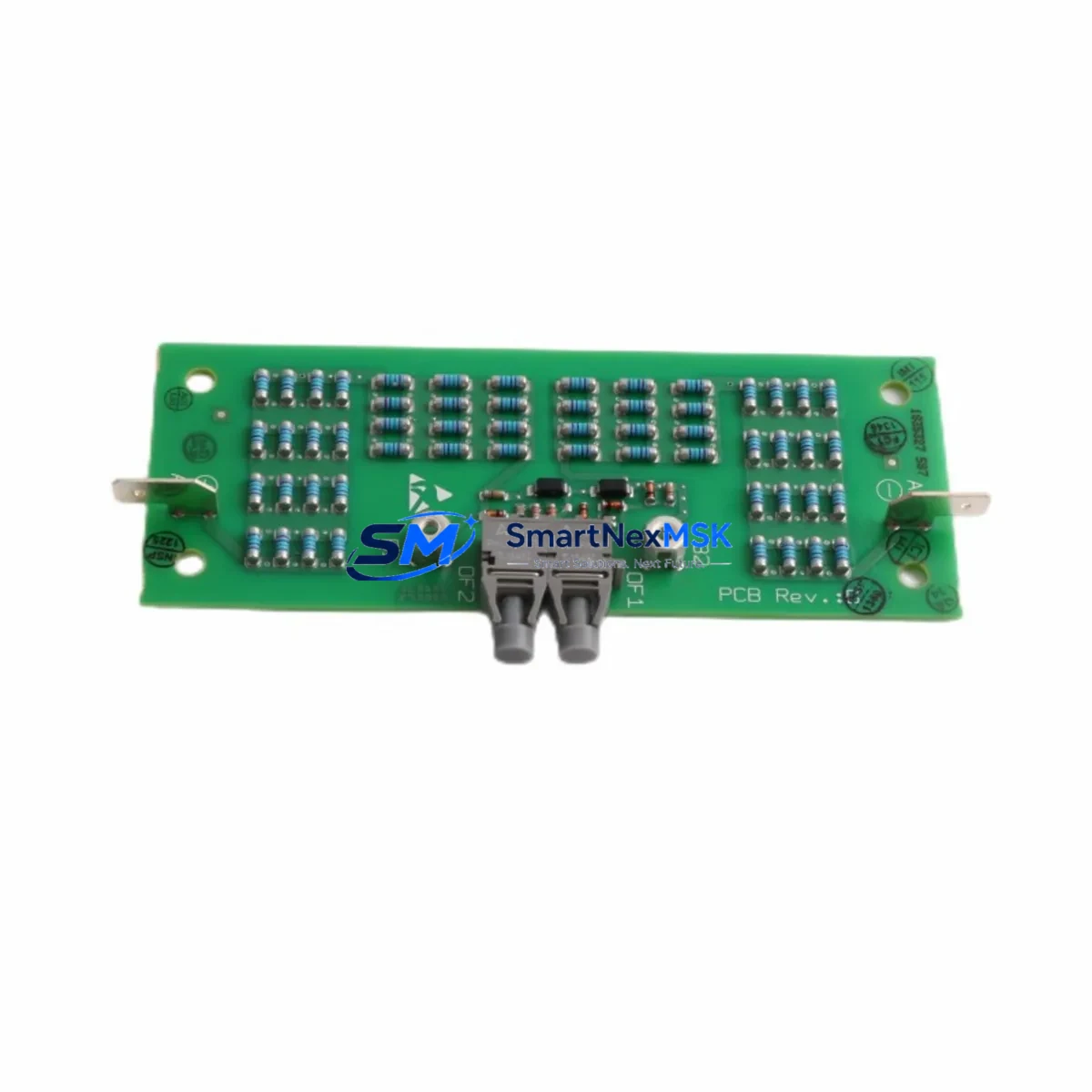

The ABB 3BHE009017R0102 XVC724 BE102 is an original signal conditioning board engineered for ABB’s AC800M and AC800PEC Distributed Control System (DCS) platforms. In process-critical environments — power generation, oil & gas, chemical processing, and pulp & paper — an unplanned failure of this board can cascade into full controller shutdown. Sourcing a verified, tested spare before failure occurs is the single most effective strategy for protecting uptime and reducing mean time to repair (MTTR).
At SMARTNEXMSK, every 3BHE009017R0102 unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term stock of discontinued and hard-to-source ABB DCS components to support both emergency callouts and planned maintenance cycles.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 3BHE009017R0102 |
| Module Designation | XVC724 BE102 |
| Module Type | Signal Conditioning Board |
| Compatible Platform | ABB AC800M, AC800PEC DCS |
| Series | AC800M / AC800PEC |
| Manufacturer | ABB (Sweden) |
| Origin | Sweden |
| Signal Function | Analog/digital signal conditioning and isolation between field devices and controller backplane |
| Installation | DIN-rail / backplane slot mount per AC800M cabinet standard |
| Operating Temperature | 0 °C to +55 °C (typical ABB DCS cabinet range) |
| Application Environment | Industrial control cabinets, process automation panels, DCS marshalling rooms |
| Compatibility Verification | Cross-reference firmware revision and backplane slot assignment before installation |
| Maintenance Recommendation | Inspect signal connectors and ribbon cables annually; replace if oxidation or intermittent faults detected |
| Condition | Original, tested, fully functional |
| Warranty | 12 Months |
| Lead Time | Ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer schedules a planned inspection or responds to an unplanned fault on an AC800M controller node, the 3BHE009017R0102 XVC724 BE102 board is rarely the only component that warrants attention. Signal conditioning failures are frequently accompanied by — or caused by — degradation in adjacent hardware.
During any cabinet inspection involving this board, engineers should simultaneously verify the condition of the PM861 or PM864 processor module, which drives the backplane and may exhibit watchdog resets if signal integrity is compromised. The TB820 or TB840 I/O termination unit connected downstream should be checked for loose field wiring and terminal oxidation, as poor termination is a leading cause of spurious signal faults that are misdiagnosed as board failures. The SD821 or SD822 power supply module feeding the controller rack should be load-tested; an aging power supply with marginal output voltage can cause intermittent board resets that appear as signal conditioning errors.
Communication integrity should also be assessed: the CI854 PROFIBUS DP communication interface or CI801 fieldbus module in the same rack may develop CRC errors if the backplane connector seating is disturbed during board replacement. For systems using optical fiber interconnects, the CI857 optical Ethernet module fiber connectors should be cleaned and inspected. If the plant uses HART-enabled field instruments, the HART multiplexer or signal splitter upstream of this board should be verified for correct loop current output after replacement.
In marshalling cabinets, MTL or P+F signal isolators and barriers in the same I/O loop should be checked for drift, particularly in hazardous-area installations where IS barriers age under thermal cycling. Fuse carriers and Phoenix Contact or Weidmüller terminal blocks in the same wiring group should be inspected for discoloration indicating thermal stress. Finally, if the plant operates an ABB Freelance or 800xA HMI, the operator station should be tested for correct tag display after the board is reinstalled to confirm end-to-end signal restoration.
Stocking the 3BHE009017R0102 alongside one spare processor module and one spare I/O termination unit creates a minimum viable spare kit that covers the majority of AC800M controller-level failures without requiring emergency air freight.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the installed board’s part number and revision code against the plant’s as-built documentation. The XVC724 BE102 revision must match the firmware version loaded on the PM8xx processor module. Mismatched revisions can cause the controller to reject the board during self-test.
Step 2 — Safe isolation: Place the affected controller node in manual or fallback mode via the 800xA engineering workstation before removing the board. Do not hot-swap signal conditioning boards without confirming the platform supports live insertion for this specific module type.
Step 3 — Physical replacement: Discharge static, seat the replacement board firmly into the backplane connector, and re-secure any ribbon or flex cable connectors. Torque any captive screws to the ABB-specified value.
Step 4 — Power-up and self-test: Restore power and observe the module status LED sequence. A solid green LED indicates successful initialization. Amber or flashing red indicates a configuration mismatch or hardware fault — do not return the controller to automatic until resolved.
Step 5 — Signal loop verification: Using the 800xA faceplate or a handheld HART communicator, verify that all field signals on the affected I/O group read within expected engineering units before returning the loop to automatic control.
This workflow typically achieves full loop restoration within 30–60 minutes for a prepared maintenance team holding a tested spare, compared to 4–72 hours when sourcing begins after failure. Maintaining one 3BHE009017R0102 XVC724 BE102 on the shelf is the most cost-effective downtime insurance available for AC800M-based plants.
Spare Parts Support FAQ
Q1: Is the 3BHE009017R0102 XVC724 BE102 compatible with both AC800M and AC800PEC platforms?
Yes. The XVC724 BE102 signal conditioning board is designed for use within the AC800M and AC800PEC controller families. Always cross-reference the firmware revision of your PM8xx processor module with the board revision before installation to confirm compatibility. If you are unsure, contact our technical team with your controller firmware version and we will confirm compatibility before shipment.
Q2: How is each unit tested before shipment?
Every 3BHE009017R0102 unit undergoes functional testing on compatible test equipment prior to dispatch. Units that fail any test parameter are quarantined and not sold. A test report is available on request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Q3: What is the recommended spare parts stocking strategy for AC800M systems?
For plants with three or more AC800M controller nodes, we recommend holding at minimum one signal conditioning board (3BHE009017R0102), one processor module (PM861/PM864), and one power supply module (SD821/SD822) per controller type in the plant. This covers the three most common single-point failure modes and enables same-shift restoration without waiting for courier delivery.
Q4: Can you supply this part on a long-term or blanket order basis?
Yes. SMARTNEXMSK supports long-term supply agreements for critical spare parts. We can reserve stock, provide scheduled delivery, and issue certificates of conformance for each shipment. Contact sales@smartnexmsk.com to discuss a supply agreement tailored to your maintenance schedule.
