ABB 3BHE020455R0001 Maintenance-Ready Spare for PPD103 Automation

ABB 3BHE020455R0001 Maintenance-Ready Spare for PPD103 Automation

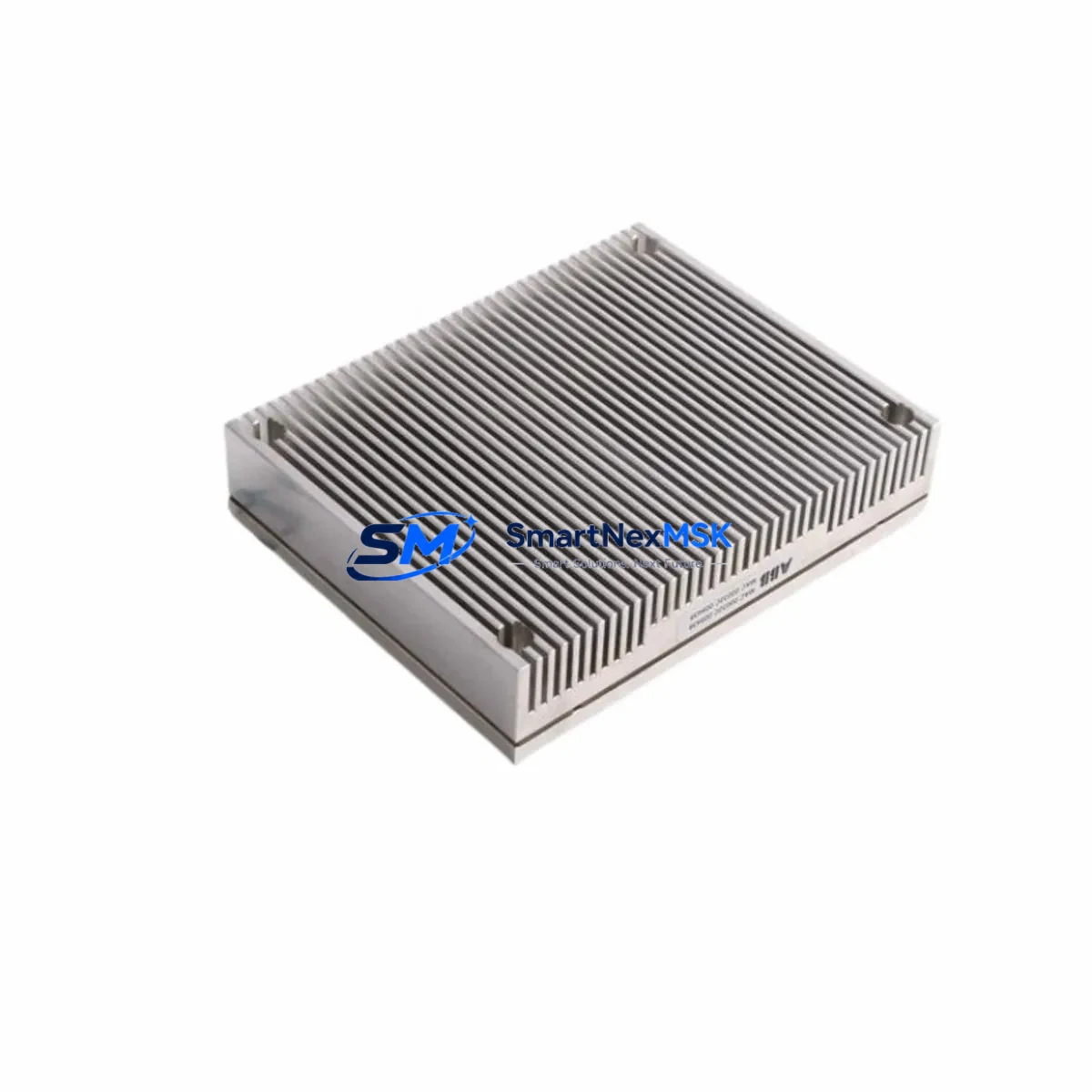

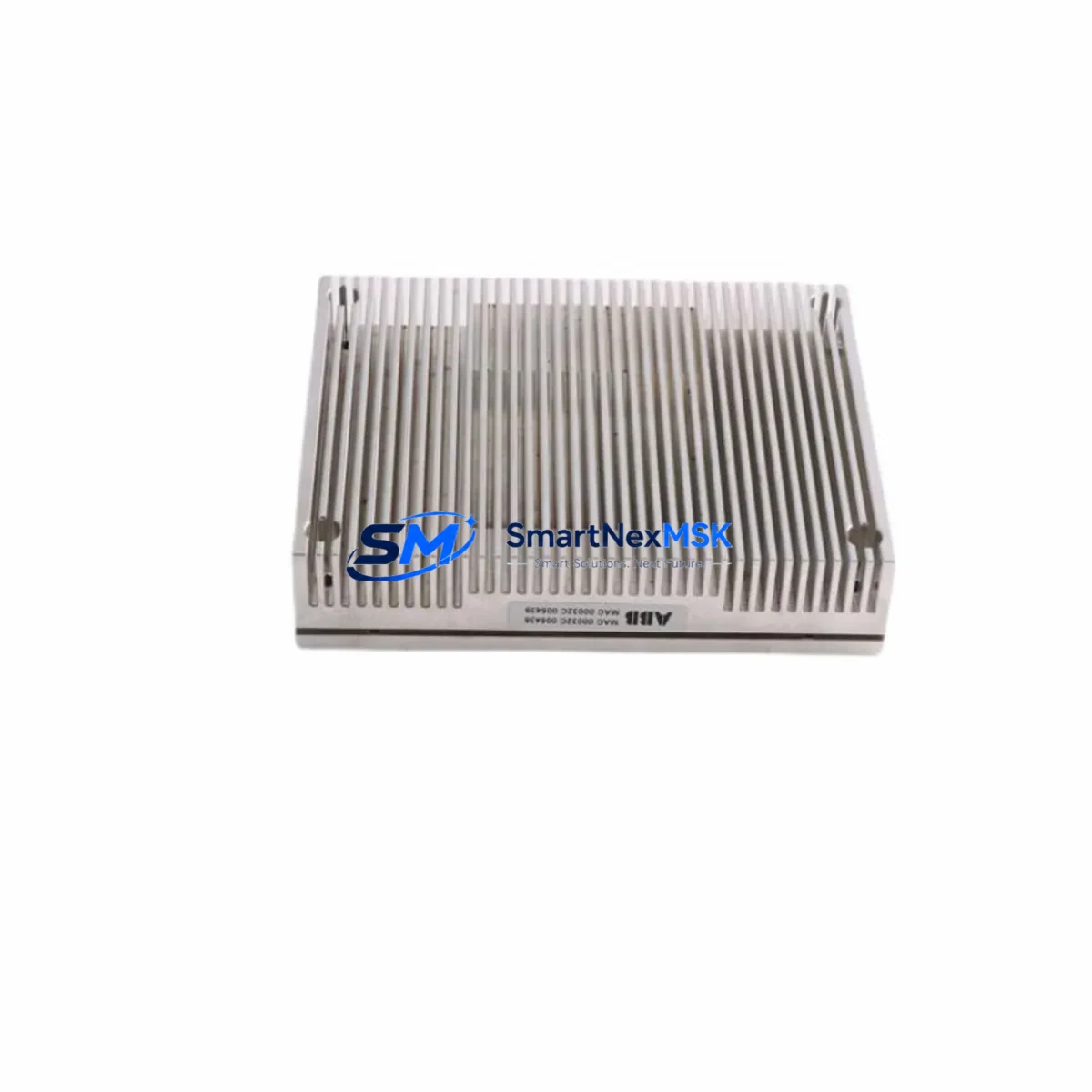

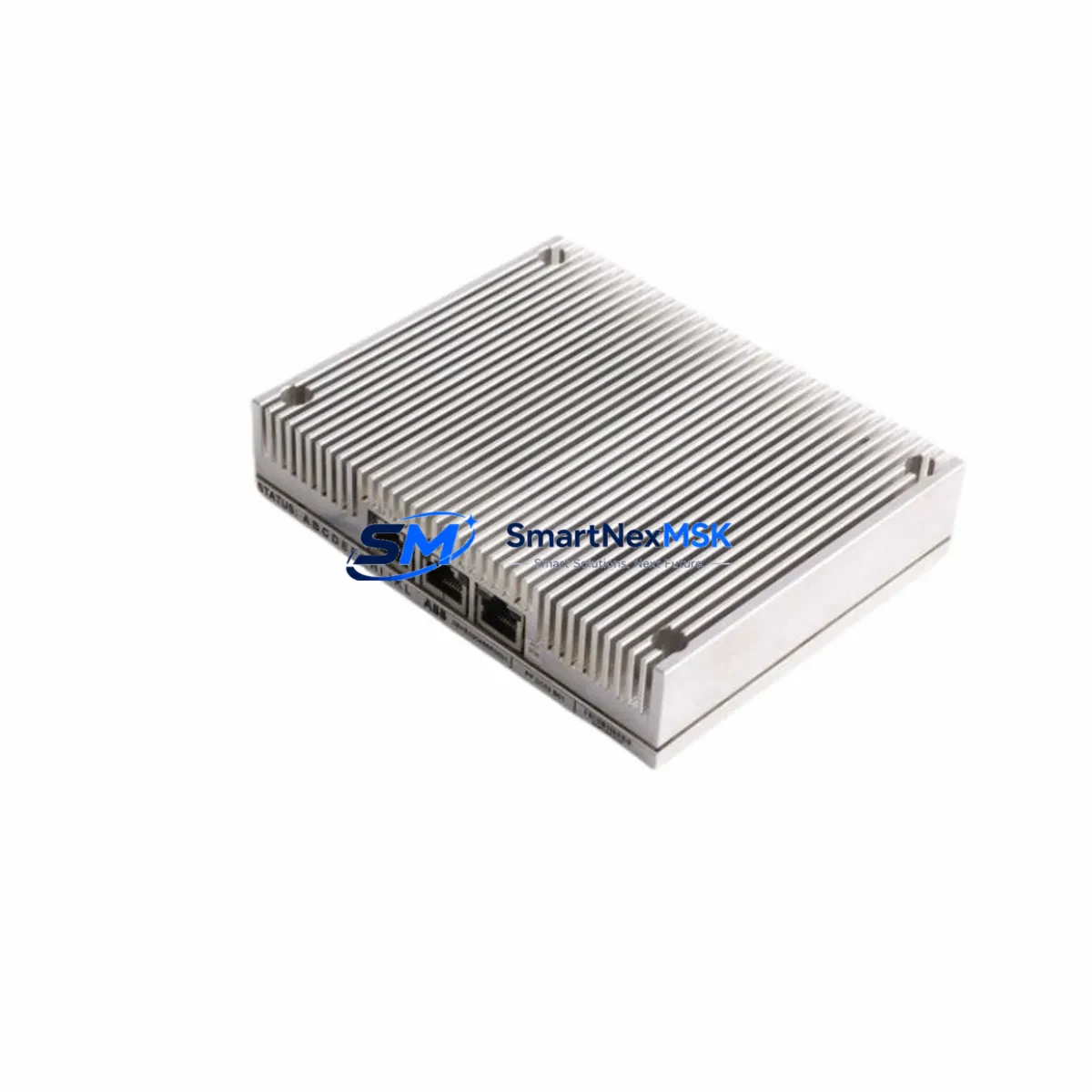

The ABB 3BHE020455R0001 PPD103 B01 is an original DCS controller board engineered for continuous-duty industrial automation environments. Sourced directly from ABB’s manufacturing supply chain and verified against OEM specifications, this spare part is a critical asset for maintenance engineers managing AC800M and AC800PEC distributed control systems. Unplanned downtime in process industries — oil & gas, power generation, chemical, and pulp & paper — can cost thousands of dollars per hour. Holding a tested, ready-to-ship PPD103 B01 board in your spare parts inventory is one of the most effective strategies for rapid fault recovery and system continuity.

Every unit dispatched from our warehouse undergoes functional verification and visual inspection before shipment. The 3BHE020455R0001 is shipped in anti-static packaging with full traceability documentation, ensuring it arrives in field-ready condition. Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, giving procurement engineers the confidence to plan long-term maintenance budgets around a reliable supply source.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PPD103 B01 controller board fails or degrades, the fault rarely exists in isolation. Experienced maintenance engineers know that a DCS controller fault can cascade from — or trigger — failures in adjacent components within the same control cabinet. A thorough site inspection during a planned replacement of the 3BHE020455R0001 should include the following checks:

Power Supply Module (PSU): Verify the rack power supply — such as the ABB DSQC661 or equivalent 24 VDC DCS PSU — is delivering stable voltage within tolerance. A marginal PSU is a common root cause of intermittent controller board resets and should be replaced proactively if it shows any ripple or voltage sag.

Backplane and Rack Assembly: Inspect the PPD103 series backplane for oxidized connector pins, cracked PCB traces, or loose seating. The backplane distributes both power and communication signals to all modules; a compromised backplane will cause recurring faults even after a controller board swap.

I/O Modules: During the maintenance window, audit all digital input (DI) and digital output (DO) modules in the same rack — for example, ABB DI810 and DO810 series cards. Verify that field wiring terminations are secure and that no I/O channel is showing persistent fault flags in the DCS diagnostic log.

Communication Modules: If the AC800M system uses CI854 or CI857 PROFIBUS/Ethernet communication interface modules, confirm their firmware versions are compatible with the replacement PPD103 B01 board. Mismatched firmware revisions can prevent the controller from establishing a clean network handshake after restart.

Relay Output Modules and Terminal Blocks: Check relay output modules — such as the ABB DO820 — and associated terminal blocks for contact wear, coil resistance drift, and loose field wiring. These components are often overlooked during controller-focused maintenance but are a frequent source of spurious trips in the weeks following a controller replacement.

Signal Isolators: For analog loops connected to the PPD103 system, inspect signal isolators and barriers (e.g., ABB AI810 analog input modules or third-party HART isolators) to ensure 4–20 mA signal integrity. A degraded isolator can introduce noise that mimics a controller fault.

Fuses and Circuit Protection: Replace any fuses in the 24 VDC distribution rail that are approaching their rated age or show signs of thermal stress. A blown fuse during commissioning of the replacement board will delay restart and complicate fault diagnosis.

HMI and Operator Station Connectivity: After installing the 3BHE020455R0001, verify that the connected HMI — whether an ABB CP600 panel or a SCADA workstation — re-establishes communication with the controller within the expected timeout window. Update the HMI project if the replacement board introduces any tag address changes.

Stocking the PPD103 B01 alongside these complementary components — PSU modules, I/O cards, communication interfaces, and relay outputs — transforms a reactive maintenance posture into a proactive one, dramatically reducing mean time to repair (MTTR) across your DCS infrastructure.

Site Replacement Workflow

Replacing the ABB 3BHE020455R0001 PPD103 B01 in a live DCS environment requires a structured approach to minimize downtime and avoid configuration loss. Follow this field-proven workflow:

Step 1 — Pre-Replacement Backup: Export the full controller configuration from the ABB Control Builder or Symphony Plus engineering station. Save the project backup to a secure, off-controller location. Confirm the backup timestamp matches the last known-good configuration.

Step 2 — Safe Shutdown: Place the affected control loop in manual mode at the DCS operator station. Notify operations personnel and obtain a permit-to-work (PTW) if required by site safety procedures. De-energize the controller rack following the site lockout/tagout (LOTO) protocol.

Step 3 — Board Removal: Wearing ESD wrist strap, carefully extract the faulty PPD103 B01 board from its backplane slot. Note the slot position and any jumper or DIP switch settings on the outgoing board — replicate these exactly on the replacement 3BHE020455R0001.

Step 4 — Installation and Power-Up: Seat the replacement board firmly into the backplane slot. Re-energize the rack and observe the board’s LED status indicators during boot. A healthy PPD103 B01 should complete its self-test and display a RUN status within 60–90 seconds.

Step 5 — Configuration Download: From the engineering station, download the saved controller configuration to the replacement board. Verify all I/O tags, communication parameters, and control loop setpoints are correctly restored.

Step 6 — Functional Verification: Return the control loop to automatic mode and monitor for 15–30 minutes. Check DCS alarm logs for any residual faults. Confirm HMI displays are updating correctly and all field instruments are communicating normally.

This workflow is compatible with both hot-standby and simplex AC800M configurations. For redundant controller setups, the replacement can often be performed with zero process interruption by switching to the standby controller before removing the faulty board.

Spare Parts Support FAQ

Q1: Is the 3BHE020455R0001 PPD103 B01 a direct drop-in replacement for older PPD103 revisions?
A: In most cases, yes. The PPD103 B01 is backward-compatible with earlier PPD103 hardware revisions within the AC800M and AC800PEC platforms. However, we recommend verifying the firmware version on your engineering station before installation, as some legacy system configurations may require a firmware update to recognize the replacement board. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing does the 3BHE020455R0001 undergo before dispatch?
A: Every unit is subjected to a functional power-on test, communication bus verification, and a full visual inspection for component damage, solder joint integrity, and connector condition. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage my PPD103 spare parts inventory for long-term system support?
A: Industry best practice for aging DCS platforms is to maintain a minimum of one cold-standby controller board per critical process unit, with a review cycle of 24–36 months. Given that ABB has transitioned many PPD103-series products to end-of-life status, securing additional units now — while supply is available — is strongly recommended. We offer long-term supply agreements and reserved stock programs for customers managing large installed bases.

Q4: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions (correct voltage, temperature within spec, no physical damage from mishandling). To initiate a warranty claim, contact our sales team with the order number, a description of the fault symptom, and photos of the unit and installation environment. We will arrange return shipping and either repair or replace the unit at no charge within the warranty period.
