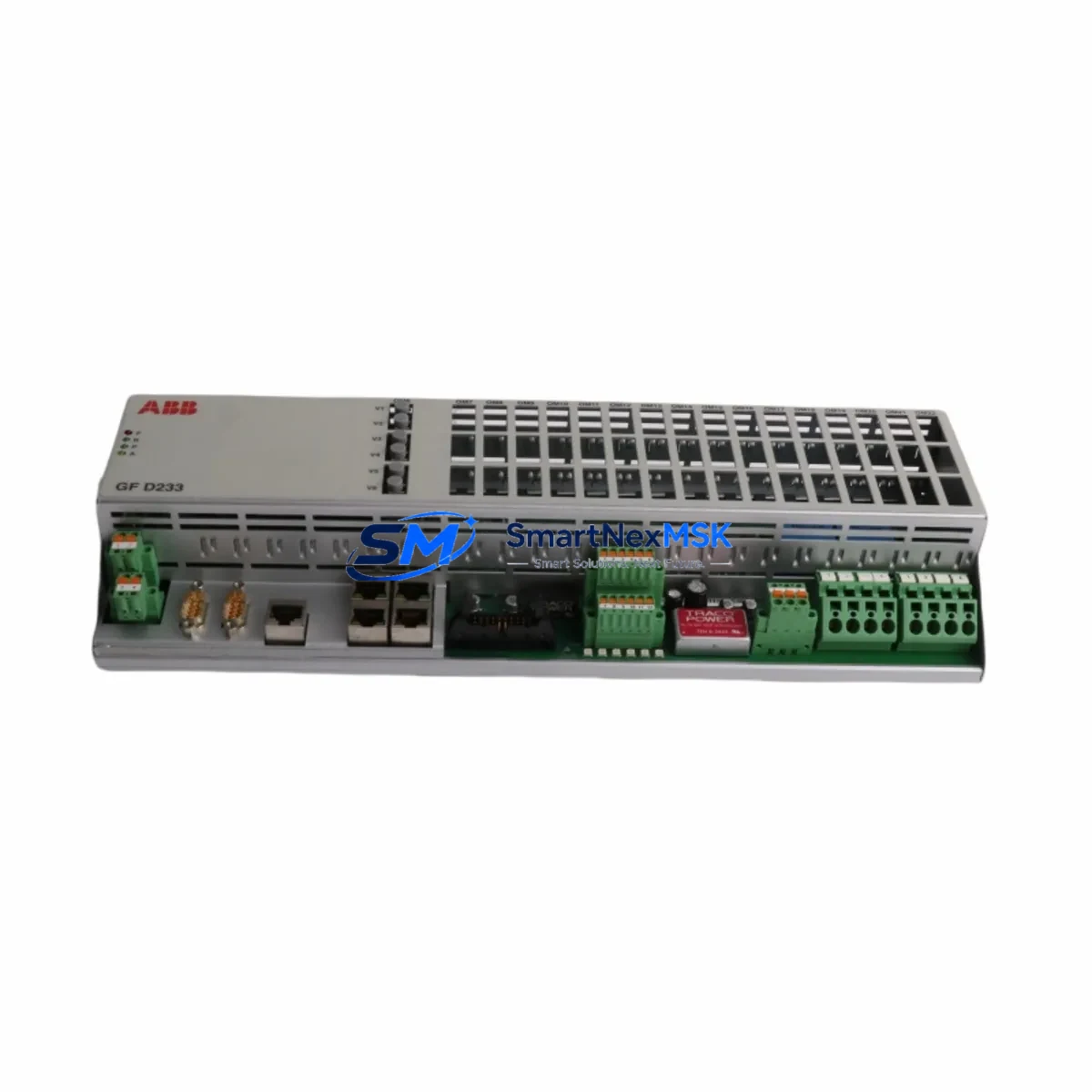

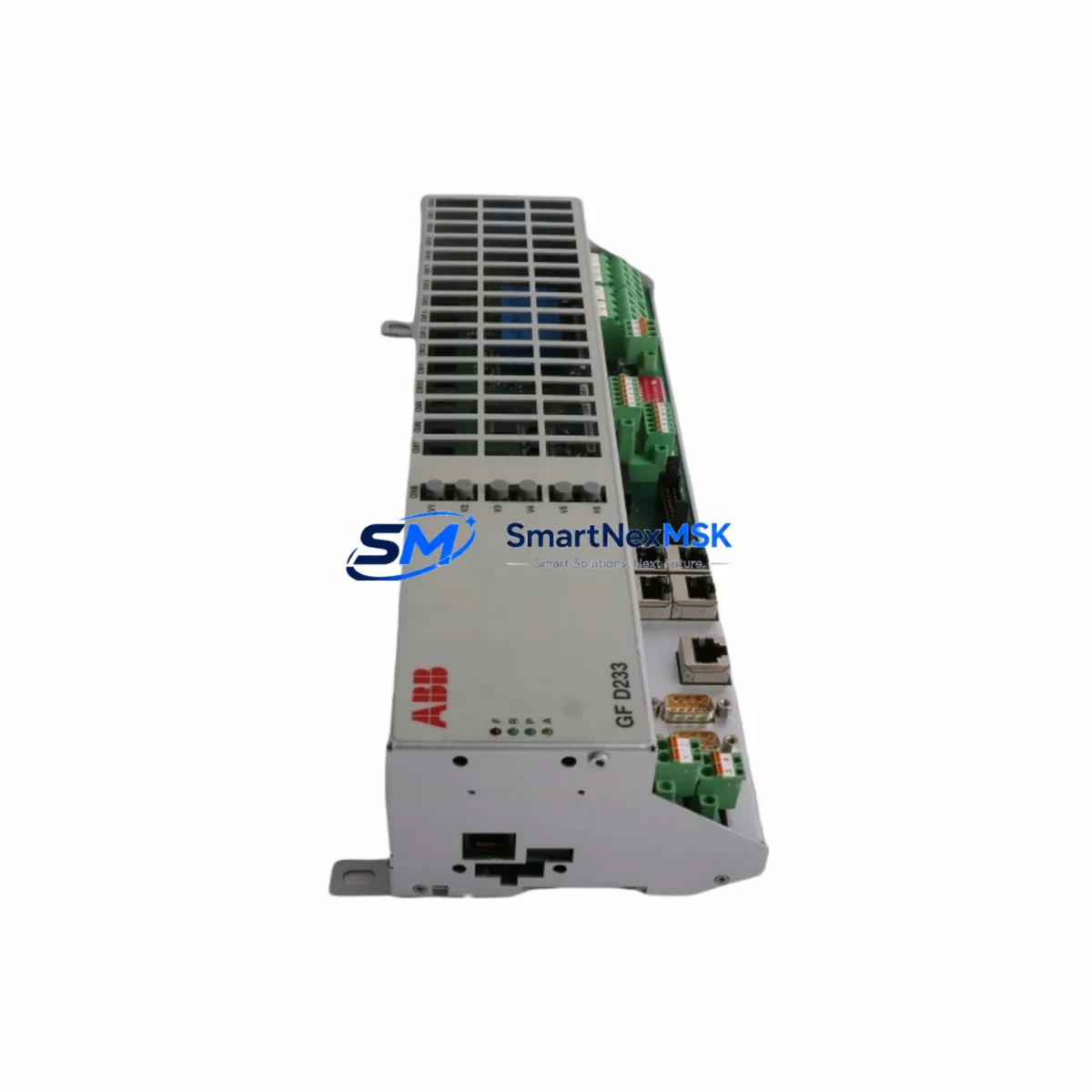

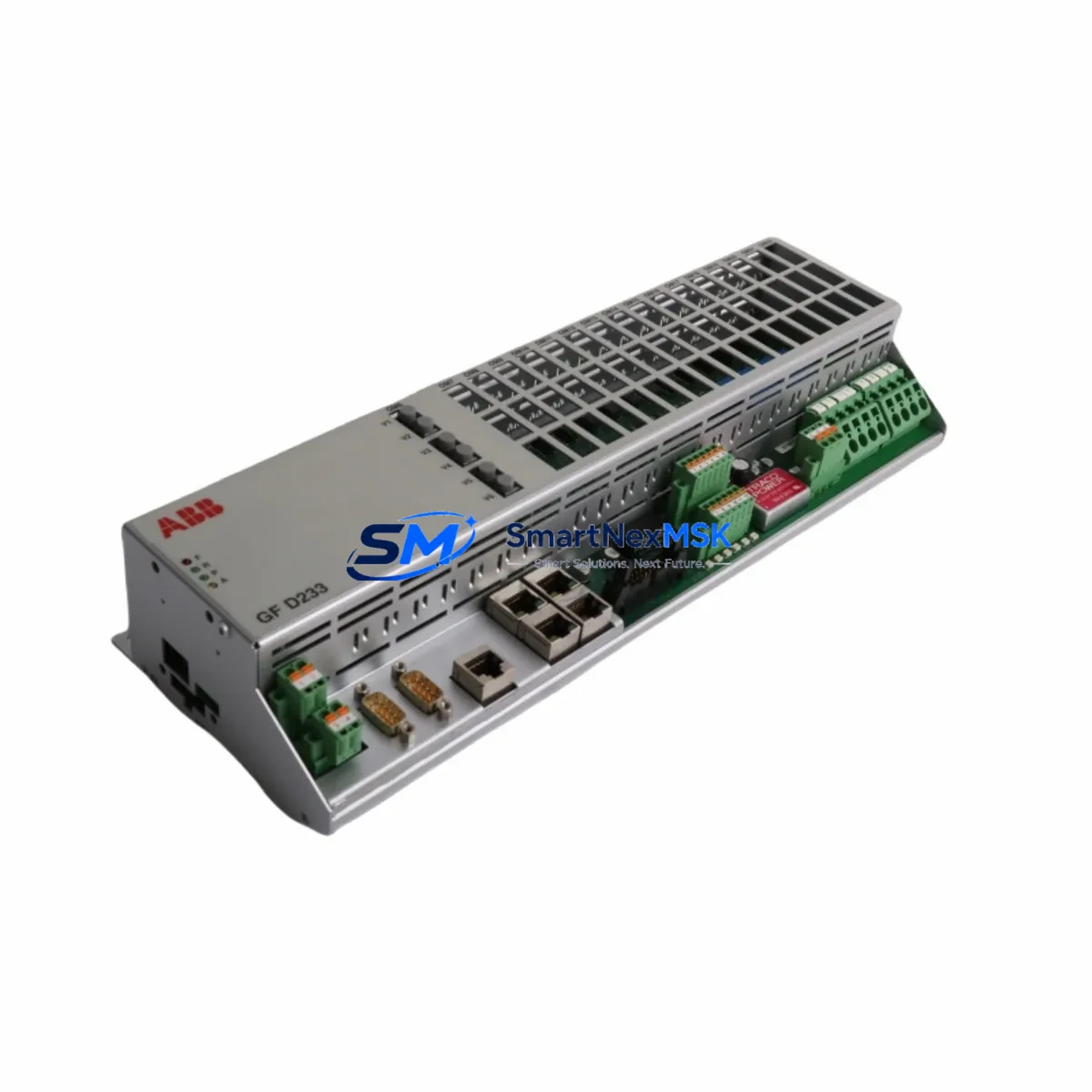

ABB 3BHE022455R1101 Maintenance-Ready Spare for ACS800 Automation
The ABB 3BHE022455R1101 is an original input coupling unit designed for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across power generation, pulp and paper, oil and gas, water treatment, and heavy manufacturing. As a maintenance-critical spare, the 3BHE022455R1101 plays a central role in sustaining the integrity of the drive’s input power conditioning stage, ensuring stable voltage coupling between the incoming supply and the drive’s internal power electronics.
For maintenance engineers managing aging ACS800 installations, sourcing a verified original 3BHE022455R1101 is often the difference between a two-hour planned replacement and a multi-day unplanned outage. This unit ships tested, inspected, and backed by a 12-month warranty — ready for immediate installation in your control cabinet or drive enclosure.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 3BHE022455R1101 |
| Description | Input Coupling Unit |
| Compatible Series | ABB ACS800 Variable Frequency Drive Series |
| Manufacturer | ABB (ASEA Brown Boveri) |
| Country of Origin | Germany (DE) |
| Product Type | Input Coupling Unit / Drive Power Interface Module |
| Application Environment | Industrial automation, heavy-duty drive systems, process control panels |
| Installation | Direct replacement into ACS800 drive frame; refer to ACS800 hardware manual for torque and connector specifications |
| Compatibility Verification | Cross-reference drive frame size and firmware revision before installation |
| Pre-Shipment Testing | Functional and continuity tested prior to dispatch |
| Condition | Original spare — new or fully refurbished to OEM specification |
| Warranty | 12 Months from date of shipment |
| Weight | 460 g (approx.) |
| Maintenance Recommendation | Inspect input coupling integrity during annual drive servicing; replace if thermal discoloration, connector wear, or insulation degradation is observed |
Maintenance Planning for Continuous Operation
When scheduling a replacement of the 3BHE022455R1101 input coupling unit in an ACS800 drive, experienced maintenance engineers treat the intervention as an opportunity for a broader system health check. The input coupling unit interfaces directly with the drive’s power supply path, meaning any degradation here can cascade into faults across connected components.
Before and after replacing the 3BHE022455R1101, it is standard practice to inspect the ACS800 AINT board (inverter control board) for fault history logs and verify that no upstream supply anomalies triggered the coupling failure. The APOW power supply board should be checked for output voltage stability, as an unstable internal supply can stress the input coupling stage prematurely. If the drive is equipped with an RDCO-03 or RDCO-04 communication module for DDCS or fieldbus connectivity, verify that communication integrity is maintained after the replacement and that no parameter resets have occurred.
On the input side of the cabinet, inspect the input fuses and fuse holders (typically NH or cylindrical types rated to the drive’s input current) for signs of thermal stress or partial blow. The input line reactor or du/dt filter, if installed, should be checked for winding continuity and insulation resistance. A degraded line reactor can cause voltage spikes that accelerate wear on the input coupling unit.
For drives using an AIMA or AIMA-01 motor adapter module or connected to a ASTO output filter, confirm that the output side components remain within specification after the input-side repair. In multi-drive configurations sharing a common DC bus, also inspect the BAMU bus adapter module and DC bus fuses to rule out cross-drive fault propagation.
Finally, review the condition of the ACS800 control panel (CDP312R or ACS-CP-C) and its cable connection to the drive. A loose or corroded panel cable can cause misleading fault codes that are sometimes misattributed to the input coupling stage. Keeping a spare panel cable and a spare 3BHE022455R1101 in your local parts inventory significantly reduces diagnostic time during emergency callouts.
Site Replacement Workflow
Step 1 — Isolation and Lockout/Tagout: De-energize the ACS800 drive and apply LOTO procedures. Allow the DC bus capacitors to fully discharge (minimum 5 minutes after power-off, or verify with a calibrated voltmeter that DC bus voltage is below 50 V).
Step 2 — Document Current Configuration: Before disconnecting any wiring, photograph or record all connector positions, cable routing, and any parameter settings visible on the CDP312R panel. Upload a fault log from the drive if accessible via the DriveWindow or DriveStudio tool.
Step 3 — Remove the Faulty Unit: Disconnect the input coupling connectors in the sequence specified in the ACS800 hardware manual. Note the connector keying to prevent reverse installation. Remove the mounting fasteners and extract the 3BHE022455R1101 from the drive frame.
Step 4 — Install the Replacement Unit: Insert the new 3BHE022455R1101, secure mounting fasteners to the specified torque, and reconnect all connectors. Verify that no cables are pinched or under tension.
Step 5 — Power-Up and Verification: Re-energize the drive in a controlled sequence. Monitor the CDP312R panel for fault codes during the first power-up. Run the drive at low speed under no-load conditions before returning to full production load. Log the first-run parameters for future reference.
This workflow is applicable whether you are replacing a failed unit on an emergency basis or performing a scheduled swap as part of a planned maintenance interval. Keeping a pre-configured spare 3BHE022455R1101 on the shelf — already tested and documented — reduces the site replacement time to under two hours in most ACS800 frame sizes.
Spare Parts Support FAQ
Q1: Is the 3BHE022455R1101 compatible with all ACS800 frame sizes?
The 3BHE022455R1101 is designed for specific ACS800 frame configurations. Compatibility depends on the drive’s frame size (R2–R8 and above) and the specific hardware revision of your unit. Always cross-reference the drive’s type designation plate and the ABB ACS800 spare parts list for your frame before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and any faults attributable to the unit itself rather than external installation errors or supply anomalies. Warranty claims are supported with a return and replacement process. Proof of purchase and a brief fault description are required to initiate a claim.
Q3: How is the unit tested before shipment?
Every 3BHE022455R1101 unit undergoes functional testing and continuity checks prior to dispatch. Units sourced as original ABB spares are inspected for physical integrity, connector condition, and electrical performance. A test report is available upon request for critical applications.
Q4: Can this unit be used to extend the life of an older ACS800 system that is no longer in ABB’s active support cycle?
Yes. The 3BHE022455R1101 is one of the key components that enables long-term operation of legacy ACS800 installations beyond the OEM’s standard support window. Many industrial facilities maintain a small buffer stock of this unit alongside other ACS800 consumables — such as cooling fans, capacitor banks, and control boards — to support a 5–10 year extended service life strategy without requiring a full drive replacement.
