ABB 3BHE024855R0103 Maintenance-Ready Spare for Symphony Plus Automation: Spare Replacement & Industrial Downtime Risk Control

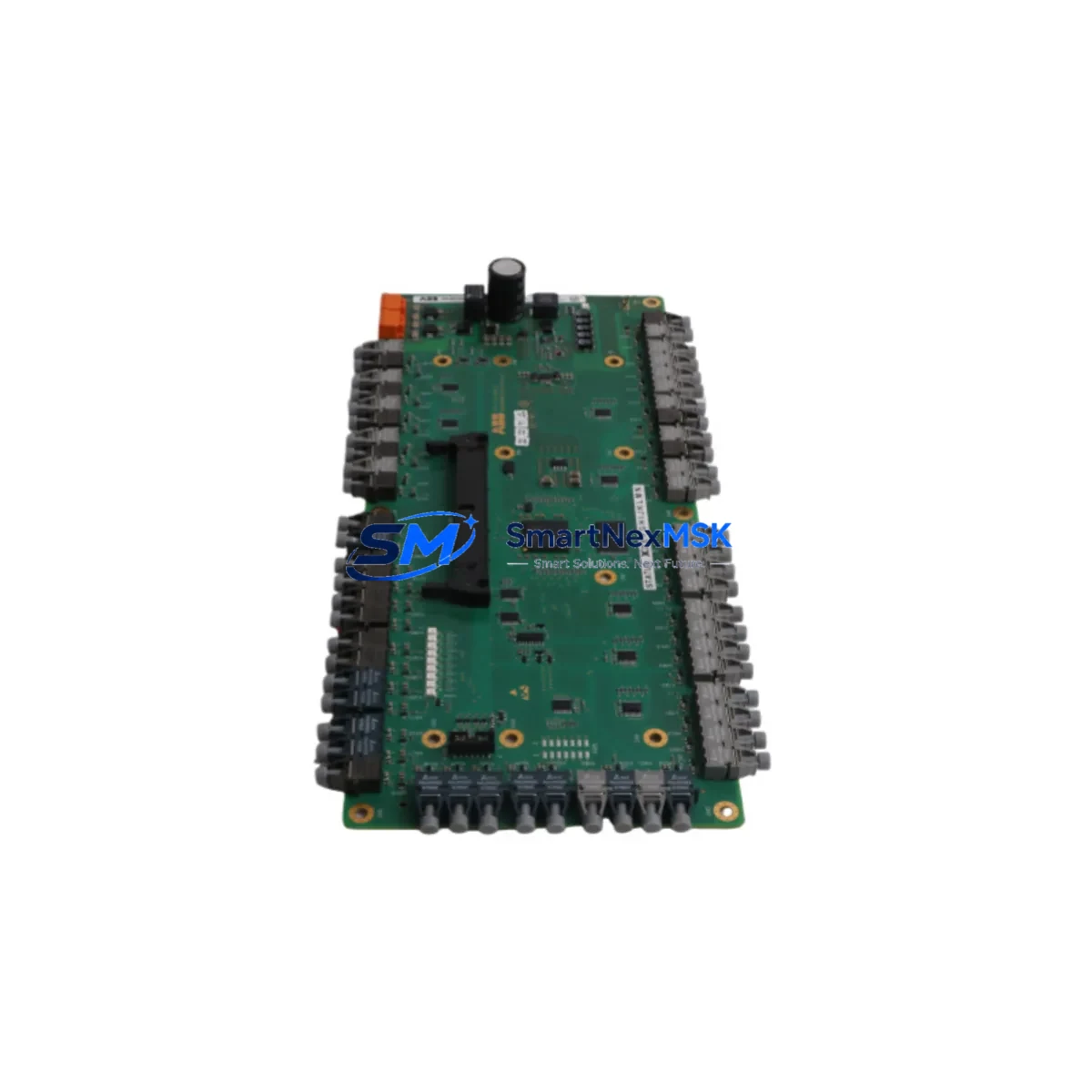

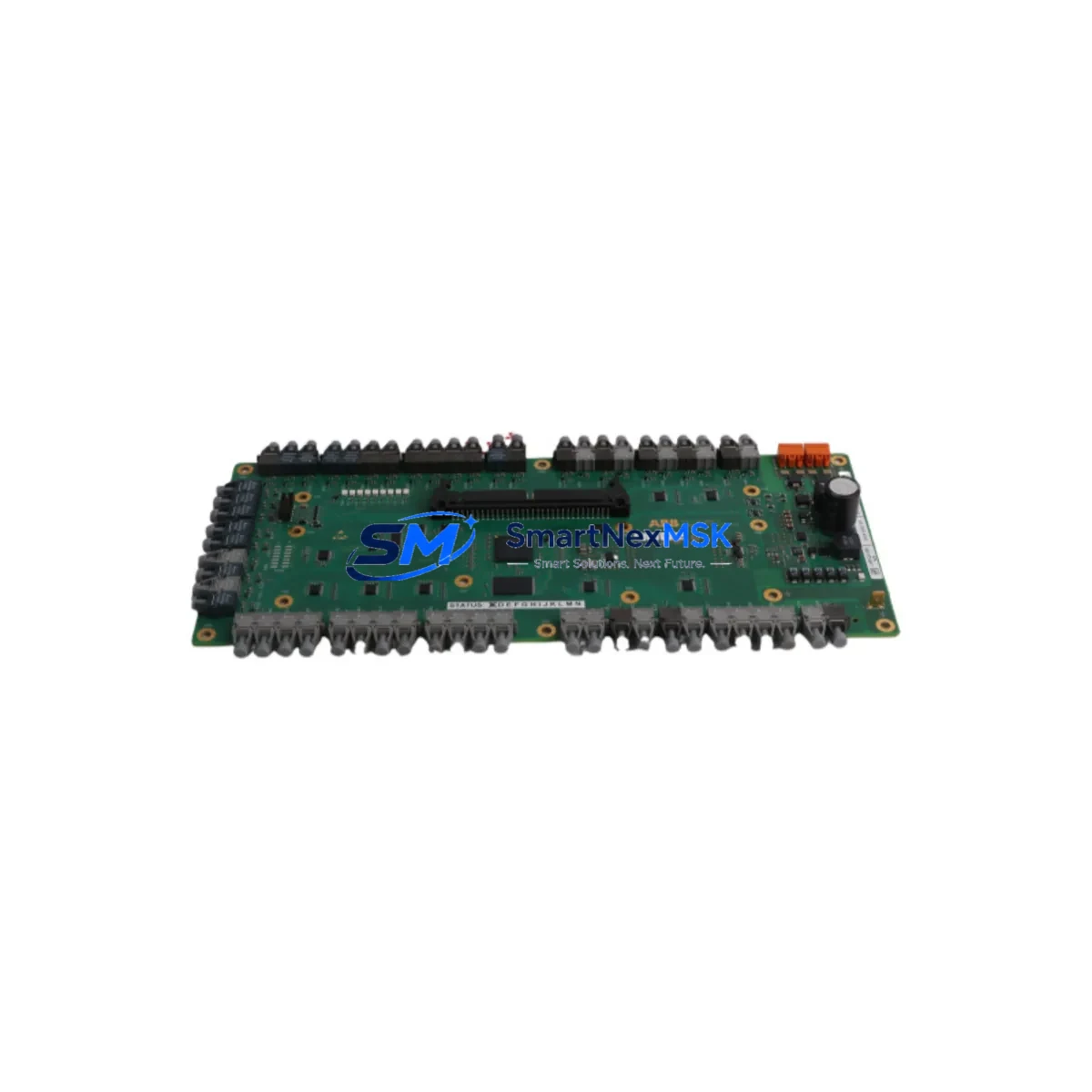

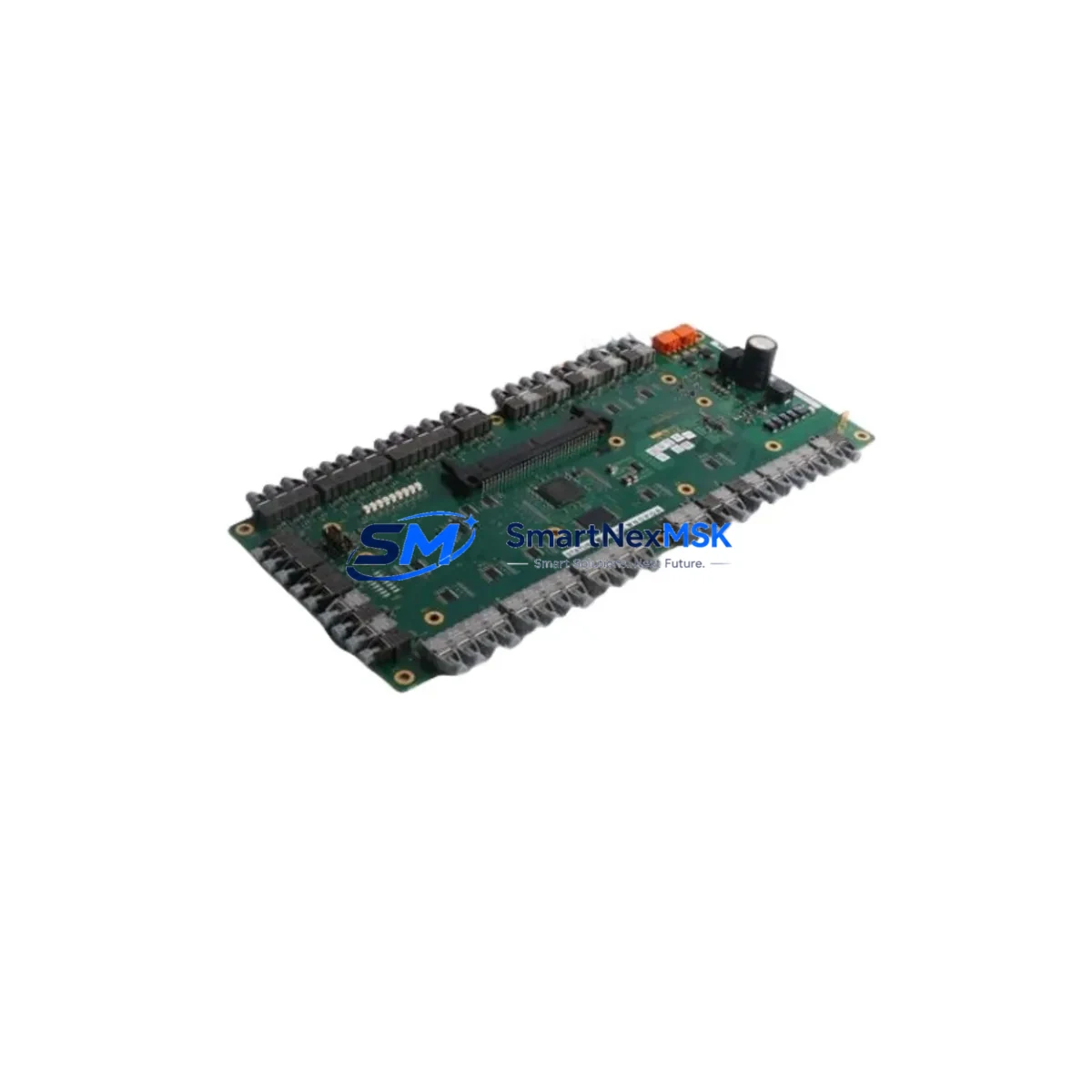

The ABB 3BHE024855R0103 UFC921A103 is an original DCS interface board engineered for ABB Symphony Plus distributed control systems. In industrial facilities where continuous process control is non-negotiable — including power generation, pulp and paper, oil and gas, and chemical processing — this board serves as a critical communication and I/O interface layer between the controller and field devices. Unplanned failure of this module can trigger full-loop shutdowns, cascade alarms, and costly production stoppages. Maintaining a verified spare on-site is the single most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

This listing supplies a maintenance-ready, original ABB 3BHE024855R0103 UFC921A103 board — sourced, inspected, and tested prior to shipment. Each unit is backed by a 12-month warranty and ships with full functional verification documentation. Whether you are executing a planned turnaround, responding to an emergency fault, or building out your critical spare inventory, this module is ready for immediate deployment into your Symphony Plus control cabinet.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the ABB 3BHE024855R0103 UFC921A103 as a replacement candidate, the replacement event should be treated as a broader control-loop inspection opportunity. Field experience in Symphony Plus environments consistently shows that interface board failures rarely occur in isolation — adjacent components in the same control cabinet or electrical loop are often under equivalent stress.

During the same maintenance window, engineers should inspect and, where appropriate, pre-stage spares for the following associated components. The AC800M Controller Module (PM866 / PM891 series) communicates directly with the UFC921A103 interface board — verify firmware compatibility and check for capacitor aging or thermal stress indicators before completing the swap. Equally important is the Symphony Plus Power Supply Module (SD821 / SD822): a degraded supply can cause intermittent interface board faults that mimic board failure, so measure output voltage under load before condemning the UFC921A103.

The S800 I/O Modules (AI810, AO810, DI810, DO810 series) share the same backplane bus as the UFC921A103. If the interface board failed due to bus contention or overvoltage, adjacent I/O modules should be tested for latent damage. Where fieldbus traffic is involved, the CI854 / CI857 PROFIBUS DP Communication Module should be verified for correct configuration and signal integrity after board replacement. All field wiring terminations on the S800 Termination Units and terminal blocks should be inspected for corrosion, loose connections, or insulation breakdown — poor termination is a leading cause of recurring interface board faults.

In HART-enabled installations, signal isolators (RLM01 / HART multiplexer) should be checked to ensure they are not injecting noise onto the I/O bus. Relay Output Modules (DO820 / RO820) should have their snubber circuits and contact condition verified, as relay coil back-EMF can propagate into the control bus. After replacement, confirm that the 800xA OPC Server and Ethernet switch re-establish communication correctly and that no stale device tags remain in the HMI alarm list. Finally, inspect the rack backplane assembly (TB820 / TB840) connector for bent pins or oxidation — a damaged backplane connector can destroy a replacement interface board within hours of installation. Confirm that all 24 VDC branch circuit fuses protecting the controller rack are within rated values and show no signs of thermal discoloration.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing UFC921A103, document the current firmware revision, slot address, and any active alarms in the 800xA system. Export the current controller configuration backup to a safe location. Confirm that the replacement 3BHE024855R0103 carries the same or a compatible firmware baseline. This step eliminates the most common cause of post-replacement commissioning failures in Symphony Plus environments and ensures the new board integrates without requiring a full system re-download.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected controller rack. In hot-standby redundant configurations, verify that the redundant controller has assumed control before isolating the faulty module. Do not power-cycle the entire rack unless the system architecture requires it — unnecessary power cycling can disrupt other loops sharing the same backplane.

Step 3 — Physical Replacement: Remove the faulty UFC921A103 by releasing the front-panel locking levers and sliding the board clear of the backplane connector. Inspect the backplane connector for damage before inserting the replacement unit. Seat the new 3BHE024855R0103 firmly and re-engage the locking levers. Replacing a legacy UFC921 variant with the R0103 revision follows the same mechanical procedure — no rack modification is required.

Step 4 — System Re-commissioning: Power up the module and observe the LED status indicators. The board should complete its self-test sequence within 60–90 seconds. In the 800xA engineering workspace, confirm that the module appears online and that all associated I/O channels are reporting correctly. Clear any residual alarms generated during the replacement event.

Step 5 — Functional Test: Perform a loop check on a representative sample of I/O channels connected through the replaced interface board. Confirm that analog signal scaling, digital status, and HART communication (where applicable) are all within specification before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement in your CMMS, including the new module serial number, installation date, and post-replacement test results. Update your critical spare inventory to trigger reorder of a replacement UFC921A103 unit to restore your on-site buffer stock.

Spare Parts Support FAQ

Q1: Is the 3BHE024855R0103 UFC921A103 a direct drop-in replacement for earlier UFC921 variants?
The UFC921A103 is the R0103 revision of the UFC921 interface board family. In most Symphony Plus installations it is backward-compatible with earlier UFC921 revisions at the hardware level, but firmware compatibility should be verified against your AC800M controller version before installation. Contact our technical team with your controller firmware version for a pre-shipment compatibility check at no charge.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 3BHE024855R0103 UFC921A103 unit is powered up and subjected to functional verification testing prior to shipment. This includes backplane communication self-test, I/O channel continuity checks, and visual inspection of all connector pins and PCB surfaces. A test report is available upon request and accompanies all orders placed under a standing spare agreement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the ABB Symphony Plus system documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental parameters. Warranty claims are processed with return of the defective unit for inspection, and replacement units are dispatched within 5 business days of claim approval.

Q4: Can you support long-term supply for legacy Symphony Plus systems?
Yes. We maintain ongoing sourcing relationships for ABB Symphony Plus spare parts, including the 3BHE024855R0103 UFC921A103 and related modules such as the PM866, SD822, CI854, and AI810. For facilities managing aging DCS infrastructure beyond the original product lifecycle, we recommend establishing a standing spare agreement to ensure availability. Contact us to discuss volume pricing and reserved stock arrangements.
