ABB 3BSE018298R1 Retrofit-Ready Digital Output for AC 160 DCS

ABB 3BSE018298R1 Retrofit-Ready Digital Output for AC 160 DCS: Compatible Modernization & Smooth System Upgrade

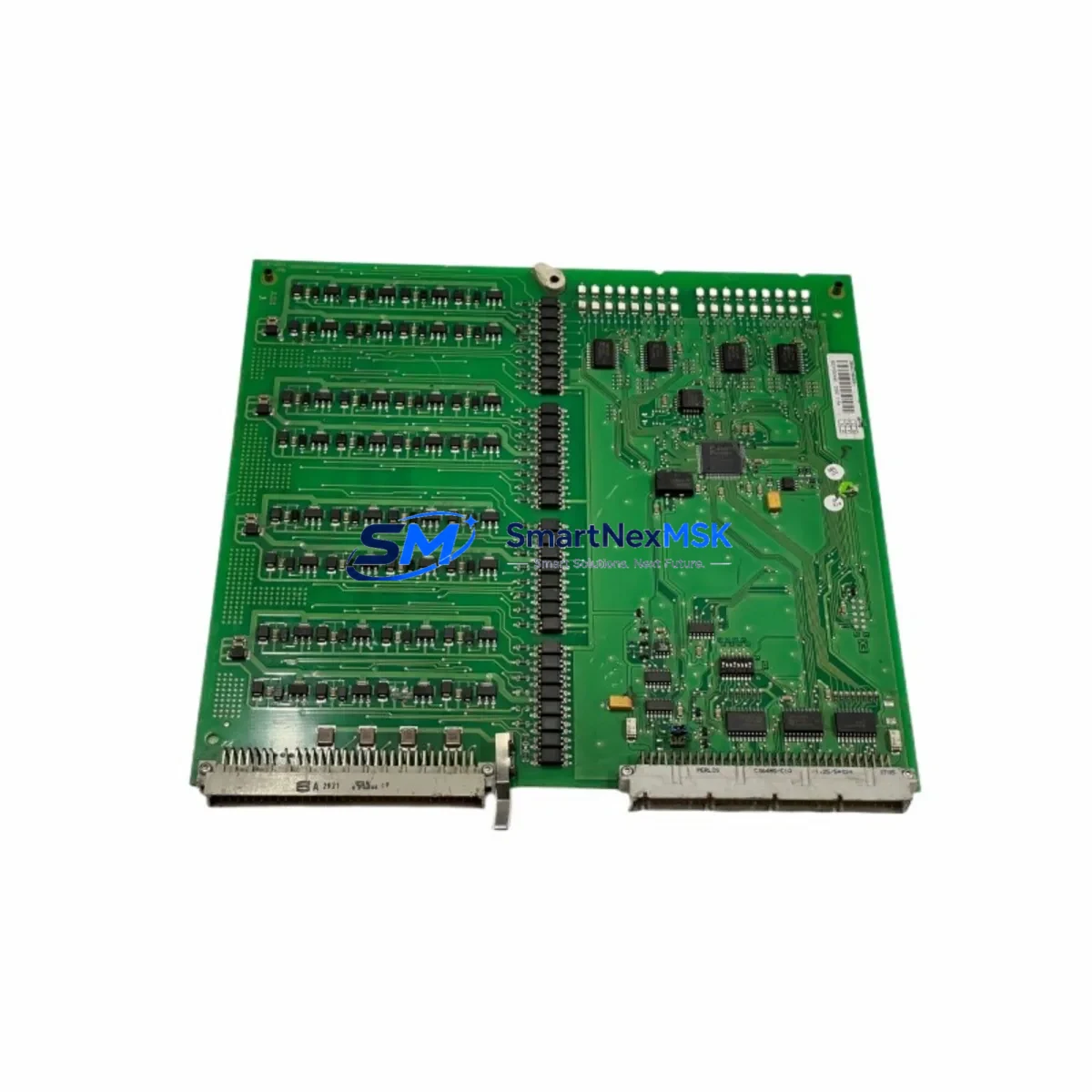

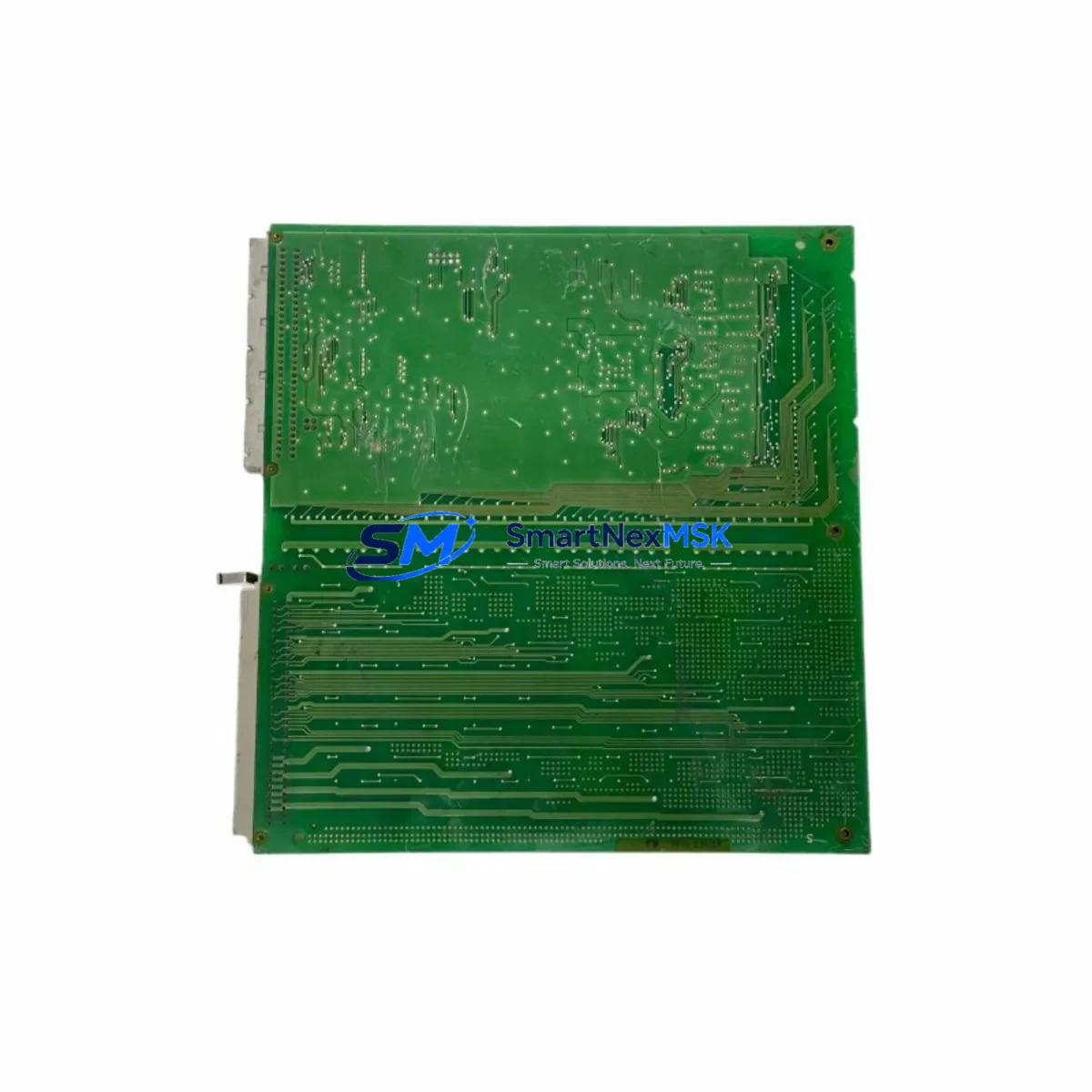

The ABB 3BSE018298R1 (DSDO 115A) is a 16-channel, 24 VDC digital output module engineered for the ABB AC 160 Distributed Control System. As legacy AC 160 installations approach end-of-support milestones, this module has become the go-to retrofit component for engineers tasked with extending plant life, replacing discontinued spare parts, and migrating control architectures without full-system shutdowns. Whether you are restoring a failed output card in a running process line or executing a phased DCS modernization, the 3BSE018298R1 delivers the electrical and logical compatibility required for a low-risk, minimum-downtime changeover.

Each unit ships from verified stock, undergoes pre-shipment functional testing, and is covered by a 12-month warranty against manufacturing defects — giving procurement and maintenance teams the confidence to plan retrofits on tight schedules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC 160 retrofit begins well before the replacement module arrives on site. The first step is a thorough audit of the existing control cabinet: document the rack layout, confirm that the DSPS 110A or DSPS 115A power supply module has sufficient current headroom to support the replacement DSDO 115A alongside any co-installed I/O cards such as the DSDI 110A digital input module or the DSAI 130A analog input module. Overloaded power rails are a common root cause of intermittent faults after a module swap and must be ruled out before commissioning.

Next, photograph or transcribe the DIP switch settings on the outgoing 3BSE018298R1 — or its predecessor — before extraction. The module address encoded in those switches determines how the MASTER 110 controller (3BSE004939R1) enumerates the I/O point list. An incorrect address setting will cause the controller to report a missing module fault and prevent output activation. If the original module is already failed and unreadable, cross-reference the AC 160 engineering database or the IMAS configuration backup to recover the correct address.

Field wiring termination is handled through the detachable 36-pin field connector. In a like-for-like replacement, the connector transfers directly from the old module to the new one, preserving all field wiring without re-termination. Where the original connector is damaged or corroded, plan for re-termination using the original loop drawings; allow additional time for insulation resistance testing on each output channel before energizing. For installations that also include DSDO 110A modules in adjacent slots, verify that the new module’s output load ratings are compatible with the connected actuators — solenoid valves, relay coils, and indicator lamps each impose different inrush and steady-state current profiles.

If the retrofit scope extends beyond a single card swap to a broader migration — for example, consolidating multiple AC 160 substations onto an AC 800M platform using the DSBC 172 bus converter or integrating a CI854 PROFIBUS communication interface — the 3BSE018298R1 can continue to serve as a field I/O node during the transition period, allowing phased cutover rather than a single hard migration. This approach is particularly valuable in continuous-process industries where a full shutdown is not operationally feasible.

For sites adding I/O capacity during the retrofit, the DSDO 115A can be installed in previously empty rack slots alongside existing DSDP 150 pulse output modules or DSAX 110A analog output modules, provided the rack’s S100 bus segment has available node addresses. Always update the IMAS or Control Builder M project file to reflect the new module before downloading the revised configuration to the MASTER 110 or AC 800M controller.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering constraint in any live-system retrofit. For the 3BSE018298R1, the recommended procedure is a hot-standby preparation sequence: stage the replacement module, pre-set the DIP switches to the correct address, and verify the field connector pin-out against the loop drawing before the maintenance window opens. This reduces the physical swap to under ten minutes in most installations.

Where the AC 160 system supports redundant I/O configurations, coordinate the swap with the redundancy switchover sequence to ensure the partner module assumes control before the primary is extracted. In non-redundant configurations, coordinate with the process control team to place the affected outputs in a safe, de-energized state — typically by issuing a forced output command from the MASTER 110 operator station or the connected ABB 800xA HMI — before removing the module.

After installation, the controller will automatically re-enumerate the I/O bus and restore the module to service within one scan cycle, typically under 100 ms. Confirm output status on the HMI faceplate and verify that all 16 channels respond correctly to a manual force test before releasing the loop to automatic control. Document the swap in the plant maintenance management system, noting the new module serial number and the pre-shipment test report reference for the 12-month warranty record.

For migrations involving communication protocol changes — such as moving field devices from the legacy S100 I/O bus to PROFIBUS DP via a CI840A interface module — the 3BSE018298R1 can remain in service on the existing bus segment while the new protocol infrastructure is commissioned in parallel, eliminating the need to cut over all I/O simultaneously and protecting original program logic throughout the transition.

Retrofit Support FAQ

Q1: Is the 3BSE018298R1 a direct drop-in replacement for earlier DSDO modules in the AC 160 system?
Yes. The DSDO 115A is backward-compatible with earlier DSDO variants used in AC 160 racks. The backplane connector, field terminal layout, and S100 bus protocol are identical, so no hardware modification or software reconfiguration is required for a like-for-like swap. Confirm the DIP switch address matches the original before powering up.

Q2: What pre-shipment testing is performed, and how does the 12-month warranty work?
Every 3BSE018298R1 unit undergoes functional output channel verification and insulation resistance testing before dispatch. A test report is included with shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with the test report and purchase record as supporting documentation.

Q3: How do I verify wiring compatibility if the original field connector is missing or damaged?
Refer to the AC 160 DSDO 115A hardware manual (document 3BSE018298) for the full 36-pin terminal assignment. Cross-reference with your plant loop drawings to re-terminate field cables. For sites without original documentation, our technical team can provide terminal mapping guidance based on the installed actuator types and control cabinet layout.

Q4: Can this module be used in a mixed AC 160 / AC 800M migration architecture?
Yes. During a phased migration, the 3BSE018298R1 can continue operating on the existing S100 I/O bus connected to the MASTER 110 controller while the AC 800M platform is commissioned on a parallel network segment. Once the AC 800M is ready to assume control, the I/O can be migrated rack by rack using the DSBC 172 bus converter, maintaining field continuity throughout the cutover.
