ABB 3BSE028588R1 DO880-1 Retrofit-Ready Digital Output for AC800M Control Systems

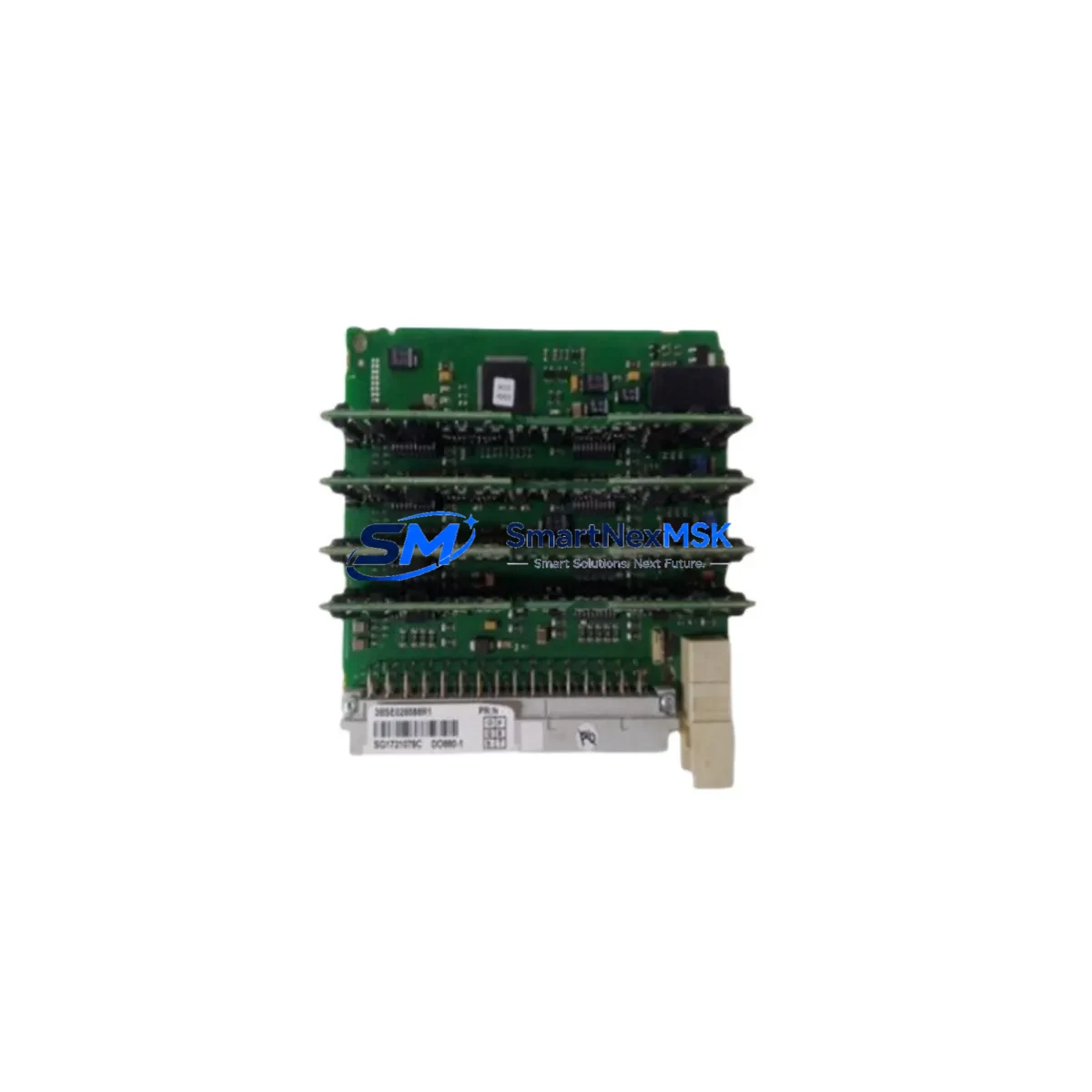

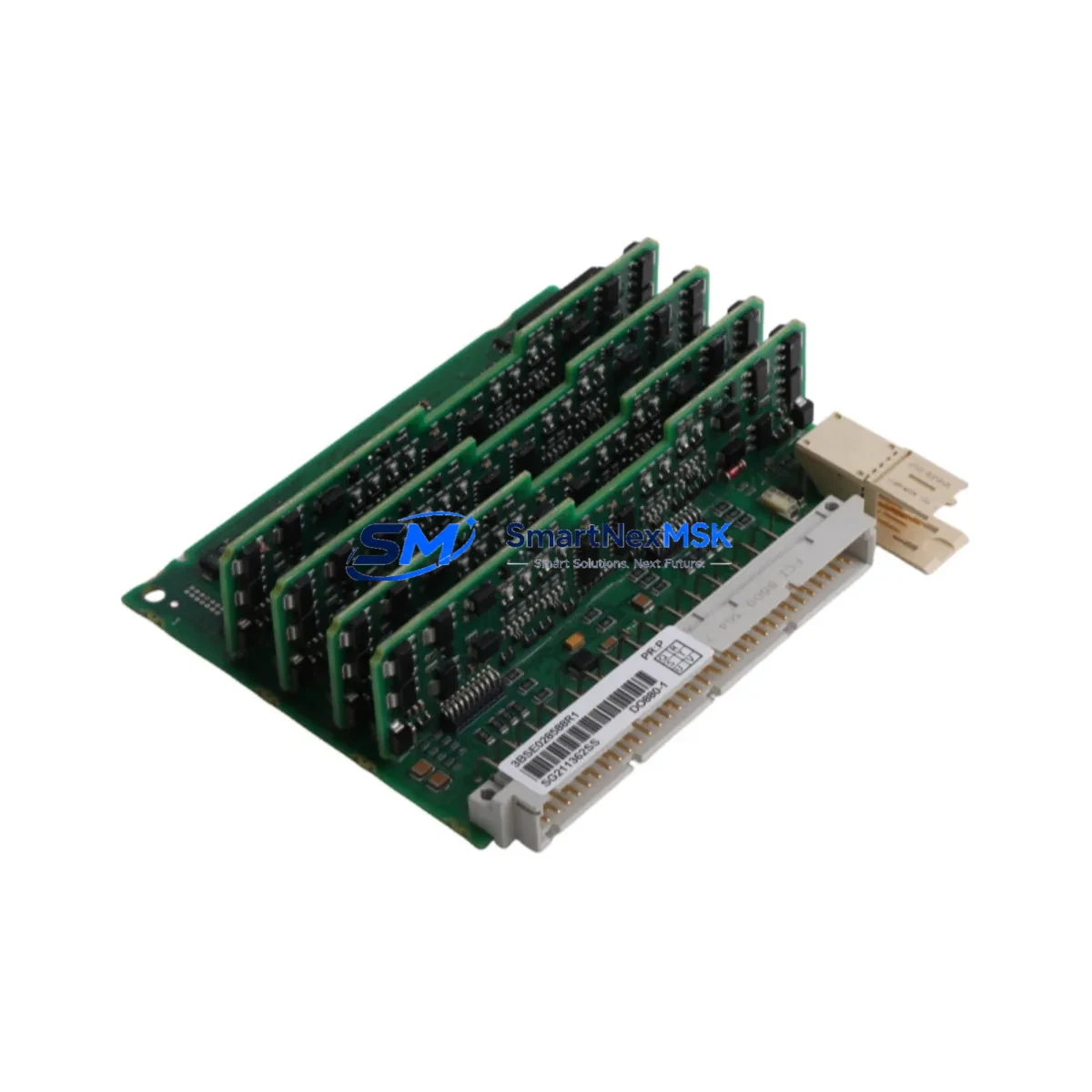

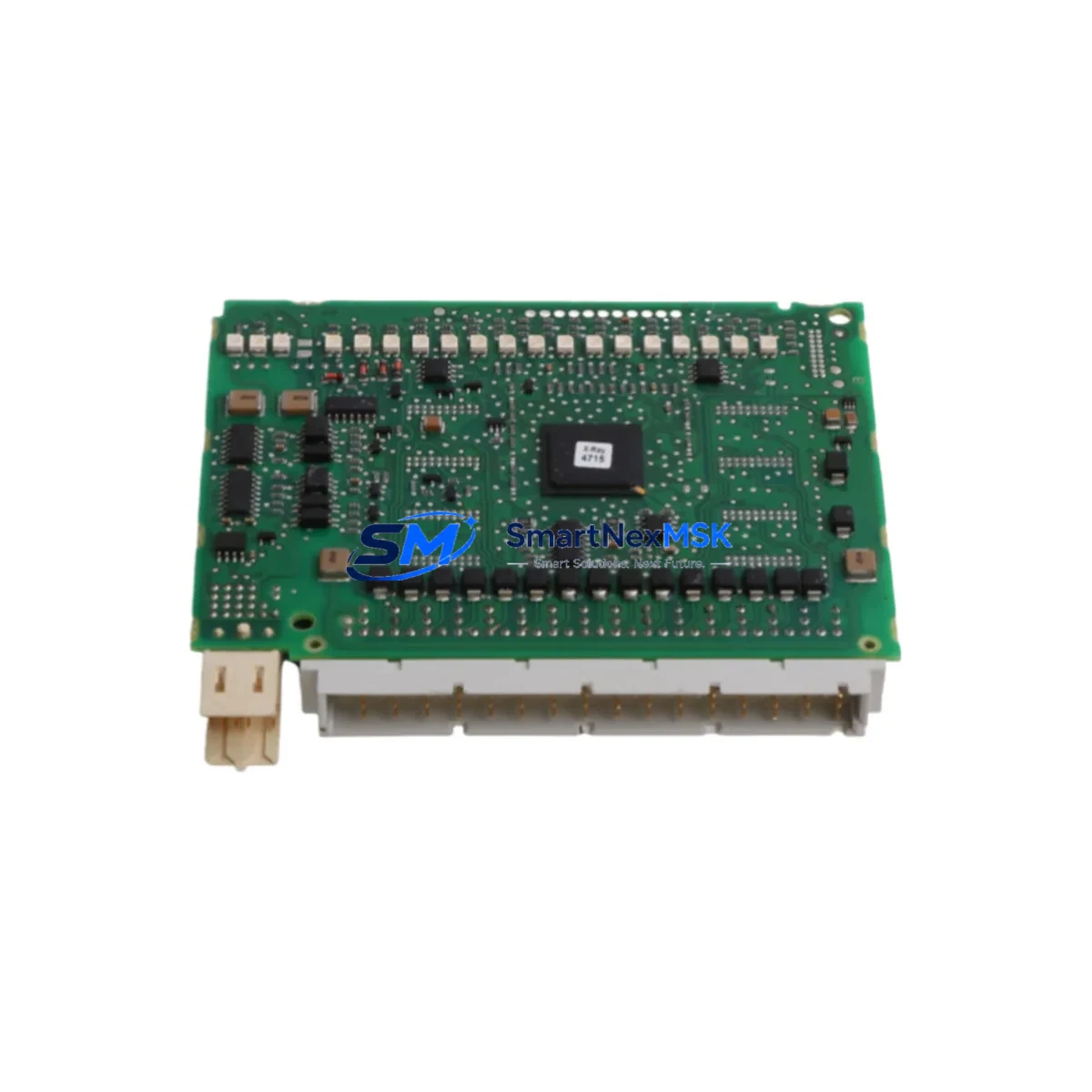

The ABB 3BSE028588R1 DO880-1 is a 32-channel digital output module engineered for the ABB AC800M Distributed Control System platform. As legacy AC800M installations approach end-of-life support cycles, plant engineers and automation integrators increasingly rely on verified retrofit-ready replacements to sustain production continuity without committing to full platform migrations. SMARTNEXMSK maintains in-stock inventory of the DO880-1 to support urgent replacement requirements, planned shutdowns, and phased system upgrades — all backed by a 12-month warranty and pre-shipment functional testing.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 3BSE028588R1 / DO880-1 |
| Module Type | 32-Channel Digital Output Module |
| Compatible Platform | ABB AC800M DCS (S800 I/O Series) |
| Backplane Interface | S800 ModuleBus (optical fiber backplane) |
| Output Signal | 24 VDC digital output, sourcing type |
| Terminal Compatibility | Compatible with TB820V2 and TB840A terminal bases |
| Communication Protocol | ModuleBus (proprietary ABB S800 fieldbus) |
| Replacement Scope | Direct drop-in for DO880, DO880-1 variants |
| Installation Requirement | Snap-mount onto S800 terminal base; no rewiring required |
| Commissioning Note | Module address auto-assigned via terminal base position; verify in Control Builder M |
| Firmware Compatibility | Compatible with AC800M firmware 5.x and above |
| Warranty | 12 months from date of shipment |
| Pre-Shipment Test | Full functional output channel verification performed |
| Origin | Germany (ABB manufactured) |
Retrofit Planning for Existing Automation Systems
Replacing the DO880-1 within an operating AC800M system requires a structured approach to avoid configuration drift and unplanned downtime. The DO880-1 mounts directly onto an S800 terminal base — typically a TB820V2 or TB840A — which retains all field wiring during module swap. This means the physical I/O connections to actuators, solenoid valves, and relay coils remain undisturbed, significantly reducing rewiring risk.
Before initiating the swap, engineers should verify the existing module address assignment within ABB Control Builder M. The DO880-1 receives its logical address from the terminal base slot position on the S800 ModuleBus segment. If the replacement module is installed in the same slot, the address is preserved automatically. However, if the rack layout has been modified — for example, following the addition of an AI880A analog input module or a DI880 digital input module — address conflicts must be resolved before going live.
Power budget verification is equally critical. The AC800M controller unit, typically an PM860AK01 or PM864A processor module, supplies power to the S800 I/O rail through the SA811 power supply module. Adding or replacing output modules changes the total current draw on the 24 VDC rail. Engineers should confirm that the SA811 — or its successor, the SA801F — has sufficient headroom to support the DO880-1’s output load, particularly in applications driving multiple solenoids simultaneously.
For systems integrating fieldbus communication beyond the S800 ModuleBus, such as PROFIBUS DP or FOUNDATION Fieldbus segments, the DO880-1 retrofit does not affect the fieldbus topology. However, if the upgrade is part of a broader migration from an older Advant OCS or Master platform to AC800M, the engineering team must also account for HMI screen reconfiguration in ABB 800xA or Operate IT environments. Output tag names, faceplate bindings, and alarm thresholds linked to the replaced module’s channels must be verified and updated in the graphics library before restart.
In multi-rack configurations, the CI854A PROFIBUS DP communication interface or CI858 DNP3 interface modules may also require parameter re-download if the I/O configuration file is regenerated during the retrofit. Keeping a backup of the current SIL-rated or standard application program in Control Builder M before any hardware change is a non-negotiable step in any responsible retrofit workflow.
Downtime Control During System Migration
Minimizing production interruption during a DO880-1 replacement begins with pre-staging. SMARTNEXMSK ships the 3BSE028588R1 pre-tested and ready for immediate installation, eliminating the bench-testing phase that typically adds hours to a planned shutdown window. Upon receipt, the replacement module should be visually inspected and the firmware version confirmed against the site’s AC800M firmware baseline.
The recommended swap procedure is to place the affected controller in manual override or transfer control to a redundant AC800M controller — if the system is configured with a PM860AK01 redundancy pair — before removing the DO880-1. This preserves the last known output states and prevents uncontrolled actuator movement during the module gap. Once the replacement is seated on the terminal base and the ModuleBus connection is re-established, the controller performs an automatic module recognition cycle. The application program does not require recompilation; only a configuration download confirmation in Control Builder M is needed to re-activate the output channels.
For non-redundant systems, the total controlled downtime for a single DO880-1 swap — including module removal, installation, ModuleBus re-sync, and output channel verification — typically falls within a 15–30 minute window when the replacement module is pre-staged and the engineering team is familiar with the AC800M architecture. Documenting the channel-by-channel output state before shutdown and verifying each channel after restart against the process P&ID is the final step before returning the loop to automatic control.
Retrofit Support FAQ
Q1: Is the 3BSE028588R1 DO880-1 a direct replacement for the original DO880?
Yes. The DO880-1 (3BSE028588R1) is the current production revision of the DO880 family and is fully backward-compatible with all S800 terminal bases previously used with the DO880. No wiring changes or configuration modifications are required when replacing a DO880 with a DO880-1 in the same terminal base slot.
Q2: What commissioning steps are required after installing the replacement module?
After physical installation, open ABB Control Builder M and perform a hardware scan or configuration download to confirm the module is recognized at the correct ModuleBus address. Verify all 32 output channels are mapped correctly to the application program tags. Perform a forced output test on each channel before returning the loop to automatic mode. No new license or firmware update is required for standard DO880-1 installations on AC800M firmware 5.x and above.
Q3: Can the DO880-1 be used in a safety-instrumented system (SIS) application?
The DO880-1 (3BSE028588R1) is a standard digital output module and is not SIL-rated for use in IEC 61508 safety loops. For SIS applications within the AC800M platform, ABB’s dedicated safety I/O modules should be used. If your retrofit involves both standard and safety I/O, SMARTNEXMSK can assist in identifying the correct safety-rated module alternatives.
Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every DO880-1 unit shipped by SMARTNEXMSK undergoes full functional testing — all 32 output channels are individually verified for correct switching operation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with anti-static packaging and include a test report upon request. For warranty claims, contact sales@smartnexmsk.com with the order reference and fault description.
