ABB 3HAC024322-001 Retrofit-Ready EMI Filter for IRC5 Control Systems

ABB 3HAC024322-001 Retrofit-Ready EMI Filter for IRC5 Control Systems: Compatible Upgrade for Legacy Robot Automation

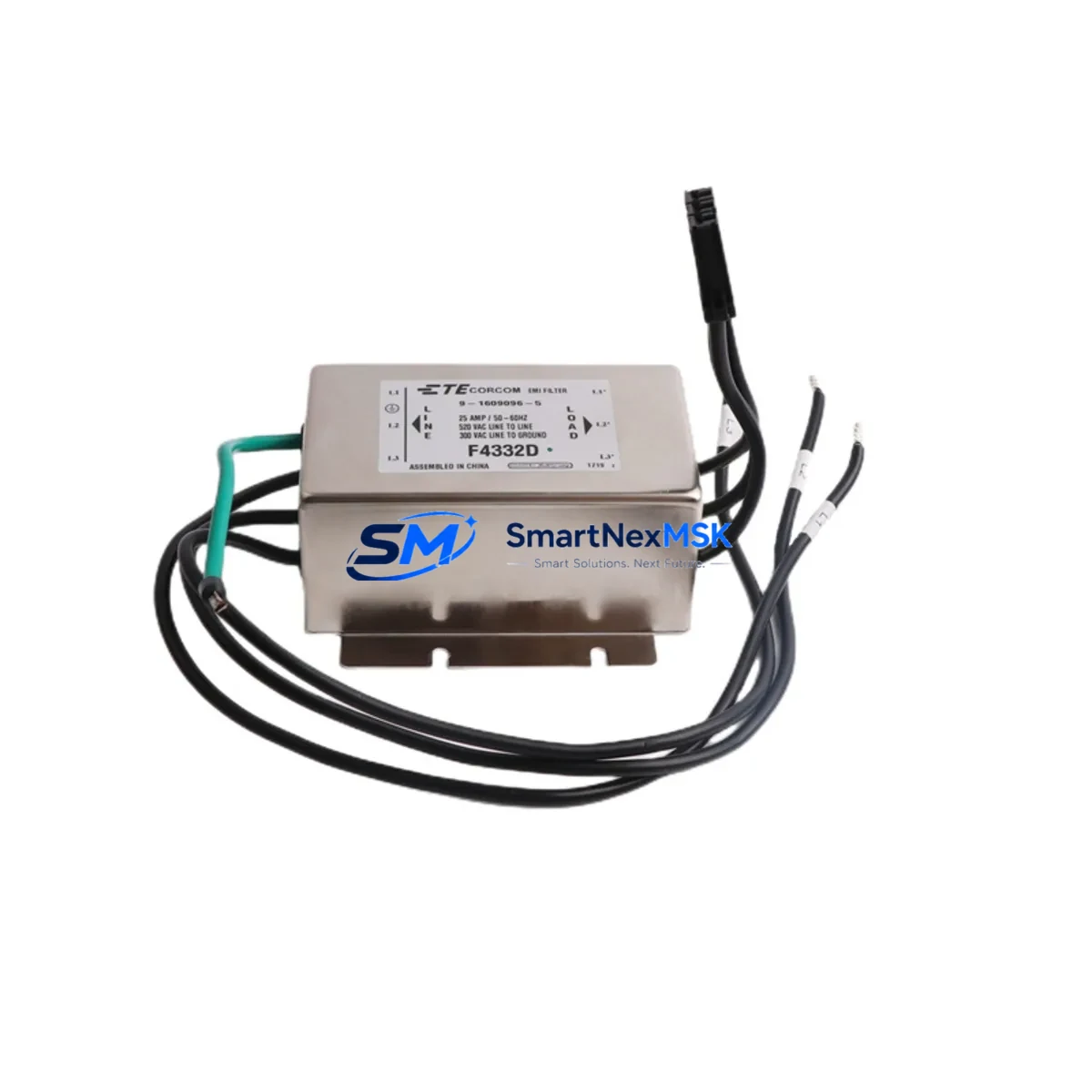

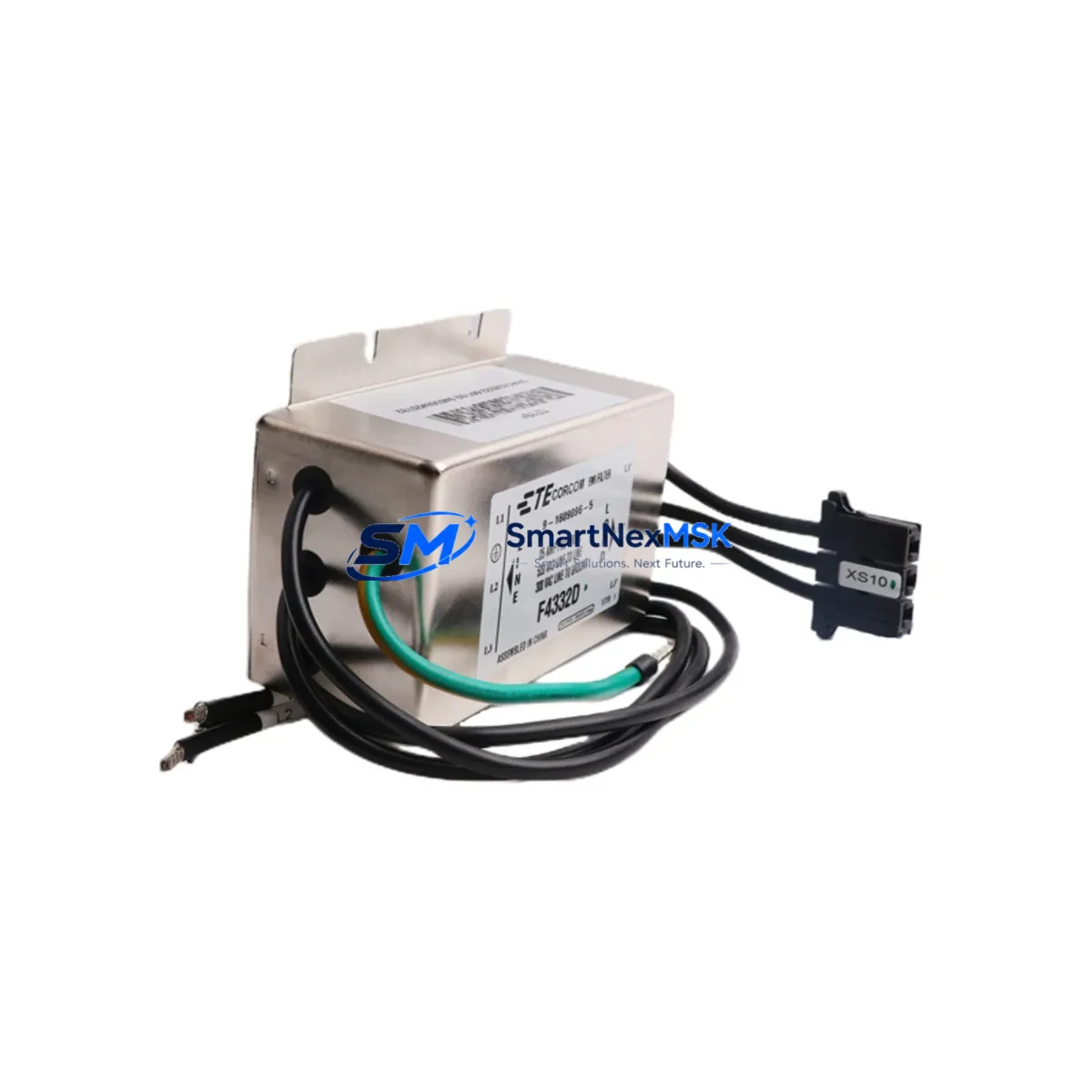

The ABB 3HAC024322-001 is a factory-specification EMI filter module designed for integration within the IRC5 robot controller cabinet. As industrial facilities transition away from end-of-life S4C+ and S4 controller platforms, this module serves as the verified drop-in replacement that preserves electromagnetic compatibility across the drive system, servo amplifier chain, and power distribution network. Whether you are executing a full controller swap, upgrading a single-cabinet IRC5 M2004 unit, or restoring a decommissioned robot cell, the 3HAC024322-001 provides the interference suppression performance required to maintain CE compliance and protect downstream motion control hardware.

SMARTNEXMSK maintains ready stock of the 3HAC024322-001 with pre-shipment functional verification and a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. Units are dispatched with original-format documentation to support your site acceptance test and commissioning records.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 retrofit begins well before the maintenance window opens. When the 3HAC024322-001 is the target replacement component, the surrounding system context determines how straightforward the swap will be. In a typical IRC5 cabinet, the EMI filter sits upstream of the DSQC 661 drive unit and the DSQC 662 axis computer, receiving mains power from the cabinet power supply module before conditioning it for the servo amplifier chain. Confirming that the existing power supply module — often a 3HAC025338-001 or equivalent — is delivering within-spec voltage before installing the new filter prevents misdiagnosis of residual noise issues post-swap.

For facilities migrating from S4C+ platforms, the IRC5 controller introduces a fundamentally different backplane architecture. The S4C+ used a VME-based backplane with dedicated I/O boards, while the IRC5 consolidates I/O management through the DSQC 652 digital I/O module and DSQC 651 analog I/O module connected via the internal DeviceNet or PROFIBUS network. Before decommissioning the S4C+ cabinet, engineers should export all I/O mapping tables and verify that the IRC5 I/O configuration mirrors the original signal assignments. The 3HAC024322-001 filter installation itself does not affect I/O addressing, but the broader migration requires careful cross-referencing of terminal block wiring between the old and new cabinets.

Communication protocol migration is another critical workstream. S4C+ systems frequently used serial RS-232 or RS-485 links to upstream PLCs and SCADA systems. IRC5 installations typically leverage the DSQC 604 fieldbus adapter or DSQC 688 PROFINET device module to establish Ethernet-based communication. Verifying that the host PLC — whether a Siemens S7-300, Allen-Bradley ControlLogix, or Mitsubishi Q-series — has the appropriate fieldbus master module and updated GSD or EDS files is essential before the IRC5 goes live. The EMI filter 3HAC024322-001 contributes to signal integrity across these communication links by suppressing conducted interference on the mains supply that would otherwise couple into the fieldbus cabling.

HMI screen migration also warrants attention. If the existing cell uses a legacy ABB FlexPendant connected to an S4C+ controller, the IRC5-compatible FlexPendant (3HAC028357-001 or current revision) uses a different connector and communication protocol. Updating HMI screens to reflect the IRC5 program structure — including any changes to motion task naming, I/O signal labels, or alarm codes — should be completed and validated in simulation before the physical cutover. The 3HAC024322-001 filter replacement can be staged independently of the HMI migration, allowing parallel workstreams to compress the overall project timeline.

For multi-robot cells, the IRC5 MultiMove controller option introduces additional planning requirements around coordinated motion task synchronization and shared I/O arbitration. In these environments, the EMI filter on each individual drive unit must be verified independently, and the 3HAC024322-001 should be treated as a per-cabinet line item in the bill of materials rather than a shared component.

Downtime Control During System Migration

Minimizing unplanned downtime during an IRC5 EMI filter replacement requires a structured pre-outage preparation protocol. Before the maintenance window, the original robot program — including all RAPID modules, system parameters, and I/O configuration files — should be backed up to a USB memory device using the IRC5 FlexPendant backup function. This backup preserves the complete system state and allows rapid restoration if the commissioning process encounters unexpected issues.

During the physical swap, the 3HAC024322-001 can typically be replaced within a 30–60 minute window by a qualified electrical technician familiar with IRC5 cabinet layout. The key steps are: isolate mains power at the cabinet disconnect, photograph existing terminal wiring before disconnection, remove the defective or end-of-life filter module, install the 3HAC024322-001 using the original mounting hardware, reconnect terminals per the original wiring photograph and ABB installation drawing, and restore mains power. No RAPID program modification is required, and the IRC5 controller will resume normal operation from the last saved program state.

To protect control continuity in production environments where even brief outages are costly, consider staging the replacement during a scheduled preventive maintenance interval rather than waiting for a failure event. SMARTNEXMSK’s in-stock availability of the 3HAC024322-001 supports just-in-time procurement strategies, allowing maintenance teams to order the module when the maintenance window is confirmed rather than carrying long-term safety stock. For facilities with multiple IRC5 cabinets, a single spare unit held on-site provides adequate coverage for unplanned failures while the replacement order is in transit.

After installation, a brief functional verification — including a dry-run of the robot program without load, confirmation of fieldbus communication status on the teach pendant, and a check of the drive unit fault log — confirms that the new filter is performing correctly before production resumes. Total verified downtime for a straightforward 3HAC024322-001 swap in a well-prepared environment is typically under two hours from isolation to production restart.

Retrofit Support FAQ

Q1: Is the 3HAC024322-001 a direct replacement for the EMI filter in S4C+ robot controllers?
The 3HAC024322-001 is specified for the IRC5 controller platform. It is not a direct plug-in replacement for S4C+ filter modules due to differences in cabinet form factor and terminal layout. However, when migrating from S4C+ to IRC5, this module is the correct filter component for the destination controller. SMARTNEXMSK can advise on the appropriate S4C+ filter part number if you are servicing an existing S4C+ installation rather than migrating to IRC5.

Q2: Does installing the 3HAC024322-001 require any changes to the RAPID program or system parameters?
No. The 3HAC024322-001 is a passive electrical component that performs no data processing or communication functions. Installation requires only mechanical mounting and terminal wiring. No RAPID code modification, system parameter update, or controller restart procedure beyond a standard power cycle is required.

Q3: What wiring checks should be performed after installation?
After installing the 3HAC024322-001, verify terminal torque values per the ABB IRC5 installation manual (typically 1.2–1.5 Nm for the mains input terminals), confirm protective earth continuity between the filter chassis and cabinet ground bus, and check that the phase sequence at the filter input matches the drive unit requirement. A clamp meter measurement of leakage current at the PE conductor confirms the filter is operating within specification before the robot is returned to automatic mode.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and premature component failure under rated operating conditions as specified in the ABB product datasheet. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated voltage and current envelope. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Replacement units are dispatched upon fault confirmation, and defective units are returned for analysis at SMARTNEXMSK’s cost.
