ABB 3HAC043166-005 Retrofit-Ready D70 Bell Cup for RB Series

ABB 3HAC043166-005 Retrofit-Ready D70 Bell Cup for RB Series Control Systems: Compatible Upgrade for Legacy Painting Robot Lines

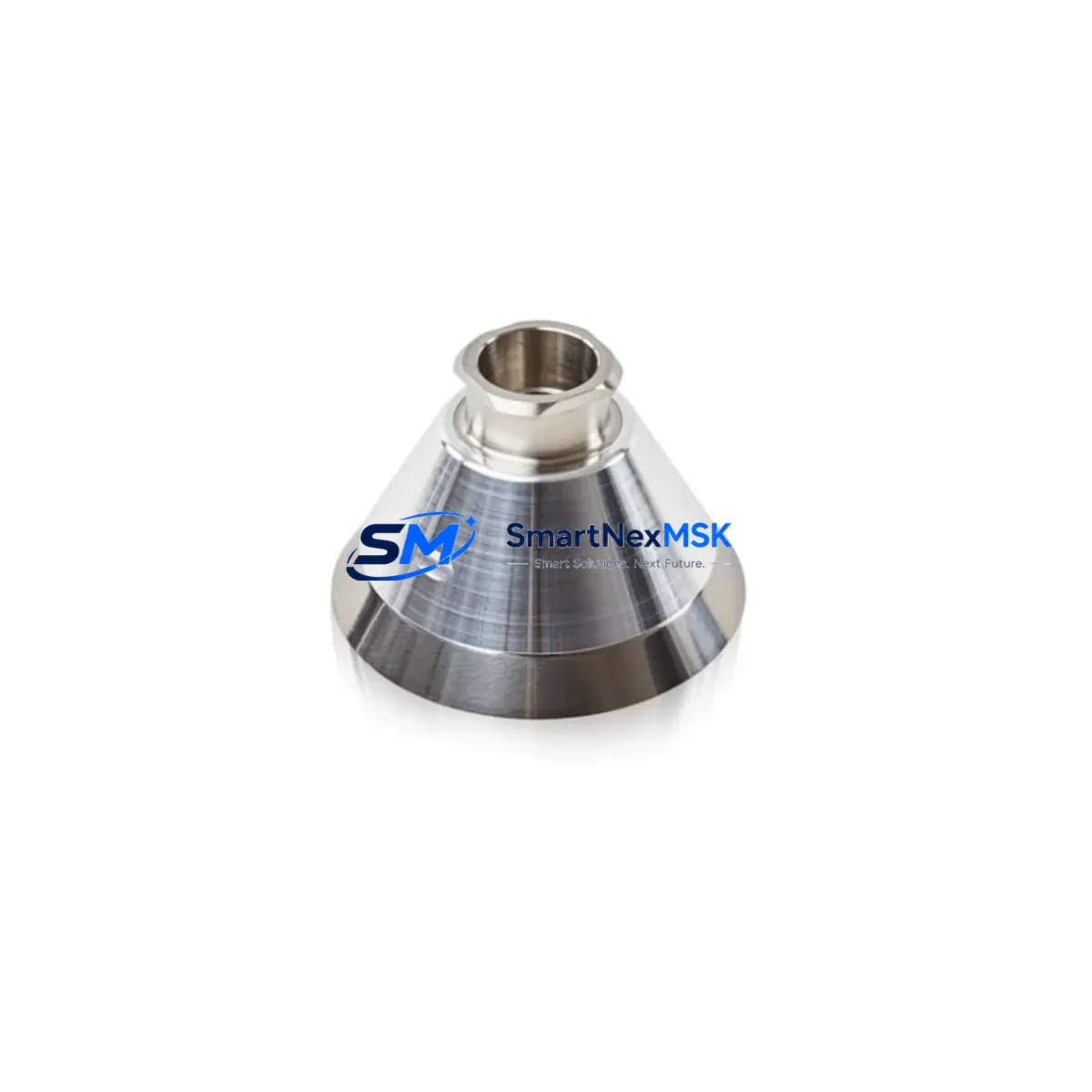

The ABB 3HAC043166-005 is a D70 Bell Cup BOC rotary atomizer component engineered for direct retrofit into ABB RB Series painting robot systems. As production lines age and OEM support for legacy atomizer assemblies becomes increasingly limited, the 3HAC043166-005 provides a verified drop-in replacement path that preserves spray pattern geometry, fluid delivery performance, and high-speed rotation balance — without requiring modifications to the existing robot arm, paint supply unit, or control cabinet wiring.

This component is sourced from authorized supply channels, individually inspected prior to shipment, and backed by a 12-month warranty covering manufacturing defects and dimensional non-conformance. Stock is maintained for immediate dispatch to minimize unplanned downtime on active paint shop lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a rotary atomizer bell cup on an active paint line requires careful coordination across multiple system layers. The 3HAC043166-005 D70 bell cup interfaces directly with the ABB rotary atomizer turbine shaft, which is driven by the atomizer air supply regulated through the paint process controller — typically an ABB IRC5 controller or legacy S4C+ controller cabinet in older installations. Before removal of the existing bell cup, engineers should confirm that the turbine air supply valve is fully closed and that the high-voltage electrostatic circuit is de-energized at the ABB HVLP power supply unit.

The paint supply side must also be isolated. Facilities running ABB FlexPainter IRB 5500 or similar platforms will have a dedicated paint change valve block and color changer module upstream of the atomizer. These should be purged and pressure-relieved before the bell cup is unthreaded from the turbine shaft. Torque specifications for reinstallation must follow ABB service documentation to avoid shaft thread damage — a common failure point when field teams use non-calibrated tools.

For lines where the original bell cup model has been discontinued, the 3HAC043166-005 serves as the current active replacement. Facilities that previously operated with earlier D65 or D60 bell cup variants should note that the D70 diameter affects spray fan width and atomization droplet size. Process engineers will need to re-validate spray parameters — including shaping air pressure, rotational speed (RPM), and paint flow rate — using the robot’s teach pendant or the ABB RobotStudio offline programming environment before resuming production.

In multi-robot paint booths, it is common to find a mix of atomizer generations. If the booth also operates ABB IRB 52 or IRB 5500 units alongside legacy RB platforms, the maintenance team should maintain separate bell cup inventories per robot type to avoid cross-installation errors. The ABB 3HAC028357-001 turbine assembly and associated 3HAC043166-001 bell cup variants are frequently found in the same cabinet environment and should be cross-referenced during spare parts planning.

Wiring and I/O considerations are minimal for this component, as the bell cup itself carries no electrical terminations. However, the atomizer body — including the ABB 3HAC028357-003 atomizer housing — contains the electrostatic charging electrode, which should be inspected for wear or contamination during any bell cup replacement service. Paint buildup on the electrode tip is a leading cause of electrostatic efficiency loss and uneven coating.

Facilities upgrading from older paint process controllers should also verify compatibility between the robot controller’s process I/O board and the paint application module. The ABB DSQC 662 process I/O board, commonly found in IRC5 cabinets, manages analog outputs for paint flow and shaping air — parameters that directly influence bell cup performance. Any firmware updates to the IRC5 controller performed during the retrofit window should be tested against the existing paint process program before live production resumes.

Downtime Control During System Migration

Minimizing downtime during a bell cup replacement on an active paint line begins with pre-staging. The 3HAC043166-005 should be unpacked, visually inspected, and dimensionally verified against the turbine shaft thread specification before the robot is taken offline. Having the replacement component ready at the booth — alongside the correct torque wrench, turbine locking tool, and a fresh set of atomizer seals — reduces the actual robot-offline window to under 60 minutes for experienced technicians.

The robot’s existing paint process program does not need to be modified for a like-for-like D70 bell cup replacement. The teach points, path data, and I/O assignments stored in the IRC5 controller remain valid. However, a dry-run cycle — with paint flow disabled and only shaping air active — is strongly recommended before the first live production run. This confirms that the bell cup is correctly seated, balanced, and rotating freely without vibration at operating RPM.

For facilities that cannot afford any unplanned downtime, a hot-swap strategy using a pre-configured spare robot or a portable atomizer test rig allows the replacement bell cup to be run-in and balanced offline before installation. This approach is particularly valuable in high-volume automotive paint shops where a single robot offline event can affect downstream assembly scheduling.

All original program logic, HMI screen configurations on the ABB FlexPendant, and safety zone definitions remain unaffected by a bell cup replacement. The only post-installation verification steps are mechanical balance confirmation, spray pattern test, and a visual inspection of the electrostatic charging performance on a test panel before returning the robot to automatic mode.

Retrofit Support FAQ

Q1: Is the ABB 3HAC043166-005 a direct replacement for my existing D70 bell cup?
Yes. The 3HAC043166-005 is the current active ABB part number for the D70 BOC bell cup used on RB Series painting robots. It is a direct dimensional and functional replacement for earlier D70 variants. If your existing bell cup carries a different suffix (e.g., -001 or -003), please confirm the turbine shaft thread specification before installation, as minor revision changes may apply.

Q2: What commissioning steps are required after installation?
After torquing the bell cup to the specified value, perform a turbine balance check at low RPM before ramping to operating speed. Run the robot’s spray test program with shaping air only to confirm free rotation and absence of vibration. Then run a full paint test on a sample panel to verify spray pattern width, atomization quality, and electrostatic charging performance. Log all results before returning the robot to automatic production mode.

Q3: Can I install this bell cup without modifying the robot program or HMI screens?
Yes, for a like-for-like D70 replacement. No changes to teach points, I/O assignments, or HMI screen configurations are required. If you are upgrading from a different bell cup diameter (e.g., D60 to D70), spray process parameters — including shaping air pressure, paint flow rate, and robot path offsets — must be re-validated by a qualified process engineer.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, dimensional non-conformance, and material failures under normal operating conditions. It does not cover damage resulting from incorrect installation torque, contamination, or operation outside the specified RPM and temperature range. All units are inspected and function-tested prior to shipment. Warranty claims are processed through our sales team with supporting documentation.
