ABB 3HAC14549-3 Maintenance-Ready Spare for IRC5 Automation

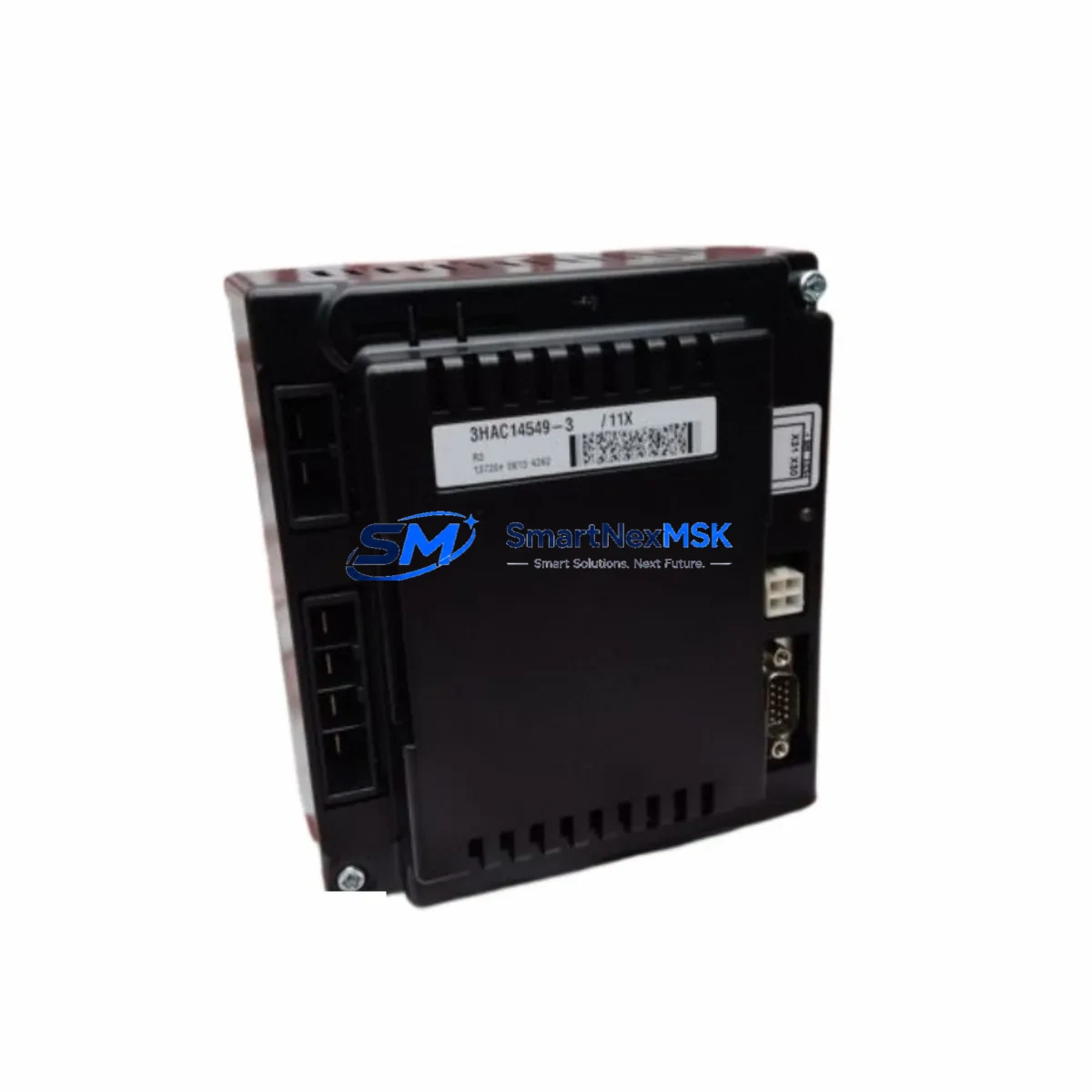

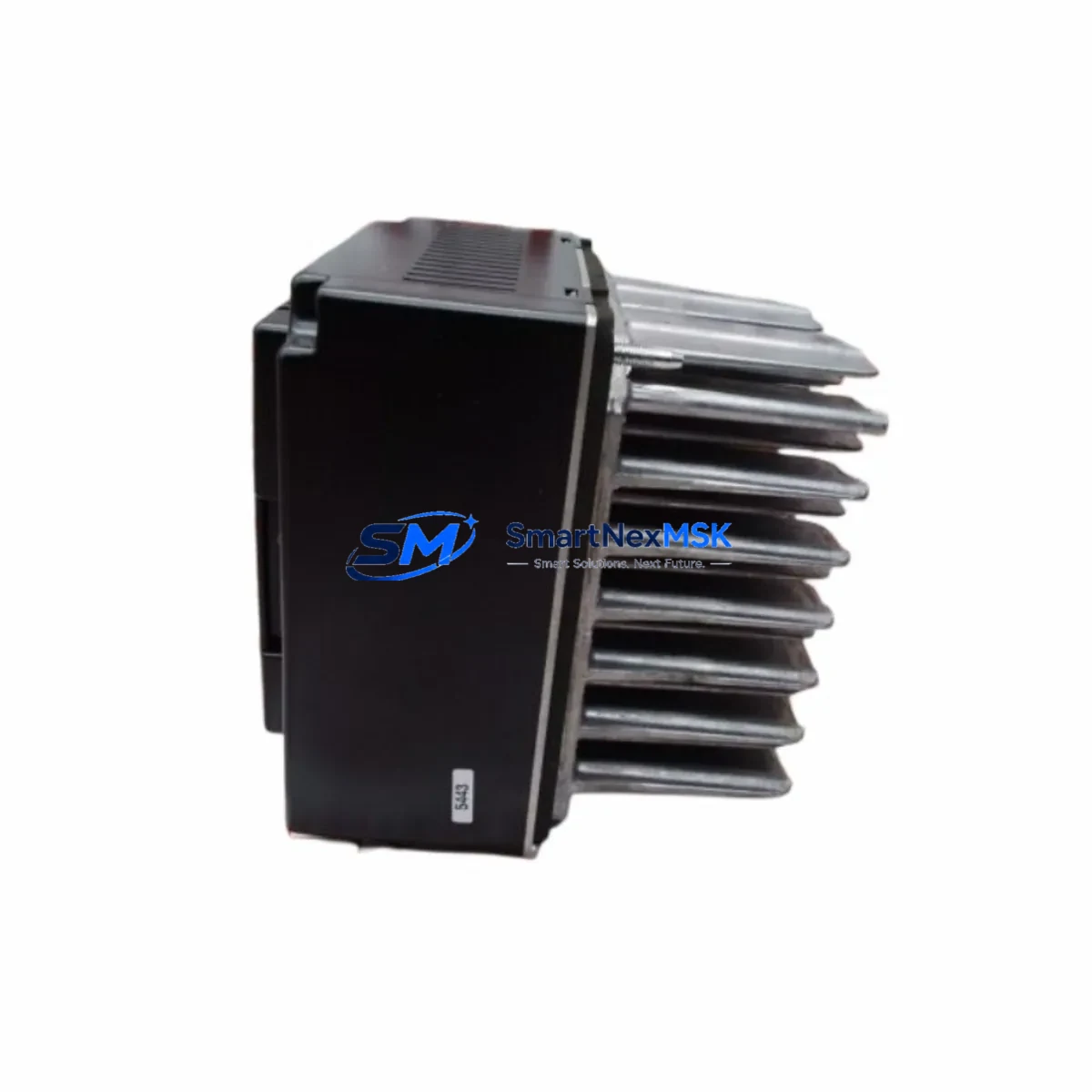

The ABB 3HAC14549-3 is an original rectifier module designed for the IRC5 robot controller drive power supply system. In industrial maintenance environments where unplanned downtime carries significant operational cost, having a verified, tested spare of this module on hand is a fundamental element of any responsible maintenance strategy. This unit is sourced as a genuine ABB component, inspected prior to shipment, and backed by a 12-month warranty — making it suitable for both emergency replacement and planned preventive maintenance cycles.
The 3HAC14549-3 rectifier module converts AC input power into the regulated DC bus voltage required by the IRC5 drive system. Failure of this component typically manifests as drive fault codes, loss of axis motion, or complete controller shutdown — all of which result in immediate production stoppage. Maintenance engineers familiar with ABB IRC5 architecture will recognize this module as a critical single point of failure in the power chain, and procurement engineers should treat it as a priority line item in any spare parts inventory plan for robot-intensive production cells.
Whether you are managing a single IRC5 cabinet or a fleet of ABB robots across multiple production lines, maintaining at least one 3HAC14549-3 in your local spare parts store reduces mean time to repair (MTTR) from days to hours. This module ships fully tested, with documentation confirming electrical verification, and is packaged to prevent ESD damage during transit and storage.
Spare Maintenance Table
| Parameter | Detail |
|---|---|
| Part Number / SKU | 3HAC14549-3 |
| Brand | ABB |
| Compatible System | IRC5 Robot Controller (Single / Dual Cabinet) |
| Module Type | Rectifier Module — Drive Power Supply |
| Function | AC-to-DC rectification for IRC5 drive bus |
| Origin | Sweden (Original ABB Component) |
| Condition | Original / Genuine — Pre-shipment Tested |
| Installation Environment | IRC5 Controller Cabinet, industrial automation cells |
| Compatibility | ABB IRC5 M2004, M2005, M2006 controller generations |
| Maintenance Interval | Inspect per ABB PM schedule; replace on fault or degraded output |
| Warranty | 12 Months from date of shipment |
| Lead Time | In-stock — ships within 1–3 business days |
| Packaging | Anti-static ESD bag, foam-padded carton |
| Weight | Approx. 1.74 kg |
Maintenance Planning for Continuous Operation
When replacing the 3HAC14549-3 rectifier module during a scheduled or emergency maintenance event, a thorough inspection of the surrounding IRC5 power and control architecture is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full drive power chain and associated control components.
Begin by verifying the condition of the ABB DSQC 661 main computer board and the DSQC 662 I/O board, as drive faults caused by rectifier degradation can sometimes mask underlying communication or I/O errors that become apparent only after the power supply is restored. Check the 3HAC025338-001 drive unit for any signs of thermal stress or capacitor bulging, as rectifier failures often subject downstream drive components to voltage irregularities.
Inspect the IRC5 axis computer (DSQC 668) and confirm that all resolver feedback cables and connectors are intact — power interruptions caused by rectifier failure can corrupt axis calibration data. The 3HAC14550-1 capacitor bank module, which works in close electrical proximity to the 3HAC14549-3, should be checked for capacitance degradation and replaced if it has exceeded its service life.
Review the condition of the IRC5 panel board (DSQC 400) and all 24VDC power distribution terminals within the cabinet. Verify that the main contactor and inrush current limiters are functioning correctly, as repeated rectifier failures can indicate upstream supply quality issues. If the cabinet includes a fieldbus adapter module (such as DSQC 651 for DeviceNet or DSQC 652 for Profibus), confirm that communication integrity is restored after the rectifier swap. Finally, inspect all cabinet cooling fans and thermal sensors — inadequate airflow is a leading cause of premature rectifier module failure in high-duty-cycle robot applications.
Site Replacement Workflow
Replacing the ABB 3HAC14549-3 on-site follows a structured procedure to minimize downtime and ensure system compatibility. Before beginning, confirm that the replacement unit’s part number matches exactly — the 3HAC14549-3 designation includes a revision suffix that must align with the installed IRC5 controller generation. Substituting an incorrect revision can result in drive initialization errors or reduced output capacity.
Step 1 — Isolation: De-energize the IRC5 cabinet following lockout/tagout (LOTO) procedures. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power-off) before opening the drive compartment.
Step 2 — Documentation: Photograph the existing wiring harness connections and note any cable routing before disconnecting. The rectifier module connects to the AC input bus bars and the DC output bus — incorrect reconnection will cause immediate fault on power-up.
Step 3 — Module Swap: Remove the retaining fasteners, slide out the 3HAC14549-3, and install the replacement unit. Torque all bus bar connections to ABB-specified values to prevent contact resistance heating.
Step 4 — Verification: Restore power and monitor the IRC5 FlexPendant for drive status. Confirm that no U-series drive fault codes are active. Run a low-speed axis jog test on all six axes before returning the robot to production.
This workflow is applicable whether you are replacing a failed unit in an emergency or performing a proactive swap during a planned shutdown window. Keeping a tested 3HAC14549-3 spare on-site eliminates the lead time variable entirely and allows maintenance teams to execute this procedure within a single shift.
Spare Parts Support FAQ
Q1: Is the 3HAC14549-3 compatible with all IRC5 controller variants?
The 3HAC14549-3 is designed for the standard IRC5 single-cabinet and dual-cabinet configurations covering M2004 through M2006 generations. Compatibility with IRC5 Compact or IRC5 Panel Mounted Controller (PMC) variants should be verified against the specific drive unit installed. Contact our technical team with your controller serial number for confirmation before ordering if you are uncertain.
Q2: How is the unit tested before shipment?
Every 3HAC14549-3 unit undergoes electrical bench testing to verify AC input acceptance, DC output voltage regulation, and thermal protection circuit functionality. Units that do not meet original ABB output specifications are not shipped. A test record is available upon request for quality-controlled procurement processes.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize your downtime exposure.
Q4: Can this module replace older or discontinued ABB rectifier part numbers?
In many IRC5 retrofit and life-extension scenarios, the 3HAC14549-3 serves as the current production replacement for earlier rectifier revisions. If you are maintaining an older IRC5 system and the original part number has been superseded, our team can cross-reference your existing part number and confirm whether the 3HAC14549-3 is the correct current equivalent for your application.
