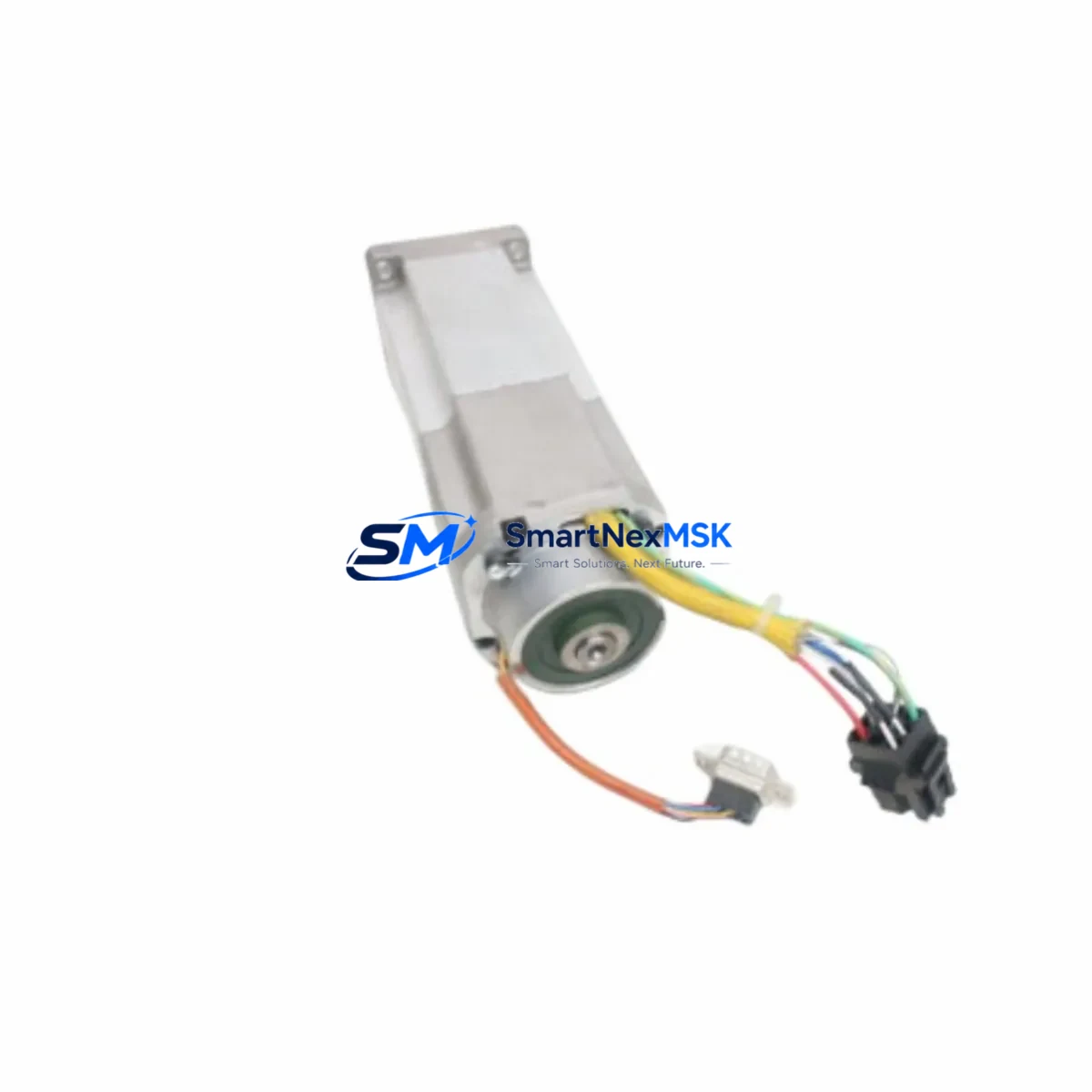

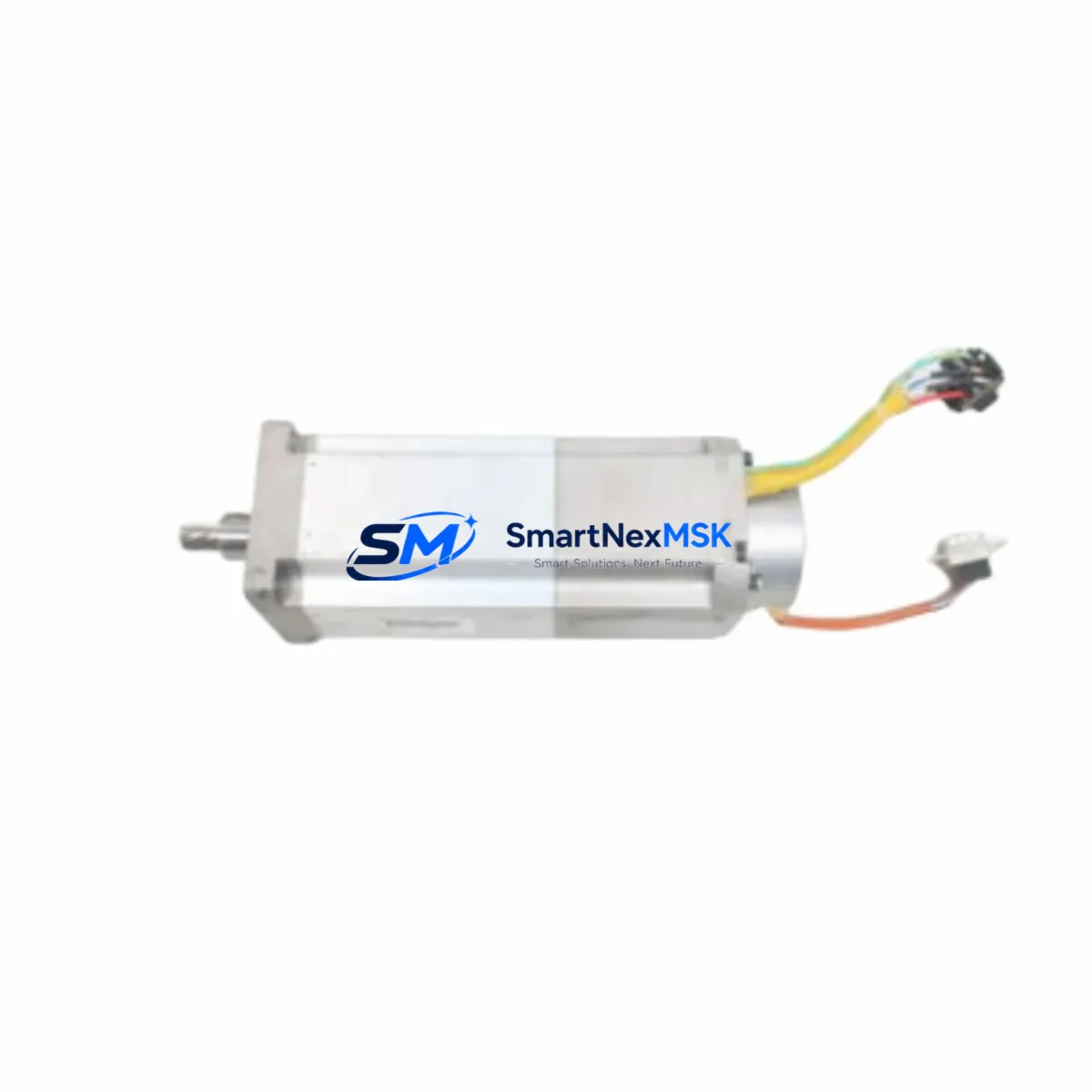

ABB 3HNP04378-1 Retrofit-Ready AC Servo Motor for IRB Series Control Systems
The ABB 3HNP04378-1 is a precision AC servo motor engineered for direct retrofit into ABB IRB series industrial robot platforms and legacy automation control systems. As production lines age and OEM support for discontinued servo drives and motion controllers becomes increasingly limited, the 3HNP04378-1 provides a verified, wiring-compatible replacement path that eliminates the need for full system redesign. Whether you are restoring a failed axis on an IRB 1400, IRB 2400, or IRB 6400 robot cell, or upgrading a broader motion control architecture, this motor delivers OEM-equivalent performance with full mechanical and electrical compatibility.
Sourced directly from authorized distribution channels and subject to pre-shipment functional testing, each unit ships with a 12-month warranty covering manufacturing defects and performance deviations. Stock is maintained on-hand to support urgent replacement orders, minimizing unplanned downtime on critical production assets.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 3HNP04378-1 |
| Brand | ABB |
| Compatible Series | IRB 1400, IRB 2400, IRB 4400, IRB 6400 |
| Motor Type | AC Servo Motor (Brushless) |
| Mounting Interface | OEM-compatible flange and shaft dimensions |
| Connector / Wiring | Direct pin-compatible with original ABB servo harness |
| Feedback Device | Resolver / Encoder (OEM-matched) |
| Communication Compatibility | Compatible with DSQC series drive units and S4/S4C+ controllers |
| Replacement Recommendation | Direct drop-in; verify axis number and cable routing before installation |
| Commissioning Notes | Calibration via FlexPendant required after motor swap; check SMB battery backup |
| Warranty | 12 Months from shipment date |
Retrofit Planning for Existing Automation Systems
Successful integration of the ABB 3HNP04378-1 into an existing robot cell requires a structured pre-installation review. Begin by auditing the control cabinet to confirm the DSQC 627 or DSQC 633 drive module is functioning correctly, as a degraded drive unit can cause premature motor failure even after replacement. Verify that the ABB S4C+ or IRC5 controller firmware version supports the axis configuration in use, and back up the current RAPID program and system parameters before any mechanical work begins.
On the mechanical side, confirm that the gearbox input shaft and motor flange dimensions match the 3HNP04378-1 specification sheet. Inspect the existing motor cable and resolver cable for insulation damage — particularly at the cable entry point of the robot arm — and replace the DSQC 369 SMB (Serial Measurement Board) battery if it has not been changed within the past two years, as SMB battery failure is a common cause of calibration loss during motor replacement.
For systems that also require I/O expansion during the retrofit window, the DSQC 652 digital I/O board and DSQC 643 analog I/O module are commonly installed in parallel with motor replacement to modernize the control cabinet without requiring a full IRC5 controller upgrade. If the existing system uses DeviceNet for field device communication, verify that the DSQC 658 DeviceNet master board is correctly addressed before recommissioning the axis. In applications where the robot interfaces with a Siemens S7-300 or S7-400 PLC via PROFIBUS, confirm that the GSD file and DP slave address remain unchanged after the motor swap to avoid communication faults on restart.
Where HMI panels such as the ABB FlexPendant or a third-party Weintek or Siemens TP700 panel are used for operator interaction, verify that axis status displays and alarm screens correctly reflect the new motor’s feedback signals after calibration. Document all terminal wiring changes in the as-built drawing set before closing the control cabinet.
Downtime Control During System Migration
Minimizing production downtime during an AC servo motor replacement on an ABB IRB platform requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the 3HNP04378-1 alongside all required consumables — including motor cables, resolver connectors, and calibration tools — so that the physical swap can be completed within a single planned shift.
Before powering down the robot cell, use the ABB RobotStudio offline programming environment to export a full system backup, including RAPID modules, I/O configuration, and safety parameters. This backup serves as the recovery baseline if commissioning issues arise. During the swap, tag and photograph all cable connections before disconnection, and use a torque wrench to meet OEM fastener specifications on the motor flange — over-torquing is a common cause of gearbox damage during field replacements.
After mechanical installation, perform the fine calibration procedure via the FlexPendant using the calibration pendulum or Levelmeter 2000 tool. Confirm that all six axes report correct resolver values before running the first test cycle at reduced speed. Gradually increase to full production speed only after completing a full-range motion test and verifying that no axis deviation alarms are triggered. This staged recommissioning approach protects the original program logic and maintains control continuity throughout the migration process.
Retrofit Support FAQ
Q: Is the ABB 3HNP04378-1 a direct replacement for the original motor on IRB 2400 axis 1?
A: Yes. The 3HNP04378-1 is dimensionally and electrically compatible with the original axis 1 motor on the IRB 2400 platform. Verify the motor cable part number and resolver connector type before installation to confirm harness compatibility with your specific robot serial number.
Q: Does the replacement motor require recalibration after installation?
A: Yes. All ABB servo motor replacements require fine calibration via the FlexPendant after installation. Ensure the SMB battery is functional and that a full system backup has been taken before beginning the calibration procedure.
Q: What pre-shipment testing is performed on the 3HNP04378-1?
A: Each unit undergoes functional verification including insulation resistance testing, resolver signal output check, and mechanical rotation inspection before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q: Can this motor be used in a system that has been upgraded from S4C+ to IRC5 controller?
A: The 3HNP04378-1 is compatible with both S4C+ and IRC5 controller platforms. Confirm the drive module type (DSQC 627 for S4C+ or the equivalent IRC5 axis computer) and verify that the motor parameter file loaded in the controller matches the 3HNP04378-1 specification before commissioning.
