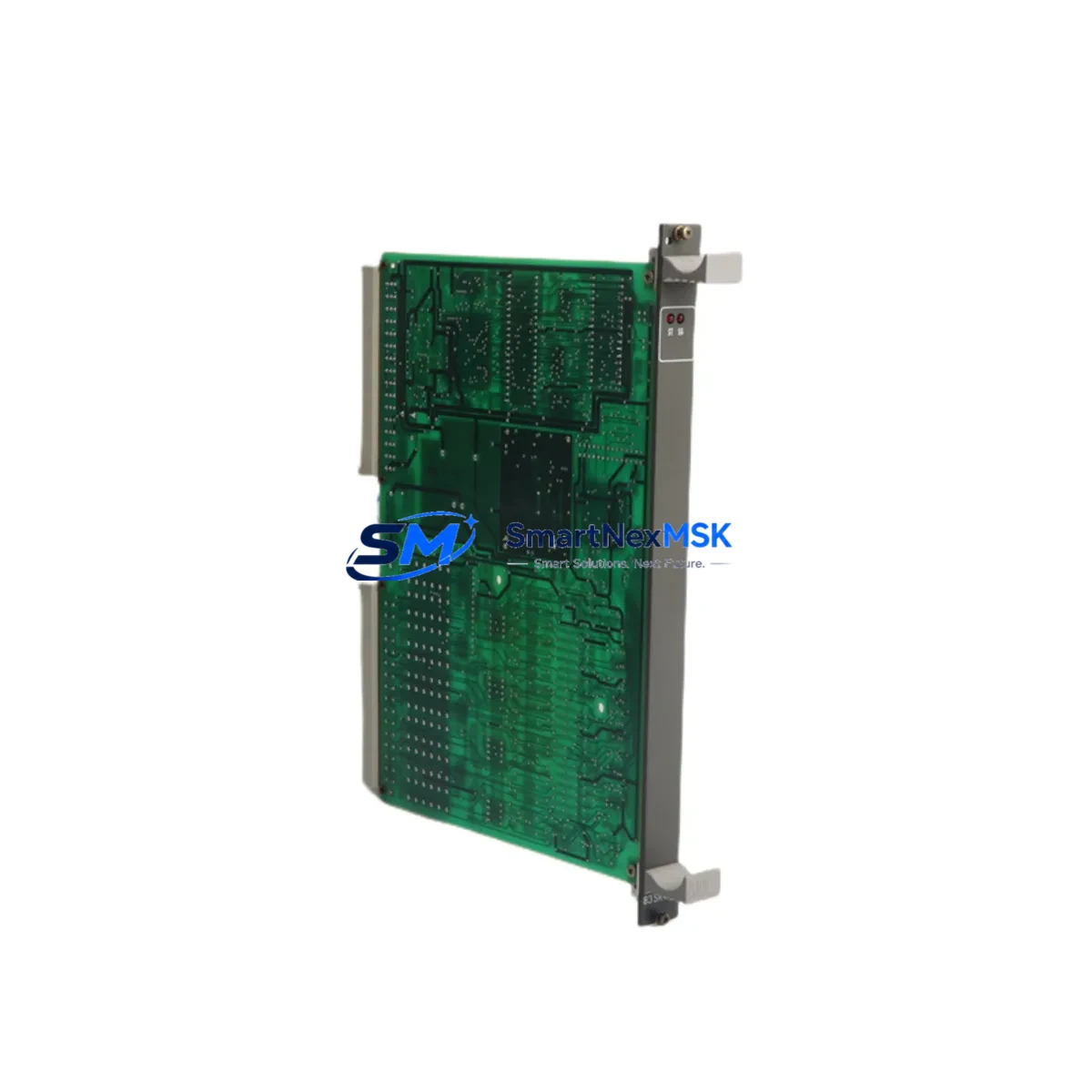

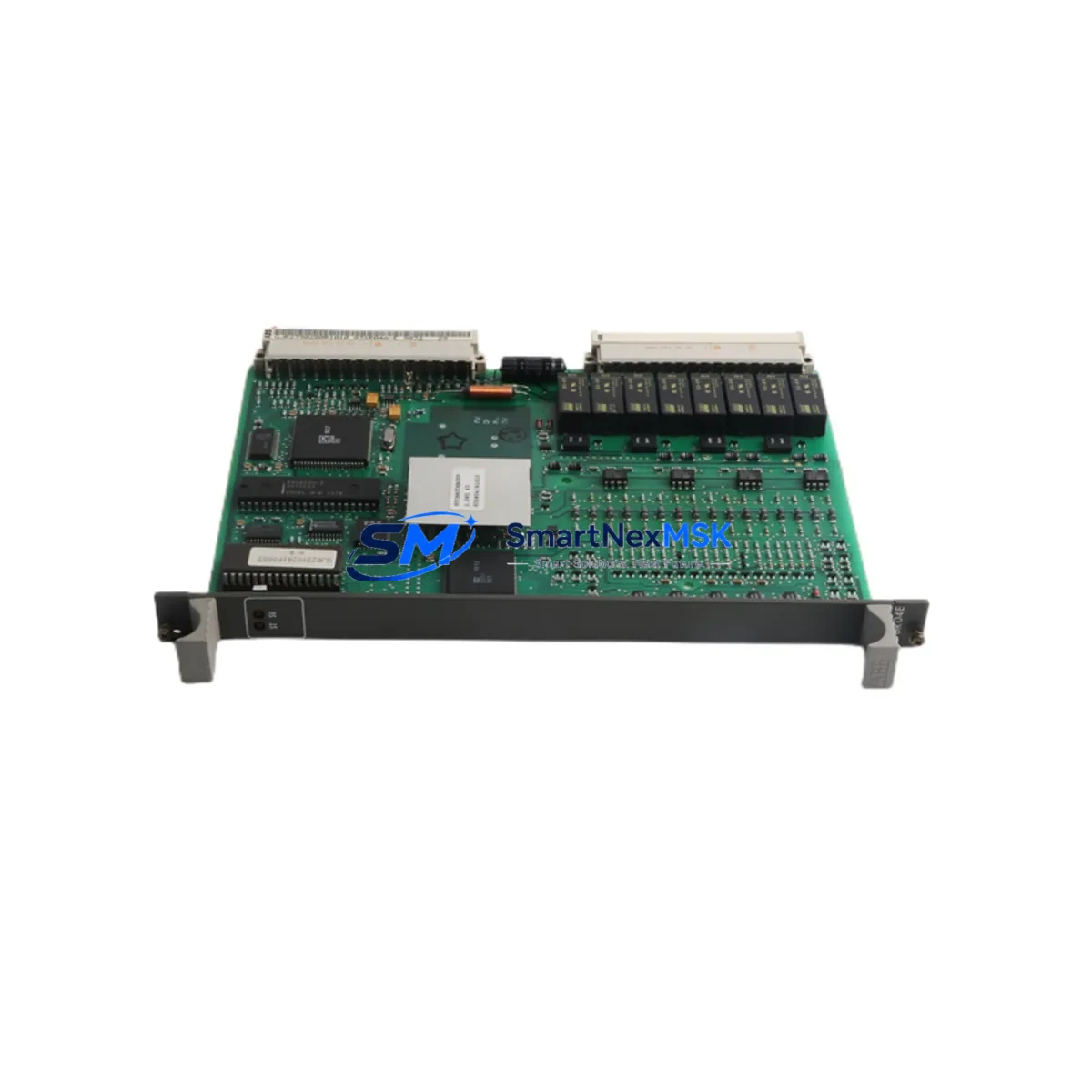

The ABB 83SR04A-E (part number GJR2390200R1010) is a 4-channel analog output module engineered for the ABB AC500 PLC platform — one of the most widely deployed modular programmable logic controller families in industrial automation. For maintenance engineers managing continuous-process plants, discrete manufacturing lines, or utility control systems, this module represents a critical spare that directly governs analog signal output to field devices such as control valves, variable-frequency drives, and positioners. Sourced as an original ABB component, each unit is tested prior to dispatch and backed by a 12-month warranty, ensuring that your replacement program meets both quality and uptime requirements.

Unplanned downtime caused by a failed analog output channel can cascade rapidly across a control loop — a stuck valve, a runaway drive, or a lost 4–20 mA signal to a positioner can trigger process shutdowns within minutes. Holding a verified spare of the 83SR04A-E in your on-site or regional warehouse is the most effective single action a maintenance team can take to compress mean-time-to-repair (MTTR) for AC500-based control systems. This module slots directly into the AC500 backplane without firmware reconfiguration in most standard deployments, enabling a swap-and-restart workflow that minimizes engineering intervention during emergency recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the 83SR04A-E, the replacement event should be treated as a broader control-cabinet inspection opportunity. The analog output module does not operate in isolation — its performance depends on the integrity of several upstream and downstream components within the same AC500 control system.

Begin with the AC500 CPU module (such as the PM573 or PM591) to confirm firmware version compatibility and verify that the analog output configuration parameters stored in the CPU match the replacement module’s channel assignments. Next, inspect the 24 V DC power supply module feeding the backplane — a marginal power supply with ripple or voltage sag is a common root cause of intermittent analog output errors that are frequently misdiagnosed as module failure. The TB511 or TB521 backplane itself should be checked for oxidized bus connectors and mechanical damage to the module slot.

On the field wiring side, examine the analog signal cables and shielded twisted-pair runs connecting the module terminals to field instruments. Damaged cable insulation or improper shield termination introduces noise that degrades 4–20 mA loop accuracy. The terminal blocks and wiring duct within the cabinet should be inspected for loose ferrules and thermal discoloration. If the system includes signal isolators or loop-powered isolators between the module and field devices, verify their isolation integrity — a failed isolator can inject ground loops that corrupt the analog output signal even after a module replacement.

For systems with mixed I/O, also review the adjacent digital input/output modules (such as the DC532 or DA501) sharing the same backplane, as a failing module in one slot can occasionally affect bus communication to neighboring slots. If the AC500 system communicates via PROFIBUS DP or Modbus RTU, confirm that the communication module (CM572-DP or similar) is operating without error flags, since communication faults can mask analog output issues during diagnostics. Finally, check any HMI panels (such as the CP600 series) connected to the CPU for alarm history that may reveal whether the analog output fault was preceded by power events or communication interruptions.

Site Replacement Workflow

Replacing the ABB 83SR04A-E on a live AC500 system follows a structured sequence designed to minimize downtime and eliminate configuration errors. Before removing the failed module, use the AC500 engineering tool (Automation Builder or PS501 Control Builder) to export the current I/O configuration and note the channel-specific parameters: output range (current or voltage), fault response value, and any scaling applied at the CPU level.

Power down the affected backplane segment or, where hot-swap is supported by the backplane variant, follow ABB’s documented hot-swap procedure. Remove the failed 83SR04A-E by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane slot connector pins for damage or contamination before inserting the replacement unit. Seat the new module firmly until the latch engages, then restore power. In most AC500 configurations, the CPU will automatically recognize the replacement module and restore the stored channel configuration without manual re-parameterization — confirm this by checking the CPU diagnostic LED and the I/O status in Automation Builder.

Perform a loop check on all four output channels before returning the system to automatic control: command each channel to a known output value (e.g., 4 mA, 12 mA, 20 mA) and verify the corresponding field device response. Document the replacement in the site maintenance log, update the spare parts inventory, and reorder a replacement spare to restore buffer stock. This closed-loop replacement workflow — from fault identification through verified loop check to inventory replenishment — is the foundation of a zero-unplanned-downtime maintenance strategy for AC500-based automation systems.

Spare Parts Support FAQ

Q1: Is the 83SR04A-E GJR2390200R1010 compatible with all AC500 CPU variants?
The 83SR04A-E is designed for the ABB AC500 modular PLC platform and is compatible with the standard AC500 backplane family including TB511, TB521, TB541, and TB561. Compatibility with specific CPU variants (PM571 through PM595 series) depends on the firmware version and I/O configuration. We recommend confirming your CPU firmware revision against ABB’s compatibility matrix before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 83SR04A-E dispatched from our inventory undergoes functional verification prior to shipment. Testing includes power-on self-test confirmation, backplane communication check, and analog output channel verification across the full signal range (4–20 mA and 0–10 V). Units that do not pass all test criteria are quarantined and not offered for sale. A 12-month warranty covers all dispatched units against manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage spare inventory for AC500 analog output modules in a multi-line plant?
For plants operating multiple AC500-based control systems, a tiered spare strategy is recommended: maintain at least one 83SR04A-E per control cabinet that uses this module type as an on-site hot spare, and hold an additional buffer quantity at the regional warehouse or maintenance store. Given that analog output modules are subject to gradual degradation from thermal cycling and field wiring stress, a planned replacement interval of 7–10 years (or at first sign of channel drift) is a reasonable lifecycle benchmark. Centralizing spare procurement through a single verified supplier ensures consistent part authenticity and simplifies warranty tracking.

Q4: Can the 83SR04A-E replace older or discontinued ABB analog output modules in legacy AC500 systems?
The 83SR04A-E GJR2390200R1010 is the current production part number for this module position in the AC500 range. It is designed to replace earlier revisions of the same module type within the AC500 platform. For legacy systems using predecessor AC500 hardware or earlier ABB PLC families (such as the AC31 or Advant series), direct slot-for-slot replacement may not be possible without backplane or configuration changes. Contact our technical support team with your existing module part number and CPU type for a compatibility assessment before ordering.
