ABB 88VU01B-E GJR2326500R1011 AC500 Coupling Module

ABB 88VU01B-E GJR2326500R1011 Retrofit-Ready Coupling Module for AC500 Control Systems

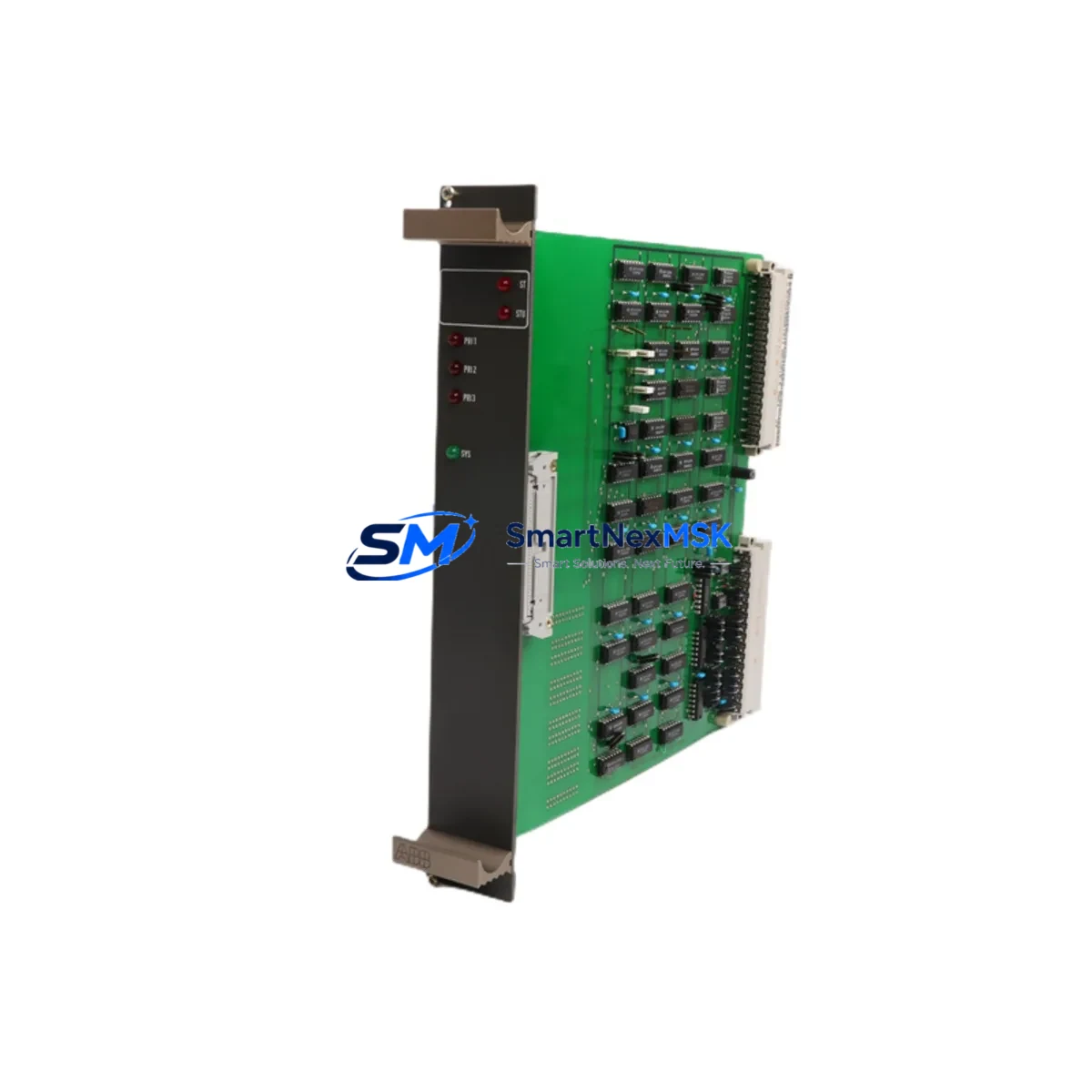

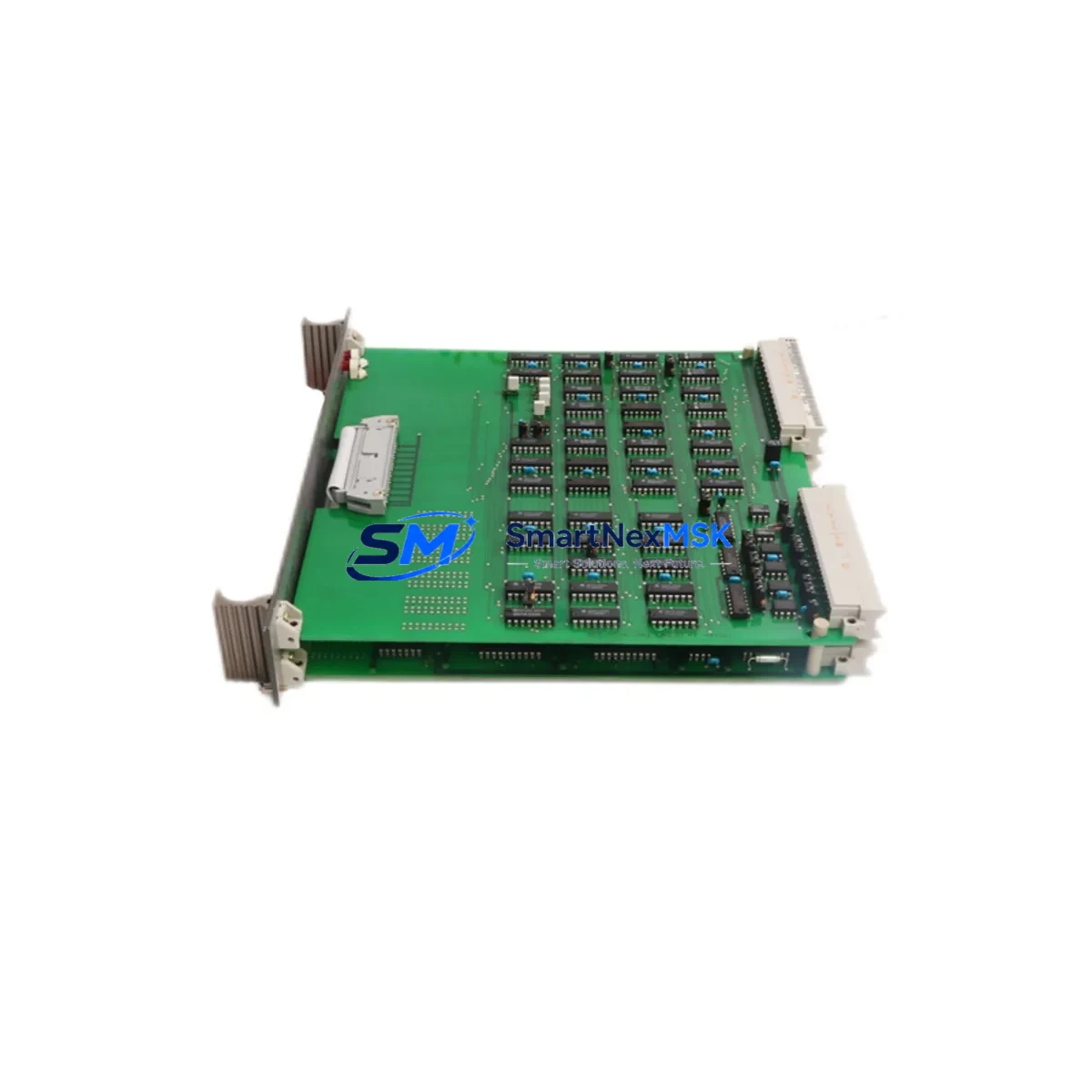

The ABB 88VU01B-E (part number GJR2326500R1011) is a coupling module engineered for the ABB AC500 PLC platform, widely deployed in industrial automation, process control, and machine safety applications across manufacturing, energy, and infrastructure sectors. As legacy AC500 installations age and original spare parts become increasingly scarce, the 88VU01B-E has emerged as a critical retrofit component — enabling engineers to extend the operational life of existing control cabinets without committing to a full system overhaul.

This module serves as a direct replacement for discontinued or end-of-life coupling units within the AC500 backplane architecture. It maintains full electrical and mechanical compatibility with the AC500 rack system, preserving existing terminal wiring layouts and backplane slot assignments. For maintenance teams managing aging automation infrastructure, this compatibility eliminates the need to re-engineer cabinet layouts or modify field wiring — significantly reducing both engineering hours and unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 88VU01B-E into an existing AC500 installation requires a structured pre-replacement assessment. Engineers should begin by auditing the current rack configuration, confirming the slot position of the coupling module relative to the CPU module — typically an AC500 PM5xx or PM5xx-ETH series processor — and verifying that the backplane bus connector is undamaged and free of corrosion.

Power supply capacity is a primary concern in any retrofit. The existing PS501 or PS502 power supply module must be confirmed to provide sufficient current headroom for the replacement coupling module alongside all co-installed I/O modules. In dense rack configurations where multiple SM500 series digital and analog I/O modules are installed, total current draw should be recalculated before the new module is seated.

Terminal wiring documentation is essential. Before removing the legacy coupling module, engineers should photograph or transcribe all field wiring connections. The 88VU01B-E maintains the same terminal block layout as its predecessors, but physical verification against the original wiring diagram — particularly for any CI590-CS31-HA communication interface modules or TB521-ETH terminal base units installed in the same cabinet — is strongly recommended.

Module addressing must be confirmed in the programming environment. Using ABB Automation Builder or the legacy Control Builder Plus software, engineers should verify that the module address assigned to the coupling slot in the hardware configuration matches the physical slot position in the rack. Mismatched addressing is a common source of startup faults following coupling module replacements and can prevent the CPU from recognizing downstream I/O modules.

Program compatibility should be assessed prior to replacement. The existing application program, typically stored on the PM5xx CPU or on a removable SD memory card, does not require modification for a like-for-like coupling module swap. However, if the retrofit is part of a broader upgrade that includes replacing older DC532 or DC522 digital I/O modules with current-generation equivalents, program variable mappings and I/O channel assignments should be reviewed and updated accordingly.

HMI screen configurations linked to the AC500 CPU via Modbus TCP or PROFIBUS DP — often running on ABB CP600 series operator panels — should be tested in simulation mode before the physical replacement is performed. Communication link integrity between the HMI and the CPU must be re-validated after the coupling module is installed, particularly in systems where the coupling module participates in the internal communication bus.

Downtime Control During System Migration

Minimizing production interruption during a coupling module replacement requires advance preparation and a disciplined execution sequence. The recommended approach is to perform a full program backup from the AC500 CPU to both the onboard flash memory and an external SD card before any hardware is disturbed. This ensures that the application logic, hardware configuration, and retain variable data can be fully restored in the event of an unexpected fault during the replacement procedure.

Where process conditions permit, a hot-standby or redundant control path should be activated prior to taking the primary rack offline. In systems where redundancy is not available, coordinating the replacement during a scheduled maintenance window — and pre-staging the 88VU01B-E module alongside any ancillary components such as replacement terminal bases or communication cables — reduces the physical swap time to under 15 minutes in most configurations.

After the new coupling module is seated and the rack is powered up, engineers should monitor the CPU diagnostic LEDs and the Automation Builder hardware tree for any fault indicators. Common post-replacement checks include confirming that all I/O modules report as healthy, verifying that communication links to remote I/O stations or field devices are re-established, and performing a functional test of critical output channels before returning the system to automatic mode.

Retaining original program logic continuity is straightforward in like-for-like coupling module replacements. The AC500 CPU will resume execution from the last saved program state without requiring a cold restart, provided the hardware configuration in Automation Builder matches the physical rack layout. This characteristic makes the 88VU01B-E particularly well-suited for time-sensitive retrofit scenarios where extended downtime is not acceptable.

Retrofit Support FAQ

Q: Is the ABB 88VU01B-E GJR2326500R1011 a direct replacement for the original coupling module in my AC500 rack?
A: Yes. The 88VU01B-E is a direct drop-in replacement for the original coupling module in AC500 rack configurations. It maintains the same backplane connector, slot dimensions, and terminal wiring layout, requiring no mechanical modifications to the existing cabinet or rack assembly.

Q: What commissioning steps are required after installing the replacement module?
A: After seating the module, power up the rack and verify that the CPU recognizes the coupling module in the Automation Builder hardware tree. Confirm the module address matches the hardware configuration, check that all downstream I/O modules report as healthy, and perform a functional output test before returning the system to automatic operation.

Q: How do I verify wiring compatibility before replacing the coupling module?
A: Cross-reference the existing field wiring against the original cabinet wiring diagram. The 88VU01B-E uses the same terminal block layout as the legacy unit, so no rewiring is required for a like-for-like swap. For systems with CI590-CS31-HA or other communication interface modules in the same cabinet, verify that communication cable routing and connector assignments are undisturbed after the replacement.

Q: What warranty coverage is provided, and has the module been tested before shipment?
A: Every 88VU01B-E GJR2326500R1011 unit is function-tested prior to shipment and covered by a 12-month warranty from the date of delivery. In the event of a warranty claim, replacement or repair is arranged with priority handling to minimize impact on your production schedule.
