ABB AI810 3BSE008516R1 Retrofit-Ready Analog Input Module

ABB AI810 3BSE008516R1 Retrofit-Ready Analog Input Module for S800 I/O Control Systems

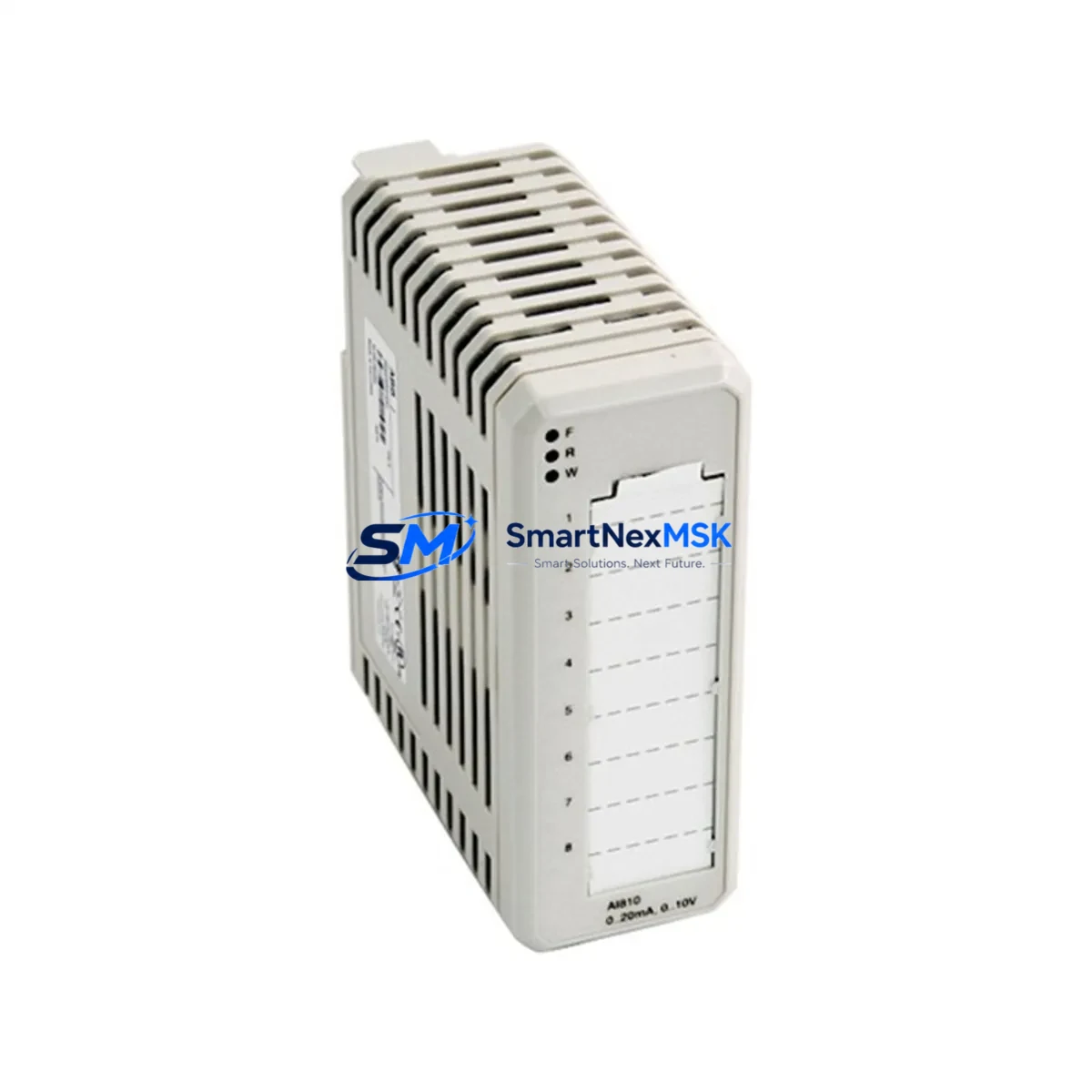

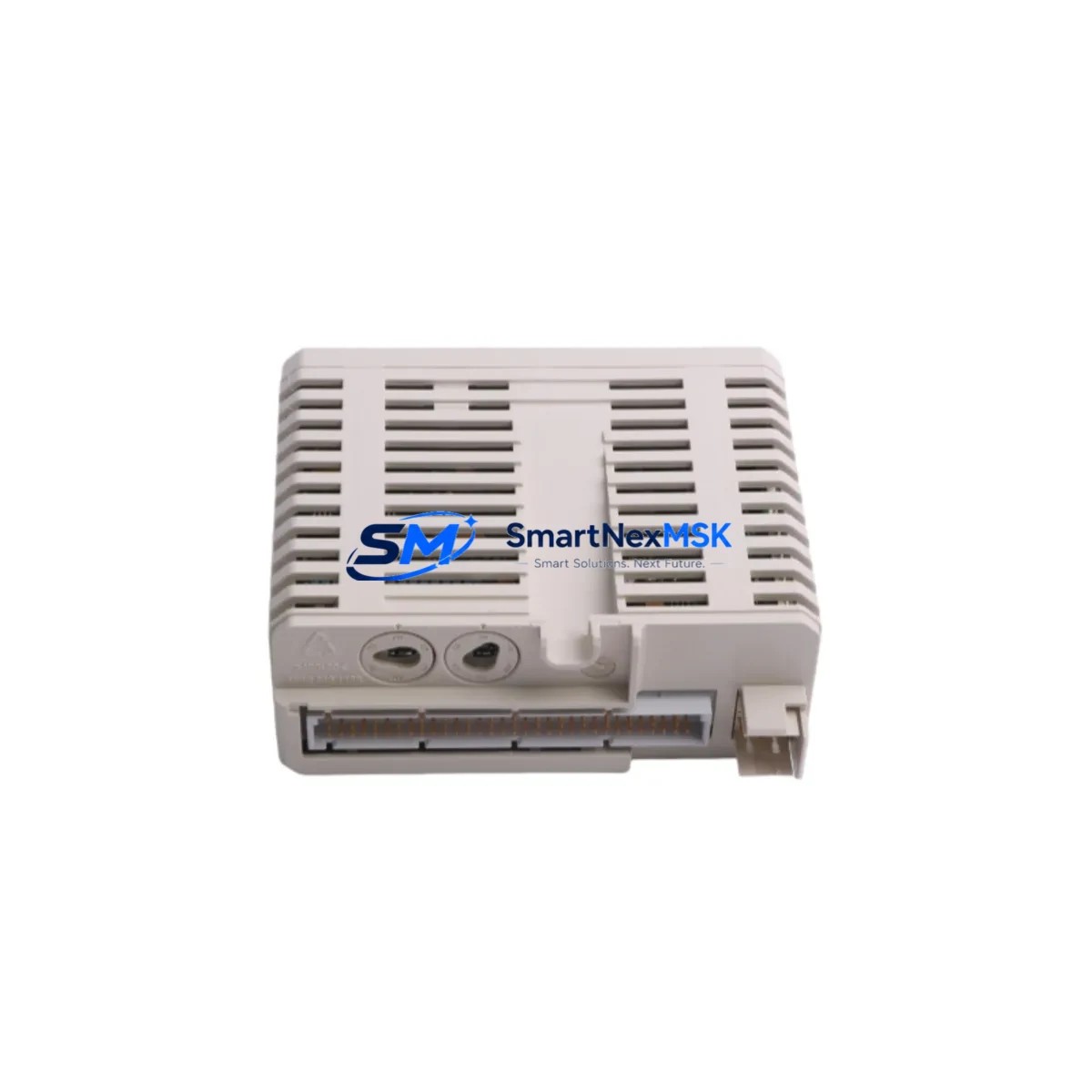

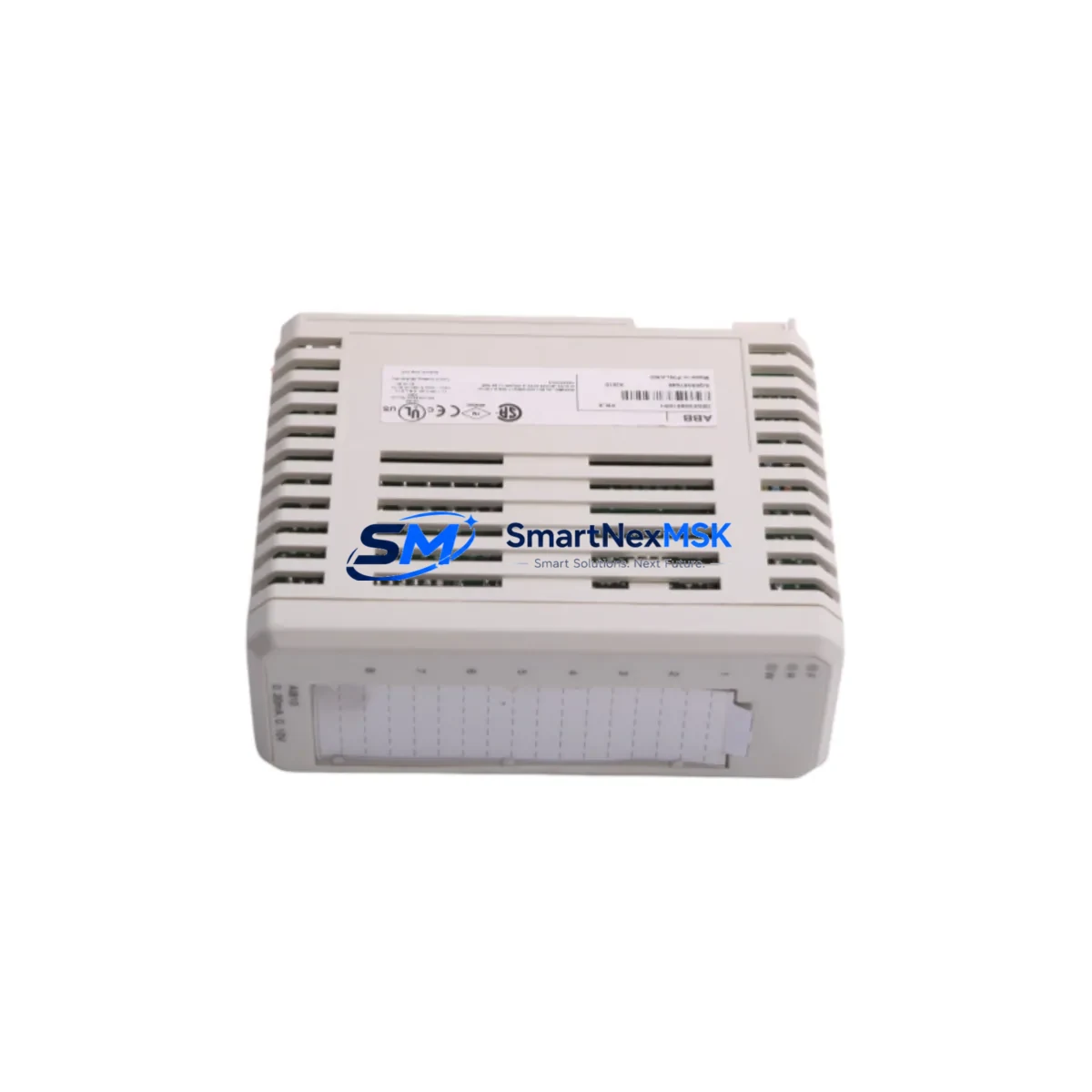

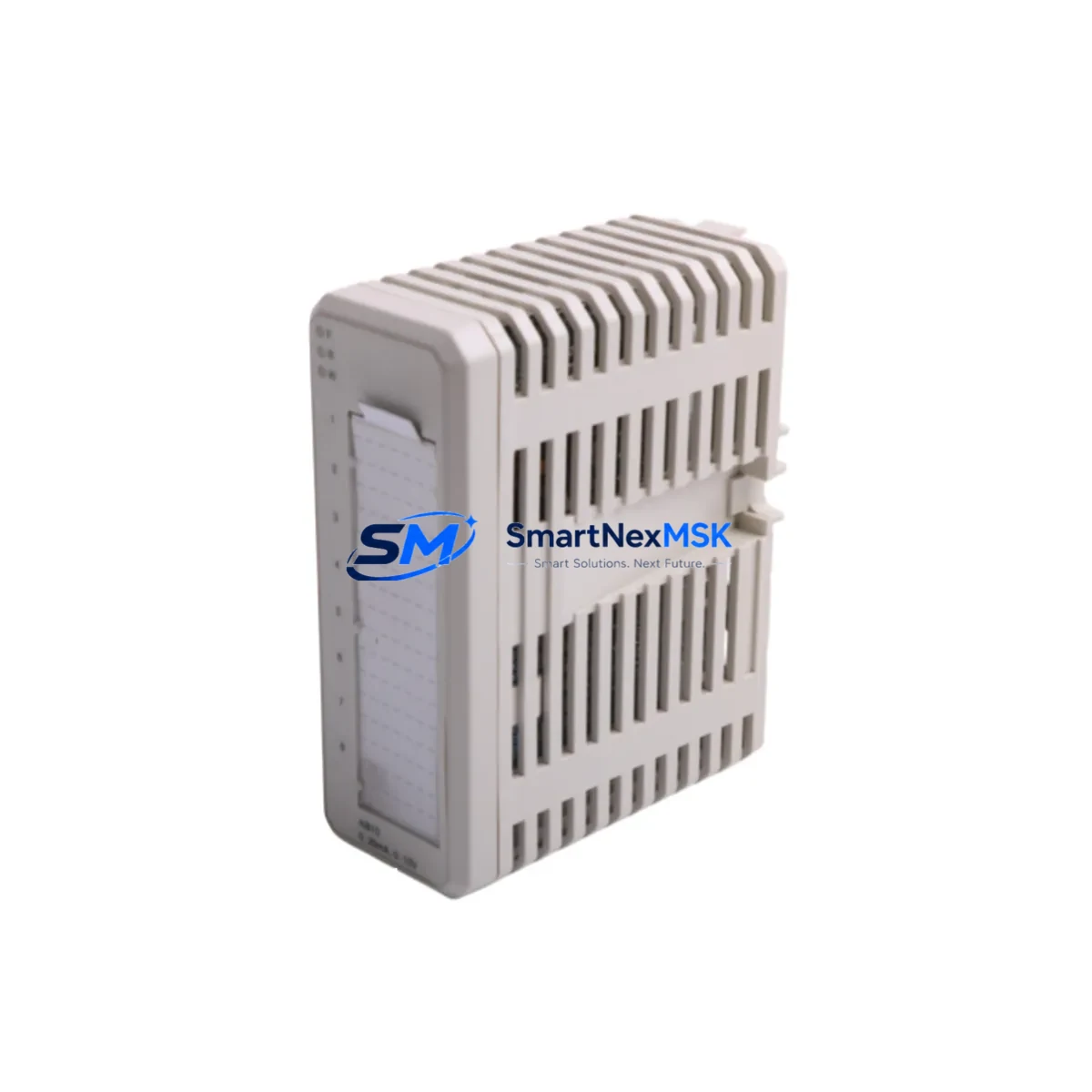

The ABB AI810 (3BSE008516R1) is an 8-channel analog input module engineered for the ABB S800 I/O distributed I/O platform, widely deployed across AC800M DCS installations in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As legacy control systems approach end-of-life and OEM support windows close, the AI810 has become one of the most sought-after retrofit components for engineers tasked with sustaining or modernizing existing ABB automation infrastructure without full system replacement.

This module accepts standard 4–20 mA and 0–10 V analog signals, providing high-resolution process variable acquisition for loops such as pressure, temperature, flow, and level. Its compact S800 form factor allows direct installation into existing TB820V2 or TB840A ModuleBus communication bases without mechanical modification, making it a true drop-in replacement for failed or obsolete AI810 units in the field.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the ABB AI810 3BSE008516R1 into an operating plant requires systematic pre-work across hardware, software, and field wiring layers. Engineers should begin by auditing the existing S800 I/O rack layout, confirming that the target slot’s TB820V2 or TB840A ModuleBus base is mechanically sound and that the optical fiber or electrical ModuleBus cable connecting it to the AC800M controller node is intact and within specification.

On the power side, verify that the SD821 or SD822 power supply feeding the I/O cluster delivers stable 24 VDC within the ±15% tolerance window. Overloaded power rails — a common issue in aging cabinets where additional modules have been added over the years — can cause intermittent AI810 faults that mimic hardware failure. Measure actual rail voltage under load before condemning the module.

Field wiring termination is handled at the TB820V2 base’s screw terminals; the AI810 itself does not carry field wiring directly. Confirm that existing 4–20 mA transmitter loops are correctly wired to the base terminals and that loop power (if sourced from the module) is within the 24 VDC budget. For HART-enabled transmitters, note that the AI810 does not natively pass HART signals — if HART communication is required for calibration or diagnostics, a dedicated CI854A HART multiplexer interface should be included in the retrofit scope.

At the software layer, open ABB Control Builder M and navigate to the hardware configuration tree. Confirm that the AI810 object is correctly mapped to the physical slot address. After physical module swap, perform a forced download of the I/O configuration to re-establish the ModuleBus node address. In redundant AC800M architectures using PM866 or PM864 controllers with dual TB840A bases, the redundancy switchover behavior should be tested in simulation mode before live commissioning.

HMI faceplates connected to AI810 channels — typically built in ABB 800xA or third-party SCADA systems via OPC DA/UA — should be verified for correct engineering unit scaling after the module swap. A mismatch between the new module’s configured input range and the HMI’s scaling parameters is a common source of post-retrofit alarms. Cross-check the PV_SCALE and PV_RANGE parameters in the function block library before returning the loop to automatic control.

For plants migrating from older Advant OCS / MOD 300 architectures to AC800M, the AI810 is frequently specified as the target analog input module in the migration bill of materials, alongside AO810V2 analog output modules, DI810 digital input modules, and DO810 digital output modules to complete a full I/O cabinet retrofit. The CI854A communication interface and CI857 Profibus DP interface are commonly added in the same project scope to bridge legacy field devices to the new control platform.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering constraint in any live-plant AI810 replacement. The recommended approach is a hot-swap sequence executed during a scheduled maintenance window: place the affected control loop in manual mode at the DCS operator station, confirm the field actuator is in a safe hold state, then physically remove the failed AI810 and insert the replacement unit. The ModuleBus base retains its wiring and address configuration, so the new module will be recognized by the AC800M controller within seconds of insertion.

Before returning loops to automatic, verify the following in sequence: (1) the AI810 LED status shows green RUN, (2) Control Builder M reports the module as healthy with no hardware fault codes, (3) the PV reading on the operator station matches the field transmitter’s local indicator within calibration tolerance, and (4) any interlock or safety function associated with the loop is re-armed. For SIL-rated loops, a partial stroke test or proof test may be required per the site’s functional safety management plan before the loop is returned to service.

Where a spare AI810 is not immediately available, a temporary bypass using a CI853 Modulebus Terminator or a forced manual output strategy can sustain production continuity while the replacement unit is sourced. Our standard lead time for in-stock AI810 3BSE008516R1 units is 1–3 business days for express shipment, with pre-shipment functional testing included to eliminate DOA risk on arrival.

Retrofit Support FAQ

Q1: Is the AI810 3BSE008516R1 a direct replacement for earlier AI810 hardware revisions?
Yes. The 3BSE008516R1 catalog number covers the current production revision of the AI810 and is backward-compatible with all TB820V2 and TB840A ModuleBus bases. No base or wiring changes are required. After insertion, re-download the I/O configuration in Control Builder M to confirm the module address and channel parameters are correctly applied.

Q2: What commissioning steps are required after swapping the AI810?
Place affected loops in manual mode, swap the module, confirm RUN LED status, then perform a forced I/O configuration download in Control Builder M. Verify PV scaling on the operator station against the field transmitter’s local indicator. For redundant systems, test ModuleBus redundancy switchover before returning to automatic. Document the swap in the site’s maintenance management system.

Q3: Can the AI810 accept HART signals from smart transmitters?
The AI810 passes the 4–20 mA process variable but does not natively decode HART protocol. For HART device management — including remote calibration, diagnostics, and device configuration — a CI854A HART multiplexer interface should be added to the S800 I/O cluster. This is a common addition in retrofit projects where smart transmitter asset management is a requirement.

Q4: What does the 12-month warranty cover?
All AI810 3BSE008516R1 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and DOA (dead-on-arrival) failures. Units are functionally tested prior to shipment. In the event of a warranty claim, we provide advance replacement to minimize plant downtime, with return logistics coordinated by our technical support team. Warranty does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification.
