ABB AI835A Retrofit-Ready Analog Input for S800 Systems

ABB AI835A Retrofit-Ready Analog Input for S800 Control Systems: Compatible Modernization & Smooth Legacy Upgrade

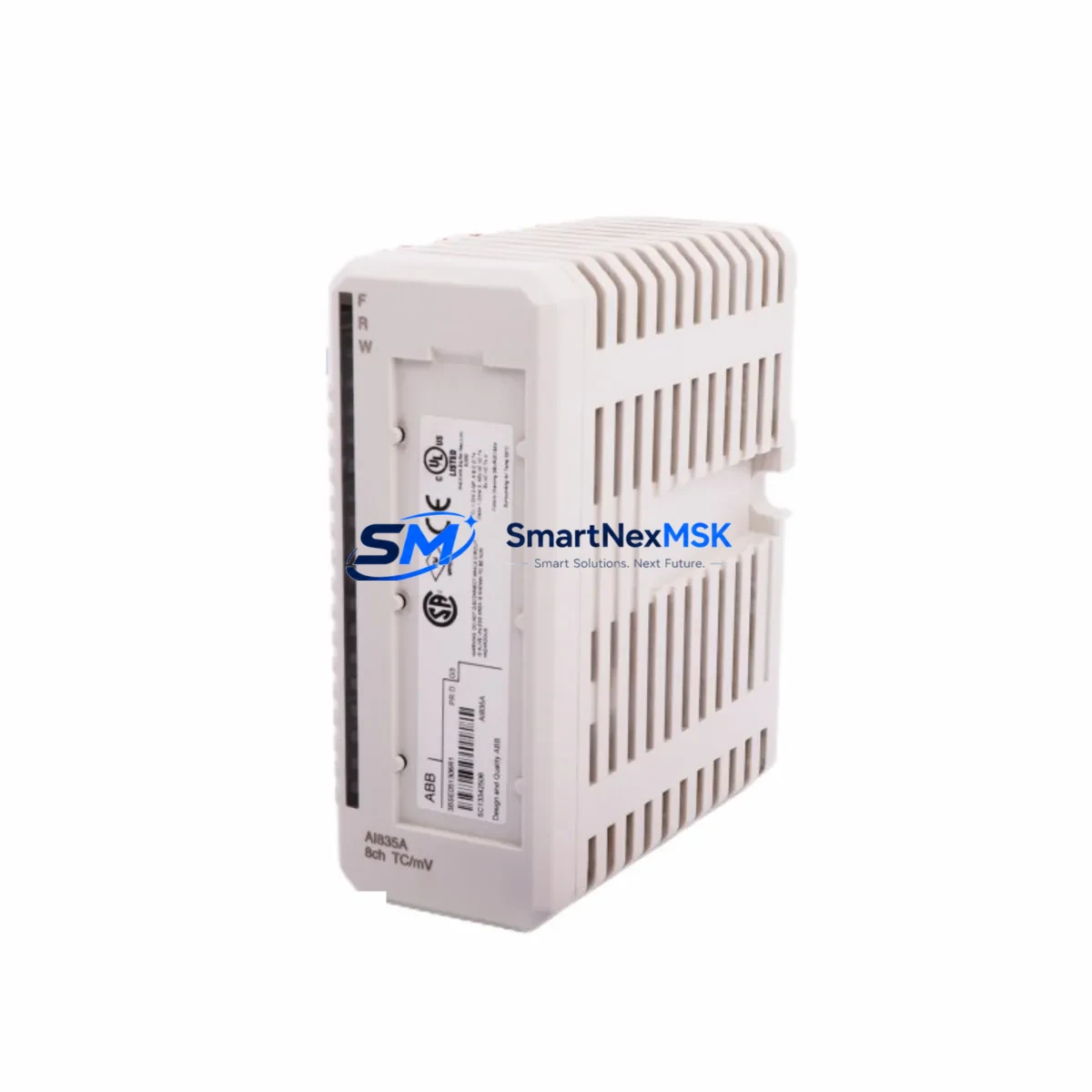

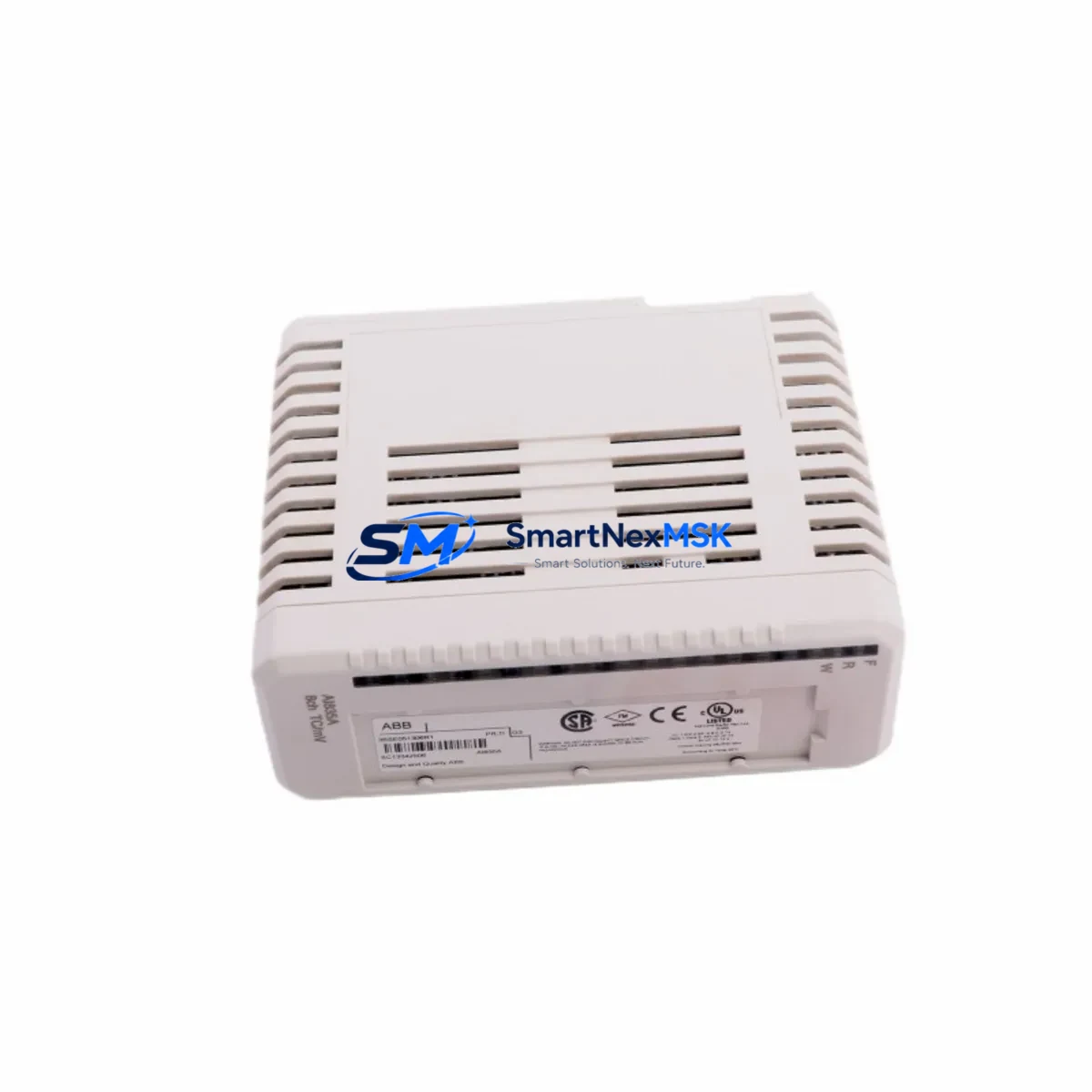

The ABB AI835A is a high-density analog input module engineered for the S800 I/O platform — one of ABB’s most widely deployed distributed control system (DCS) architectures in process industries worldwide. As legacy S800 installations age and original spare parts become increasingly difficult to source, the AI835A has become a critical retrofit component for engineers tasked with modernizing control panels, extending system life, and maintaining production continuity without a full platform migration.

Designed for rack-mount installation on the S800 ModuleBus backplane, the AI835A accepts thermocouple (TC) and millivolt (mV) input signals, making it directly applicable to temperature measurement loops in furnaces, reactors, heat exchangers, and process vessels. Its compatibility with the existing S800 I/O station — including the TB82 terminal block and the CI854 PROFIBUS communication interface — means that in most retrofit scenarios, the module can be installed without rewiring field cables or modifying the control cabinet layout.

When planning a replacement or upgrade involving the AI835A, engineers should verify several key parameters before commissioning. First, confirm the power budget of the existing S800 I/O station: the AI835A draws power from the backplane, and adding modules to a partially populated rack requires checking the total load against the capacity of the installed PS800 power supply unit. If the existing power supply is already near its rated output, a parallel or upgraded power supply module may be required before the new analog input module is inserted.

Terminal wiring is the next critical checkpoint. The AI835A connects to field instruments via the TB82 terminal block, which supports both 2-wire and 3-wire thermocouple configurations. Engineers migrating from an older AI810 or AI820 module — both of which handle 4–20 mA current loop signals — must confirm that the field wiring and signal type are compatible with the TC/mV input range of the AI835A. Mismatched signal types are a common source of commissioning errors during retrofit projects and can result in incorrect process readings or module faults.

Backplane slot addressing is another area that requires attention. In S800 I/O stations, each module occupies a defined slot on the ModuleBus, and the slot address is referenced in the control application running on the AC800M controller. When replacing a failed or obsolete module with an AI835A, the new module must be installed in the same physical slot to preserve the existing address mapping. If the slot configuration has changed — for example, due to a rack expansion using an additional EB815 expansion unit — the module address in the control application must be updated accordingly, and the affected function blocks in Control Builder M must be recompiled and downloaded.

Program compatibility is a frequent concern during S800 retrofit projects. The AI835A is fully supported by ABB’s Control Builder M engineering environment, and its function blocks are compatible with AC800M controllers running current firmware versions. However, if the existing control application was developed on an older version of Control Builder M and has not been migrated, engineers should perform a compatibility check before downloading updated configurations. In some cases, legacy applications referencing discontinued I/O types may require partial restructuring of the analog input function blocks to align with the AI835A’s channel configuration and signal conditioning parameters.

HMI screen updates are often overlooked during module replacement projects. If the plant’s operator interface — whether an ABB 800xA system, a Panel 800 HMI terminal, or a third-party SCADA platform — displays process values sourced from the replaced analog input channels, engineers should verify that the tag names, engineering unit scaling, and alarm limits remain correctly mapped after the module swap. A mismatch between the HMI configuration and the updated I/O addressing can result in incorrect displays or suppressed alarms during the critical post-commissioning period.

Communication link integrity must also be confirmed. In a typical S800 installation, the AI835A communicates with the AC800M controller via the CI854 PROFIBUS DP interface module mounted in the same I/O station. If the retrofit project also involves upgrading the communication interface — for example, migrating from PROFIBUS to PROFINET using a CI871 module — the GSD file configuration and the controller’s communication object mapping must be updated to reflect the new interface. This is particularly relevant in projects where the control network is being modernized alongside the I/O hardware.

Field commissioning of the AI835A follows a structured sequence: after physical installation and wiring verification, the module is powered up and its LED status indicators are checked for normal operation. The control application is then downloaded to the AC800M controller, and each analog input channel is verified against a known reference signal — typically a thermocouple simulator or a precision millivolt source — to confirm correct signal conditioning and scaling. Loop checks are documented and signed off before the system is returned to automatic control.

For projects involving broader system modernization, the AI835A is frequently deployed alongside other S800 I/O modules. Digital input functions are typically handled by the DI810 or DI830 modules, while analog output channels for control valve positioners and variable speed drives are managed by the AO810V2. In installations where the existing S800 rack is being expanded to accommodate additional measurement points, the EB815 expansion unit provides additional ModuleBus slots without requiring a new I/O station. Communication redundancy, where required by process safety standards, is implemented using paired CI854 PROFIBUS interface modules with automatic failover.

SMARTNEXMSK maintains verified stock of the ABB AI835A and related S800 I/O components, sourced through established industrial supply channels. Each unit undergoes functional inspection and is shipped with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Typical lead time from order confirmation to dispatch is 3–5 business days, with express shipping available for urgent breakdown situations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AI835A retrofit begins with a thorough audit of the existing S800 I/O station. Engineers should document the current slot population, identify any vacant ModuleBus positions, and confirm the firmware version of the AC800M controller before ordering replacement hardware. In installations where the original AI810 or AI820 modules are being phased out due to obsolescence, the AI835A provides a compatible upgrade path for thermocouple measurement loops, while the AO810V2 continues to serve analog output requirements for control valves and actuators.

For control cabinets undergoing broader modernization, the retrofit scope often extends beyond the analog input module itself. The DI810 and DI830 digital input modules may be replaced simultaneously to standardize the I/O platform across the cabinet. Where the existing communication infrastructure relies on aging PROFIBUS cabling, the project may also include an upgrade to the CI871 PROFINET interface, which requires updated GSD configuration files and a revised communication object map in Control Builder M. In installations with multiple I/O stations connected via an EB815 expansion unit, each station’s module addressing must be individually verified after the retrofit to prevent address conflicts.

Terminal block wiring documentation is essential before any module is removed from service. Engineers should photograph or sketch the existing TB82 wiring layout and verify field cable labeling before disconnecting any conductors. This step is particularly important in older installations where as-built documentation may not accurately reflect field modifications made during previous maintenance cycles. Proper wiring documentation reduces commissioning time and minimizes the risk of incorrect reconnections after the new AI835A is installed.

For projects involving HMI integration, the Panel 800 terminal or 800xA operator station should be updated to reflect any changes in tag naming or channel addressing resulting from the module replacement. Where the control application has been restructured to accommodate the AI835A’s channel configuration, the corresponding HMI faceplates and trend displays should be reviewed and updated before the system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any S800 retrofit project. The AI835A’s drop-in compatibility with the existing ModuleBus backplane and TB82 terminal block means that physical installation can typically be completed within a single maintenance window, without requiring extended cabinet outages or field cable modifications.

To protect the existing control application during the migration, engineers should create a full backup of the AC800M controller project in Control Builder M before making any hardware changes. This backup preserves the original I/O configuration, function block parameters, and communication settings, and can be restored immediately if the retrofit encounters unexpected compatibility issues. Where the plant’s safety procedures permit, a hot-standby controller configuration using a redundant AC800M pair can maintain process control continuity while the primary controller is updated.

Staged commissioning — verifying each analog input channel individually before returning the loop to automatic control — is the recommended approach for AI835A installations in live process environments. Using a thermocouple simulator or precision mV source, each channel is confirmed against the expected engineering unit range before the field instrument is reconnected. This approach isolates any wiring or configuration errors to individual channels and prevents a single commissioning fault from affecting the entire I/O station.

For breakdown replacement scenarios where the failed module must be replaced under production pressure, SMARTNEXMSK offers express dispatch with same-day shipping for in-stock AI835A units. Pre-shipment functional testing is performed on each unit to confirm correct channel operation before dispatch, reducing the risk of receiving a non-functional replacement during a critical outage.

Retrofit Support FAQ

Q: Is the AI835A a direct drop-in replacement for the AI810 or AI820?
A: The AI835A is physically compatible with the S800 ModuleBus backplane and TB82 terminal block used by the AI810 and AI820. However, the AI835A accepts thermocouple and mV signals, while the AI810 and AI820 are designed for 4–20 mA current loop inputs. Before substituting the AI835A for either of these modules, confirm that the connected field instruments output TC or mV signals. If the field instruments are 4–20 mA transmitters, the AI835A is not a compatible replacement without signal conditioning adapters.

Q: What commissioning steps are required after installing the AI835A?
A: After physical installation, download the updated control application to the AC800M controller and verify that the module’s LED status indicators show normal operation. Perform a loop check on each analog input channel using a thermocouple simulator or precision mV source, confirming that the measured value in the control application matches the applied reference signal within the specified accuracy tolerance. Document all loop check results before returning the system to automatic control.

Q: Does the AI835A require any wiring changes compared to the module it replaces?
A: In most cases, no field wiring changes are required if the AI835A is replacing another TC/mV input module in the same slot. The TB82 terminal block accommodates both 2-wire and 3-wire thermocouple connections without modification. If the replacement involves a module with a different signal type (e.g., 4–20 mA), the field wiring and terminal block configuration must be reviewed and updated accordingly.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of shipment. Units that fail during the warranty period are replaced or repaired at no charge. The warranty does not cover damage resulting from incorrect installation, overvoltage, or operation outside the module’s specified environmental and electrical ratings. Pre-shipment functional testing is performed on all AI835A units before dispatch to verify correct operation prior to delivery.
