ABB AI845-EA 3BSE023675R2 Maintenance-Ready Spare S800 I/O

ABB AI845-EA 3BSE023675R2 Maintenance-Ready Spare S800 I/O: Spare Replacement & Industrial Downtime Risk Control

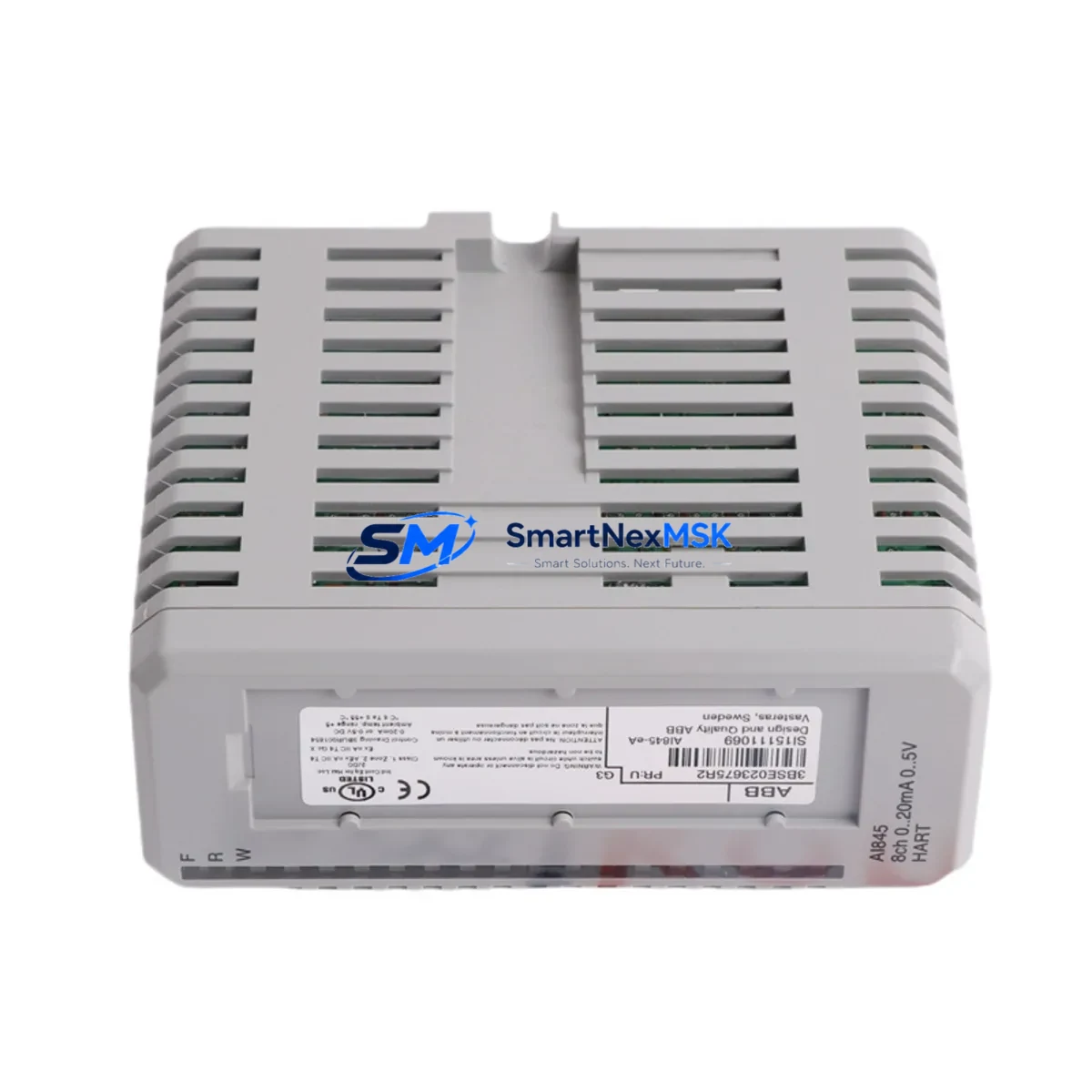

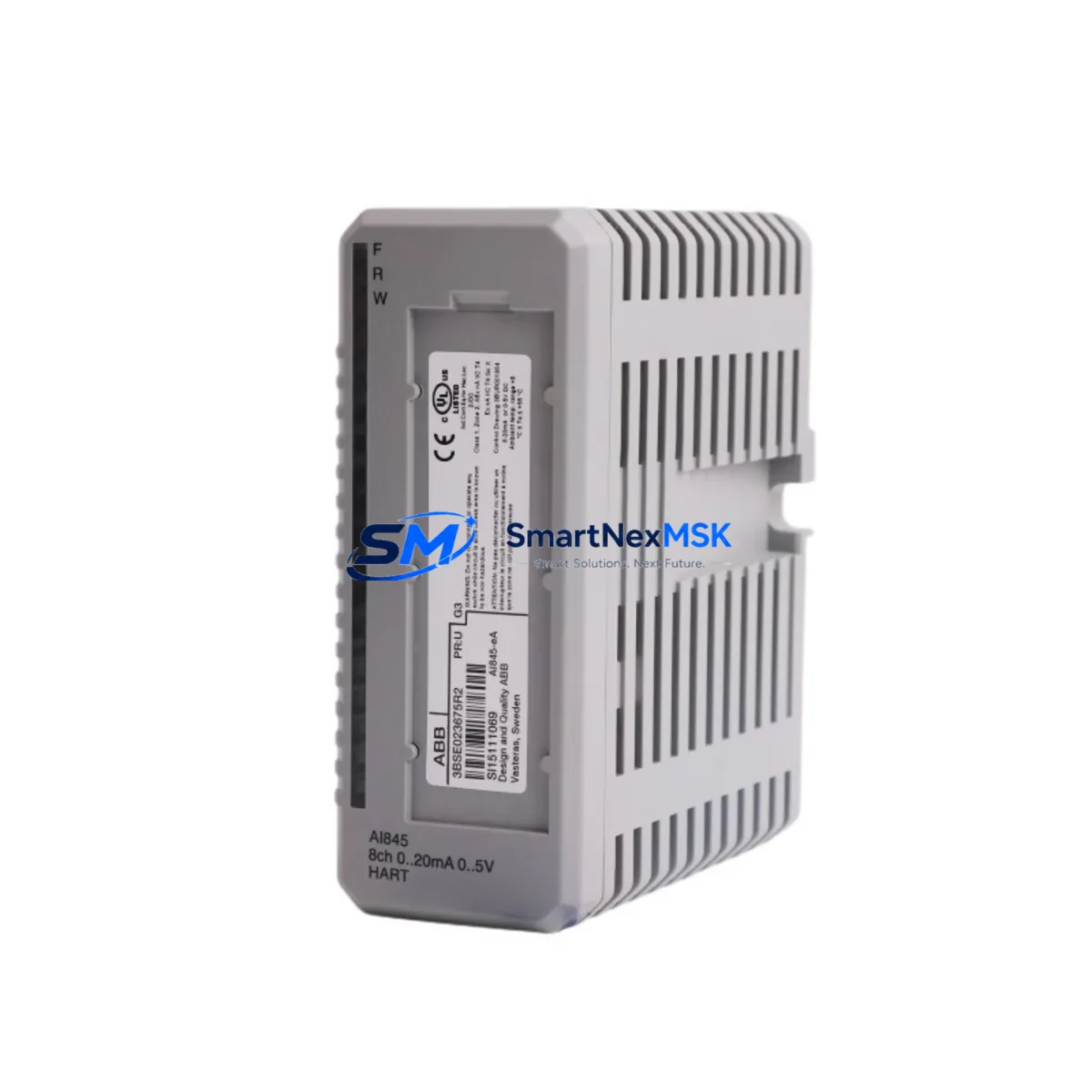

The ABB AI845-EA (3BSE023675R2) is an original analog input module designed for the S800 I/O system, widely deployed in AC800M-based DCS architectures across process industries including oil & gas, power generation, chemical processing, and pulp & paper. As a maintenance-ready spare, this module enables rapid field replacement to minimize unplanned downtime and restore control loop integrity without requiring system reconfiguration.

For maintenance engineers managing aging automation infrastructure, holding a verified spare of the AI845-EA in the local parts cabinet is a proven strategy for reducing mean time to repair (MTTR). The module supports 8 differential analog input channels with HART communication capability, making it a critical signal acquisition node in any S800 I/O station. When this module fails or degrades, the entire analog measurement chain — from field transmitters through to the AC800M controller — is interrupted, triggering process alarms and potential emergency shutdowns.

At SMARTNEXMSK, every AI845-EA 3BSE023675R2 unit is sourced as an original ABB component, individually tested prior to shipment, and backed by a 12-month warranty. Long-term supply continuity is maintained to support both emergency replacement orders and planned MRO procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the AI845-EA 3BSE023675R2, maintenance engineers should treat the module swap as part of a broader S800 I/O station inspection. The AI845-EA does not operate in isolation — it shares the ModuleBus backplane with adjacent modules and depends on a stable power and communication infrastructure. A thorough inspection should include the following components in the same control cabinet or I/O station:

Begin with the TB820 or TB840 ModuleBus Modem, which provides the communication link between the S800 I/O station and the AC800M controller. A degraded modem can cause intermittent channel faults that mimic AI845-EA failures. Next, verify the SD821 or SD822 power supply module — voltage sag or ripple on the 24 VDC rail is a common root cause of analog input drift and HART communication errors. Check the TB807 or TB811 terminal base on which the AI845-EA is mounted; corroded or loose terminal contacts will introduce measurement offset errors that persist even after module replacement.

For field wiring integrity, inspect the 4–20 mA loop wiring and verify that field transmitters — such as pressure, temperature, or flow transmitters — are within calibration. If HART communication is in use, confirm that the HART multiplexer or HART modem connected to the loop is functioning correctly, as a failed HART device can prevent the AI845-EA from completing its self-diagnostic cycle. Review the CI854 or CI858 PROFIBUS/FOUNDATION Fieldbus communication interface if the I/O station is part of a hybrid fieldbus architecture.

Additionally, inspect the DI810 or DI811 digital input modules in the same rack for signs of backplane communication errors, which can indicate a failing ModuleBus segment rather than a module-specific fault. Check the AO845 analog output module if the AI845-EA is part of a closed control loop — a faulty output module can cause process instability that is incorrectly attributed to the input module. Finally, review the CI801 or CI810 ModuleBus optical link if the I/O station is remotely located from the controller cabinet, as fiber link degradation will affect all modules in the station simultaneously.

Site Replacement Workflow

The AI845-EA 3BSE023675R2 is a hot-swap capable module within the S800 I/O system, allowing replacement without powering down the entire I/O station in most AC800M configurations. Follow this workflow to minimize downtime and ensure system compatibility:

Step 1 — Pre-replacement verification: Confirm the replacement unit part number (3BSE023675R2) matches the installed module. Check the AC800M controller firmware version against ABB’s compatibility matrix to ensure the replacement module is supported. Download the current channel configuration from the engineering workstation using ABB’s Control Builder M software.

Step 2 — Isolation and removal: Place the affected control loops in manual mode at the DCS operator station. Disconnect field wiring at the TB807/TB811 terminal base if required by site safety procedures. Remove the AI845-EA by pressing the module release latch and sliding it out of the terminal base.

Step 3 — Installation and commissioning: Insert the replacement AI845-EA 3BSE023675R2 into the terminal base until it clicks into place. The module will automatically download its configuration from the AC800M controller via the ModuleBus — no manual parameter entry is required in standard configurations. Verify that the module status LED indicates normal operation (green) within 30 seconds of insertion.

Step 4 — Loop verification: Return control loops to automatic mode and verify that all 8 analog input channels are reading within expected engineering unit ranges. Perform a HART device scan if HART communication is configured. Document the replacement in the site maintenance log with the module serial number and replacement date.

This workflow supports legacy system life extension by allowing continued operation of AC800M-based DCS systems beyond the original product lifecycle, using verified original spare modules rather than costly system upgrades.

Spare Parts Support FAQ

Q1: Is the AI845-EA 3BSE023675R2 compatible with all AC800M controller versions?
The AI845-EA is compatible with AC800M controllers running firmware version 5.0 and above, including MB300 and MB310 processor modules. For older firmware versions, consult ABB’s S800 I/O compatibility matrix or contact our technical team. We verify compatibility before shipment upon request.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every AI845-EA 3BSE023675R2 unit undergoes functional testing of all 8 analog input channels, HART communication verification, and visual inspection for physical damage before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with full technical support.

Q3: How quickly can the AI845-EA be shipped for emergency downtime recovery?
In-stock units are available for same-day or next-business-day dispatch. We maintain buffer inventory of high-demand S800 I/O modules specifically to support emergency MRO orders. Contact our team directly for urgent shipment arrangements and lead time confirmation.

Q4: Can the AI845-EA replace older or discontinued ABB analog input modules in the same S800 I/O station?
The AI845-EA 3BSE023675R2 is the current production variant and is backward compatible with earlier S800 I/O terminal bases. It can replace discontinued variants such as the AI845 (3BSE023675R1) in most installations without hardware modification. Configuration updates in Control Builder M may be required to reflect the new module type. We recommend verifying the terminal base model before ordering.
