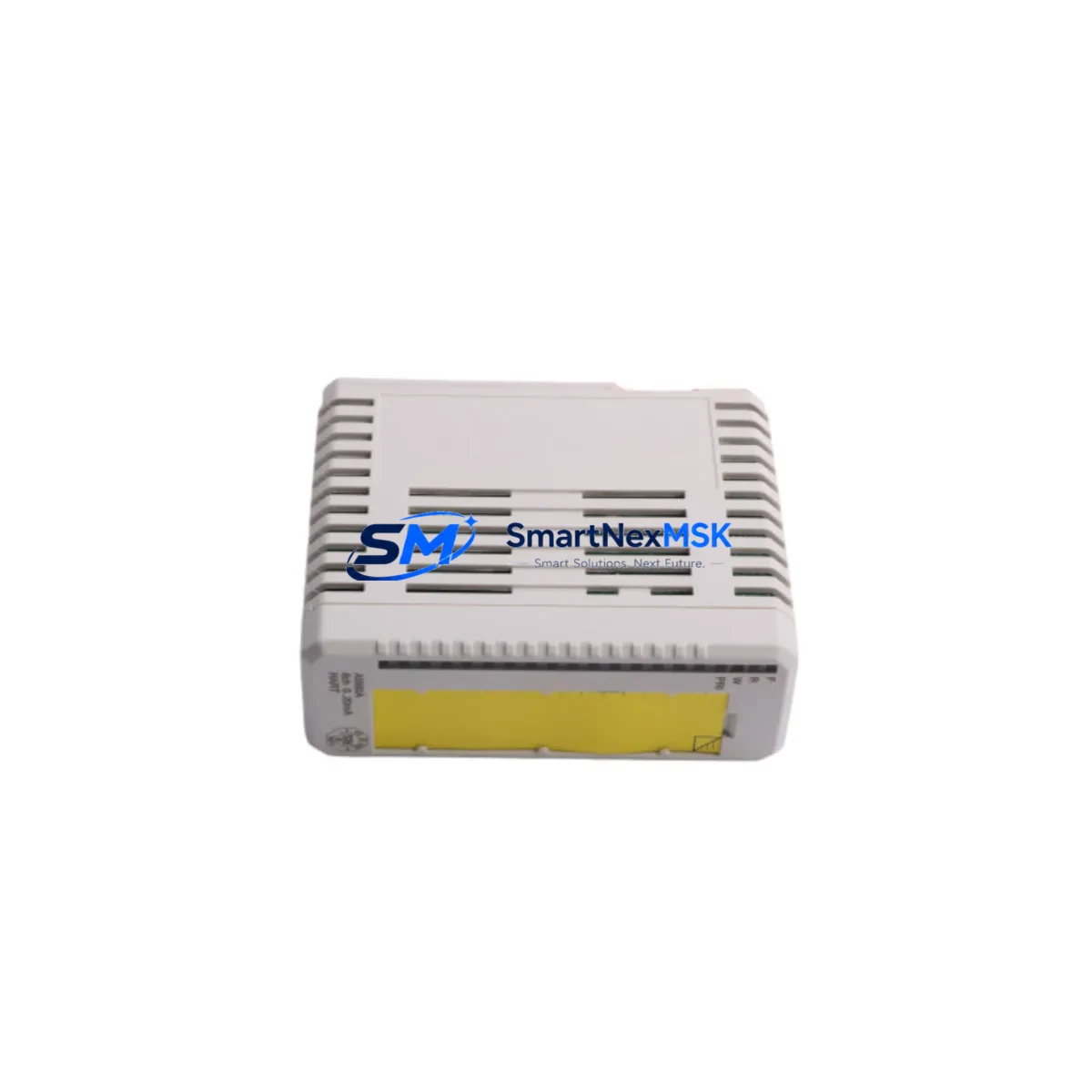

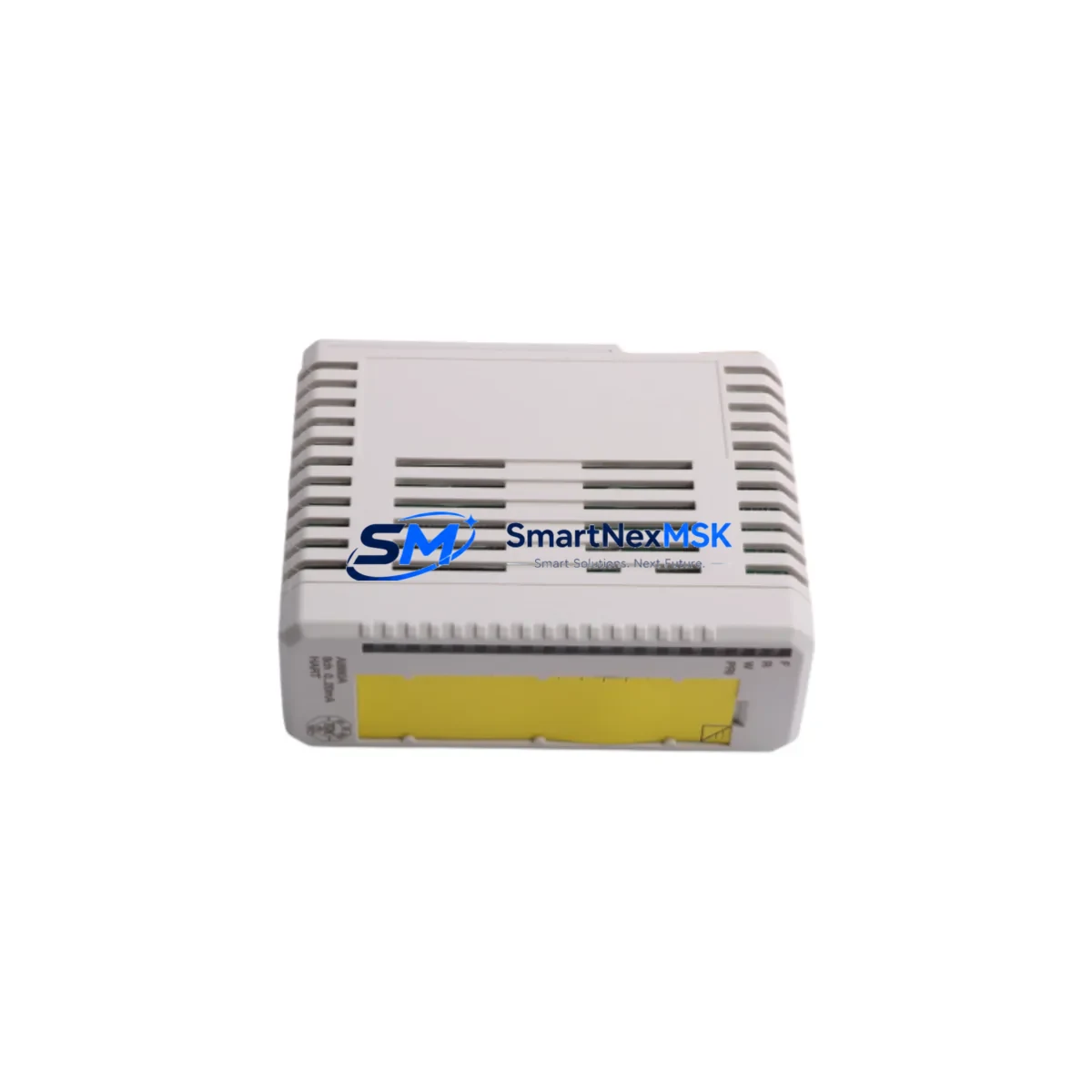

ABB AI880A 3BSE039293R1 Retrofit-Ready HART Analog Input for S800

ABB AI880A 3BSE039293R1 Retrofit-Ready HART Analog Input for S800 Control Systems

The ABB AI880A (catalog reference 3BSE039293R1) is a HART-enabled analog input module designed for the S800 I/O platform, fully compatible with ABB’s AC800M Distributed Control System. As legacy DCS installations age and OEM support windows close, the AI880A has become one of the most sought-after retrofit components for engineers tasked with modernizing process control infrastructure without a full system replacement. Whether you are replacing a failed unit on a running line, upgrading from an earlier S800 generation, or migrating from a third-party PLC platform to AC800M, the AI880A provides a validated, drop-in upgrade path that preserves existing wiring, cabinet layouts, and program logic.

Each unit shipped by SMARTNEXMSK is sourced from verified industrial channels, subjected to functional power-on testing, and covered by a 12-month warranty. Inventory is maintained in stock for immediate dispatch, minimizing unplanned downtime on critical production assets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AI880A retrofit begins well before the module arrives on site. Engineers should first audit the existing S800 I/O station to confirm the TB820V2 termination board is installed and that field wiring is correctly landed on the 2-wire or 4-wire HART loop terminals. In installations where the older AI810 (3BSE008516R1) was used without HART capability, the AI880A upgrade immediately unlocks remote device diagnostics and secondary variable transmission — a significant operational gain for flow, pressure, and temperature loops using smart field instruments.

The module slots directly into the S800 I/O station alongside other common S800 components such as the AO810V2 analog output module, DI810 digital input module, and DO810 digital output module. The station communicates upstream to the AC800M controller — typically a PM864A or PM866A processor module — via the CI840A PROFIBUS DP communication interface or, in newer installations, the CI873 Ethernet/IP interface. Confirming that the communication interface firmware is current before inserting the AI880A prevents address conflicts and ensures the module is recognized immediately by Control Builder M without requiring a full project download.

For sites migrating from a Siemens S7-300 or Rockwell ControlLogix platform to AC800M, the AI880A is frequently specified as the standard analog input module in the new S800 I/O rack. In these cross-platform migrations, the TB840A termination board is often preferred because it supports marshalled wiring from existing junction boxes, reducing field rewiring costs. The SA811F power supply module should also be verified to confirm it can support the additional current draw of the expanded I/O station after the AI880A is added.

HART pass-through configuration in Control Builder M requires that the CI840A or CI873 interface is set to allow HART command forwarding. Once enabled, asset management tools such as ABB Asset Vision or third-party HART communicators can interrogate field devices through the AI880A without breaking the 4–20 mA control loop. This capability is particularly valuable during commissioning of replacement transmitters, where engineers need to confirm device tag, range, and damping settings before handing the loop back to operations.

In SIL-rated applications, the AI880A must be verified against the safety function’s hardware fault tolerance requirements. The module’s SIL capability should be confirmed in the project’s Safety Requirements Specification before installation, and the proof test interval documented in the site’s functional safety management plan. The TP830 test panel, where installed, allows individual channel isolation for proof testing without interrupting adjacent loops.

Downtime Control During System Migration

Minimizing production downtime during an AI880A swap requires a structured hot-swap or planned-outage procedure. The S800 I/O platform supports module replacement under power in non-SIL applications: the TB820V2 termination board remains energized and field wiring stays connected while the module is extracted and the replacement AI880A is inserted. The AC800M controller detects the module removal, logs a diagnostic event, and automatically re-initializes the new module using the configuration stored in the controller project — no manual re-download is required in most cases.

Before initiating the swap, operators should place the affected control loops in manual mode at the DCS operator station to prevent spurious output changes during the brief signal interruption. The HMI faceplate for each affected loop — typically displayed on an ABB 800xA Operations or third-party SCADA screen — should be monitored throughout the procedure to confirm that analog values return to expected ranges within the module’s initialization time of approximately 10–15 seconds after insertion.

For planned outage migrations involving multiple AI880A modules across several I/O stations, a staged replacement approach is recommended: replace one station at a time, verify all channels in Control Builder M diagnostics, confirm HART communication on each loop, and obtain operator sign-off before moving to the next station. This approach limits the blast radius of any configuration issue and keeps the majority of the control system in service throughout the migration window. Maintaining a spare AI880A on site during the migration period provides an immediate fallback if a unit exhibits any post-installation anomaly.

Retrofit Support FAQ

Q1: Is the AI880A a direct drop-in replacement for the AI880 (3BSE020512R1)?
Yes. The AI880A is the current-generation successor to the AI880. It uses the same S800 backplane connector, the same TB820V2 termination board, and the same module address scheme. No wiring changes are required. The AI880A adds HART revision 7 support and improved channel diagnostics compared to the original AI880.

Q2: What commissioning steps are required after installing the AI880A?
After physical installation, verify the module status LED in Control Builder M diagnostics. Confirm channel scaling (4–20 mA range, engineering units) matches the previous configuration. If HART is enabled, assign device tags and verify primary variable communication for each loop. For SIL loops, perform the required proof test and update the safety management records before returning the loop to automatic mode.

Q3: Can the AI880A be used with a CI830 Modbus communication interface?
Yes. The AI880A is compatible with all standard S800 communication interfaces, including the CI830 Modbus RTU interface, CI840A PROFIBUS DP interface, and CI873 Ethernet/IP interface. HART pass-through availability depends on the interface type — CI840A and CI873 support HART multiplexing; CI830 does not forward HART commands.

Q4: What does the 12-month warranty cover, and is a test certificate included?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Each AI880A unit is tested for power-on initialization, channel signal integrity, and backplane communication before dispatch. A functional test certificate is included with every shipment. Units that exhibit failure within the warranty period are replaced or refunded at no additional cost.
