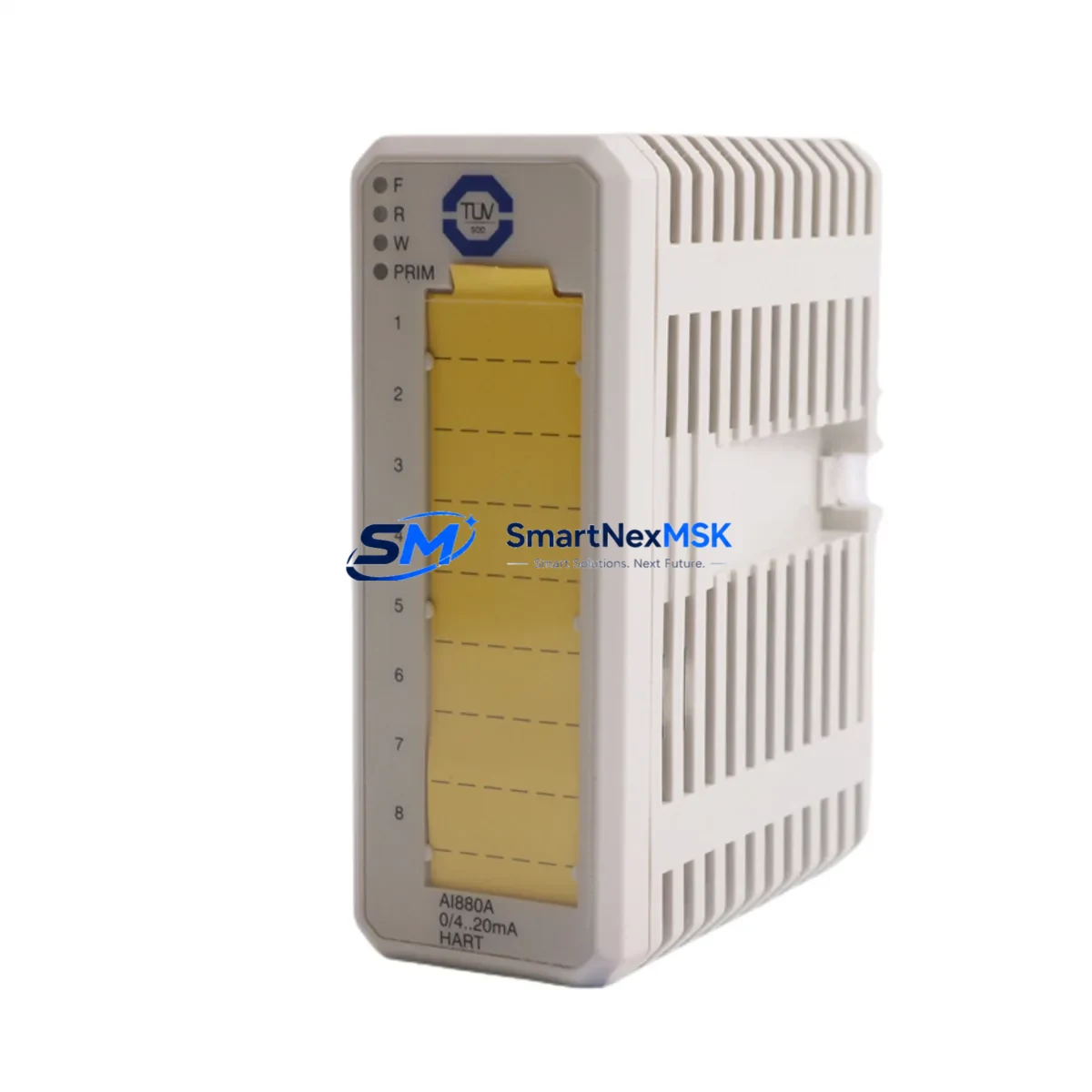

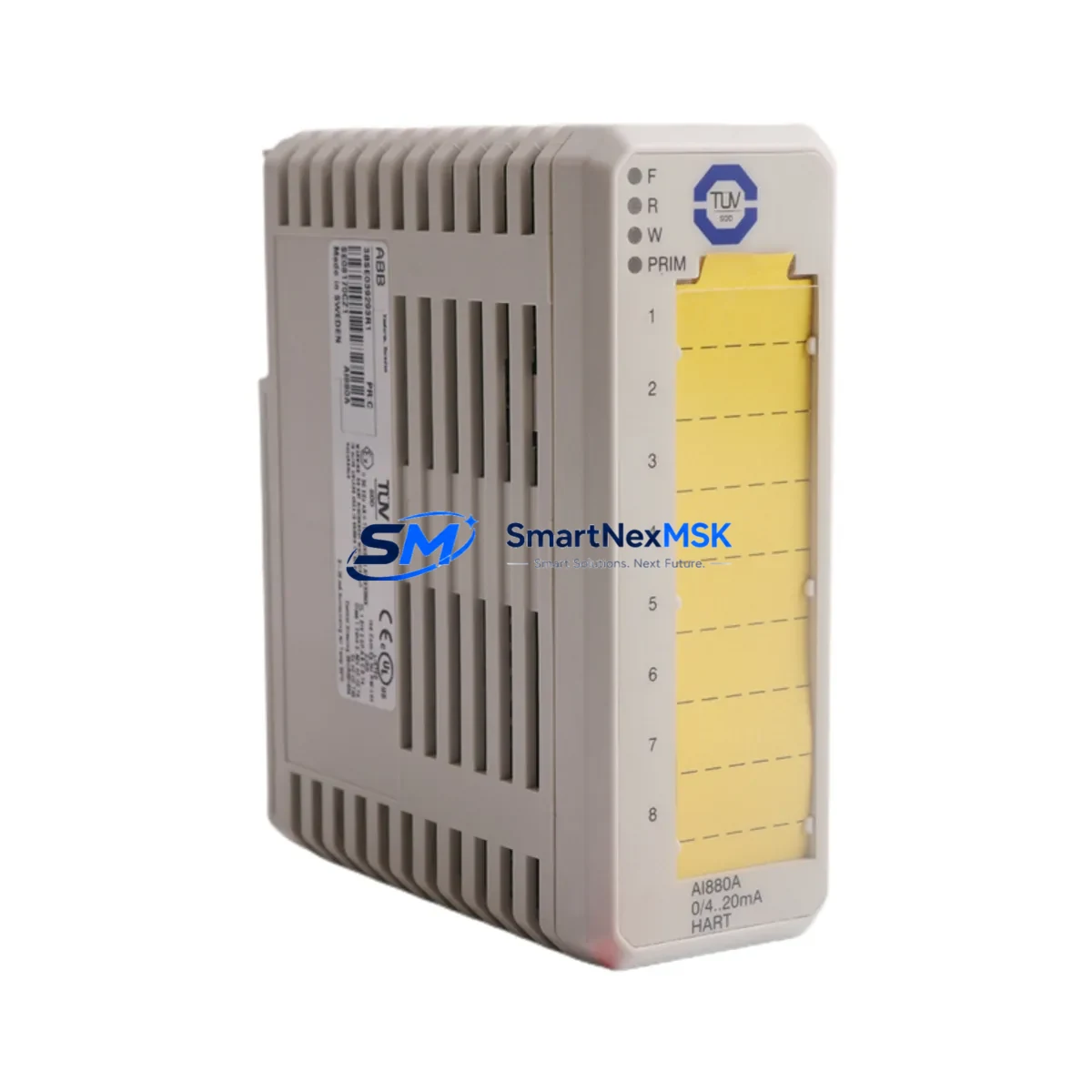

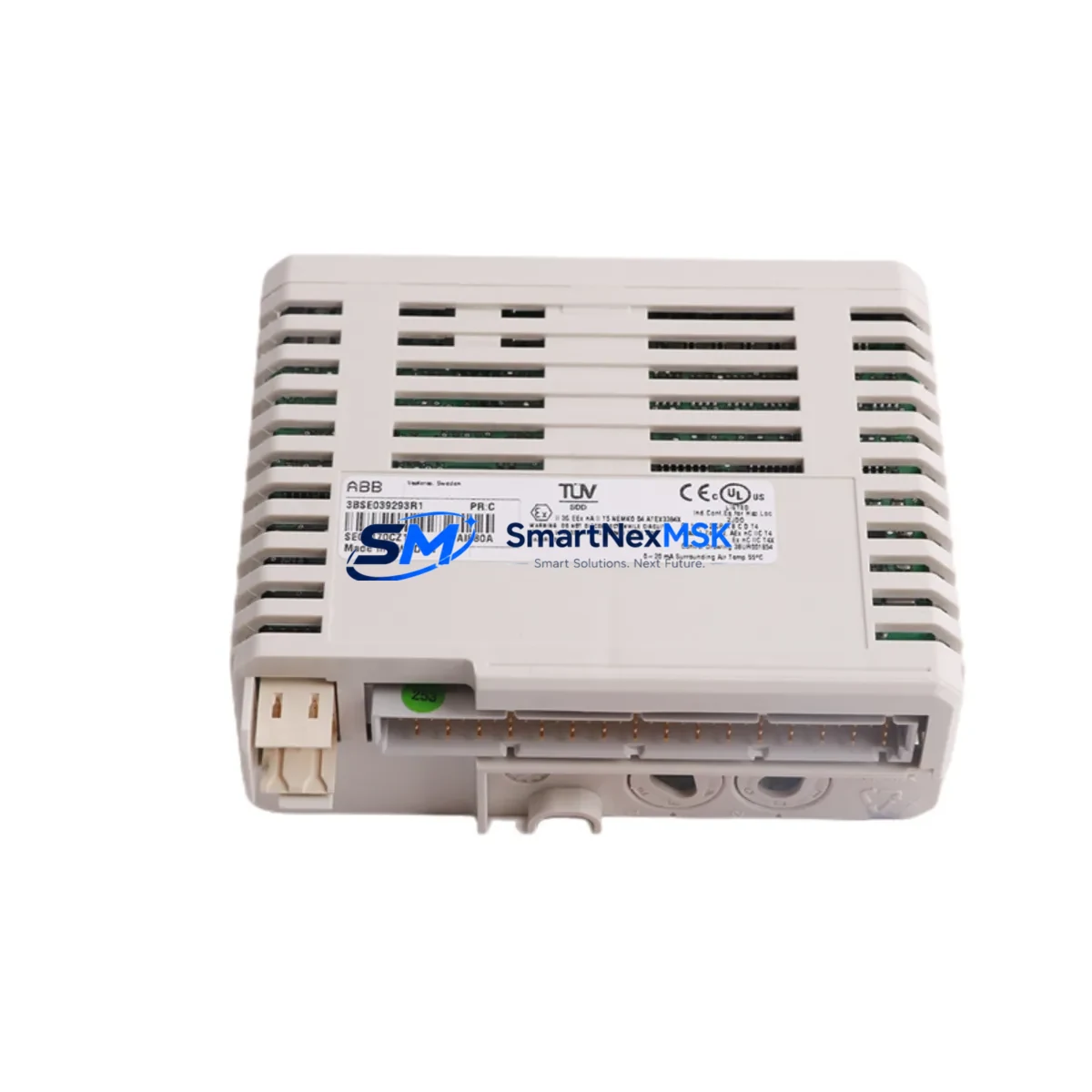

The ABB AI880A is an 8-channel HART-enabled analog input module designed for the S800 I/O system — one of ABB’s most widely deployed distributed I/O platforms in process automation and safety-critical applications. For maintenance engineers managing aging DCS infrastructure or planning scheduled turnarounds, holding a verified AI880A spare is a direct line of defense against unplanned downtime. This module supports SIL 2 certified loops and is fully compatible with the AC800M controller family, making it a cornerstone component in both brownfield upgrades and long-term system sustainment strategies.

Whether you are responding to a field fault, executing a planned inspection cycle, or building out your critical spare inventory, the AI880A must be sourced as an original ABB unit. Counterfeit or non-OEM substitutes risk loop calibration drift, HART communication failure, and SIL integrity violations — consequences that no maintenance team can afford in a live process environment. Every AI880A shipped from our inventory undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When an AI880A fails or is flagged during a routine control cabinet inspection, the replacement workflow rarely ends with the module itself. Experienced maintenance engineers know that a single analog input fault often signals stress across the broader I/O cluster. Before returning the loop to service, it is best practice to inspect the associated TB820 or TB840 base unit for terminal corrosion or loose field wiring, as these bases carry the module’s field connections and power distribution. If the AI880A is installed in a redundant configuration, the companion AI880 (non-HART variant) or a secondary AI880A should be checked for synchronization integrity.

The SA811 or SA801 power supply modules feeding the S800 I/O cluster should be load-tested during any planned maintenance window — a degraded power supply is a common root cause of intermittent analog input errors that are misdiagnosed as module faults. Similarly, the CI854 or CI858 PROFIBUS/HART communication interface connecting the S800 cluster to the AC800M controller should be inspected for firmware currency and communication error logs before and after module swap.

For field wiring integrity, inspect the TK850 or TK851 field termination units and verify that cable shields are properly grounded. In high-noise environments, adding or replacing signal isolators (such as the ABB HART multiplexer or equivalent galvanic isolators) upstream of the AI880A can prevent recurring faults. If the plant uses AI895 or AI893 modules in adjacent slots for temperature or pressure inputs, cross-check their calibration records — a shared ground fault can affect multiple channels across the cluster.

For procurement engineers building a critical spare list around the S800 I/O platform, the AI880A should be paired with at minimum one spare TB820 base unit, one SA811 power supply, and a set of TK850 field termination cables. This combination covers the most common failure modes and enables a complete loop restoration without waiting on multiple lead times.

Site Replacement Workflow

Replacing an AI880A in a live S800 I/O system is a structured process that, when executed correctly, can be completed within a single maintenance shift without requiring a full controller restart. The S800 I/O architecture supports hot-swap capability on most configurations, allowing the module to be removed and reinserted while the cluster remains powered — confirm this with your AC800M project documentation before proceeding.

Step 1 — Isolation and Documentation: Record the current channel configuration, HART device tags, and loop calibration values from the AC800M engineering station (typically via ABB Control Builder or System 800xA). This data is essential for post-replacement verification.

Step 2 — Physical Replacement: Release the AI880A from the TB820/TB840 base unit by pressing the module latch and sliding it free. Insert the replacement AI880A into the same slot. The module will self-identify to the controller via the ModuleBus interface.

Step 3 — Configuration Restore: In System 800xA or Control Builder, confirm that the new module has adopted the correct I/O configuration. For HART-enabled loops, re-initiate HART device polling to verify that field instruments are communicating correctly on all 8 channels.

Step 4 — Loop Verification: Perform a live signal check on each channel using a HART communicator or loop calibrator. Confirm that 4–20 mA signals are within tolerance and that SIL 2 loop diagnostics are active and reporting correctly.

Step 5 — Return to Service: Log the replacement in your maintenance management system (CMMS), update the spare parts inventory, and schedule the next inspection interval. The replaced module should be returned for evaluation — many AI880A units removed for suspected faults are recoverable after cleaning and recalibration.

Spare Parts Support FAQ

Q1: Is the AI880A compatible with both AC800M and AC800F controllers?
Yes. The AI880A is designed for the S800 I/O platform, which is supported by both the AC800M (System 800xA) and AC800F (Freelance) controller families. Confirm your base unit type (TB820 vs. TB840) and cluster addressing before installation to ensure slot compatibility.

Q2: What is included in the 12-month warranty and pre-shipment test?
Every AI880A unit is functionally tested prior to shipment — this includes power-on verification, channel signal integrity checks, and HART communication validation where applicable. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units damaged by incorrect installation, overvoltage, or field wiring faults are assessed case by case.

Q3: How do I verify compatibility before ordering if my system uses an older S800 I/O revision?
Provide your existing module’s hardware revision label (found on the module side panel) and your AC800M firmware version. We will cross-reference against ABB’s compatibility matrix and confirm before shipment. For legacy S800 clusters running older ModuleBus firmware, we can advise on any required firmware alignment steps.

Q4: Can you support long-term or blanket spare parts orders for the AI880A?
Yes. For maintenance teams managing multiple S800 I/O installations or planning multi-year spare parts programs, we support scheduled release orders and inventory reservation. Contact us to discuss lead times, quantity pricing, and documentation packages (test reports, country of origin certificates) required for your procurement process.
