ABB AINT-02 Retrofit-Ready Fiber Optic Interface for ACS800

ABB AINT-02 Retrofit-Ready Fiber Optic Interface for ACS800 Control Systems

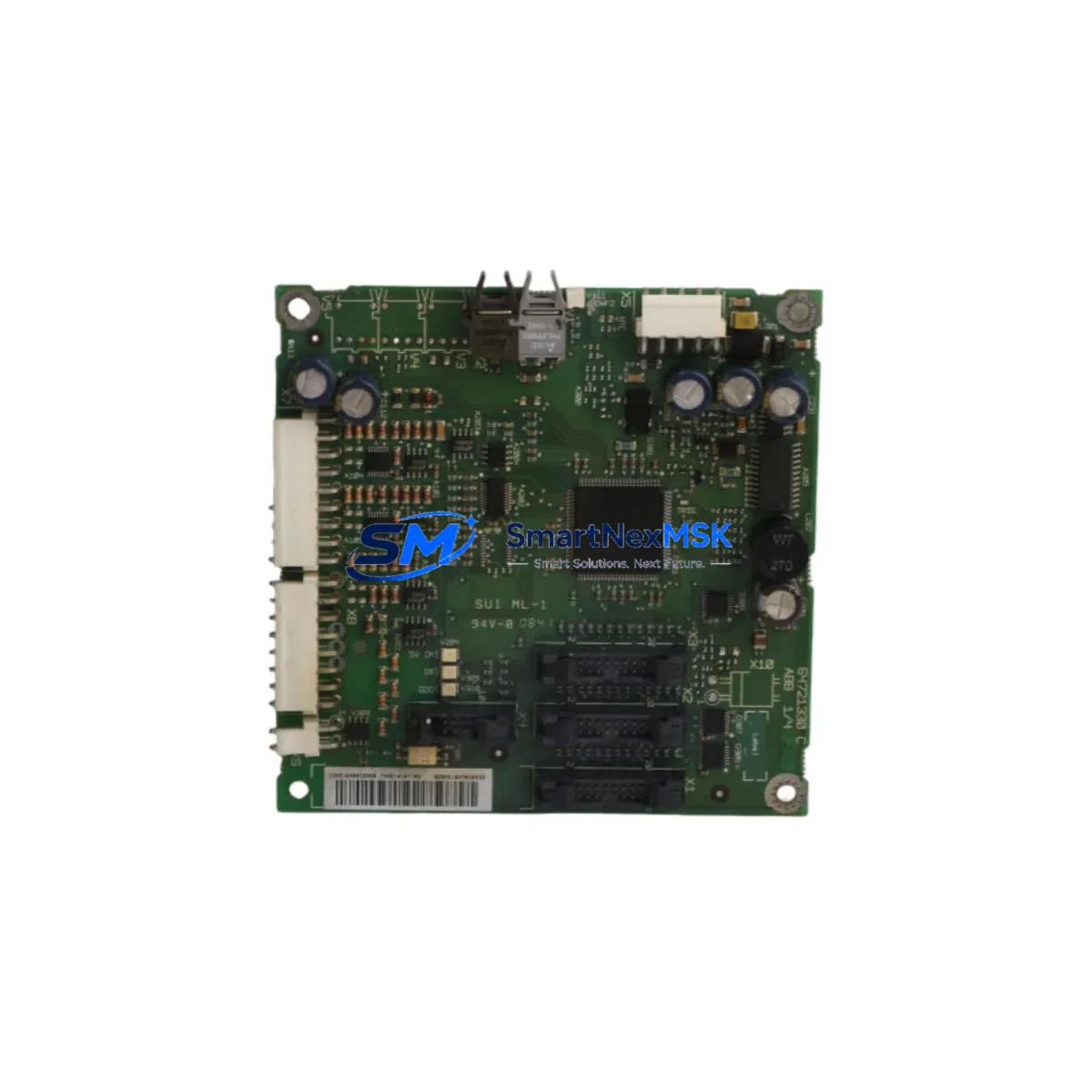

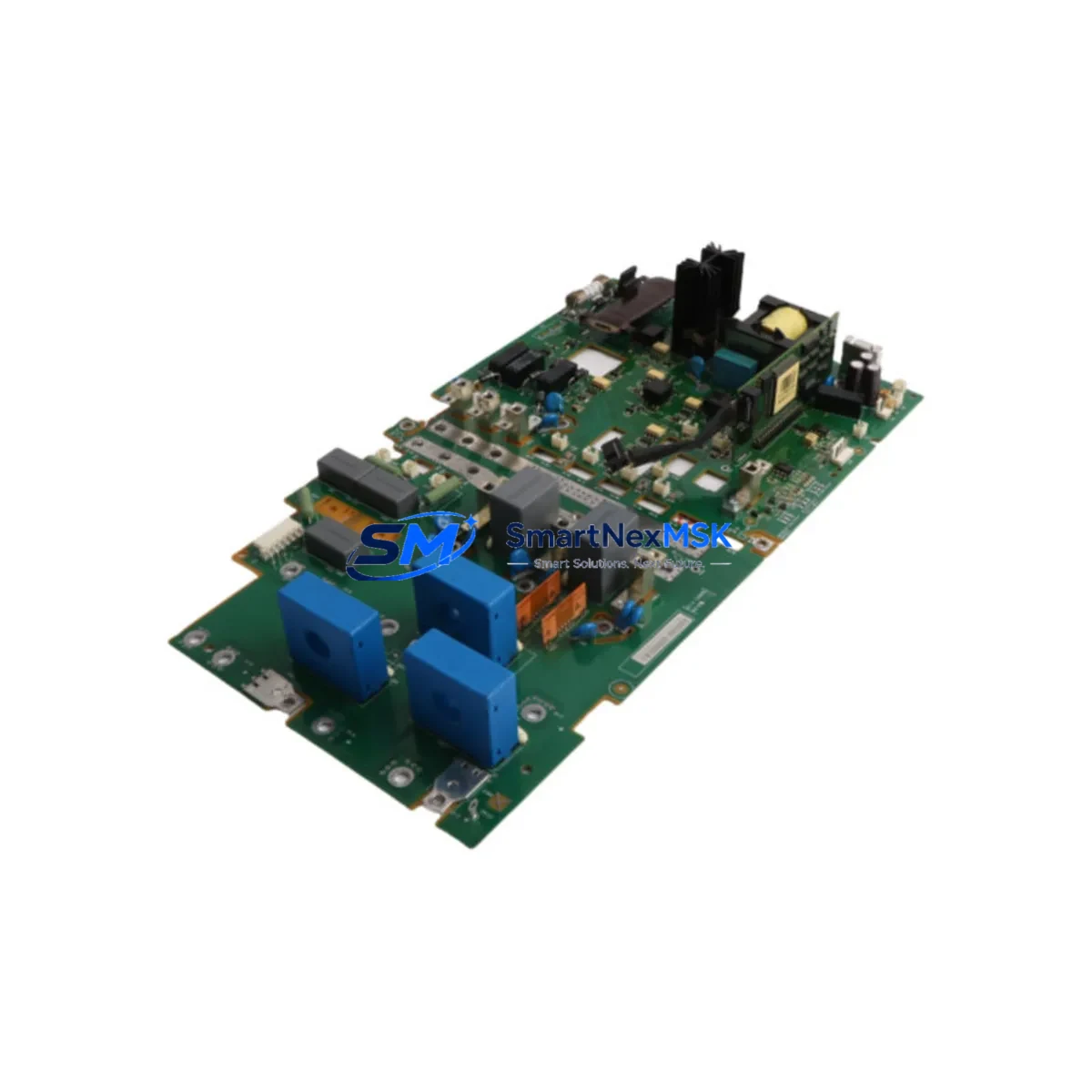

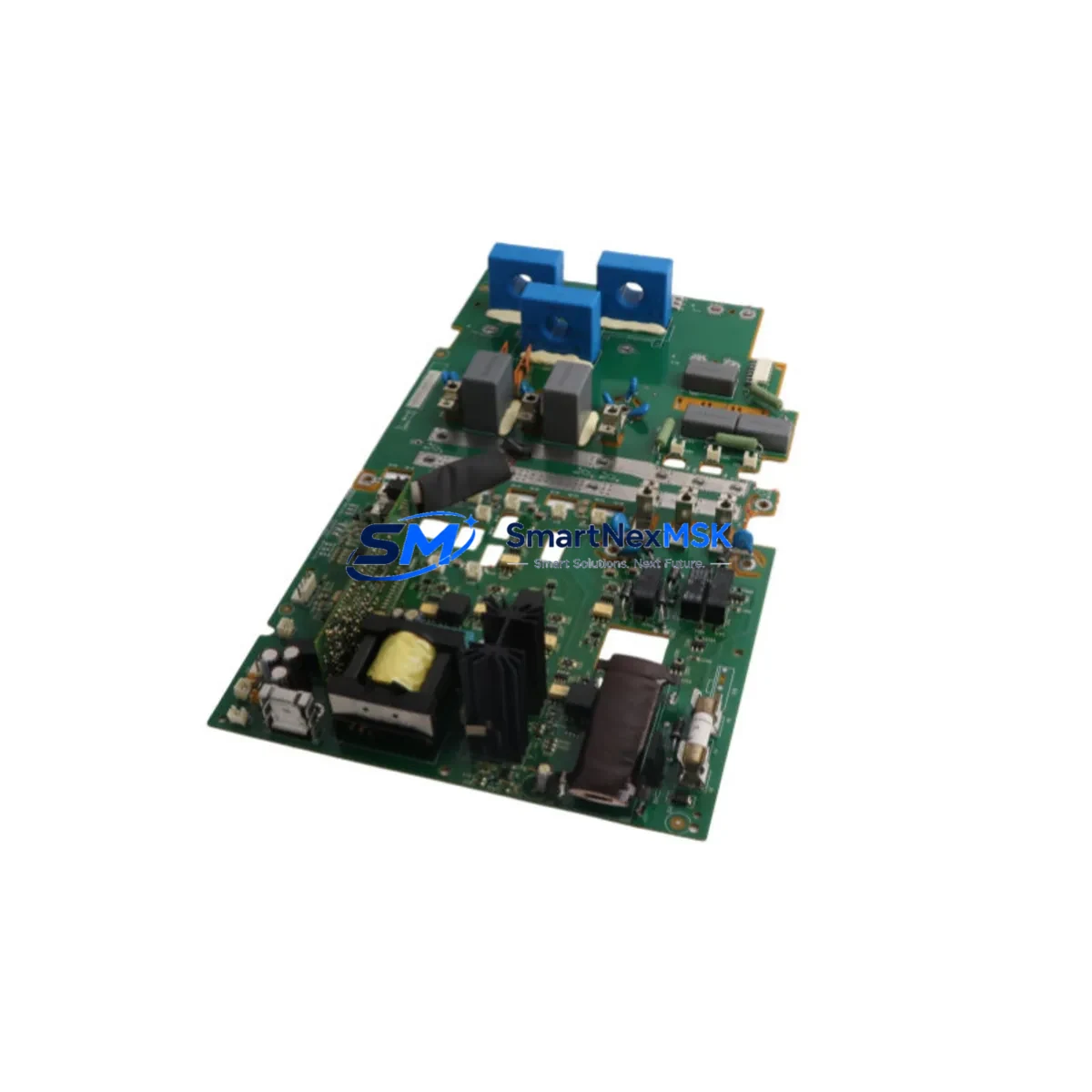

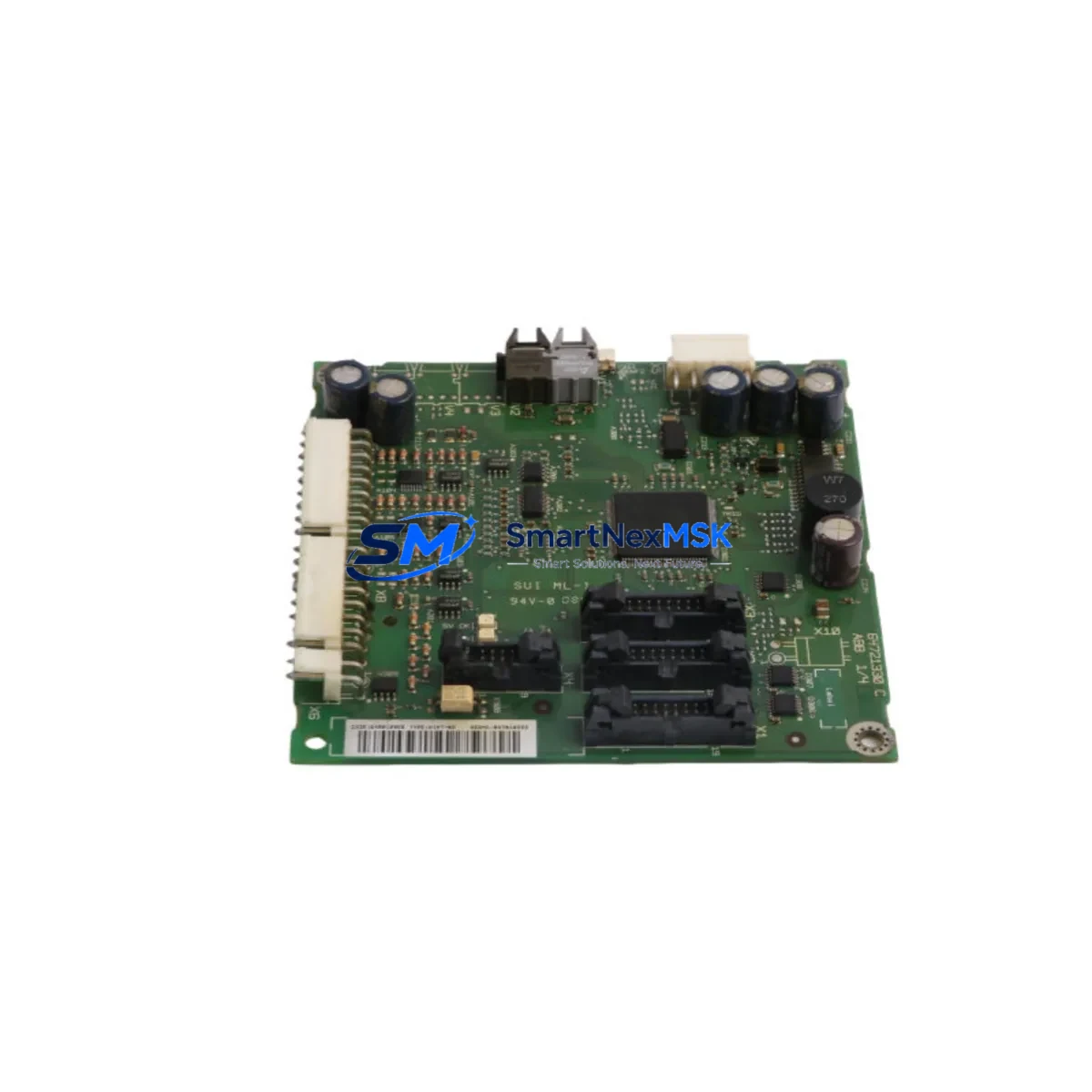

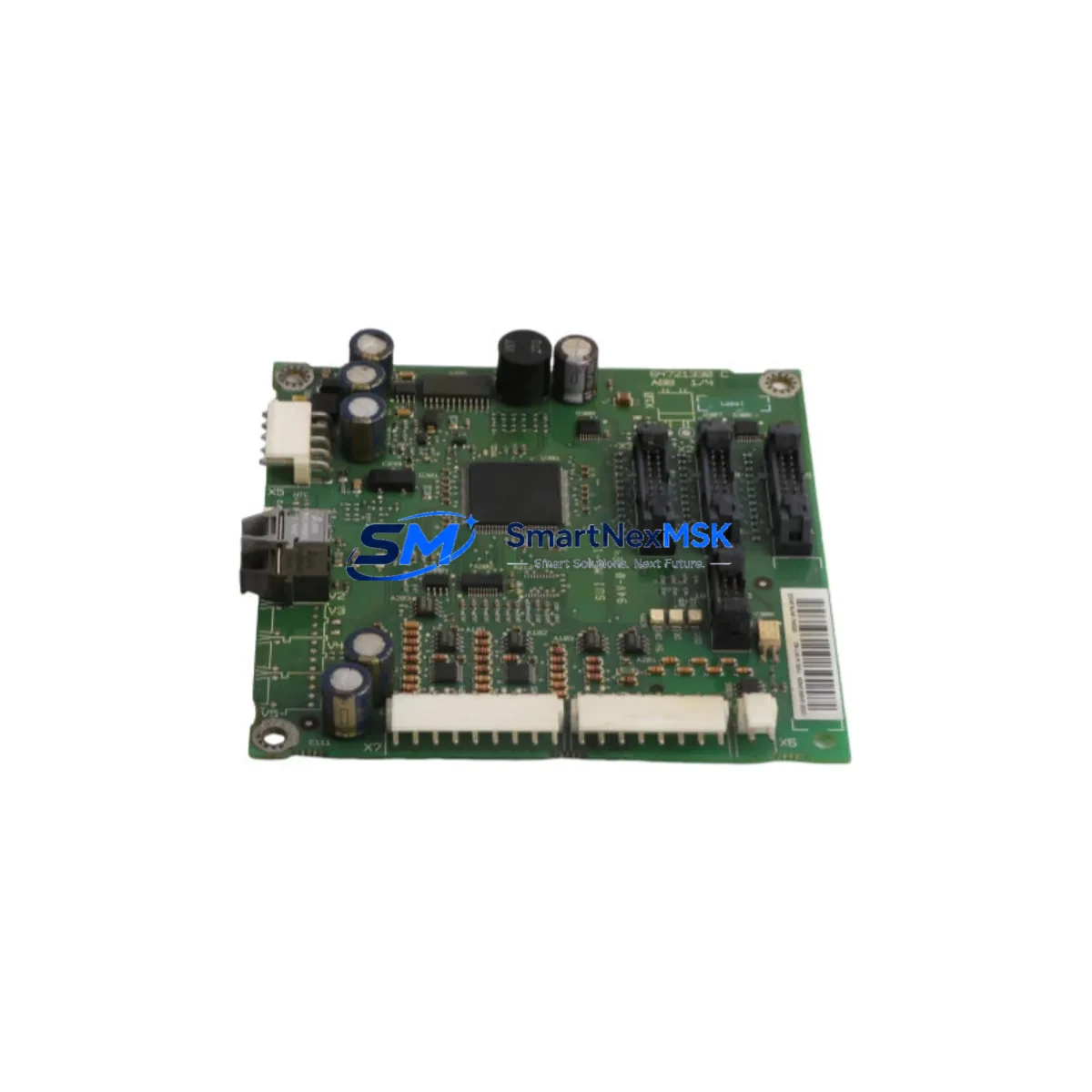

The ABB AINT-02 is a fiber optic interface module engineered for seamless integration into ABB ACS800 and ACS600 series variable frequency drive (VFD) control systems. As legacy drive platforms approach end-of-life and spare parts become increasingly scarce, the AINT-02 serves as a critical retrofit component — enabling engineers to restore, upgrade, or migrate aging automation infrastructure without full system replacement. Whether you are recovering a failed drive, modernizing a production line, or migrating communication protocols, the AINT-02 provides the optical link integrity required for reliable, high-speed data exchange between the drive control board and external I/O or fieldbus modules.

Sourced directly from verified supply channels and pre-tested prior to shipment, each AINT-02 unit supplied by SMARTNEXMSK is backed by a 12-month warranty and full technical support for installation and commissioning. Our inventory is maintained to support urgent retrofit and breakdown recovery scenarios, with fast dispatch from Xiamen.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit involving the AINT-02, engineers must account for the broader control architecture of the ACS800 drive system. The AINT-02 sits at the heart of the drive’s communication chain — connecting the main control board (typically the RMIO-11 or RMIO-02) to optional fieldbus adapter modules such as the RDCO-02 (DeviceNet), RDNA-01 (PROFIBUS-DP), or RPBA-01 (PROFIBUS-DP). In systems where the drive communicates upstream to a PLC or DCS via PROFIBUS or DeviceNet, a degraded or failed AINT-02 will sever this link entirely, causing loss of speed reference, torque command, and status feedback.

Before replacing the AINT-02, verify the condition of the fiber optic cables connecting the module to the fieldbus adapter. Damaged or contaminated fiber connectors are a common cause of intermittent communication faults and are often misdiagnosed as module failure. Inspect both the transmit (TX) and receive (RX) ports and clean with appropriate fiber optic cleaning tools if necessary.

In multi-drive systems — such as those using an ACS800-104 or ACS800-107 multi-drive cabinet — the AINT-02 may be part of a daisy-chained DDCS ring topology. In this configuration, replacing a single AINT-02 requires careful attention to node addressing. Each drive in the ring must have a unique DDCS node address configured in the drive parameters (typically parameter group 70 in the ACS800 standard application program). Failure to verify node addresses before restart can cause address conflicts and communication faults across the entire drive chain.

For systems being migrated from legacy ACS600 drives to ACS800 platforms, the AINT-02 retrofit often accompanies a broader upgrade that includes replacement of the NAMC-11 or NAMC-03 control boards, re-termination of analog and digital I/O wiring to the new RDIO-01 or RDIO-02 I/O extension modules, and reconfiguration of the HMI panel — typically migrating from a CDP312R control panel to the newer ACS-AP-I or ACS-AP-W assistant control panels. Each of these steps must be coordinated to avoid mismatches between the drive firmware version and the communication adapter firmware.

Power supply integrity is another critical checkpoint during AINT-02 retrofit. The ACS800 internal 24 VDC auxiliary power supply — which powers the control board, I/O modules, and communication adapters — must be verified to be within specification before installing the new module. An undersized or degraded power supply can cause erratic behavior in the AINT-02 and connected adapters, leading to false fault diagnostics. If the system uses an external APOW-01 auxiliary power module, inspect its output voltage under load before commissioning the replacement AINT-02.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any AINT-02 replacement or ACS800 retrofit project. The following approach is recommended to protect program logic and maintain field control continuity:

1. Pre-Replacement Backup: Before removing the failed module, use the ACS-AP-I control panel or DriveStudio PC tool to perform a full parameter backup of the drive. Save the backup to both the panel memory and a PC file. This ensures that all application-specific tuning — including PID parameters, speed references, torque limits, and I/O configurations — can be restored exactly after the module swap.

2. Controlled Shutdown Sequence: Coordinate the drive shutdown with the upstream PLC or DCS operator. Issue a controlled stop command via the fieldbus before cutting power, rather than performing an emergency stop. This allows the drive to ramp down gracefully and avoids mechanical stress on connected motors and gearboxes. In systems using an RDNA-01 PROFIBUS adapter, confirm that the PLC program handles the loss of the drive node gracefully — ideally by holding the last known output state rather than faulting the entire process cell.

3. Module Swap and Fiber Reconnection: Replace the AINT-02 with the new unit, ensuring the fiber optic connectors are fully seated and latched. Power up the drive in local control mode first to verify that the control board initializes correctly and that no hardware fault codes are generated. Only after confirming stable local operation should the fieldbus link be re-established.

4. Parameter Restore and Commissioning: Restore the parameter backup using the control panel or DriveStudio. Verify all critical parameters — particularly the DDCS node address, baud rate, and fieldbus adapter configuration — before switching the drive back to remote (fieldbus) control. Perform a test run at reduced speed to confirm that speed reference and feedback signals are operating correctly before returning the drive to full production load.

5. HMI and SCADA Verification: After the drive is back online, verify that the HMI display — whether a local ACS-AP-W panel or a SCADA system connected via OPC — is receiving correct drive status, fault history, and process values. Any discrepancy in displayed values should be investigated before declaring the retrofit complete.

Retrofit Support FAQ

Q1: Is the AINT-02 a direct replacement for the original module in my ACS800 drive?
Yes. The AINT-02 is a like-for-like replacement for the original fiber optic interface module in ACS800 and ACS600 series drives. No hardware modifications or parameter re-mapping are required for a direct swap, provided the drive firmware version is compatible. We recommend confirming the drive firmware version against the AINT-02 hardware revision before installation.

Q2: What commissioning steps are required after installing the AINT-02?
After installation, power up the drive in local control mode and verify that no hardware fault codes (e.g., FF52 or FF53 DDCS communication faults) are present. Confirm the DDCS node address in parameter group 70 matches the original configuration. Re-establish the fieldbus link and perform a test run at reduced speed before returning to full production. A full parameter backup restore is recommended if the original parameters were not retained.

Q3: Can the AINT-02 be used in a multi-drive DDCS ring with mixed ACS800 and ACS600 drives?
The AINT-02 is designed for ACS800 and ACS600 platforms and supports DDCS ring topology. In mixed-platform rings, ensure that all drives in the ring are configured with unique node addresses and that the DDCS master (typically the ACS800 with the RDCO adapter) is set to the correct number of nodes. Communication stability in mixed rings depends on firmware compatibility across all drives — consult ABB documentation or contact our technical team for specific configuration guidance.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, contamination, or physical impact. To initiate a warranty claim, contact our team at sales@smartnexmsk.com with your order number, a description of the fault, and any fault codes observed. We will arrange for inspection and replacement or repair within the warranty period.
