ABB AL16-30-32 Maintenance-Ready Spare for AL Series

ABB AL16-30-32 Maintenance-Ready Spare for AL Series Automation

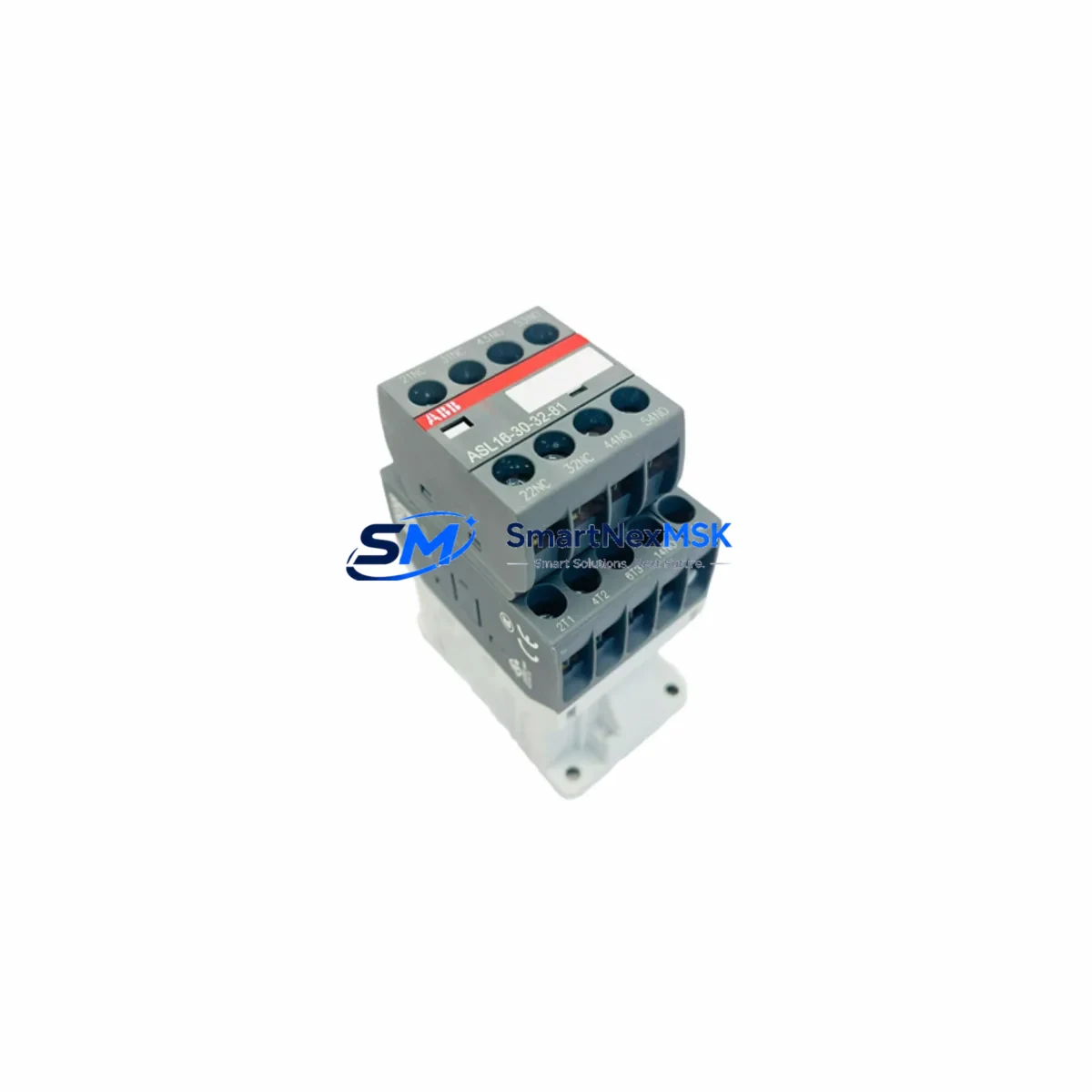

The ABB AL16-30-32 is an original auxiliary contact block engineered for the AL Series contactor family, delivering a 3NO+2NC contact configuration rated at 16A under IEC standards. In industrial maintenance environments — from automotive assembly lines to water treatment control panels — this component plays a critical role in motor control circuits, interlocking logic, and status feedback loops. Keeping a verified spare of the AL16-30-32 in your maintenance inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery during scheduled or emergency maintenance windows.

Sourced directly from ABB’s authorized supply chain and manufactured in Germany, each AL16-30-32 unit shipped by SMARTNEXMSK undergoes pre-shipment electrical continuity and contact resistance testing. Our 12-month warranty covers all original spare parts against manufacturing defects, giving procurement and maintenance engineers confidence in long-term reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AL16-30-32 auxiliary contact block in a motor control center (MCC) or control cabinet, a thorough maintenance inspection of the surrounding circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity for a broader panel health check.

Begin by verifying the condition of the host contactor — typically an ABB AL9, AL12, AL16, AL26, or AL30 main contactor — checking for arc erosion on the main power contacts and worn coil insulation. The AL16-30-32 auxiliary block interfaces directly with the contactor’s mechanical actuator, so any mechanical wear on the contactor body will affect auxiliary contact actuation reliability.

Next, inspect the 24VDC or 110/230VAC control power supply feeding the contactor coil circuit. A degraded ABB CP series DIN-rail power supply or equivalent SITOP unit can cause coil undervoltage, leading to chattering that accelerates auxiliary contact wear. Confirm output voltage stability under load before commissioning the new AL16-30-32.

Check all terminal blocks in the control circuit — particularly Phoenix Contact or Weidmüller screw-type terminals — for loose connections, oxidation, or thermal discoloration. Loose terminals in the auxiliary contact feedback loop are a leading cause of intermittent PLC input faults that are often misdiagnosed as contact block failures.

For systems using ABB AC500 or Siemens S7-300/S7-1200 PLCs, verify that the digital input (DI) module receiving the auxiliary contact signal is functioning correctly. A faulty DI channel can mask a healthy AL16-30-32 replacement. If the system uses signal isolators — such as Phoenix Contact MINI MCR or Pepperl+Fuchs barriers — confirm isolation integrity and output signal levels.

Inspect any interposing relays in the circuit, such as ABB CR-M or Finder 55 series relays, which may be used to interface the 16A auxiliary contact signal with lower-voltage PLC inputs. Relay coil resistance and contact condition should be verified with a multimeter. Additionally, check the fuse protection on the control circuit — a blown 2A or 4A control fuse is often the root cause of apparent auxiliary contact failures.

For systems with remote I/O or distributed control, inspect the communication module (e.g., ABB CI854 PROFIBUS adapter or equivalent DeviceNet/PROFINET interface) to ensure no communication faults have been logged that could indicate broader electrical noise issues in the panel — a common symptom of degraded contact blocks generating transient spikes.

Finally, review the HMI alarm history (Siemens TP700, ABB CP600, or equivalent) for recurring motor fault alarms that may indicate the AL16-30-32 was operating in a degraded state for an extended period. Documenting this history supports root cause analysis and informs future spare parts stocking decisions.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the control panel and apply LOTO (Lockout/Tagout) per site safety procedures. Confirm zero voltage on both the main power and control circuits using a calibrated multimeter.

Step 2 — Document Existing Wiring: Photograph or sketch the auxiliary contact wiring before removal. The AL16-30-32 uses standard IEC terminal numbering (13/14 for NO, 21/22 for NC, etc.) — confirm your circuit diagram matches the installed configuration.

Step 3 — Remove Old Contact Block: Depress the snap-fit locking tab on the AL Series contactor and slide the auxiliary block free. Inspect the contactor actuator pin for wear or deformation.

Step 4 — Install AL16-30-32: Align the new AL16-30-32 with the contactor mounting rail and press firmly until the locking tab clicks. No tools required for standard front-mount installation.

Step 5 — Reconnect & Verify: Reconnect all auxiliary circuit wiring per the documented configuration. Re-energize the control circuit only (not main power) and use a multimeter or PLC diagnostic screen to verify correct NO/NC contact states in both energized and de-energized positions.

Step 6 — Full System Test: Restore main power and perform a full motor start/stop cycle. Confirm all interlocks, feedback signals, and HMI status indicators respond correctly before returning the system to production.

The AL16-30-32 is a direct drop-in replacement for older ABB auxiliary contact blocks used in legacy AL Series installations. No wiring modifications or parameter changes are required, making it an ideal solution for rapid fault recovery with zero system reconfiguration.

Spare Parts Support FAQ

Q1: Is the AL16-30-32 compatible with all AL Series contactors?
The AL16-30-32 is designed for the ABB AL Series contactor family, including AL9, AL12, AL16, AL26, and AL30 frame sizes. Always verify the contactor frame size and mounting interface against your panel documentation before installation. If you are unsure of compatibility, contact our technical team with your contactor model number.

Q2: What is included in the 12-month warranty?
All AL16-30-32 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Each unit is tested for electrical continuity and contact resistance prior to dispatch. Warranty claims are supported with replacement or refund at our discretion, subject to inspection of the returned unit.

Q3: How should I store AL16-30-32 spare parts in my maintenance inventory?
Store in original packaging in a dry, dust-free environment at temperatures between -25°C and +40°C, away from direct sunlight and corrosive atmospheres. For long-term storage (12+ months), inspect contact surfaces annually and confirm no oxidation has developed before installation. We recommend stocking a minimum of 2 units per contactor type in critical motor control applications.

Q4: Can I use the AL16-30-32 to replace an older or discontinued ABB auxiliary contact model?
In many cases, yes. The AL16-30-32 follows standard IEC terminal numbering and AL Series mechanical interface dimensions, making it compatible with a range of legacy ABB auxiliary contact blocks. However, confirm the contact configuration (3NO+2NC) matches your circuit requirements, as substituting a different NO/NC ratio will affect interlock and feedback logic. Our team can assist with cross-reference verification for discontinued part numbers.
