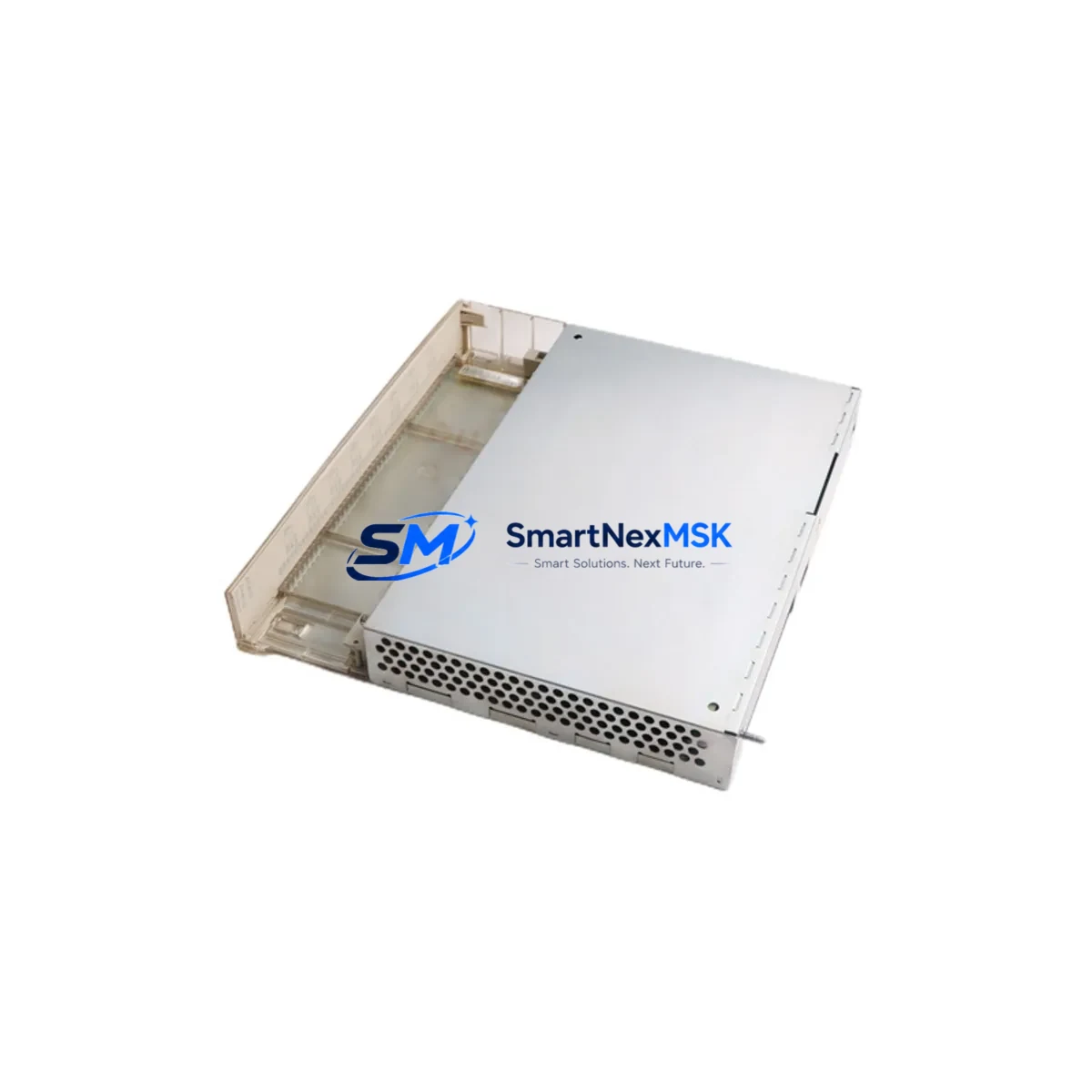

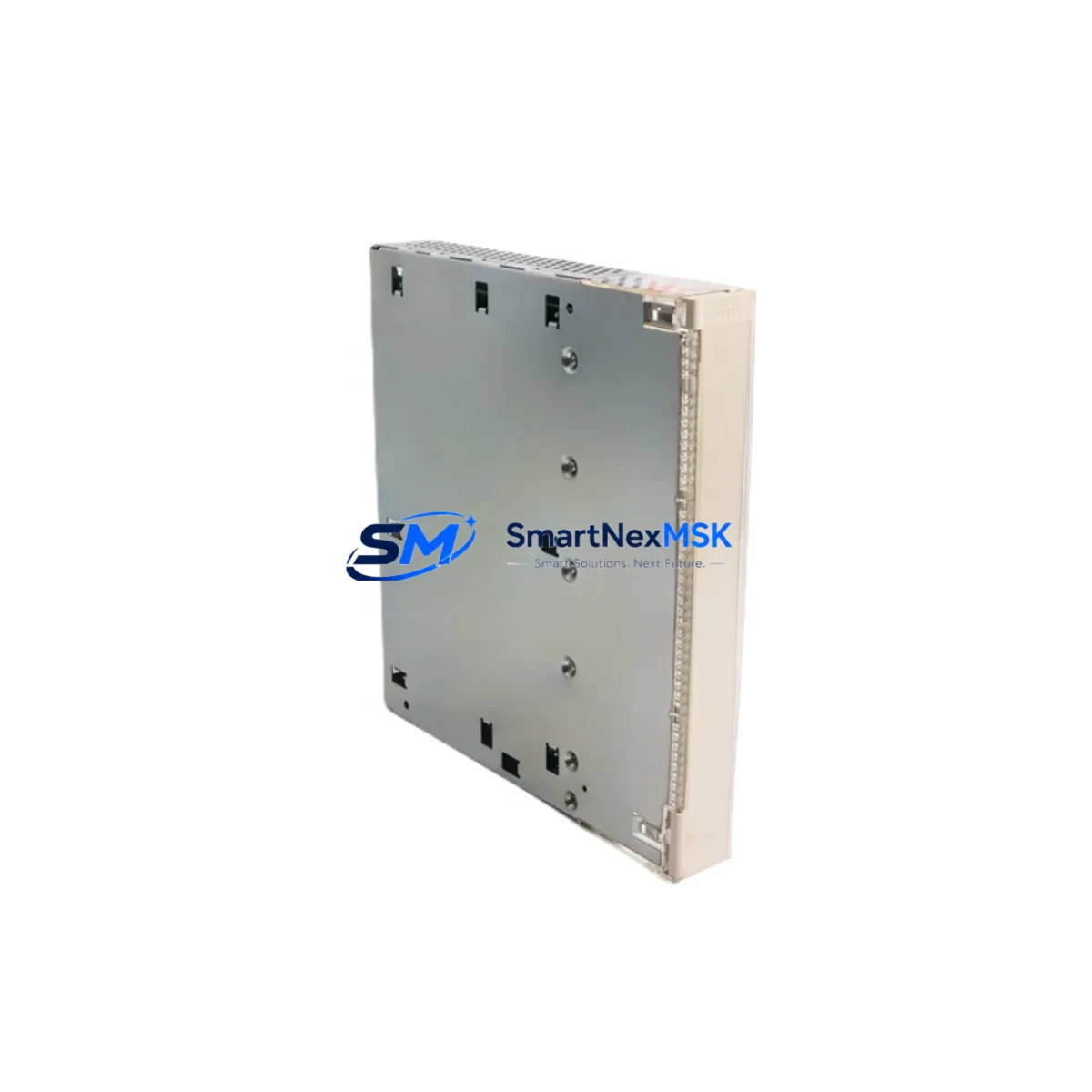

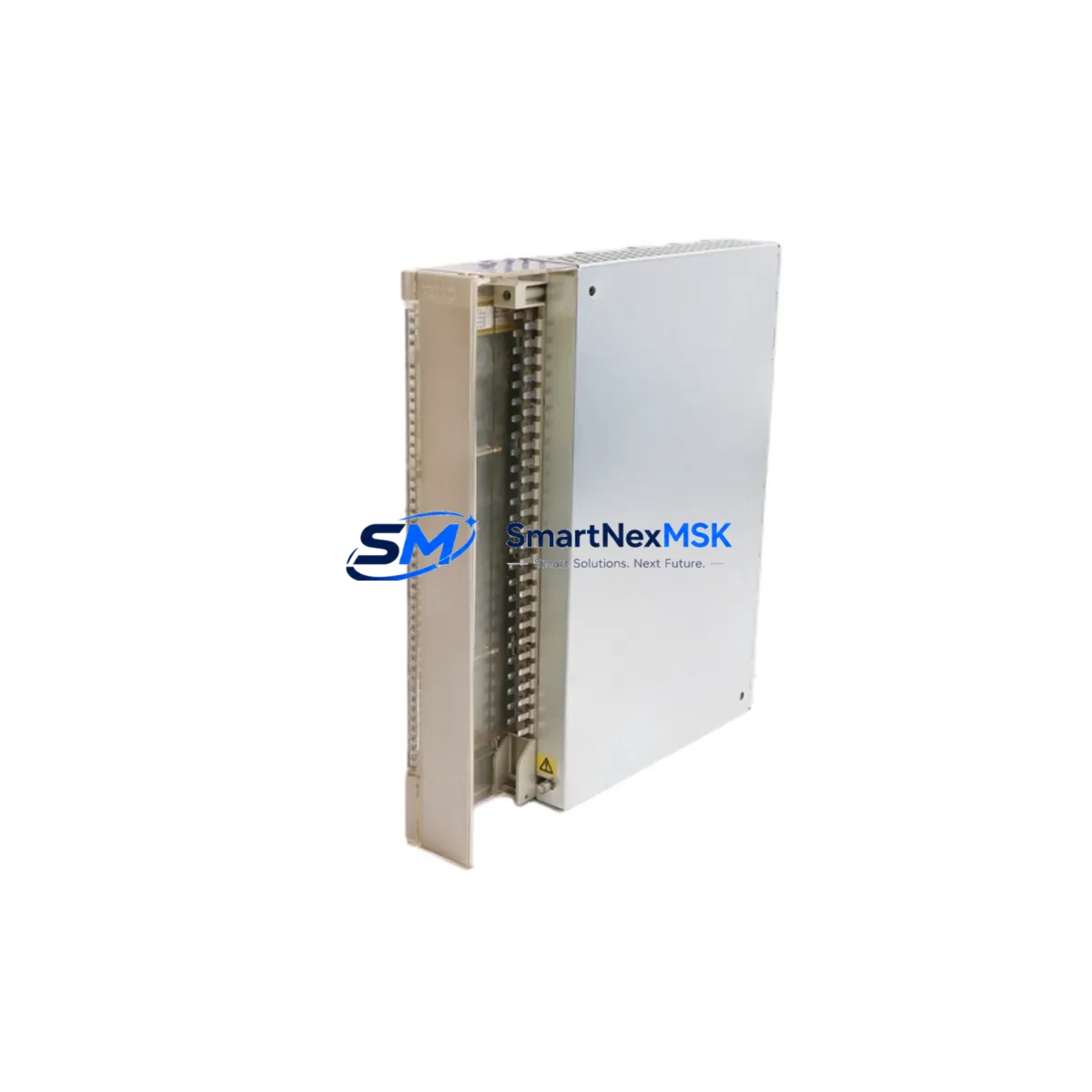

ABB AO650 3BHT300051R1 Retrofit-Ready Analog Output for AC800M

ABB AO650 3BHT300051R1 Retrofit-Ready Analog Output for AC800M: Compatible Upgrade for Legacy DCS Control Systems

When aging distributed control systems reach end-of-life or when production demands a seamless upgrade path, the ABB AO650 3BHT300051R1 stands as one of the most reliable retrofit solutions available for AC800M and S800 I/O platforms. This 8-channel analog output module is engineered to slot directly into existing S800 I/O backplane configurations, enabling engineers to modernize control loops without redesigning the entire cabinet architecture. Whether you are replacing a failed unit on a continuous process line or executing a planned migration from an older ABB Advant or MOD 300 system, the AO650 delivers the signal fidelity and compatibility that retrofit projects demand.

The AO650 3BHT300051R1 outputs 4–20 mA signals across eight independently configurable channels, making it suitable for driving control valves, variable frequency drives, positioners, and other field actuators in process-critical environments. Its compact S800 form factor integrates directly with the TB820V2 ModuleBus modem and CI854 PROFIBUS communication interface, preserving the existing communication architecture during a module swap. Engineers performing a retrofit can retain their existing TB807 or TB810 terminal base wiring, eliminating the need for rewiring field cables — a significant advantage in minimizing downtime during planned maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on site. When planning the replacement of an existing analog output module with the AO650 3BHT300051R1, the first step is to audit the power budget of the S800 I/O station. The SD821 or SD822 power supply units feeding the station must have sufficient headroom to support the AO650’s current draw alongside other installed modules such as AI810 analog input modules, DI810 digital input modules, and DO810 digital output modules sharing the same rack. Overloaded power supplies are a common cause of intermittent faults during retrofit commissioning and should be verified before the swap.

Next, confirm the terminal base type installed in the target slot. The AO650 is compatible with the TB807 and TB810 terminal bases, which accept standard 0.5 mm² field wiring. If the existing installation uses an older TB801 base, a base replacement will be required — a straightforward task that can typically be completed without disturbing field cable terminations if proper labeling is in place. The CI854 PROFIBUS DP communication module or the TB820V2 ModuleBus modem connecting the I/O station to the AC800M controller should also be inspected for firmware compatibility, as older firmware versions may require an update to correctly enumerate the AO650’s channel configuration.

In Control Builder M, the AO650 channel addresses are assigned within the hardware configuration tree. When replacing an AO610 or AO620 with the AO650, engineers should verify that the function block connections in the application program reference the correct hardware channel tags. In most cases, the channel mapping is preserved automatically when the module type is updated in the hardware editor, but a full download and cold restart of the AC800M PM866 or PM891 controller is recommended to ensure the new configuration is applied cleanly. HMI faceplates connected to analog output signals via OPC DA or OPC UA should be tested post-restart to confirm that engineering unit scaling and alarm limits remain intact.

For sites running ABB 800xA System as the supervisory layer, the AO650 appears as a standard S800 I/O object within the Plant Explorer. No additional licensing is required for the module swap, and existing trend displays, event logs, and control loop tuning parameters are unaffected. If the site uses a third-party SCADA system communicating via the CI854 PROFIBUS DP interface, the GSD file for the S800 I/O station remains unchanged, and no re-configuration of the SCADA hardware profile is necessary.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any live-system retrofit. For the AO650 3BHT300051R1, the hot-swap capability of the S800 I/O platform is a critical advantage. Under normal operating conditions, an S800 I/O module can be removed and replaced while the I/O station remains powered, provided the AC800M controller is placed in a safe state and the affected output channels are forced to a defined safe value through Control Builder M before the swap. This procedure eliminates the need for a full system shutdown and allows the replacement to be completed during a brief process hold rather than a scheduled outage.

Before initiating the swap, document the current output values on all eight channels using the online monitoring view in Control Builder M. Force each channel to its safe output value — typically 4 mA for a de-energized actuator or the last known stable setpoint for a control valve — and confirm that the field devices have responded correctly. Remove the AO650 from the terminal base, insert the replacement module, and allow the AC800M to re-enumerate the module over ModuleBus. The entire process typically takes under five minutes per module, and the controller resumes normal scan execution without a program restart once the module is recognized.

For sites where hot-swap is not permitted by safety procedures, a cold-swap approach using a pre-configured spare is equally effective. Keeping a tested AO650 3BHT300051R1 in stock as a critical spare — alongside spare TB820V2 modems and CI854 communication modules — ensures that mean time to repair remains within acceptable limits for continuous process operations. All units supplied by SMARTNEXMSK are pre-tested against factory acceptance criteria before shipment, reducing the risk of commissioning delays caused by infant-failure defects.

Retrofit Support FAQ

Q1: Is the AO650 3BHT300051R1 a direct drop-in replacement for the AO610 and AO620?
Yes. The AO650 uses the same TB807 and TB810 terminal base footprint as the AO610 and AO620, and it communicates over the same ModuleBus protocol. In most installations, the replacement requires no field rewiring and no changes to the AC800M application program beyond updating the hardware configuration in Control Builder M.

Q2: What commissioning steps are required after installing the AO650?
After inserting the module, perform a hardware configuration download in Control Builder M and execute a cold restart of the AC800M controller if required. Verify channel-by-channel output using the online monitoring view, confirm that field actuators respond correctly to test signals, and check HMI displays for correct engineering unit representation. A loop calibration check is recommended for precision control applications.

Q3: Does the AO650 support HART communication for smart field devices?
The AO650 3BHT300051R1 does not natively support HART pass-through on its output channels. For installations requiring HART communication to smart positioners or valve controllers, the AO895 or a dedicated HART multiplexer should be considered as part of the upgrade planning.

Q4: What warranty and after-sales support does SMARTNEXMSK provide?
All AO650 3BHT300051R1 units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, SMARTNEXMSK provides replacement dispatch within 3 business days. Long-term supply continuity is maintained through established sourcing channels, ensuring availability for ongoing maintenance and future retrofit phases.
