ABB AO820 3BSE008546R1 Spare for S800 Automation

ABB AO820 3BSE008546R1 Spare for S800 Automation: Precision Analog Output Replacement for Continuous Industrial Operation

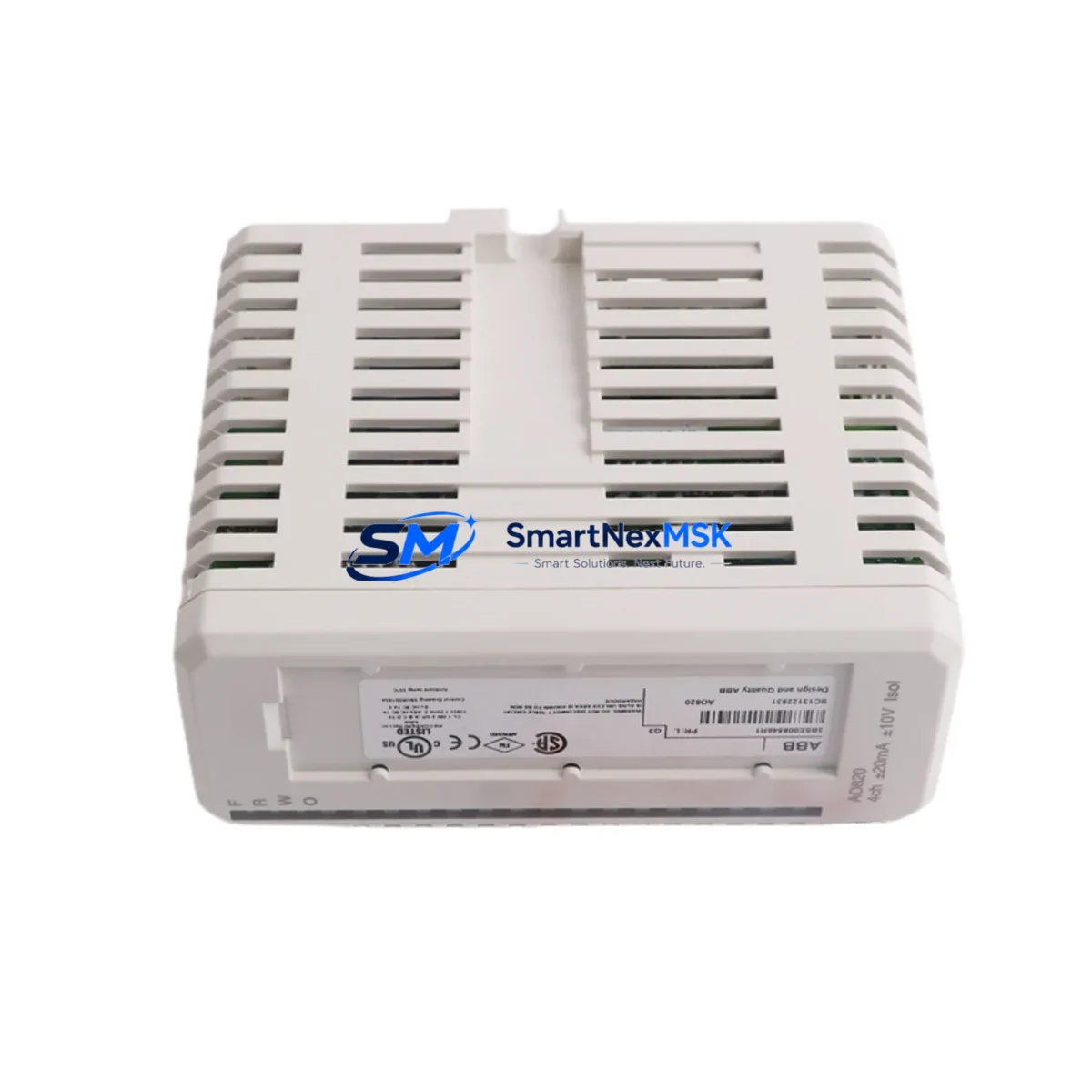

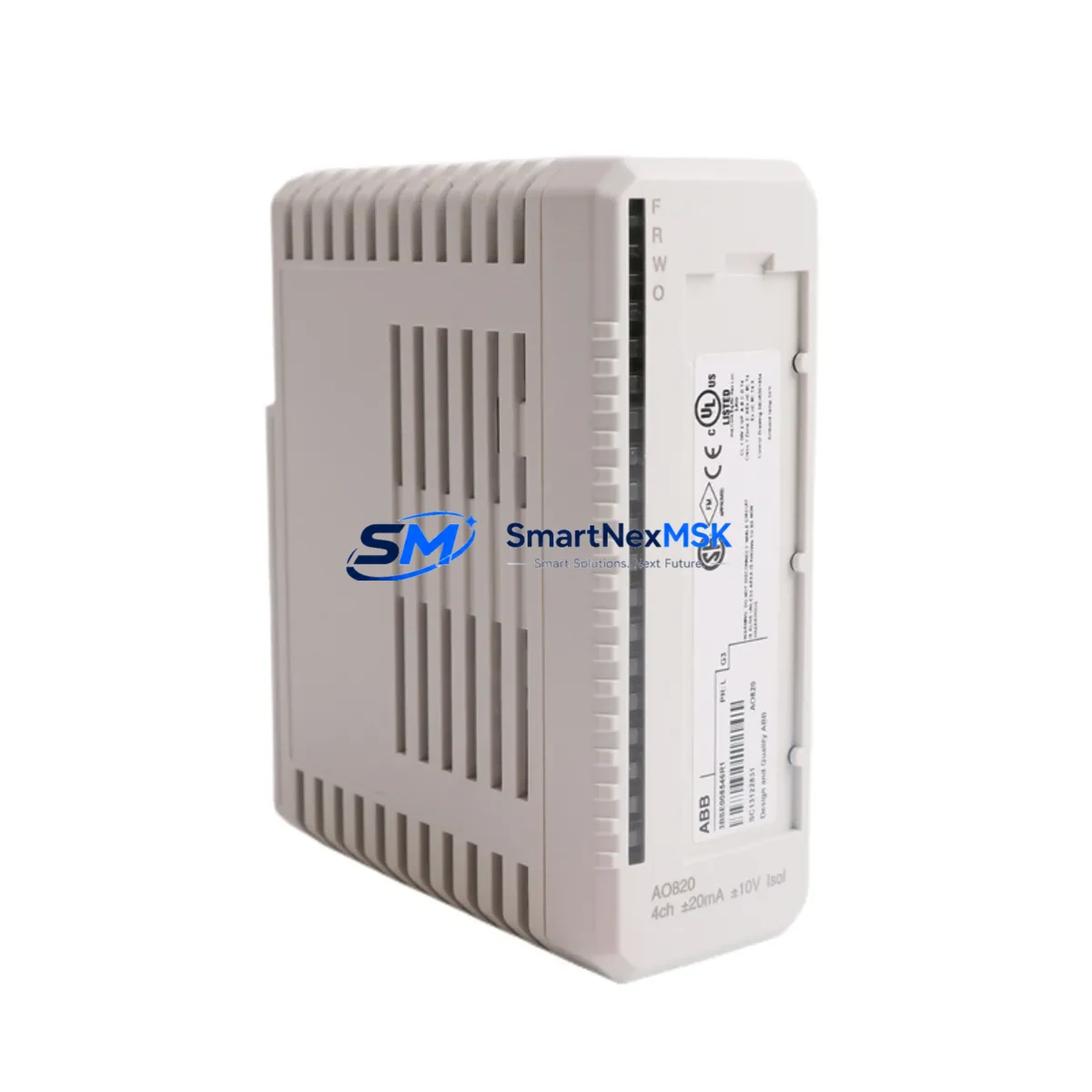

The ABB AO820 (3BSE008546R1) is an 8-channel analog output module engineered for the S800 I/O system and AC800M Distributed Control System (DCS) platform. In process-critical environments — refinery control loops, power generation, chemical batch processing, and pulp & paper automation — a failed analog output module can halt production within minutes. Sourcing a verified, original spare with confirmed firmware and hardware compatibility is the fastest path to restoring normal operation.

SMARTNEXMSK stocks the AO820 3BSE008546R1 as a ready-to-ship maintenance spare, fully tested prior to dispatch and backed by a 12-month warranty. Each unit is verified against ABB’s original hardware specifications to ensure drop-in compatibility with existing S800 I/O stations and AC800M controller racks without requiring reconfiguration of the control strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AO820 3BSE008546R1 in an S800 I/O station, a disciplined maintenance engineer will not stop at the module itself. The analog output loop is part of a broader electrical and control circuit, and adjacent components should be inspected simultaneously to prevent repeat failures and unplanned downtime.

Begin with the TB820 or TB840 I/O station baseplate — the AO820 plugs directly into this carrier, and worn or corroded module connectors are a common source of intermittent signal faults. Inspect the baseplate for mechanical damage and verify that the ModuleBus ribbon cable connecting the station to the AC800M controller (via the CI820 or CI830 communication interface module) is seated correctly and free of insulation damage.

Check the SD821 or SD822 power supply module feeding the I/O station. Analog output modules are sensitive to supply voltage ripple; a degraded power supply can cause output drift or channel faults that mimic module failure. Measure the 24 VDC rail under load before condemning the AO820.

On the field wiring side, inspect the terminal blocks and field termination units (FTU) connected to the AO820’s output channels. Loose terminals, corroded conductors, or damaged cable shields are frequent causes of 4–20 mA loop errors. If the plant uses signal isolators or loop-powered barriers between the AO820 and final control elements (control valves, variable-speed drives), verify that these isolators are within calibration and not introducing offset errors.

For plants running redundant AC800M configurations, confirm that the PM860 or PM864 processor module firmware version is compatible with the replacement AO820 hardware revision. Mismatched firmware can prevent the module from being recognized during hot-swap. Review the AI820 or AI830 analog input modules in the same I/O station as well — input and output modules in the same control loop often experience correlated wear, particularly in high-humidity or high-vibration environments.

Finally, if the plant uses AF100 fieldbus or PROFIBUS DP communication for distributed I/O, verify that the fieldbus segment termination resistors are intact and that the CI854 or CI856 fieldbus communication interface shows no active diagnostic alarms after the module swap. A complete loop test — commanding each of the 8 output channels from the AC800M engineering station and verifying the corresponding field signal — should be performed before returning the loop to automatic control.

Site Replacement Workflow

Step 1 — Identify and isolate. Confirm the faulty AO820 via the AC800M diagnostic display or Control Builder M engineering software. Note the slot position within the TB820/TB840 station. Place the affected output channels in manual mode or safe-state hold at the DCS level before physical removal.

Step 2 — Remove and inspect. Extract the AO820 module from the I/O station. Inspect the module connector pins and the baseplate socket for contamination or mechanical deformation. Clean with isopropyl alcohol if required.

Step 3 — Install the replacement. Insert the new AO820 3BSE008546R1 into the same slot. The S800 ModuleBus supports hot-swap; the AC800M controller will automatically detect and configure the replacement module using the stored hardware configuration, provided the hardware type and channel count match.

Step 4 — Verify and commission. Confirm module status in Control Builder M — all 8 channels should report healthy. Perform a full output loop test: command each channel to 4 mA, 12 mA, and 20 mA and verify the corresponding field signal at the final control element. Check for any active alarms on the CI820/CI830 communication interface.

Step 5 — Return to automatic. Once all channels are verified, return the control loops to automatic mode. Log the replacement in the plant CMMS with the new module serial number and installation date to support future maintenance planning.

This workflow minimizes loop downtime to under 30 minutes for a prepared maintenance team with the spare module on-site — compared to days or weeks waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the AO820 3BSE008546R1 compatible with all AC800M controller versions?
The AO820 is compatible with all AC800M processor modules (PM851 through PM866) when used in a standard TB820 or TB840 I/O station connected via CI820 or CI830 ModuleBus interface. Compatibility with specific firmware versions should be confirmed against ABB’s hardware compatibility matrix for your controller revision. SMARTNEXMSK can assist with compatibility verification prior to order.

Q2: What pre-shipment testing is performed on each AO820 unit?
Each AO820 3BSE008546R1 dispatched by SMARTNEXMSK undergoes functional output verification across all 8 channels, confirming correct 4–20 mA signal generation and ModuleBus communication response. Units that fail any channel test are not shipped. A test report is available upon request for critical applications.

Q3: How should the AO820 be stored as a long-term spare?
Store the AO820 in its original anti-static packaging in a dry environment at 15–35°C with relative humidity below 75% (non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. Inspect the module connector pins annually and re-test the unit every 24 months if it remains in long-term storage. SMARTNEXMSK recommends maintaining at least one AO820 on-site for every 3–5 active units in critical process loops.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in ABB’s AO820 product documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental conditions. In the event of a warranty claim, SMARTNEXMSK provides advance replacement to minimize plant downtime, subject to fault verification.
