ABB BHE036342R0101 Maintenance-Ready Spare for AC800M

ABB BHE036342R0101 Maintenance-Ready Spare for AC800M Automation

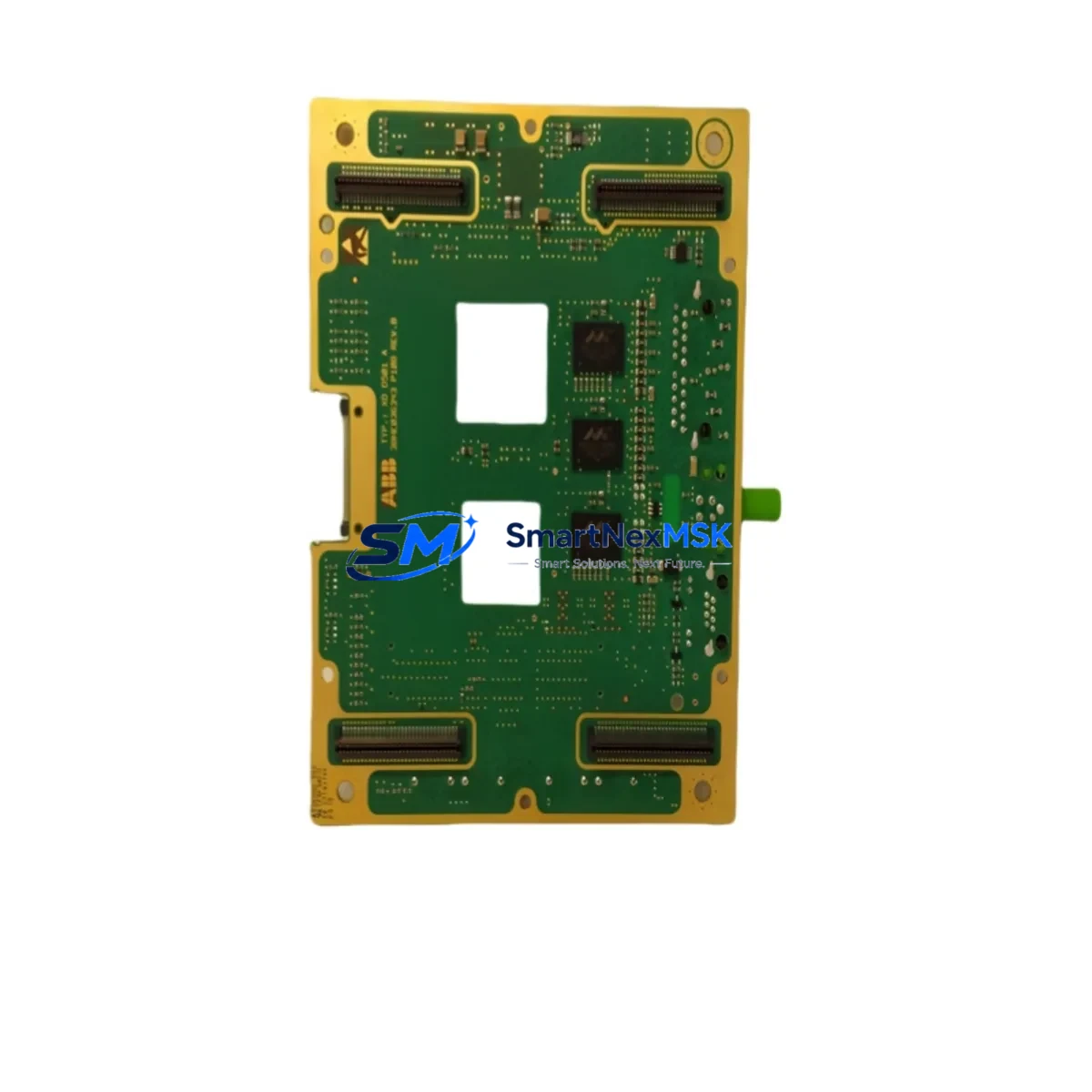

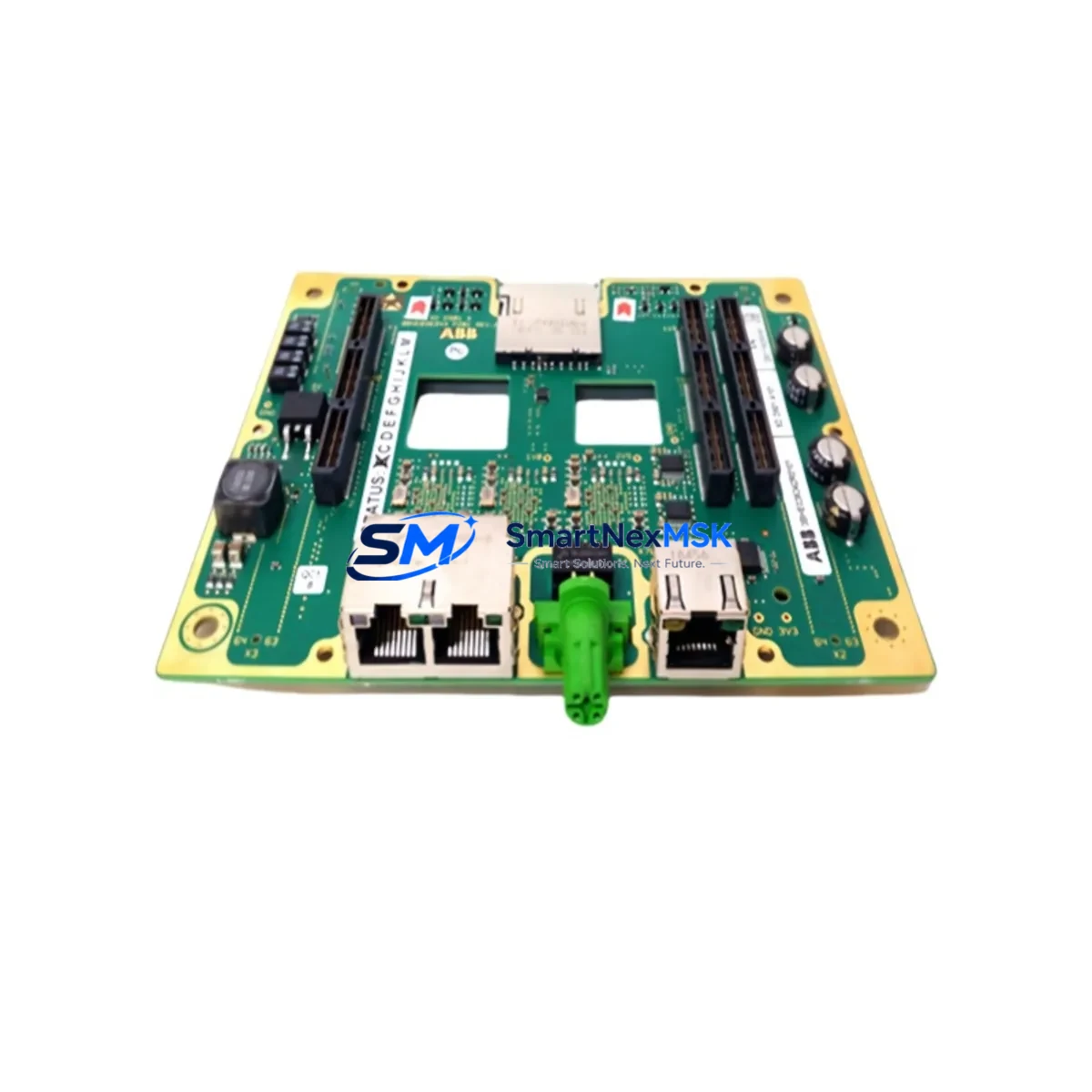

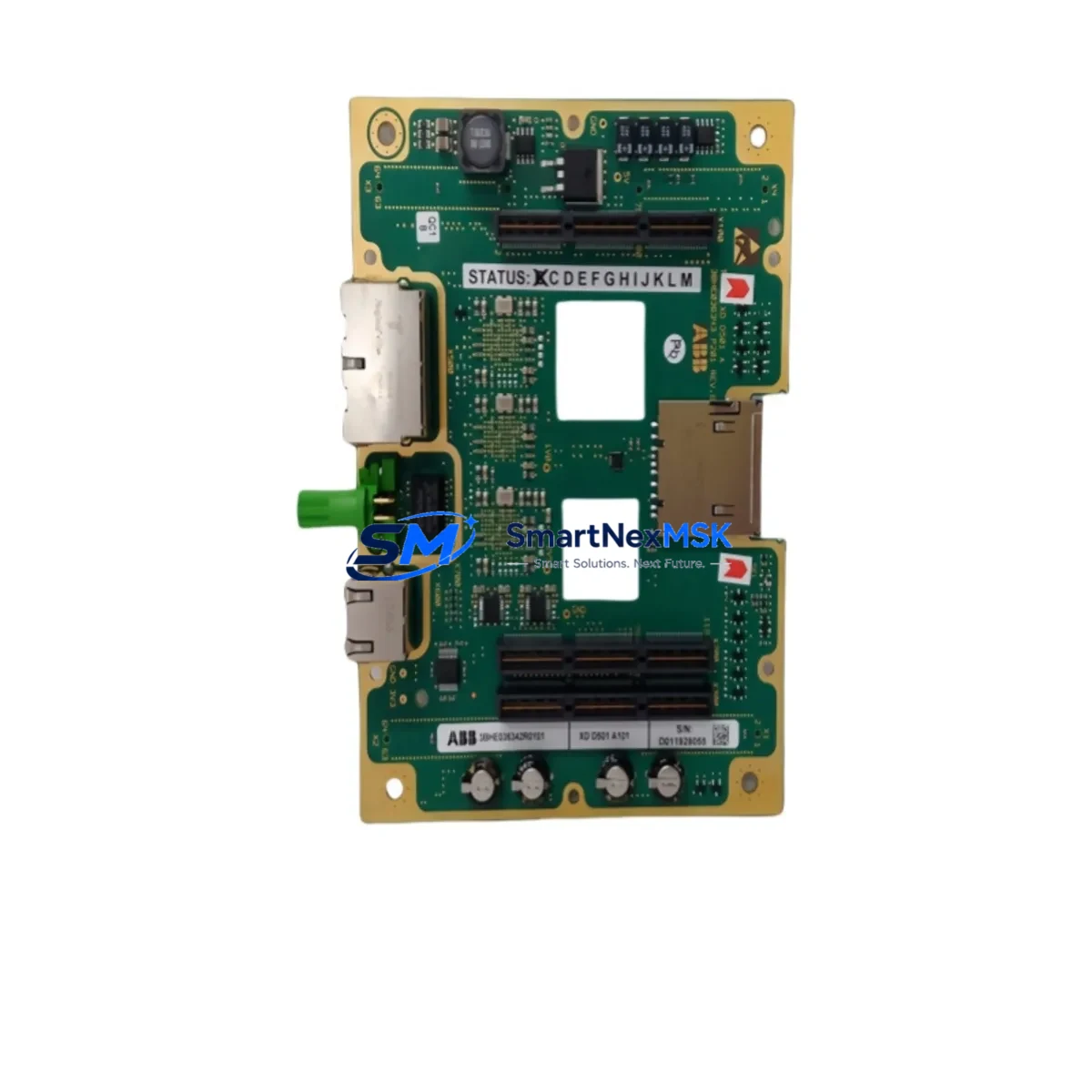

The ABB BHE036342R0101 (XDD501 A101) is an original DCS control module engineered for the ABB AC800M distributed control system platform. For maintenance engineers managing continuous process operations — whether in power generation, oil & gas, chemical processing, or pulp and paper — unplanned downtime caused by a failed control module is one of the most costly events on the plant floor. Stocking a verified, tested BHE036342R0101 spare ensures that when a fault is isolated to this module, replacement can be completed within a single maintenance window rather than stretching into multi-day outages while waiting for procurement.

This unit ships fully tested against ABB factory electrical specifications, with each module verified for communication integrity, I/O channel response, and power rail stability before dispatch. A 12-month warranty covers the replacement period, giving procurement engineers confidence in long-term spare parts budgeting. Supply continuity is maintained through direct sourcing channels, making this module available even for legacy AC800M installations where OEM lead times have extended significantly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BHE036342R0101 module is flagged during a fault isolation routine or scheduled control cabinet inspection, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site assessment should accompany any planned replacement. Begin by verifying the integrity of the PM891 or PM860 processor module seated in the same AC800M rack — communication faults on the XDD501 are sometimes traced upstream to a degraded processor rather than the module itself.

Check the SD821 or SD822 power supply module supplying the rack. Voltage sag or ripple on the 24 VDC backplane bus can cause intermittent module resets that mimic a failed XDD501. While the cabinet is open, inspect the TB820 or TB840 ModuleBus modem for connector wear and verify that the CI854 PROFIBUS DP communication interface or CI801 fieldbus module connected downstream is reporting clean bus status.

For I/O-intensive installations, cross-check the AI810 analog input module and DO810 digital output module channel diagnostics — a shorted field device on an I/O channel can propagate fault conditions that appear as control module errors. Inspect terminal blocks and wiring harnesses in the marshalling cabinet for insulation breakdown, particularly in high-vibration or high-humidity environments. If the system includes signal conditioning, verify that any signal isolators or loop-powered transmitter barriers in the same circuit are within calibration.

For sites running extended maintenance cycles, it is advisable to hold at minimum one BHE036342R0101 in the on-site spare parts inventory alongside a spare processor module and at least one power supply unit. This three-component buffer covers the most common single-point failures in an AC800M cabinet and supports a same-shift recovery target for critical control loops.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use ABB Control Builder or the AC800M diagnostic interface to confirm the fault is isolated to the BHE036342R0101 module. Record the fault code and timestamp for maintenance logs.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For hot-swap capable configurations, verify that the redundant control path is active before removing the faulty module. For non-redundant installations, coordinate with operations for a controlled process hold.

Step 3 — Module Removal: Release the module latch, disconnect any external connectors, and remove the BHE036342R0101 from the rack slot. Note the slot address for configuration reference.

Step 4 — Replacement Installation: Insert the new BHE036342R0101 into the same rack slot. The AC800M system will perform automatic firmware recognition for compatible hardware revisions. Confirm the module status LED transitions to normal operating state.

Step 5 — System Verification: Run a full I/O channel check and confirm communication status on the ModuleBus. Verify that all downstream field devices are reporting correctly before returning the loop to automatic control.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and any observations noted during the replacement. Reorder a spare to restore inventory buffer.

This workflow is designed to minimize mean time to repair (MTTR) and supports the goal of returning critical control loops to automatic operation within a single maintenance shift, reducing the risk of extended production loss.

Spare Parts Support FAQ

Q1: Is the BHE036342R0101 compatible with all AC800M rack configurations?
The XDD501 A101 is designed for the ABB AC800M platform. Compatibility depends on the specific rack generation and firmware version in use at your site. We recommend confirming your AC800M hardware revision and Control Builder version before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this module?
Each BHE036342R0101 unit undergoes electrical functional testing covering power rail integrity, communication bus response, and I/O channel verification before dispatch. Units are shipped in ESD-safe packaging with a test record. The 12-month warranty covers failures attributable to the module under normal operating conditions.

Q3: How should this spare be stored if not immediately installed?
Store in the original ESD-safe packaging in a dry, temperature-controlled environment (recommended: 10°C–35°C, relative humidity below 75% non-condensing). Avoid storage near strong electromagnetic sources. Inspect the module and connectors before installation if stored for more than 12 months.

Q4: What is the lead time and can long-term supply be arranged?
Standard orders ship within 3–7 business days. For sites requiring ongoing supply agreements or bulk spare parts procurement for multi-year maintenance contracts, contact our sales team to discuss scheduled delivery and inventory reservation options. Long-term supply continuity for legacy ABB AC800M components is a core part of our service offering.
