ABB BRC-100 P-HC-BRC-10000000 Spare for Harmony Automation

ABB BRC-100 P-HC-BRC-10000000 Spare for Harmony Automation: Spare Replacement & Industrial Downtime Risk Control

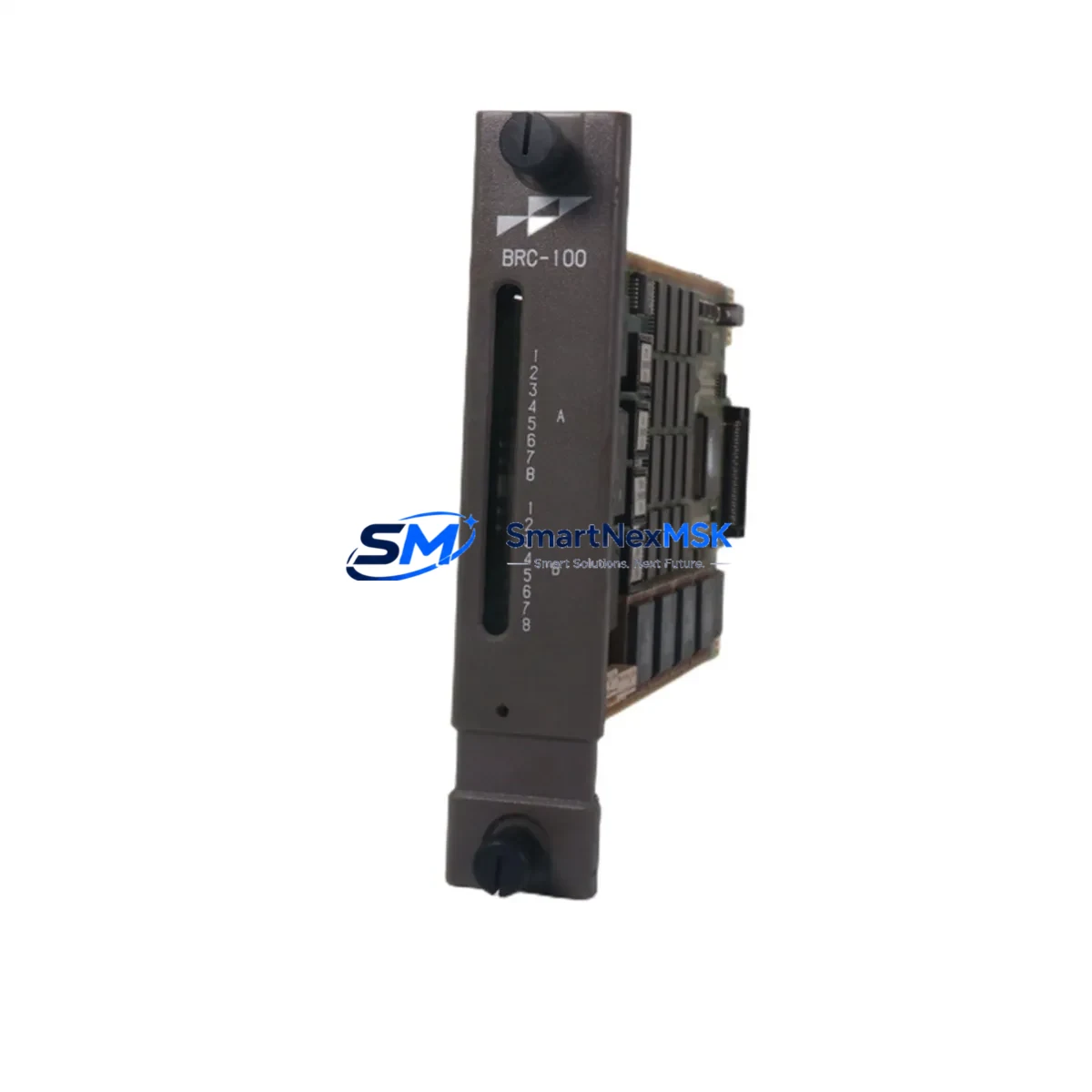

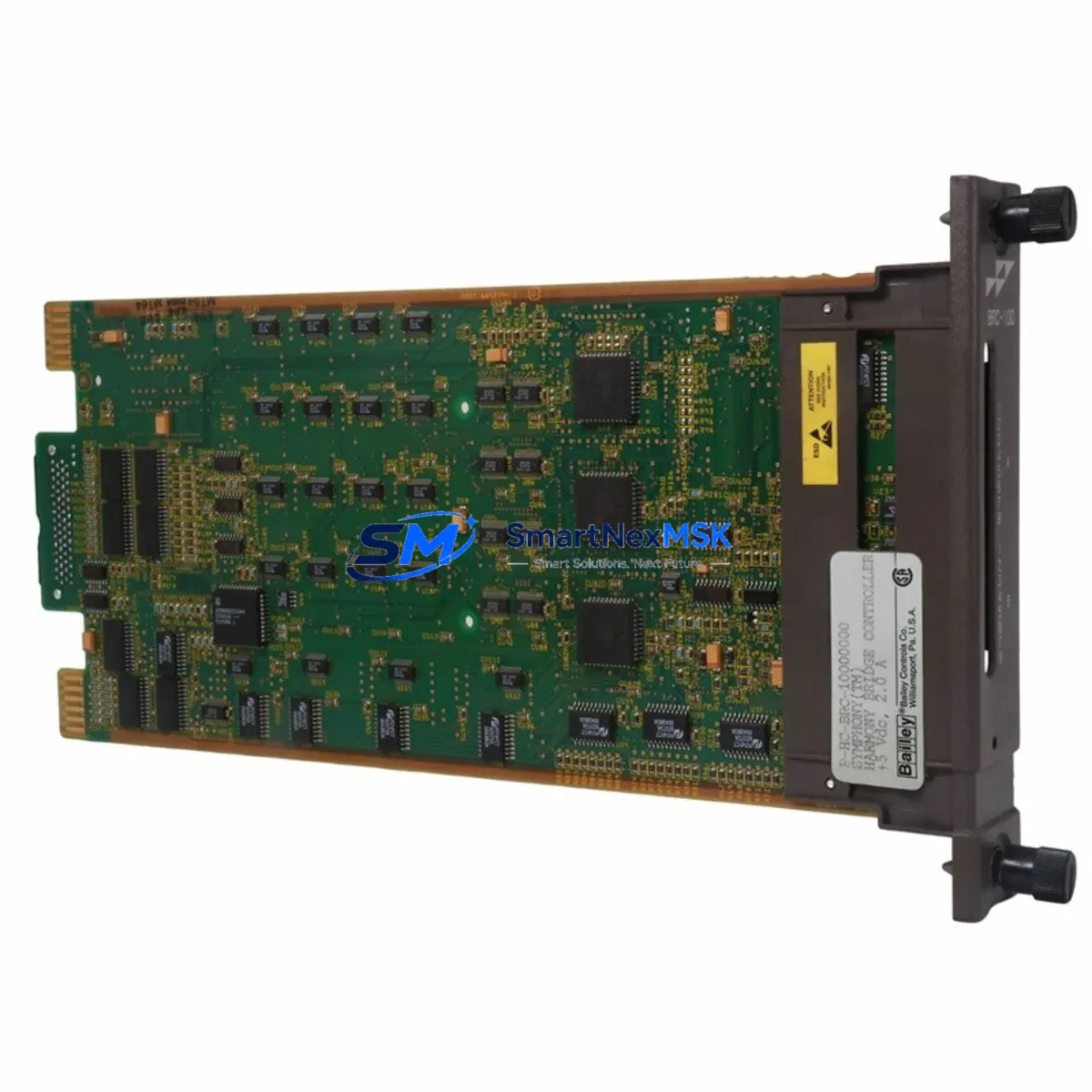

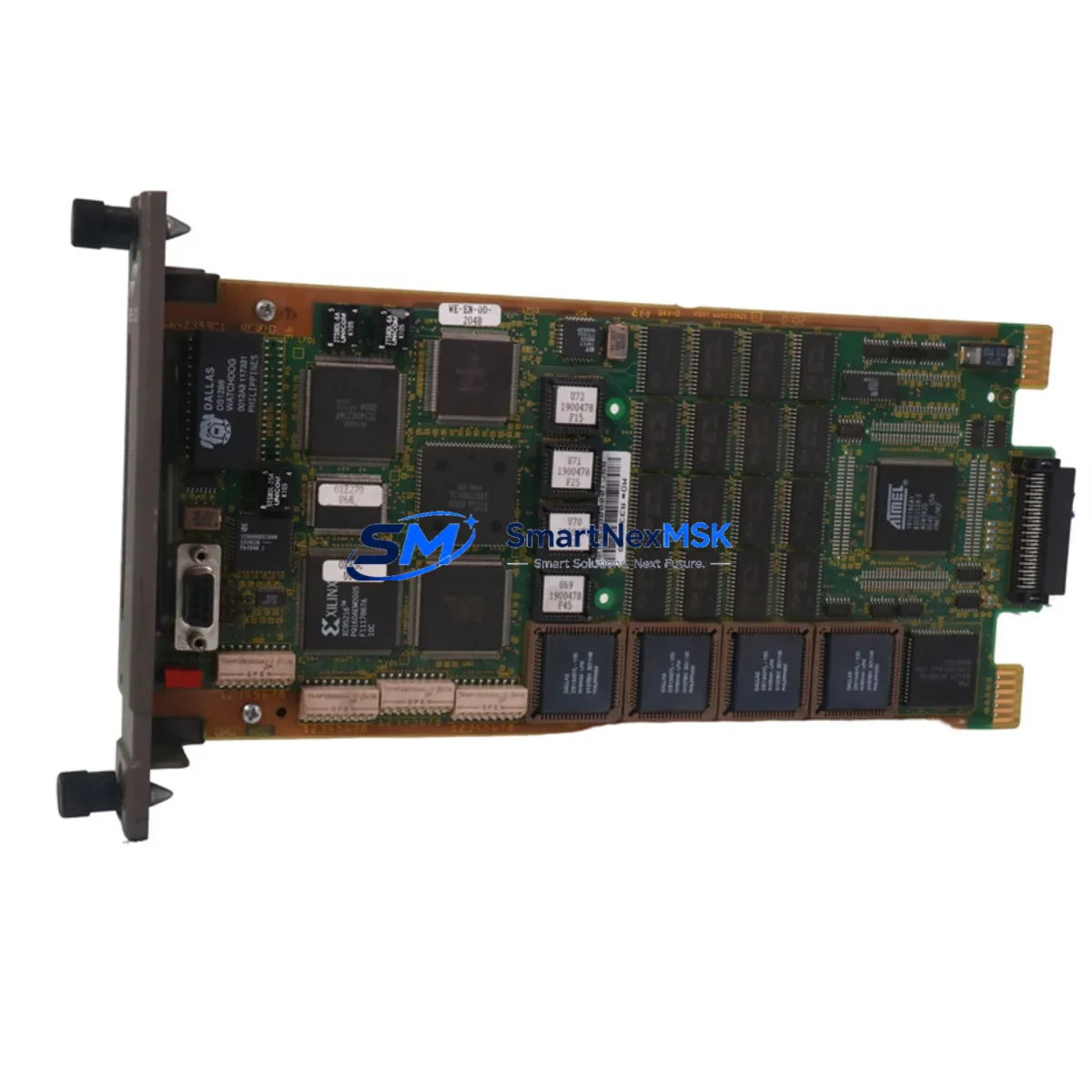

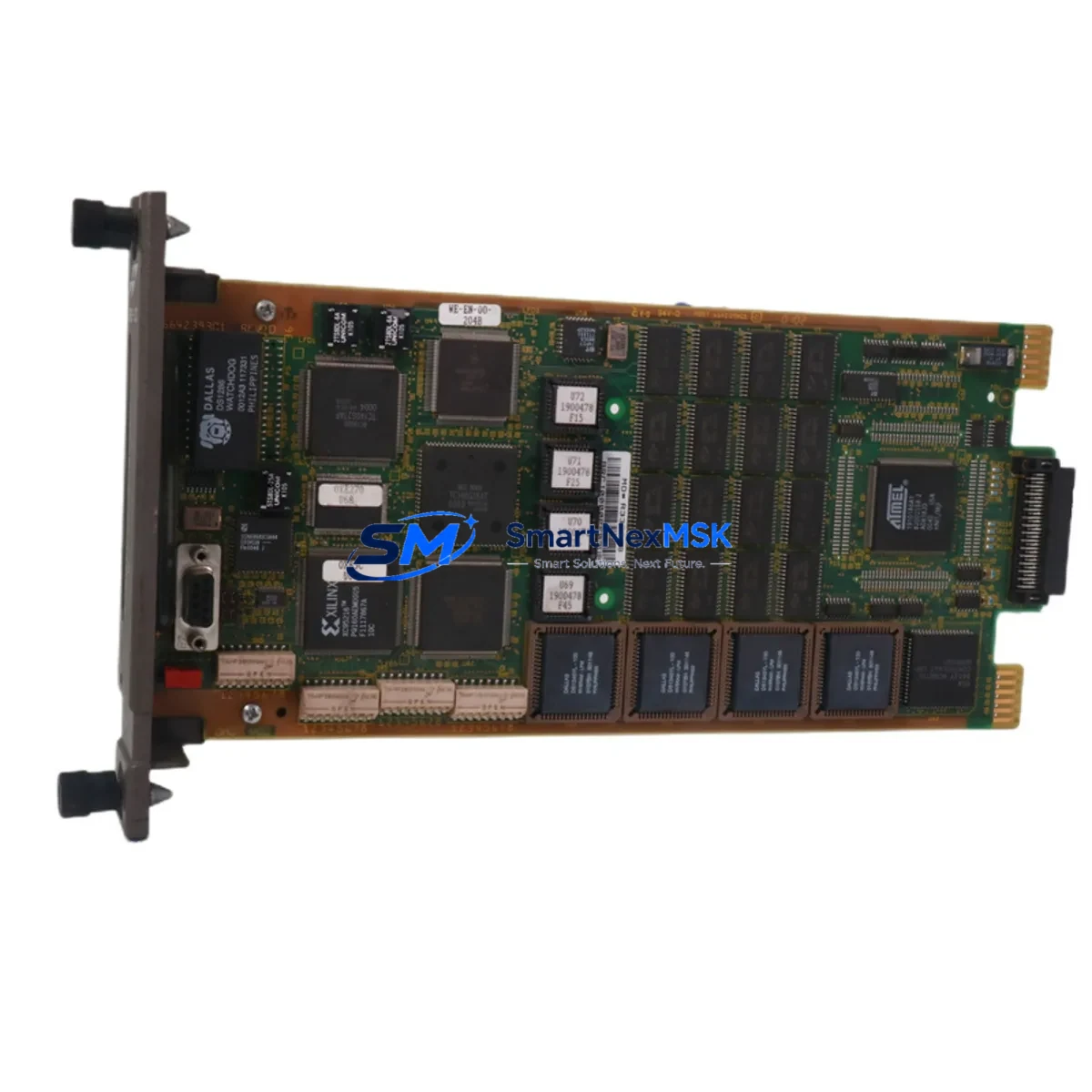

The ABB BRC-100 (P-HC-BRC-10000000) is a critical DCS Bridge Controller within the ABB Harmony Series distributed control architecture. In continuous-process industries — including petrochemical, power generation, pulp and paper, and water treatment — this module serves as the communication backbone between field I/O subsystems and the central process controller. When this component degrades or fails, the consequences extend far beyond a single loop: entire control segments can go offline, triggering unplanned shutdowns that cost thousands of dollars per hour. Maintaining a verified, ready-to-deploy spare of the BRC-100 P-HC-BRC-10000000 is not optional — it is a fundamental element of any serious maintenance strategy for Harmony-based DCS installations.

Our stock of the ABB BRC-100 P-HC-BRC-10000000 is sourced from authorized industrial supply channels, individually inspected, and shipped with full functional test documentation. Each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. We support maintenance engineers and procurement teams who need a reliable, specification-accurate replacement — not a substitute or a counterfeit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BRC-100 P-HC-BRC-10000000 in a live Harmony DCS environment is rarely an isolated task. Experienced maintenance engineers know that a bridge controller fault is often symptomatic of broader issues in the control cabinet — and that a thorough replacement procedure must account for the entire signal chain.

Before or during a BRC-100 replacement, the following components should be inspected and, where appropriate, included in the spare parts order:

• Harmony Power Supply Module (e.g., NTPS02, NTPS03 series): An unstable or aging 24 VDC power supply is a leading cause of intermittent bridge controller faults. Verify output voltage under load and check for ripple before commissioning the new BRC-100.
• INFI-NET Communication Cable and Terminators: Damaged coaxial cable, loose BNC connectors, or missing bus terminators on the INFI-NET segment will cause the replacement BRC-100 to exhibit the same communication errors as the failed unit. Inspect the full cable run.
• Harmony I/O Modules (e.g., NTAI05, NTAO02, NTDI01, NTDO01): If the BRC-100 failure caused a loss of I/O communication, individual analog input, analog output, digital input, and digital output modules should be polled after restoration to confirm they have returned to normal scan status.
• Module Backplane and Rack Connector: Oxidized or bent backplane pins are a common cause of module seating failures. Clean the backplane connector with approved contact cleaner and inspect for physical damage before inserting the replacement module.
• Harmony Process Controller Module (e.g., IMMFP12, IMCPM05): After the BRC-100 is replaced, verify that the process controller re-establishes communication with all downstream I/O subsystems. A controller module with degraded memory or firmware may fail to re-initialize the bridge correctly.
• Relay Output Modules and Terminal Blocks: In control cabinets where the BRC-100 manages relay-driven outputs, inspect relay output modules and associated terminal blocks for signs of arcing, loose wiring, or contact wear that may have contributed to the original fault.
• Signal Isolators and Barriers: For installations where field signals pass through Zener barriers or galvanic isolators before reaching Harmony I/O, verify isolator integrity — a failed isolator can inject noise that destabilizes bridge communication.
• HMI Communication Link: If the plant uses an Operate IT or System 800xA HMI connected via OPC or proprietary Harmony gateway, confirm that the HMI re-establishes live data after the BRC-100 replacement. A stale or frozen HMI display is a common post-replacement oversight.
• Fuses and Circuit Protection: Check all fuses in the 24 VDC distribution circuit feeding the Harmony rack. A blown fuse that caused the original power interruption will cause the new BRC-100 to fail immediately if not replaced.
• Spare Module Labels and Configuration Backup: Ensure that the replacement BRC-100 is configured with the correct node address and network parameters. Retain a copy of the original module configuration file from the engineering workstation before removal.

Proactive spare parts management — maintaining at least one BRC-100 P-HC-BRC-10000000 in the on-site spare parts cabinet — is the single most effective measure for reducing mean time to repair (MTTR) in Harmony DCS installations. Plants that rely on emergency procurement after a failure routinely experience 48–96 hours of additional downtime while awaiting delivery.

Site Replacement Workflow

The BRC-100 P-HC-BRC-10000000 is a hot-swap-capable module in most Harmony rack configurations, but site procedures and safety requirements must always take precedence. The following workflow is provided as a general maintenance reference and should be adapted to your plant’s specific lockout/tagout (LOTO) and change management procedures.

1. Pre-replacement verification: Confirm the fault using the Harmony diagnostic console or engineering workstation. Document the active alarms, the affected I/O subsystem addresses, and the current module LED status (RUN, FAULT, COMM indicators).
2. Configuration backup: Export the current BRC-100 configuration from the engineering workstation. Record the module’s node address, network segment assignment, and any custom communication parameters.
3. Notify operations: Inform the control room that the affected I/O subsystem will be temporarily offline. Confirm that the process can be safely maintained in manual mode or that appropriate interlocks are in place.
4. Module removal: Following LOTO procedures where required, carefully extract the faulty BRC-100 from the rack. Inspect the backplane connector and the module’s edge connector for damage.
5. Replacement installation: Insert the new BRC-100 P-HC-BRC-10000000 into the rack slot. Ensure firm seating. Restore power and observe the module’s LED sequence during initialization.
6. Configuration restore: Using the engineering workstation, download the saved configuration to the replacement module. Verify node address and network parameters match the original.
7. Communication verification: Confirm that all downstream I/O modules have re-established communication with the bridge controller. Check the diagnostic console for any residual faults.
8. Return to automatic: After a stable observation period (typically 15–30 minutes), return affected control loops to automatic mode. Document the replacement in the plant maintenance management system (CMMS).
9. Replenish spare stock: Immediately initiate a purchase order for a replacement BRC-100 P-HC-BRC-10000000 to restore the on-site spare inventory to its minimum level.

This workflow applies equally to planned maintenance windows and emergency replacements. The key difference is preparation time: a planned replacement allows for pre-staging the spare module, pre-loading the configuration, and coordinating with operations — reducing the actual switchover time to under 30 minutes in most cases.

Spare Parts Support FAQ

Q1: What is the expected service life of the BRC-100 P-HC-BRC-10000000, and when should I plan for replacement?
The ABB Harmony BRC-100 is a mature product from a platform that has been in service for decades. ABB has transitioned Harmony customers toward the System 800xA architecture, meaning new production of legacy Harmony modules is limited. In practice, BRC-100 units in continuous service typically exhibit degradation after 10–15 years, manifesting as intermittent communication faults, increased error rates on the INFI-NET bus, or failure to initialize after a power cycle. We recommend that plants still operating Harmony DCS systems maintain at least one verified spare BRC-100 on-site and plan for a phased migration assessment if the installed base is approaching 15+ years of service.

Q2: How do I verify compatibility before installation?
Compatibility verification for the BRC-100 P-HC-BRC-10000000 involves three checks: (1) confirm the rack and backplane are standard Harmony INFI 90 form factor; (2) verify the firmware revision of the replacement module is compatible with your engineering workstation software version — contact us for firmware revision details; (3) confirm the INFI-NET segment addressing does not conflict with existing node assignments. We provide pre-shipment test documentation and can supply the module’s firmware revision label on request before dispatch.

Q3: What does the 12-month warranty cover, and what is the claims process?
Our 12-month warranty covers manufacturing defects and operational failures under normal industrial service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and the module’s serial number. We will arrange return shipping and either repair or replace the unit within 10 business days of receipt.

Q4: Can you supply multiple BRC-100 units for a bulk spare parts program?
Yes. We support bulk spare parts procurement for maintenance programs, turnaround projects, and multi-site inventory standardization. Volume pricing is available for orders of 3 or more units. We can also provide long-term supply agreements to ensure continued availability of the BRC-100 P-HC-BRC-10000000 and related Harmony Series components for plants committed to extending the life of their existing DCS infrastructure. Contact us to discuss your specific requirements.
