ABB CI830 3BSE013252R1 Spare for AC800M Automation

ABB CI830 3BSE013252R1 Spare for AC800M Automation

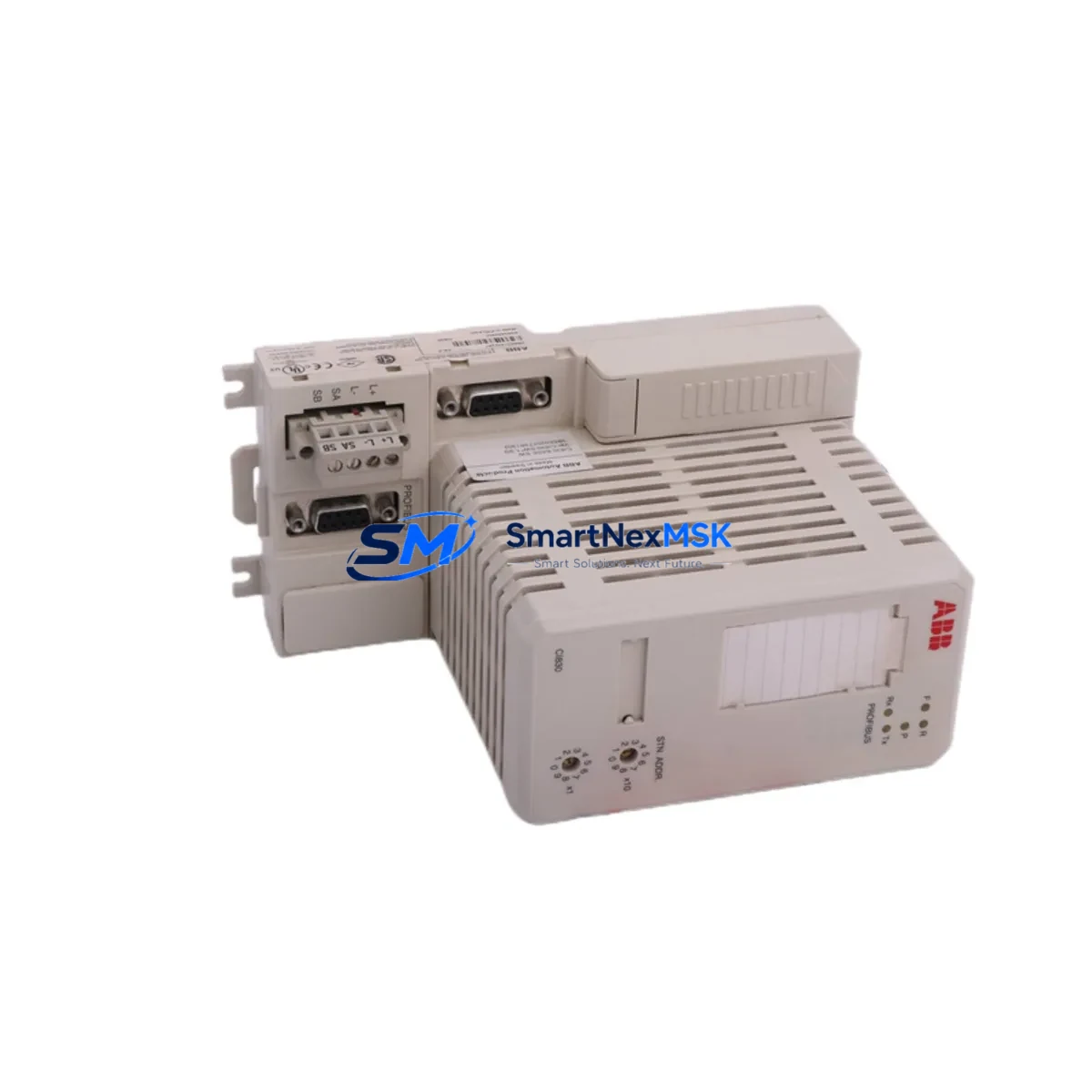

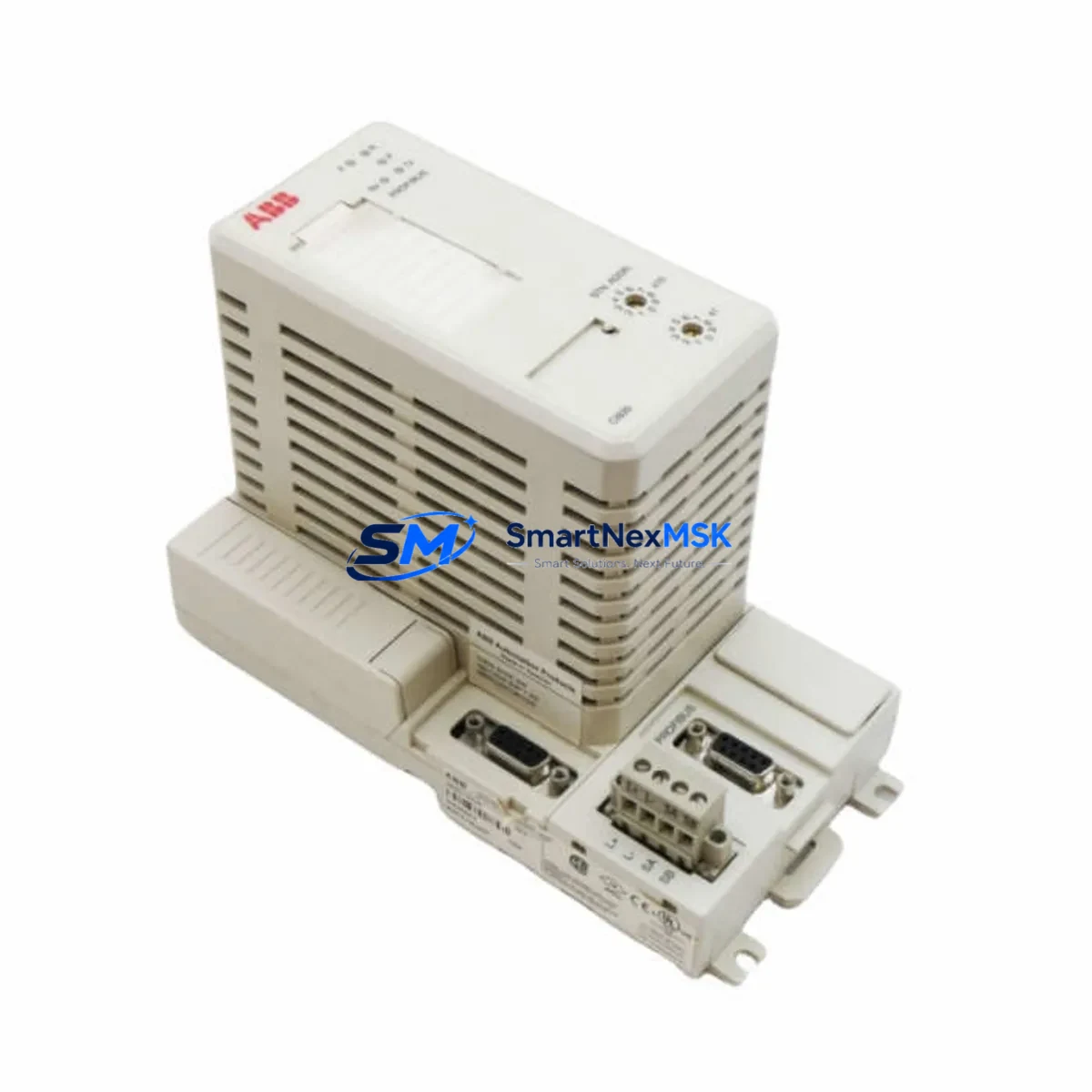

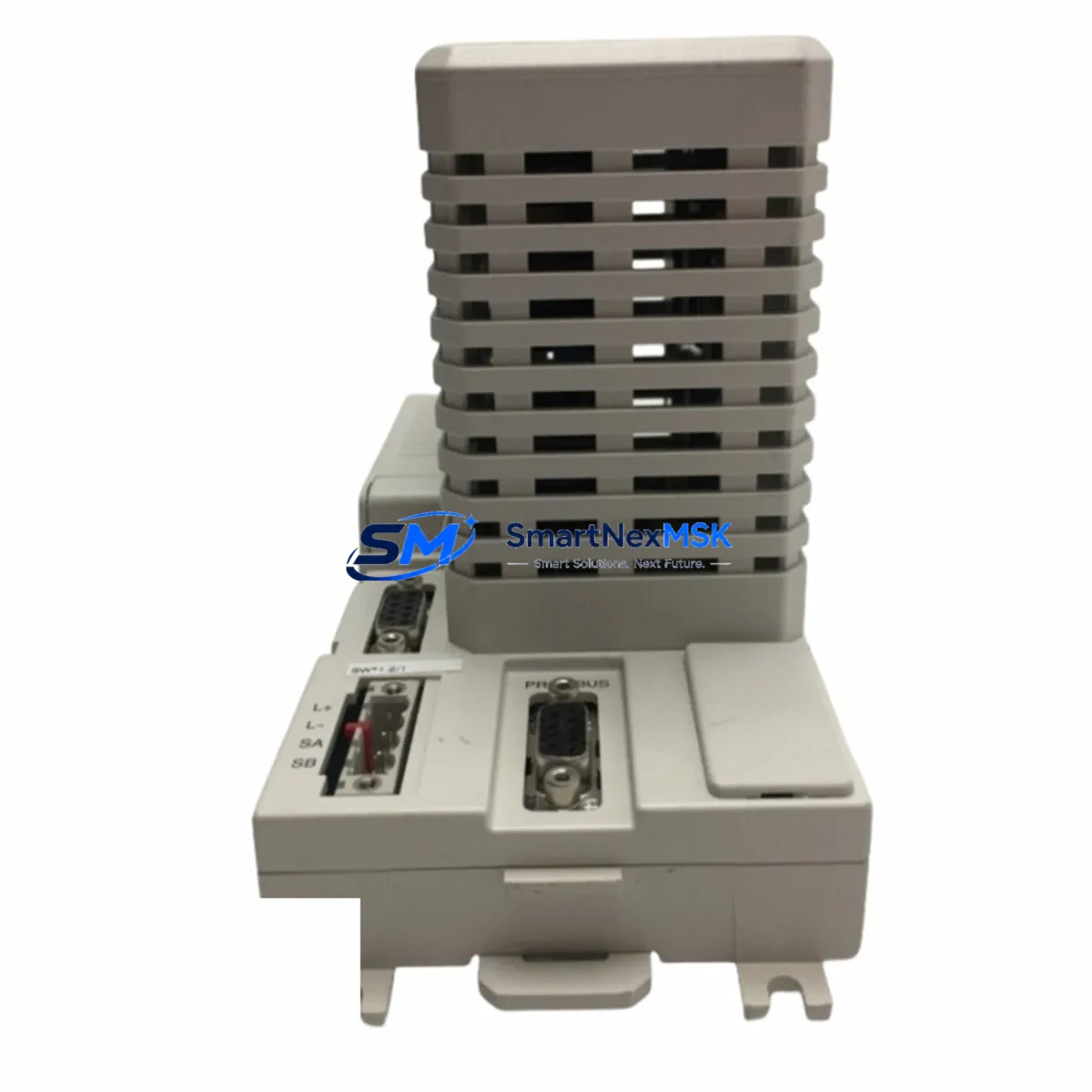

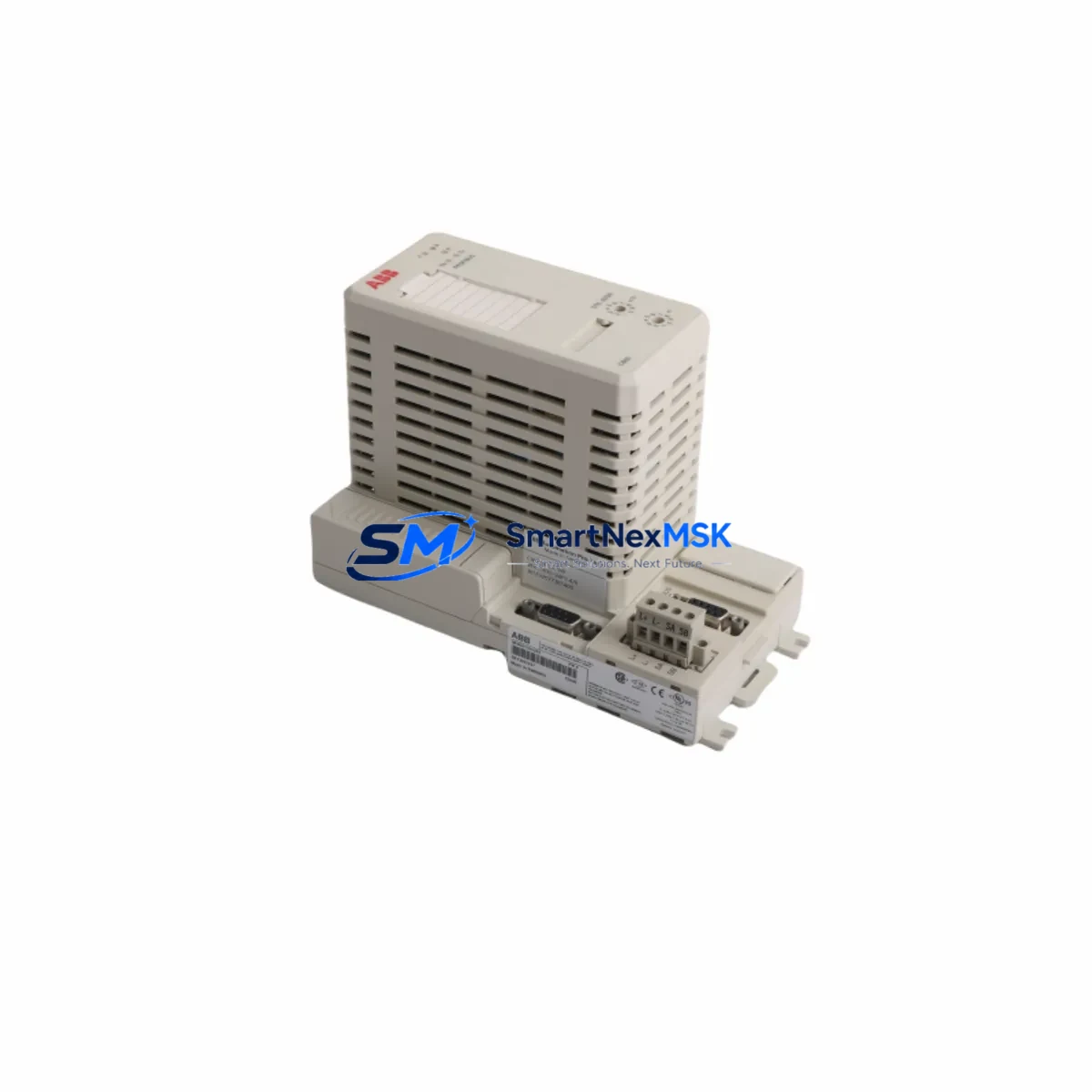

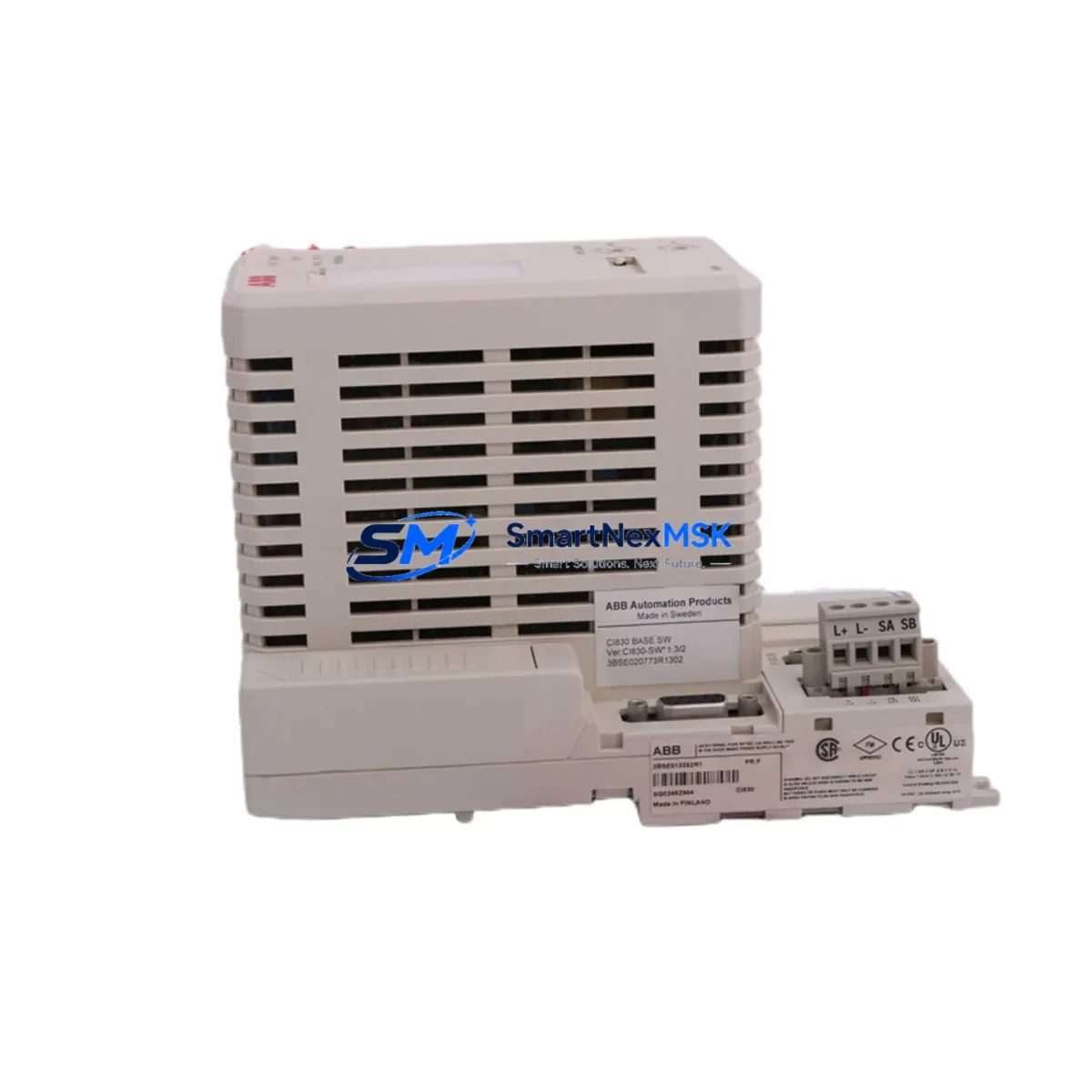

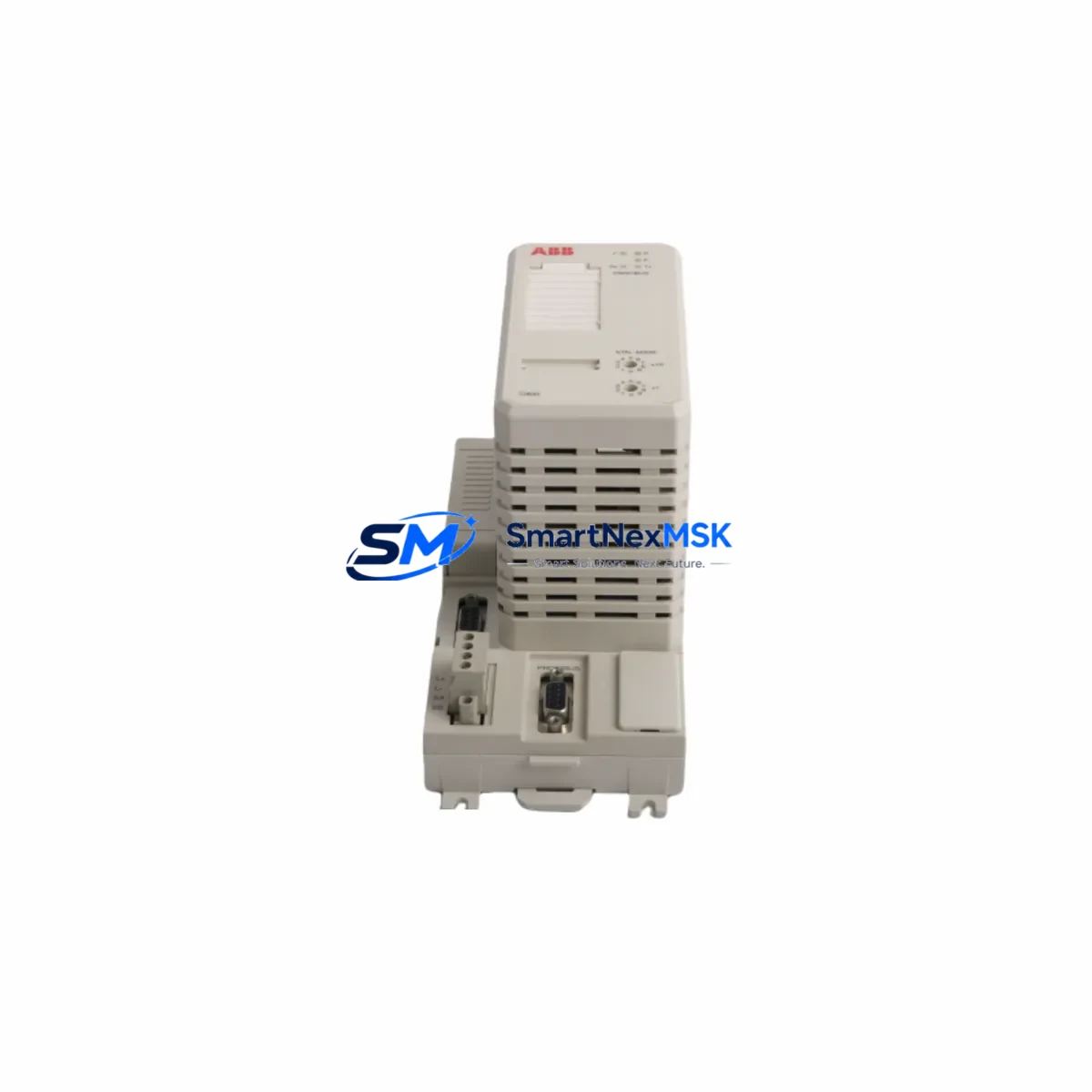

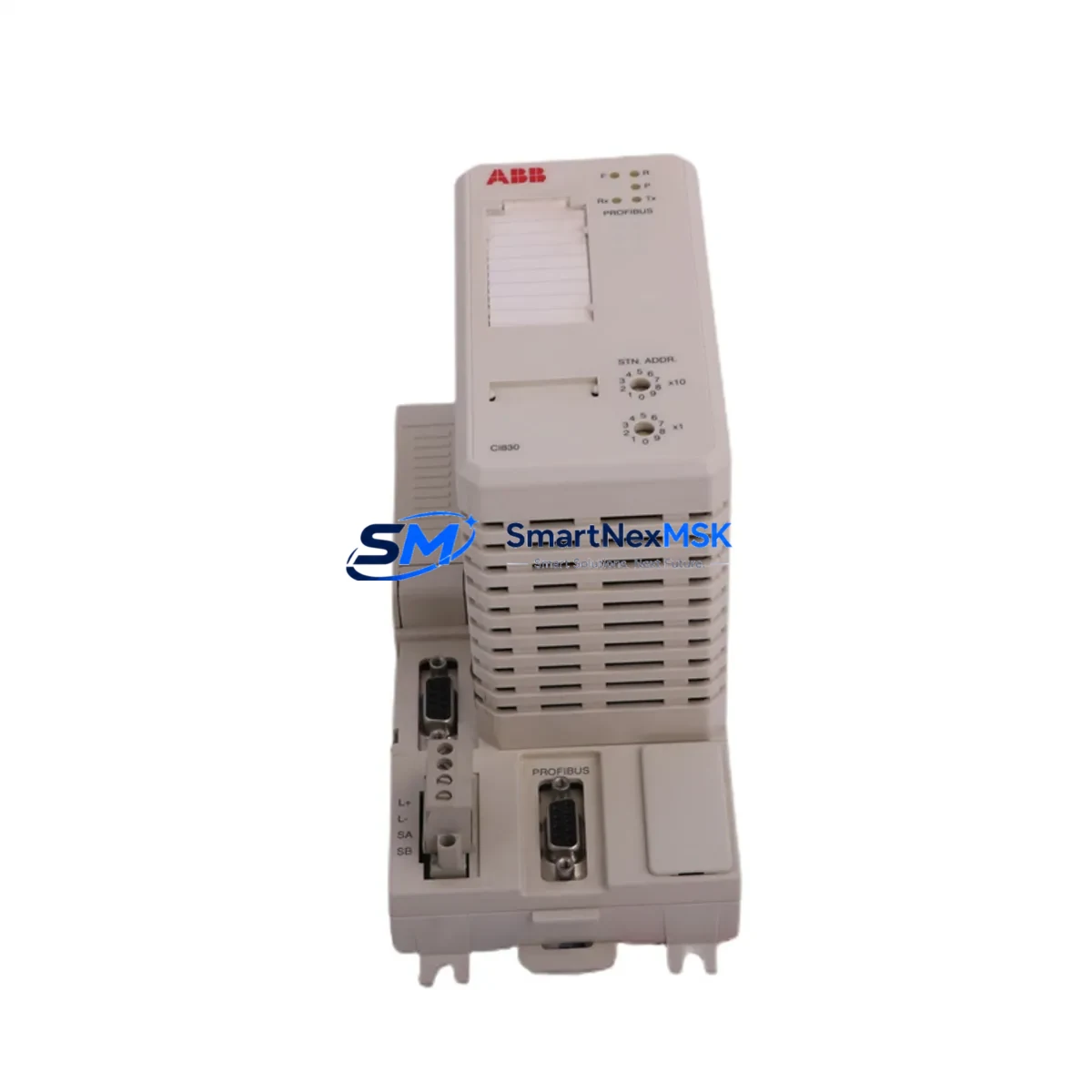

The ABB CI830 (3BSE013252R1) is an original PROFIBUS DP interface module designed for the ABB AC800M Distributed Control System platform. As a maintenance-ready spare, this unit is sourced, inspected, and dispatched to support rapid field replacement in process industries including oil and gas, chemical processing, power generation, water treatment, and pulp and paper manufacturing. Whether you are executing a planned shutdown, responding to an unplanned PROFIBUS communication fault, or building a strategic spare parts inventory for a long-running DCS installation, the CI830 delivers the communication reliability and platform compatibility that maintenance engineers and procurement teams depend on.

The CI830 module provides a PROFIBUS DP master interface for the AC800M controller, enabling high-speed cyclic data exchange with field devices including variable frequency drives, intelligent valve positioners, remote I/O stations, and motor control centers. In process-critical environments, a failed PROFIBUS DP master can simultaneously isolate dozens of field devices from the control system, triggering process shutdowns and emergency responses across multiple plant areas. Maintaining a verified original CI830 spare on-site is the most effective mitigation strategy for this high-impact failure mode.

Every CI830 unit is functionally tested prior to shipment to verify PROFIBUS DP master communication, GSD file compatibility, and module self-diagnostics. Orders are processed with priority dispatch to minimize production downtime. A 12-month warranty is included on all units, covering manufacturing defects and operational failures under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CI830 in the field, a systematic inspection of the surrounding control cabinet components is essential to prevent repeat failures and confirm that the root cause of the PROFIBUS communication fault has been identified and resolved. Maintenance engineers should begin by inspecting the PROFIBUS DP cable termination resistors at both ends of the bus segment — incorrect or missing termination is one of the most common causes of intermittent PROFIBUS faults that can be misdiagnosed as module failure. The DB9 PROFIBUS connector on the CI830 should be checked for pin corrosion, cable strain relief integrity, and correct shielding continuity before the replacement module is installed.

The AC800M processor module installed in the same rack — typically a PM856 or PM864 — should be checked for diagnostic fault entries in ABB Control Builder or System 800xA before and after the CI830 swap. If the system uses a redundant CI830 pair for high-availability PROFIBUS configurations, both modules should be inspected and the redundancy switchover logic verified. Asymmetric aging between primary and standby communication modules is a common maintenance oversight that can cause unexpected failover events during normal operation.

The PROFIBUS DP slave devices connected to the CI830 — including ABB ACS800 or ACS880 variable frequency drives, TZID-C intelligent valve positioners, and DP/PA segment couplers for FOUNDATION Fieldbus instruments — should be verified for correct GSD parameterization after the module replacement. Any slave device that was in a communication fault state prior to the CI830 failure should be individually confirmed as online and exchanging cyclic data correctly before the system is returned to automatic control.

The 24 V DC power supply feeding the AC800M controller rack — such as the HIEE200130R2 power supply module — should be checked for output voltage stability and ripple, as power quality issues can cause intermittent communication module resets that mimic PROFIBUS master failures. The TB820V2 or TB840A I/O bus terminators in the same cabinet should be inspected for correct seating and bus integrity. S800 I/O modules sharing the same controller rack, including AI810 analog input modules and DO810 digital output modules, should be confirmed as communicating correctly after the CI830 replacement to rule out any secondary backplane issues.

For cabinets with an operator interface panel or local HMI connected via the System 800xA OPC server, verify that the PROFIBUS network topology view reflects the restored slave device connections and that no residual communication alarms remain active. Signal isolators on analog input channels fed from PROFIBUS-connected remote I/O stations should be tested for correct pass-through signal levels. Surge protection devices on the PROFIBUS cable entries at the cabinet gland plate should be inspected for signs of thermal stress, particularly in installations exposed to lightning-prone environments or long cable runs between buildings.

Site Replacement Workflow

The CI830 (3BSE013252R1) is a direct replacement for earlier AC800M PROFIBUS DP interface variants. Before beginning the swap, document the current PROFIBUS network configuration using ABB Control Builder — export the hardware configuration file and record the GSD parameterization for all connected slave devices. This baseline ensures that any post-replacement discrepancies in slave device behavior can be identified and corrected quickly without requiring a full re-engineering cycle.

Power down the controller rack using the main cabinet isolator to avoid residual voltage on the backplane bus. Disconnect the PROFIBUS DP cable from the CI830 front connector, noting the cable labeling and termination resistor switch position. Remove the failed module by releasing the front-panel locking mechanism and sliding the unit out of the rack slot. Install the replacement CI830, ensuring the backplane connector is fully seated and the front-panel locking mechanism is engaged. Reconnect the PROFIBUS DP cable, verify the termination resistor switch is set correctly for the module’s position on the bus segment, and restore power.

After power restoration, monitor the CI830 startup sequence in Control Builder — the module should complete its self-test and establish PROFIBUS DP master communication within the normal initialization time. Verify that all previously configured slave devices appear online in the PROFIBUS diagnostic view. For systems where the CI830 has been in service for more than five years, proactive replacement during a planned shutdown — rather than waiting for communication failure — is the recommended lifecycle strategy to avoid unplanned process interruptions.

Spare Parts Support FAQ

Q: Is the CI830 3BSE013252R1 compatible with all AC800M controller variants?
A: The CI830 (3BSE013252R1) is compatible with the AC800M controller rack and supports PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific rack hardware revisions and System 800xA software versions should be verified against the installed configuration. Contact our technical team with your rack part number and software version for confirmation if required.

Q: What testing is performed before shipment?
A: Every CI830 unit undergoes functional power-on testing to verify PROFIBUS DP master initialization, module self-diagnostics, and backplane communication integrity. Units that fail any test stage are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q: How should I manage long-term spare parts inventory for AC800M PROFIBUS systems?
A: For AC800M installations with extended service life requirements, we recommend maintaining at least one CI830 spare per PROFIBUS DP master segment, one processor module spare per critical controller, and key S800 I/O module spares for high-density analog and digital racks. Given ABB’s product lifecycle announcements for legacy AC800M hardware, securing original spare stock now reduces future procurement risk and supports system longevity beyond standard product availability windows.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, PROFIBUS wiring faults, or physical mishandling. Warranty claims are processed with priority — contact our support team with the order reference and fault description to initiate a replacement or repair.
