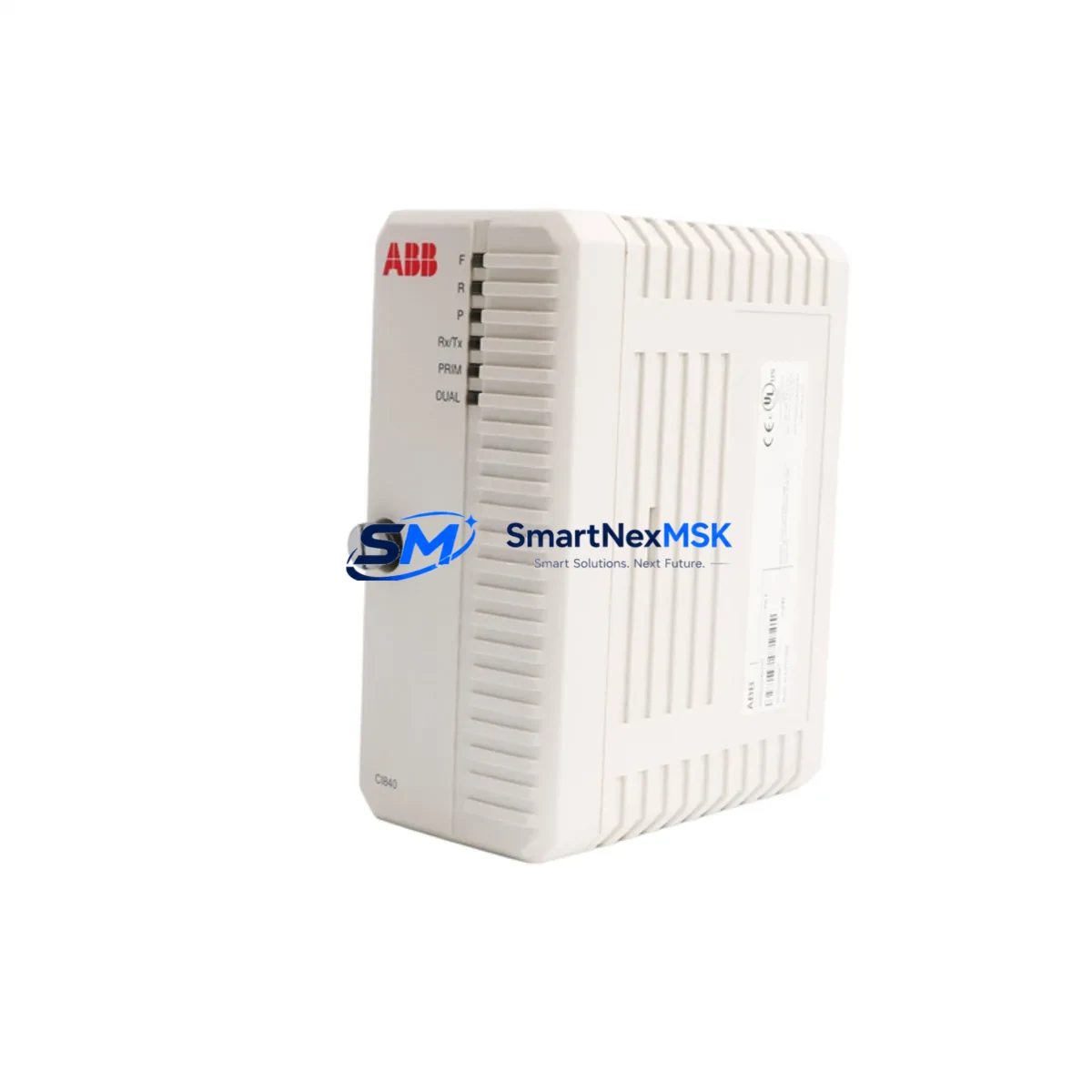

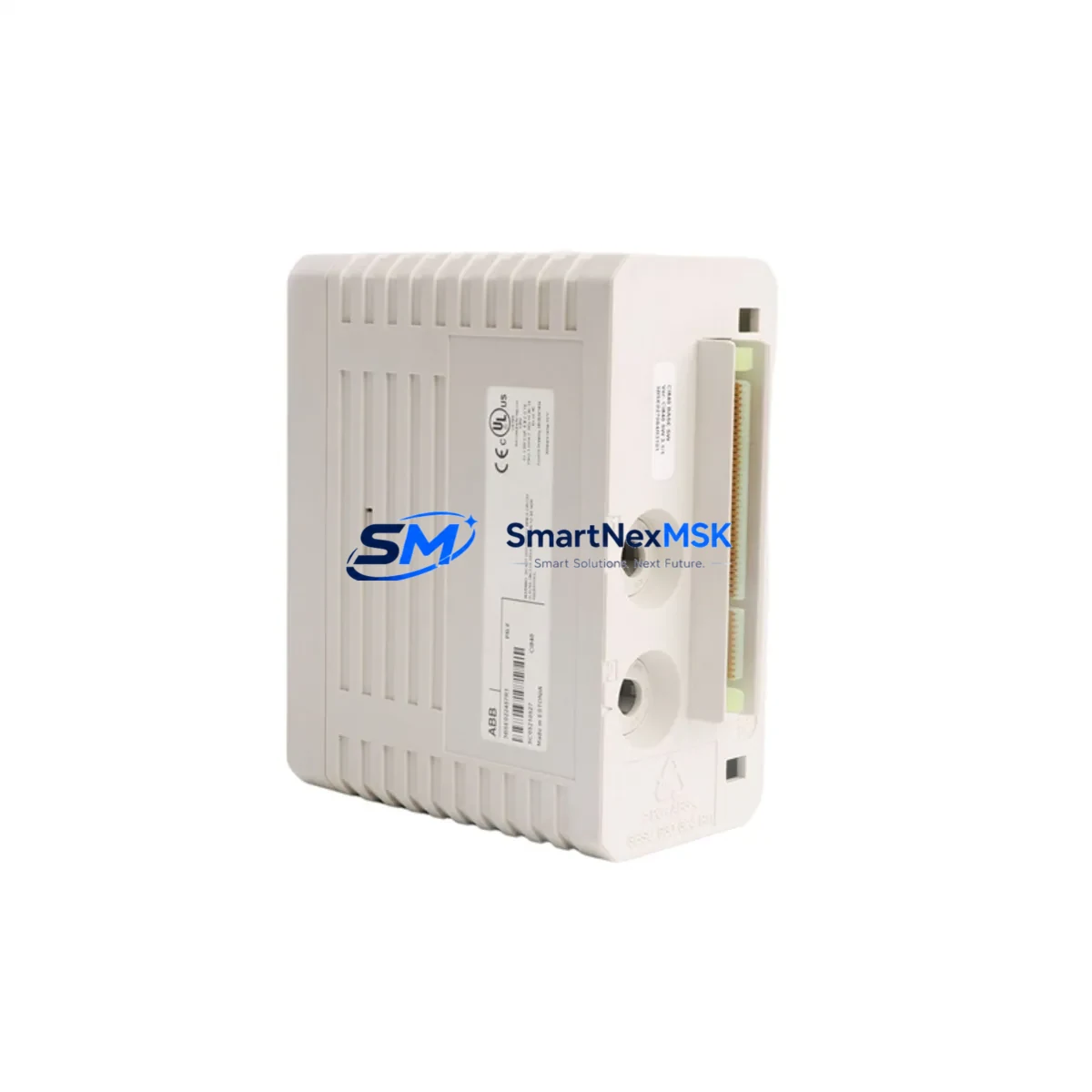

The ABB CI840 (3BSE022457R1) is a PROFIBUS DP interface module designed for the ABB AC800M Distributed Control System platform. As a critical communication bridge between the AC800M controller and field devices on the PROFIBUS DP network, this module is a high-priority spare in any industrial maintenance program. Unplanned failure of the CI840 can immediately disrupt process communication across an entire PROFIBUS segment, triggering emergency shutdowns and extended downtime in continuous-process environments such as chemical plants, power generation facilities, pulp and paper mills, and oil & gas installations.

Sourced as an original ABB component, each CI840 3BSE022457R1 unit stocked by SMARTNEXMSK undergoes pre-shipment functional verification to confirm module initialization, DP master/slave configuration integrity, and communication readiness. This ensures that when your maintenance team installs the replacement, the system returns to normal operation with minimal commissioning time. All units are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

For maintenance engineers managing aging AC800M installations, holding at least one CI840 spare on-site is strongly recommended. PROFIBUS DP interface failures are rarely preceded by gradual degradation signals — they tend to be abrupt, making reactive procurement costly in terms of both downtime and expedited freight. A pre-positioned spare eliminates the critical-path delay between fault diagnosis and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI840 3BSE022457R1 fault is diagnosed during a control cabinet inspection or triggered by a PROFIBUS segment alarm in the AC800M engineering station, the replacement workflow should extend beyond the module itself. A thorough maintenance engineer will simultaneously inspect the surrounding system to prevent repeat failures and confirm full restoration of communication integrity.

Start with the AC800M controller unit (e.g., PM856 or PM864) seated in the same rack — verify firmware version compatibility with the CI840 and check for any pending controller alarms that may have been masked by the DP fault. Inspect the TB820V2 ModuleBus Modem or equivalent S800 I/O bus termination module, as backplane signal degradation can cause intermittent CI840 communication errors that mimic module failure. Review the PROFIBUS DP cable and connectors at both ends of the affected segment: damaged shielding, incorrect termination resistors, or corroded DB9 connectors are common root causes of DP communication loss that will recur if not addressed during the same maintenance window.

Check the CI858 DeviceNet Interface Module or CI854 PROFIBUS DP/PA Link if your cabinet integrates multi-protocol field device communication — a segment fault on one bus can cascade alarms across adjacent communication modules. For cabinets using redundant AC800M configurations, inspect the companion CI840A (if fitted) to confirm redundancy switchover is functioning correctly and that the standby module has not silently degraded.

On the power distribution side, verify the SD821 or SD822 power supply module output voltage stability — under-voltage conditions on the AC800M backplane are a known contributor to communication module resets. If the cabinet includes AI810, AO810, or DI810 S800 I/O modules, confirm their status post-restoration, as a DP segment reset may require I/O module re-initialization. For installations with signal isolators or PROFIBUS repeaters (such as the ABB RPBA-01 or third-party DP repeaters), inspect these devices for thermal stress or connector wear, particularly in high-cycle environments.

Finally, update the site’s spare parts register to reflect the CI840 replacement and schedule the next planned inspection interval. Proactive cabinet audits — covering module seating, LED status, cable routing, and power supply margins — are the most cost-effective strategy for preventing unplanned PROFIBUS segment outages in long-running AC800M installations.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the AC800M Control Builder engineering tool to identify the faulted CI840 module by slot address and confirm the PROFIBUS segment status. Document the current DP configuration (GSD files, slave addresses, baud rate) before any hardware intervention.

Step 2 — Safe Removal: In non-redundant configurations, coordinate with the process control team to place the affected PROFIBUS segment in a safe state or manual override before removing the CI840. In redundant configurations, verify that the standby module has assumed control before proceeding.

Step 3 — Module Replacement: Remove the faulty CI840 from its slot. Insert the replacement 3BSE022457R1 unit. The AC800M platform supports module replacement without full controller restart in most firmware versions — confirm this with your site’s AC800M firmware release notes.

Step 4 — Configuration Restore: The CI840 configuration is stored in the AC800M controller project. After insertion, the controller will automatically download the DP master configuration to the new module. Verify all slave devices return to cyclic data exchange (green LED on CI840, no DP fault alarms in Control Builder).

Step 5 — Functional Verification: Confirm I/O data integrity for all field devices on the restored PROFIBUS segment. Check process values against expected ranges and clear any latched alarms in the DCS historian. Log the replacement in the site maintenance management system (CMMS) with the new module serial number.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement CI840 is fully integrated into the existing AC800M project without requiring re-engineering of the DP network topology.

Spare Parts Support FAQ

Q1: Is the CI840 3BSE022457R1 still available as a new original part, or only as refurbished stock?
SMARTNEXMSK supplies original ABB CI840 3BSE022457R1 units. Each unit is individually tested for module initialization and communication function prior to shipment. Condition and traceability details are confirmed at the time of order inquiry.

Q2: How do I verify compatibility between the CI840 and my specific AC800M controller firmware version?
The CI840 is compatible with AC800M controllers running standard ABB firmware across the PM8xx series. For sites running older firmware (pre-5.x), we recommend confirming the CI840 hardware revision against ABB’s compatibility matrix in the AC800M Hardware Unit Manual (3BSE020924). Our technical team can assist with compatibility verification prior to order confirmation.

Q3: What is included in the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers functional defects under normal operating conditions — including communication failure, module non-recognition by the AC800M controller, and hardware faults not caused by installation error or electrical overstress. To initiate a claim, contact sales@smartnexmsk.com with the order reference, fault description, and site installation details. Replacement or repair is coordinated within the warranty period.

Q4: Can the CI840 be used to replace the earlier CI840A variant, and are there any configuration differences?
The CI840 and CI840A share the same PROFIBUS DP master/slave functionality and are generally interchangeable within the AC800M platform. Minor differences exist in hardware revision features and supported firmware options. For direct replacement of a CI840A in a redundant DP configuration, verify the redundancy mode settings in Control Builder before swapping to ensure seamless failover behavior is preserved.

© 2026 SMARTNEXMSK. All rights reserved.
