ABB CMA127 3DDE300407 Retrofit-Ready DCS Card for Advant Master

ABB CMA127 3DDE300407 Retrofit-Ready DCS Card for Advant Master Control Systems

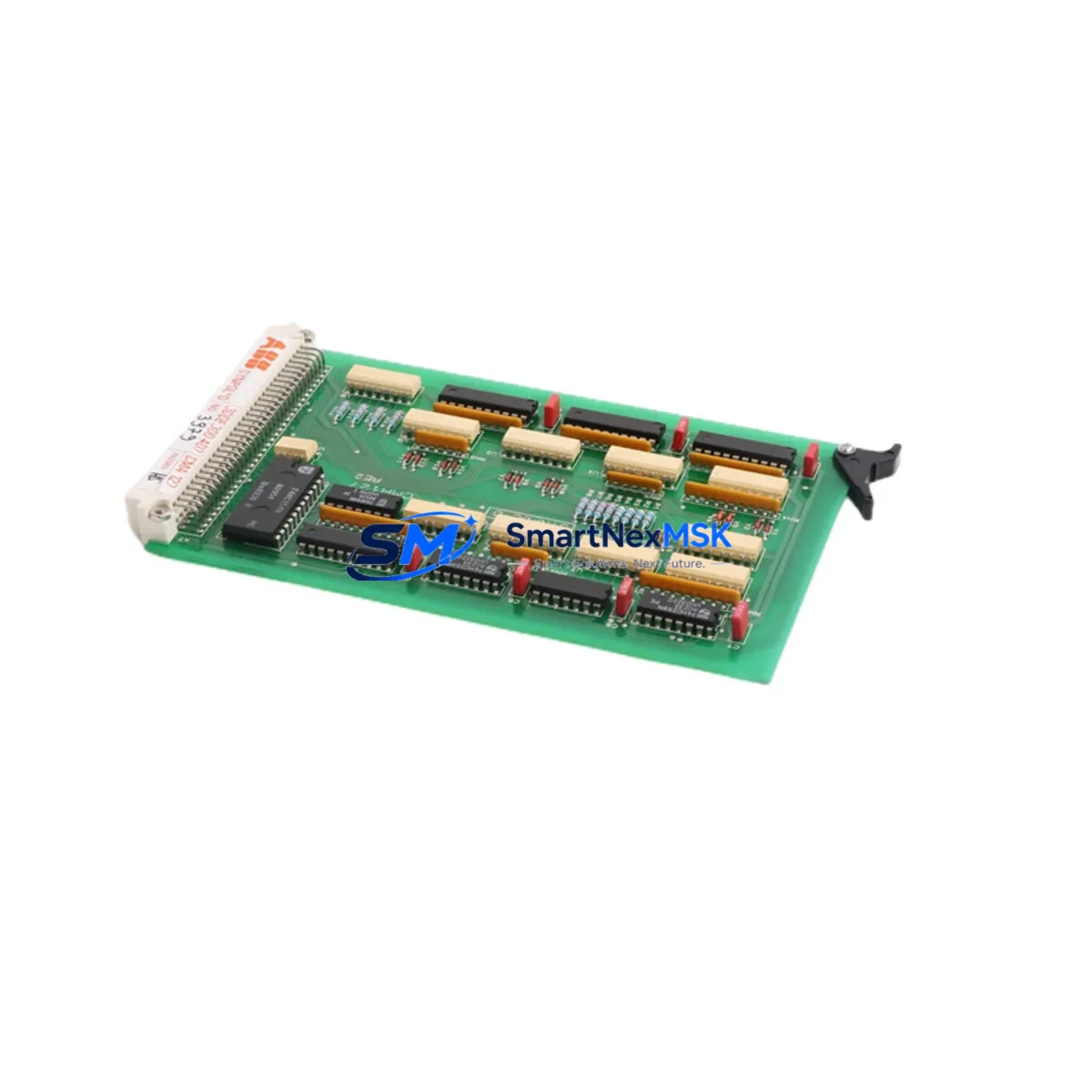

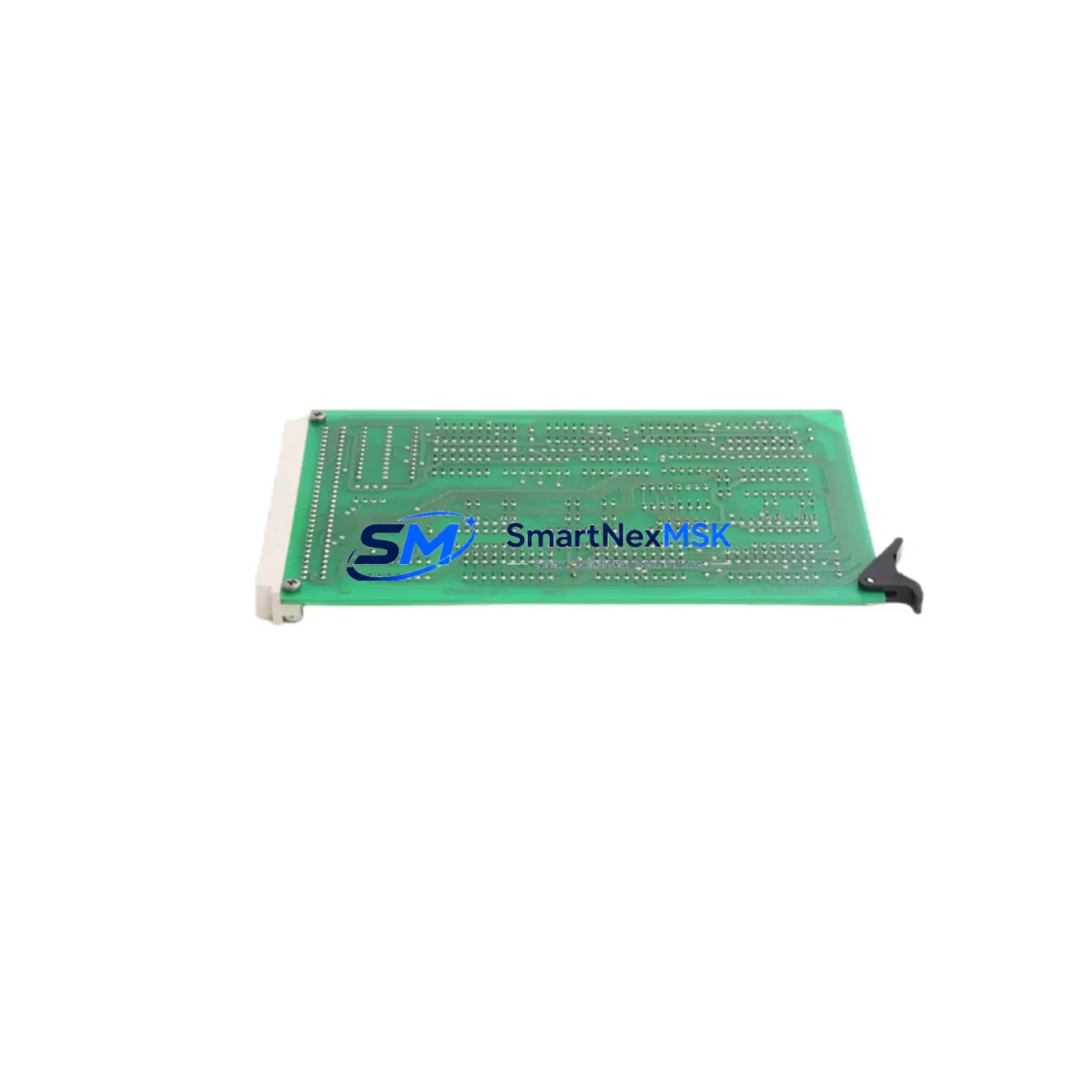

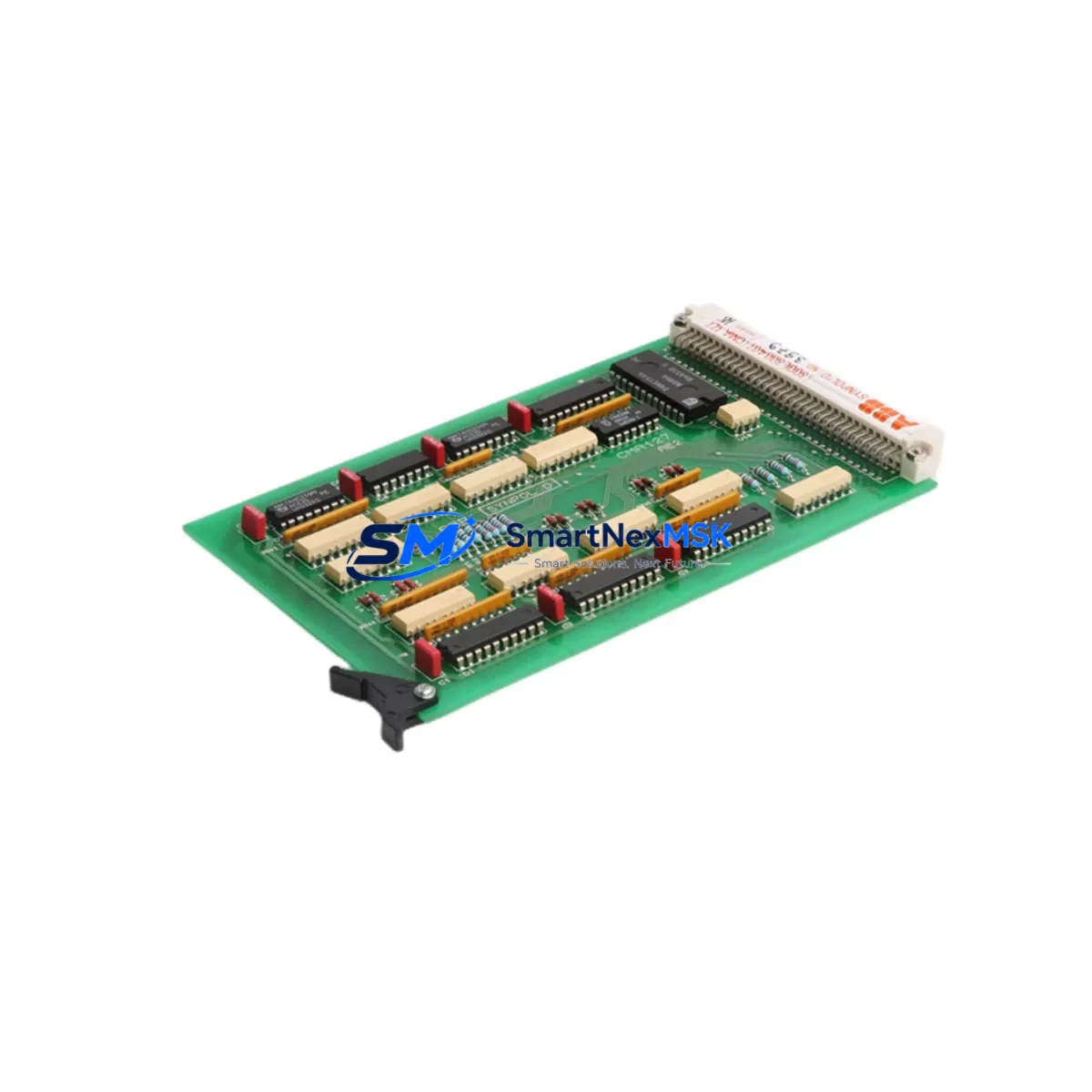

The ABB CMA127 (3DDE300407) is a proven DCS control card engineered for seamless integration into ABB Advant Master AC450 and AC410 control systems. As legacy Advant Master installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement modules to sustain production continuity without committing to a full platform migration. The CMA127 addresses this need directly — offering a retrofit-ready solution that preserves existing backplane architecture, terminal wiring, and program logic while restoring full control-loop performance.

Whether you are replacing a failed card in an emergency shutdown scenario, building a critical-spare inventory for a remote facility, or executing a phased modernization of an aging control cabinet, the CMA127 delivers the compatibility assurance and supply reliability that industrial buyers require. Each unit is sourced from verified channels, function-tested prior to shipment, and backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CMA127 retrofit begins well before the replacement module arrives on site. Engineers should start by auditing the existing Advant Master AC450 rack configuration — confirming the number of occupied slots, the position of the failed CMA127, and the current load on the PM511 or PM510 processor module that governs the control station. Power budget verification is critical: the rack’s SD821 or SD822 power supply unit must have sufficient headroom to support the replacement card without triggering undervoltage faults on adjacent I/O modules.

Terminal wiring documentation should be pulled from the as-built drawings before any physical work begins. In most Advant Master installations, field signals connect through TB820 or TB825 terminal base units, which remain in place during a card swap. Confirm that the terminal base locking mechanism is intact and that no field wiring has been disturbed since the original commissioning. If the site has undergone any cable rerouting or junction box modifications, a point-to-point continuity check is recommended before powering the new module.

Module addressing is one of the most common sources of commissioning delay in Advant Master retrofits. The CMA127 node address must exactly match the address stored in the MasterBus 300 network configuration. This address is typically set via DIP switches on the module face and must be cross-referenced against the network topology stored in the Advant Engineer workstation or its successor engineering tool. If the original address documentation is unavailable, the address can be read from a functioning peer module on the same MasterBus segment using the network diagnostic utilities.

For sites that have partially migrated to newer ABB platforms — such as the 800xA System with AC800M controllers — the CMA127 replacement may serve as a bridge solution while the full migration is planned. In these hybrid environments, the CI854 PROFIBUS DP communication interface or an AF100 fieldbus adapter may already be present in the cabinet, and the CMA127 must coexist on the MasterBus segment without address conflicts. Careful network segmentation and a staged cutover plan will protect both the legacy Advant Master loops and the new 800xA control domains during the transition period.

I/O expansion considerations are equally important. If the retrofit is being combined with an I/O upgrade — for example, adding AI810 analog input modules or DO810 digital output modules to an existing Advant Master rack — the additional modules must be accounted for in the power budget and the MasterBus address map before the CMA127 is installed. Attempting to commission a new card while simultaneously adding I/O modules increases diagnostic complexity and extends downtime unnecessarily.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any Advant Master card replacement. The recommended approach is to prepare the replacement CMA127 fully before taking the process offline. This means pre-configuring the module address, verifying firmware compatibility with the engineering station, and staging all tools and documentation at the control cabinet before the maintenance window opens.

Where the process permits a controlled shutdown, the existing application program should be saved to the Advant Engineer workstation or backed up to removable media before the failed card is removed. This protects the AMPL application logic in the event that the processor module loses its program image during the power cycle. In installations where the PM511 processor retains program memory through a battery-backed RAM module, verify battery health before relying on this protection.

After the CMA127 is seated and the rack is powered, the commissioning sequence should follow a structured loop-check protocol: confirm MasterBus communication link status on the engineering station, verify that all I/O channels report expected values, validate HMI tag updates on the Advant Station AS500 or connected SCADA system, and perform a functional test of each control loop before returning the process to automatic mode. Documenting each step in the site maintenance log creates an audit trail that supports future troubleshooting and regulatory compliance.

For facilities with strict safety instrumented system (SIS) requirements, the CMA127 replacement must be coordinated with the site safety officer and may require a formal management-of-change (MOC) procedure. Ensure that any interlocks or safety loops associated with the replaced module are bypassed in accordance with the site’s bypass management procedure and reinstated and tested before the maintenance window closes.

Retrofit Support FAQ

Q1: Is the ABB CMA127 (3DDE300407) a direct replacement for the original module in my Advant Master AC450 system?
Yes. The CMA127 with part number 3DDE300407 is a direct slot-compatible replacement for the original module in Advant Master AC450 and AC410 racks. No backplane modification or wiring change is required in a standard like-for-like swap. The module address must be set to match the original configuration before powering the rack.

Q2: What commissioning steps are required after installing the replacement CMA127?
After physical installation, verify the DIP switch address matches the original node address, power the rack, and confirm MasterBus 300 communication status on the engineering station. Perform an I/O loop check on all channels associated with the module, validate HMI tag updates, and test each control loop in manual mode before returning to automatic. Document all steps in the site maintenance log.

Q3: Can the CMA127 be used in a system that is being partially migrated to ABB 800xA?
Yes, the CMA127 can continue to operate on the MasterBus 300 segment in a hybrid environment where some control functions have been migrated to an AC800M controller on the 800xA platform. Ensure that MasterBus node addresses do not conflict between the legacy Advant Master segment and any new communication interfaces. A phased migration plan with clearly defined cutover points is strongly recommended.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Each CMA127 unit undergoes functional testing prior to shipment, including power-on verification, communication interface checks, and I/O channel validation where applicable. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no charge. Contact our technical team with the module serial number and a description of the fault for warranty claim processing.
