ABB CMA135 3DDE300411 Spare for CMA Series Automation

ABB CMA135 3DDE300411 Spare for CMA Series Automation: Spare Replacement & Industrial Downtime Risk Control

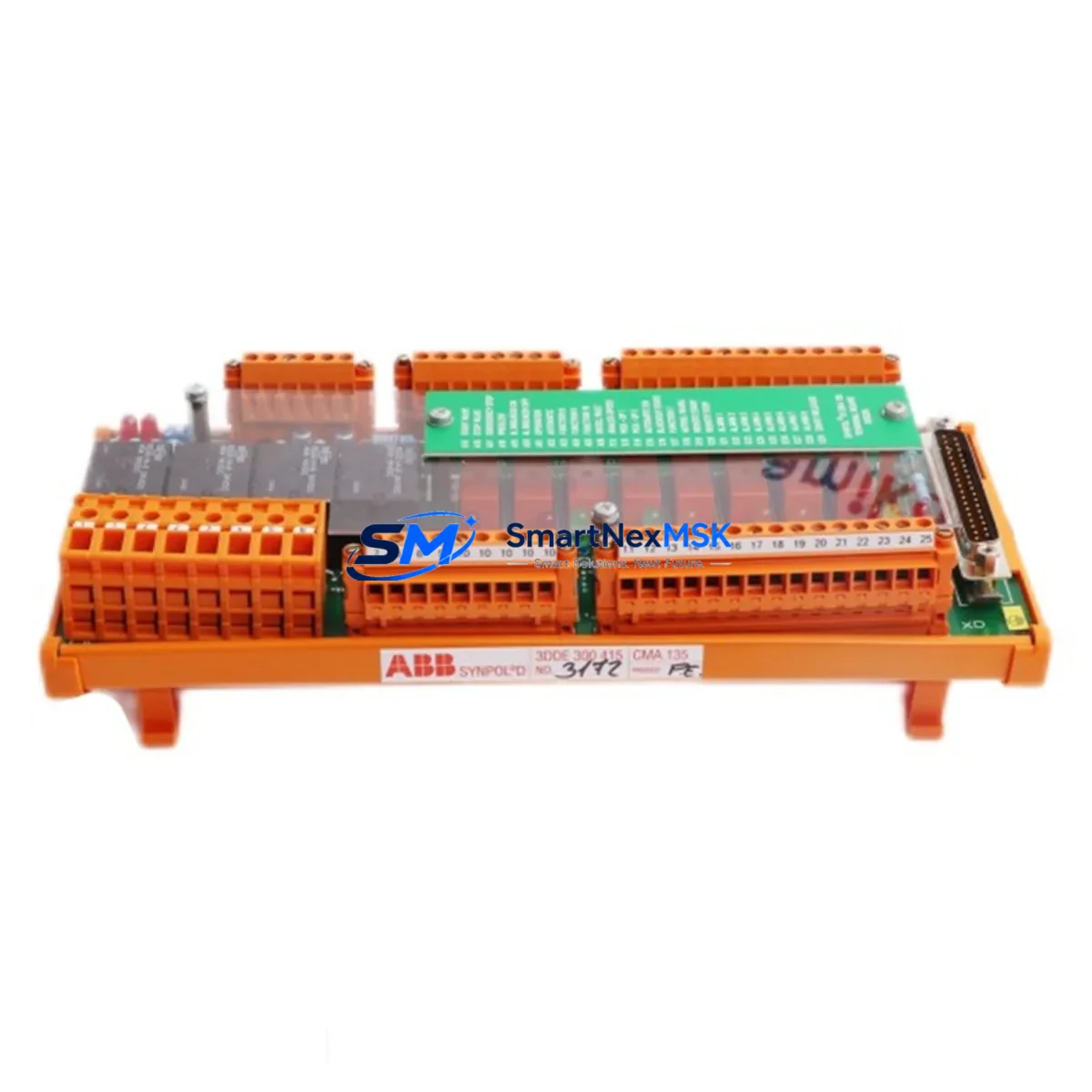

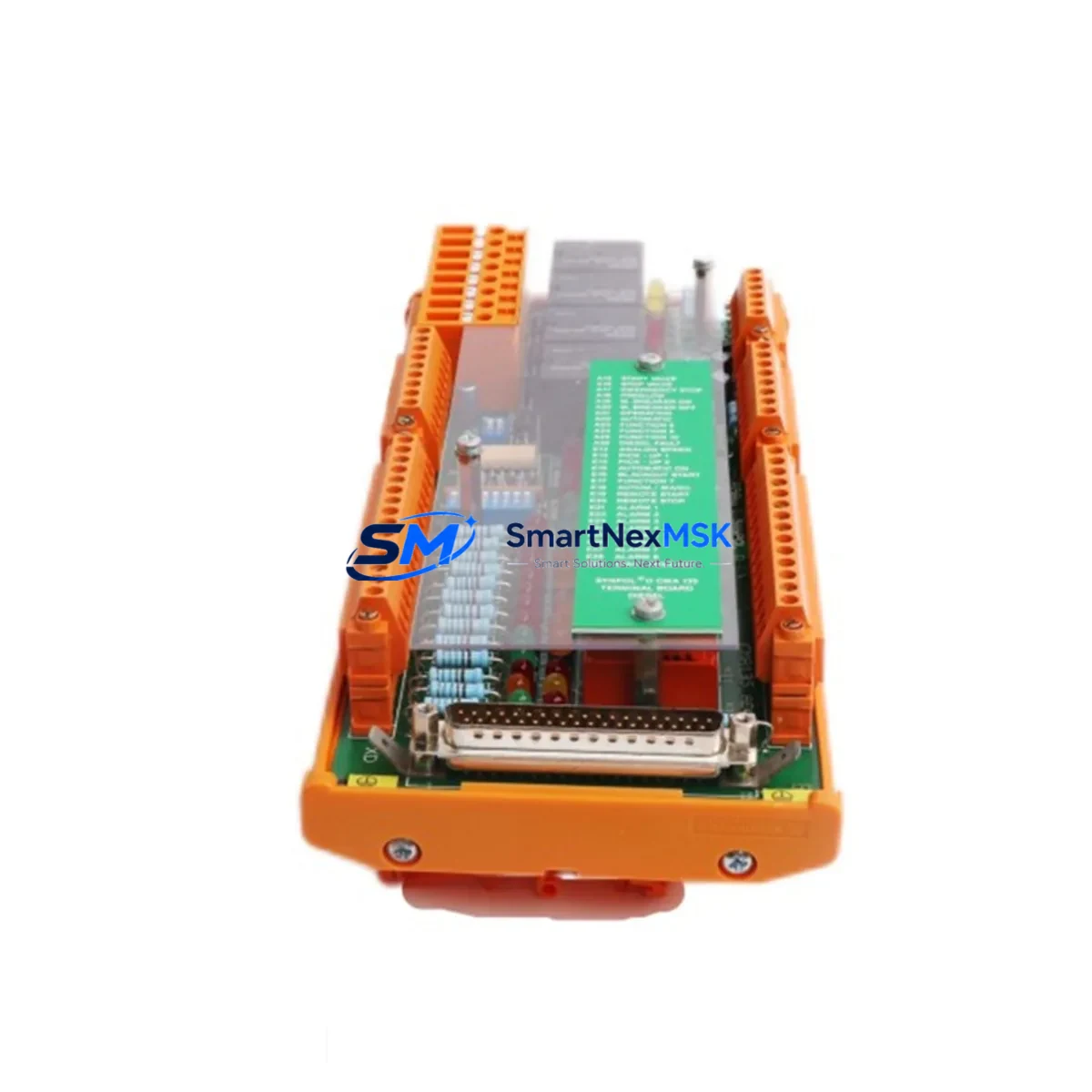

The ABB CMA135 (part number 3DDE300411) is a diesel engine start-stop control module engineered for CMA Series automation systems. In industrial environments where continuous operation is non-negotiable, maintaining a verified spare of the CMA135 3DDE300411 in your parts inventory is a frontline strategy against unplanned downtime. This module governs critical start-stop sequencing, engine status monitoring, and interlock logic within diesel-driven generator sets, pump stations, and emergency power systems. When this component fails, the entire control loop is compromised — making rapid, like-for-like replacement essential.

SMARTNEXMSK supplies the ABB CMA135 3DDE300411 as a tested, original-grade spare with full compatibility verification against the CMA Series platform. Each unit undergoes pre-shipment functional inspection and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock and deploy without hesitation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB CMA135 3DDE300411 in isolation is rarely sufficient for a complete maintenance event. Experienced maintenance engineers know that a failed start-stop control module is often a symptom of broader stress across the diesel control cabinet. During any planned or corrective replacement of the CMA135, the following associated components should be inspected or simultaneously replaced to prevent repeat failures and ensure system integrity.

Begin with the 24 VDC power supply module feeding the CMA panel — voltage ripple or supply instability is a leading cause of premature control module failure. Check the ABB CMA110 or CMA120 base controller for firmware integrity and communication health, as the CMA135 operates as a subordinate module within this architecture. Inspect all terminal blocks and wiring harnesses on the engine control cabinet for loose connections, insulation degradation, or corrosion, particularly on the start/stop command lines.

The engine speed sensor signal conditioner and associated signal isolator modules should be verified — erratic speed signals can cause the CMA135 to misfire start sequences. Check the output relay contacts on the CMA135 itself for contact wear; if the module has been in service for more than three years, relay replacement is advisable regardless of apparent function. Review the battery charger module and DC bus fuses within the panel, as low battery voltage during cranking events places abnormal load on the control module’s relay outputs.

For systems integrated with SCADA or DCS platforms, verify the RS-485 or Modbus communication interface module for signal integrity and termination resistance. If the diesel system feeds into an ABB AC500 or AC800M DCS node, confirm that the communication gateway or protocol converter is operating within specification. Finally, inspect the HMI panel (if present) for alarm history that may reveal intermittent faults predating the CMA135 failure — this data is invaluable for root cause analysis and future maintenance scheduling.

Stocking the CMA135 3DDE300411 alongside a spare 24 VDC PSU module, a set of DIN rail terminal blocks, and a replacement relay output card constitutes a minimum viable spare kit for any facility operating ABB CMA Series diesel automation.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the diesel control panel following site LOTO procedures. Confirm zero voltage on the 24 VDC bus before opening the cabinet.

Step 2 — Documentation: Photograph all wiring connections on the existing CMA135 3DDE300411 before removal. Record the module’s position on the backplane or DIN rail and note any DIP switch or jumper settings visible on the module face.

Step 3 — Module Removal: Disconnect all terminal block connectors in sequence. Release the DIN rail locking tab and slide the module free. Inspect the vacated slot for debris, moisture, or contact damage.

Step 4 — New Module Preparation: Verify the replacement CMA135 3DDE300411 part number against the original. Replicate any DIP switch or configuration settings from your documentation. Do not power the module before installation.

Step 5 — Installation & Wiring: Seat the new module on the DIN rail and reconnect all terminal block connectors in reverse removal order. Torque all screw terminals to specification to prevent intermittent contact faults.

Step 6 — Power-Up & Verification: Re-energize the panel and observe the CMA135 status LEDs. Perform a supervised manual start-stop test cycle. Confirm interlock signals are correctly received and that the engine responds within the expected crank-to-run time window.

Step 7 — System Handover: Log the replacement in the site maintenance register. Update the spare parts inventory and initiate a reorder for the consumed CMA135 3DDE300411 to maintain minimum stock levels.

This workflow minimizes diesel system downtime to under two hours for a prepared maintenance team, preserving system compatibility and avoiding configuration drift that can occur when replacement modules are not properly commissioned.

Spare Parts Support FAQ

Q1: What is the expected service life of the ABB CMA135 3DDE300411, and when should I proactively replace it?
Under normal operating conditions (ambient temperature within spec, clean power supply, no excessive vibration), the CMA135 3DDE300411 has a typical service life of 8–12 years. Proactive replacement is recommended at the 10-year mark or upon first observation of delayed start response, relay chatter, or unexplained interlock faults — whichever comes first. For critical diesel systems (emergency generators, fire pump controllers), maintaining a hot spare in inventory is strongly advised.

Q2: How do I verify compatibility before installing a replacement CMA135 3DDE300411?
Confirm the full part number (CMA135 / 3DDE300411) matches the nameplate on the installed module. Cross-reference the CMA Series panel documentation for the module slot designation. If your system uses a CMA110 or CMA120 base controller, the CMA135 is a direct compatible subordinate module. For any uncertainty, contact SMARTNEXMSK with your panel serial number and system documentation for pre-sale compatibility verification.

Q3: What pre-shipment testing does SMARTNEXMSK perform on the CMA135 3DDE300411?
Each CMA135 3DDE300411 unit supplied by SMARTNEXMSK undergoes functional relay output testing, supply voltage acceptance testing, and visual inspection for physical damage, contact wear, and component integrity before dispatch. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number, a description of the fault, and photographic evidence. Replacement or repair will be arranged within 5 business days of claim verification.
