ABB CMA35 GVT3605799 Maintenance-Ready Spare AC500 Automation

ABB CMA35 GVT3605799 Maintenance-Ready Spare AC500 Automation

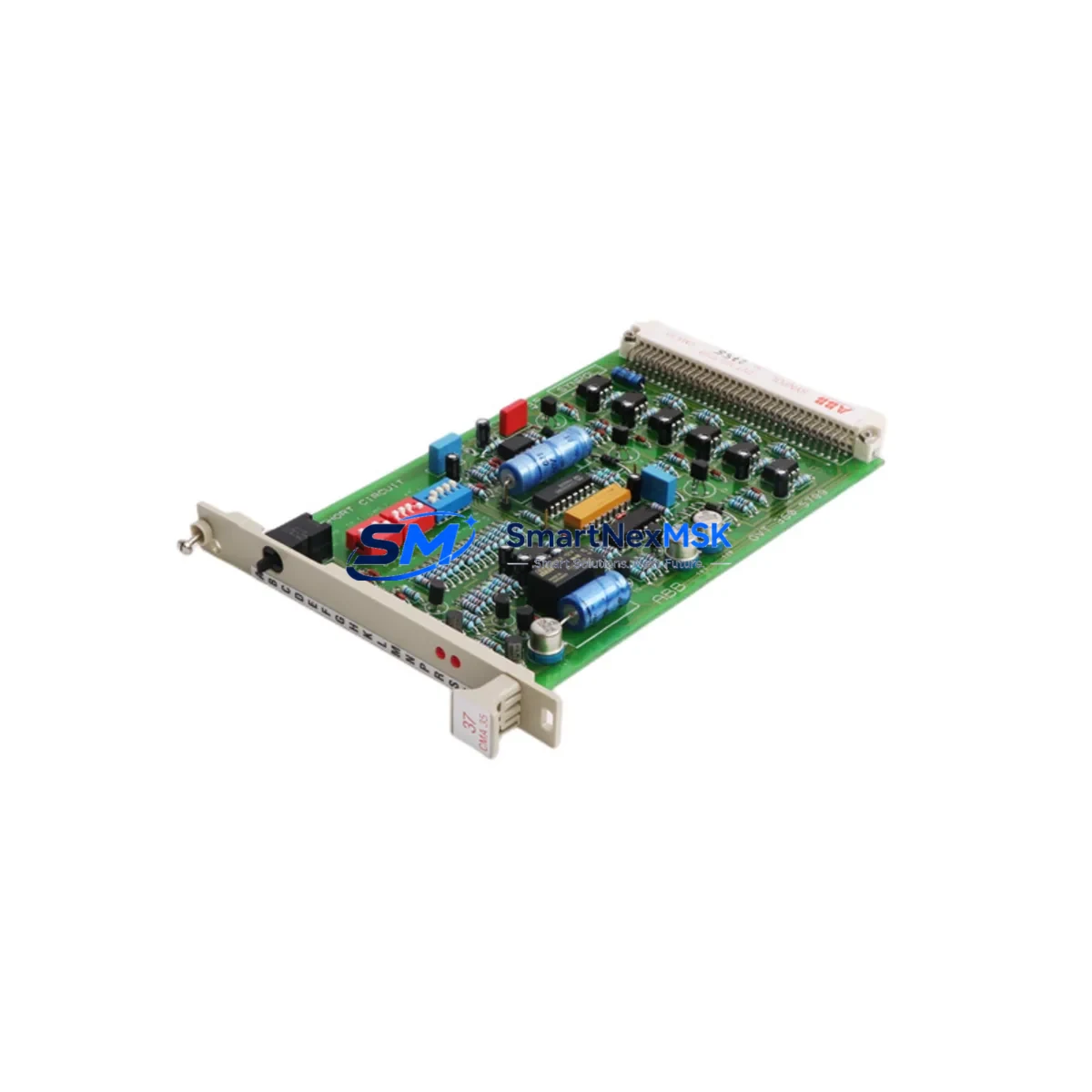

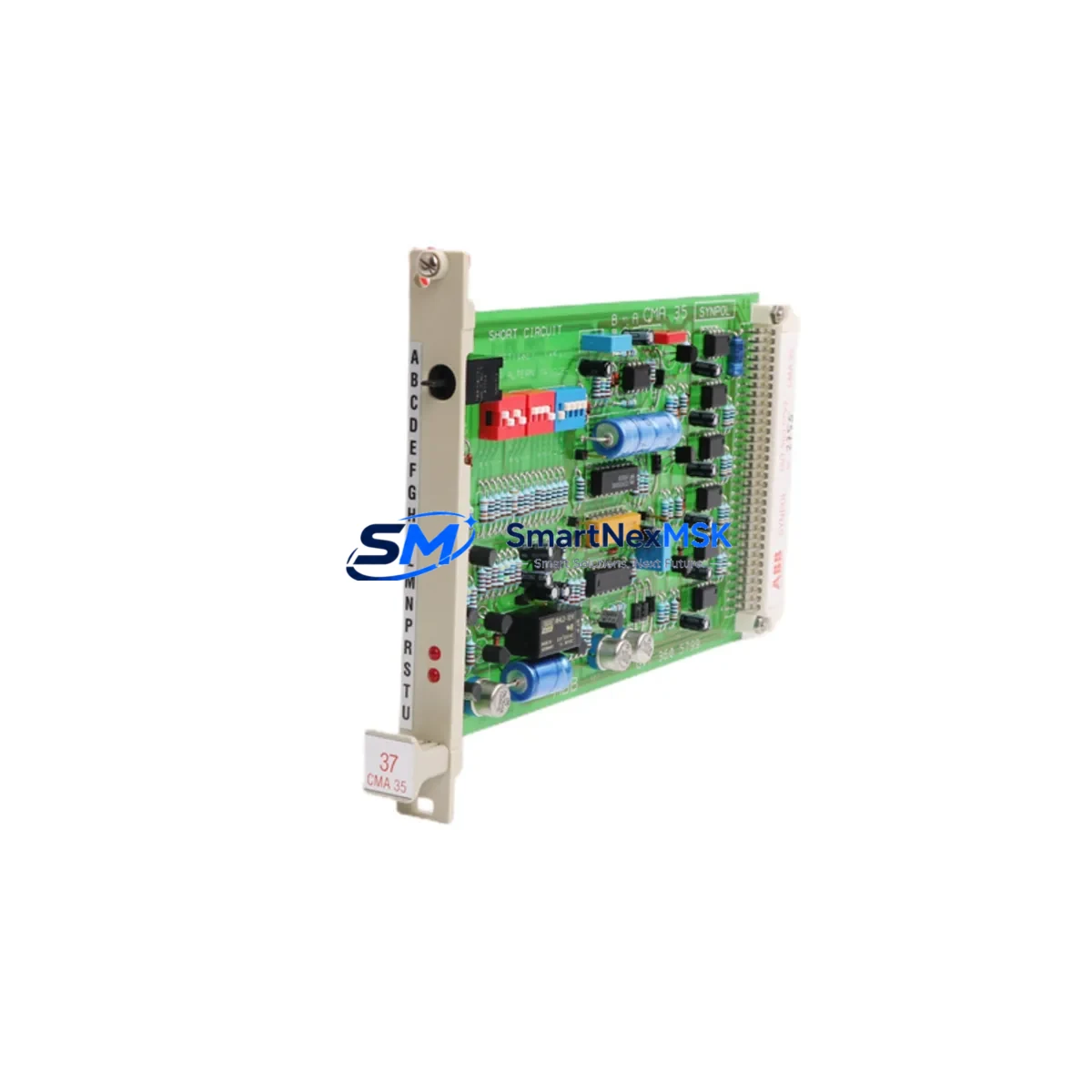

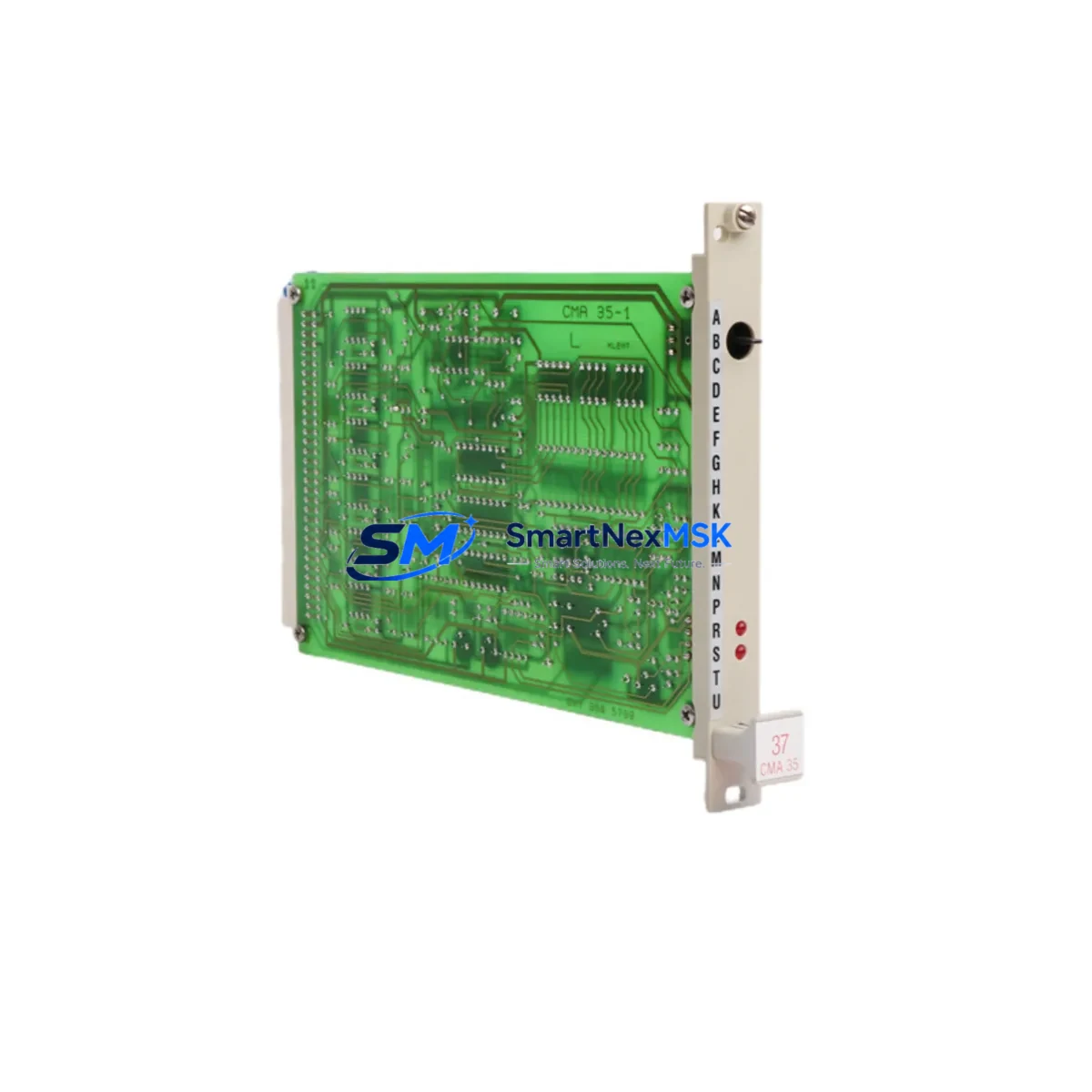

Unplanned downtime caused by a failed short circuit protection card can cascade across an entire AC500 control system within minutes. The ABB CMA35 GVT3605799 is an original short circuit protection card engineered for ABB AC500 PLC platforms and ACS drive systems, providing the overcurrent and short circuit isolation logic that safeguards both the backplane and connected field devices. Keeping a verified spare of the CMA35 GVT3605799 on the shelf is one of the most cost-effective decisions a maintenance engineer can make for any facility running ABB AC500-based automation.

This unit ships fully tested against ABB factory electrical specifications, is packaged in anti-static ESD-safe materials, and is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm protection threshold accuracy, signal integrity, and connector condition before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CMA35 GVT3605799 protection card is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the card itself is rarely the only component that warrants attention. A short circuit event that stresses the protection card will often leave thermal or electrical signatures on adjacent components in the same control cabinet.

Start by inspecting the AC500 CPU module (PM564 or PM573) for fault logs that predate the card failure — these logs frequently reveal whether the protection event was isolated or part of a recurring pattern. Check the AC500 power supply module (PS501 or PS502) for output voltage stability; a sagging 24 VDC rail is a common upstream cause of nuisance protection trips. The AC500 digital I/O modules (DC532 or DC522) connected to the same backplane segment should be visually inspected for burn marks or discolored terminals, as a downstream short on a field device wiring loop can propagate back through the I/O bus.

For drive-integrated applications, verify the ACS880 control board (ZCON-01) or the ACS580 control unit for fault history codes F0001 (overcurrent) and F0002 (DC overvoltage), which often accompany a CMA35 protection event. Inspect the ABB NDIO-01 digital I/O extension module if fitted, as these are frequently in the same fault propagation path. The AC500 communication module (CM572-DP or CM577-ETH) should be checked for communication timeout errors that may have been masked by the protection trip.

At the field wiring level, test all terminal blocks and DIN rail fuse holders in the affected circuit for continuity and correct torque — loose terminals are a leading cause of intermittent short circuit events that eventually destroy protection cards. If the system uses signal isolators or loop-powered transmitters on the same 24 VDC segment, verify their isolation barriers are intact. Finally, review the HMI panel (CP600 series or CP635) alarm history for any operator-acknowledged faults that were not escalated to the maintenance team, as these often provide the earliest warning of a developing protection issue.

Stocking the CMA35 GVT3605799 alongside one spare power supply module and one spare I/O module for each AC500 rack in your facility is a proven strategy for reducing mean time to repair (MTTR) on ABB-based control systems.

Site Replacement Workflow

The CMA35 GVT3605799 is a direct replacement for the original ABB short circuit protection card in AC500 systems. No firmware re-flashing or parameter reconfiguration is required for a like-for-like swap, which significantly reduces replacement time compared to CPU or communication module changes.

Step 1 — Isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the AC500 rack and confirm zero voltage at the power supply output terminals before opening the cabinet.

Step 2 — Documentation: Photograph the existing card position, wiring, and any visible fault indicators before removal. Record the slot address and any DIP switch or jumper settings on the outgoing card.

Step 3 — Removal: Release the card retention latch and slide the CMA35 card out of the backplane slot. Inspect the backplane connector pins for damage or carbon deposits — clean with isopropyl alcohol if contamination is present.

Step 4 — Installation: Align the replacement CMA35 GVT3605799 with the backplane slot guides and seat firmly until the retention latch clicks. Verify the card is fully engaged — a partially seated card is a common cause of post-replacement faults.

Step 5 — Verification: Re-energize the rack and confirm the AC500 CPU recognizes the card without fault codes. Run a short functional test of the protected circuit before returning the system to production.

This workflow is compatible with AC500 V2 and V3 hardware generations. For legacy AC500 V1 installations, confirm backplane connector compatibility before ordering. Our technical team can assist with compatibility verification prior to shipment.

Spare Parts Support FAQ

Q1: Is the CMA35 GVT3605799 compatible with both AC500 and ACS drive systems?
Yes. The CMA35 GVT3605799 is used across ABB AC500 PLC platforms and select ACS drive control architectures. If you are unsure whether your specific system revision is compatible, contact us with your full system model number and we will confirm before shipment.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical mishandling. Warranty claims are processed with return shipping support.

Q3: How is the unit tested before shipment?
Each CMA35 GVT3605799 unit undergoes a pre-shipment functional verification that includes protection threshold accuracy testing, connector integrity inspection, and visual inspection for physical defects. A test report is available on request for quality-critical procurement processes.

Q4: Can this spare replace an older or discontinued ABB protection card revision?
In most cases, yes. ABB maintains backward compatibility across AC500 hardware generations for protection card form factors. However, if your system is running a legacy AC500 V1 backplane, please confirm the hardware revision with us before ordering to avoid compatibility issues. We maintain stock of multiple revision levels to support long-term and end-of-life system maintenance.
