ABB D2D160-CE02-16 Maintenance-Ready Spare for D2D Automation

ABB D2D160-CE02-16 Maintenance-Ready Spare for D2D Series Automation

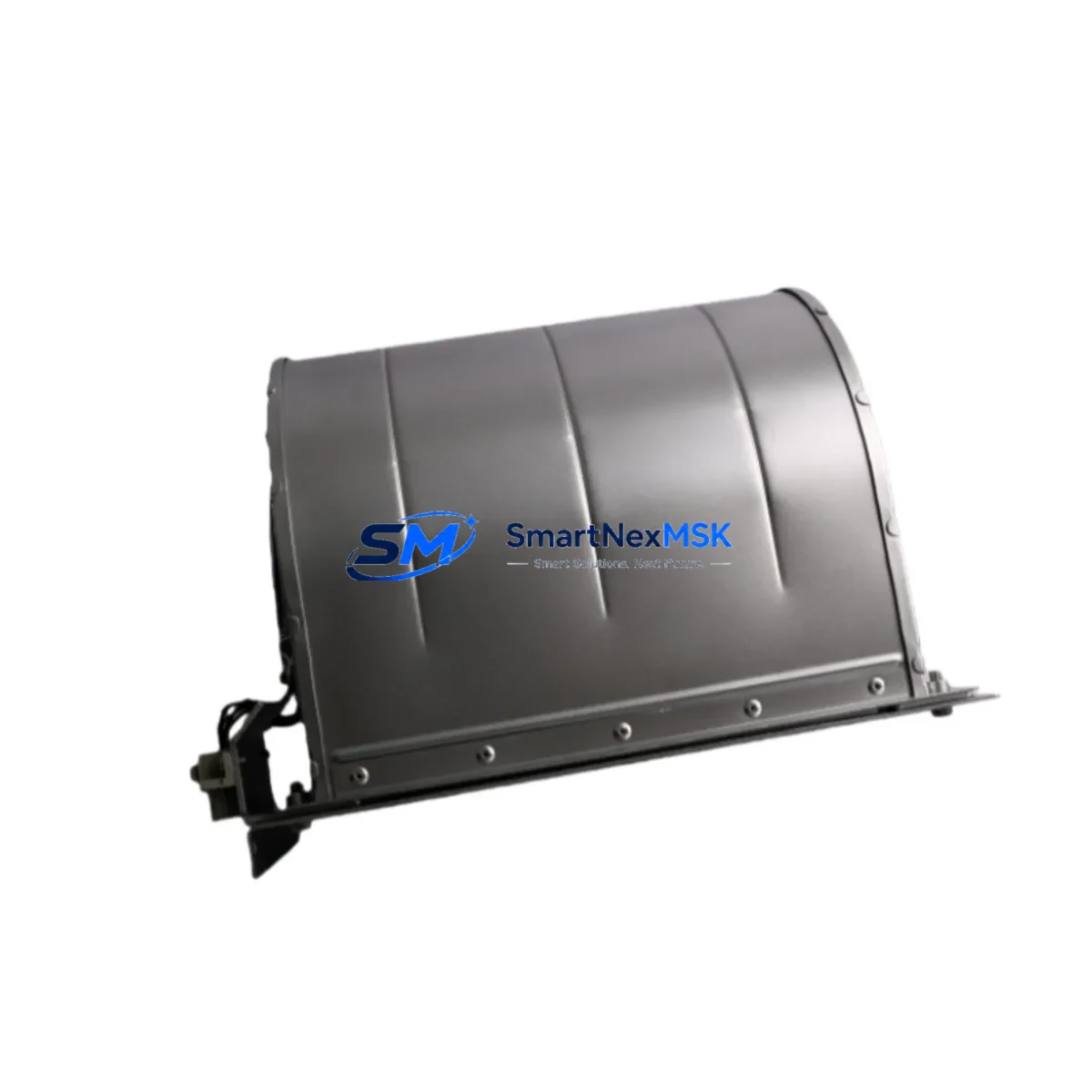

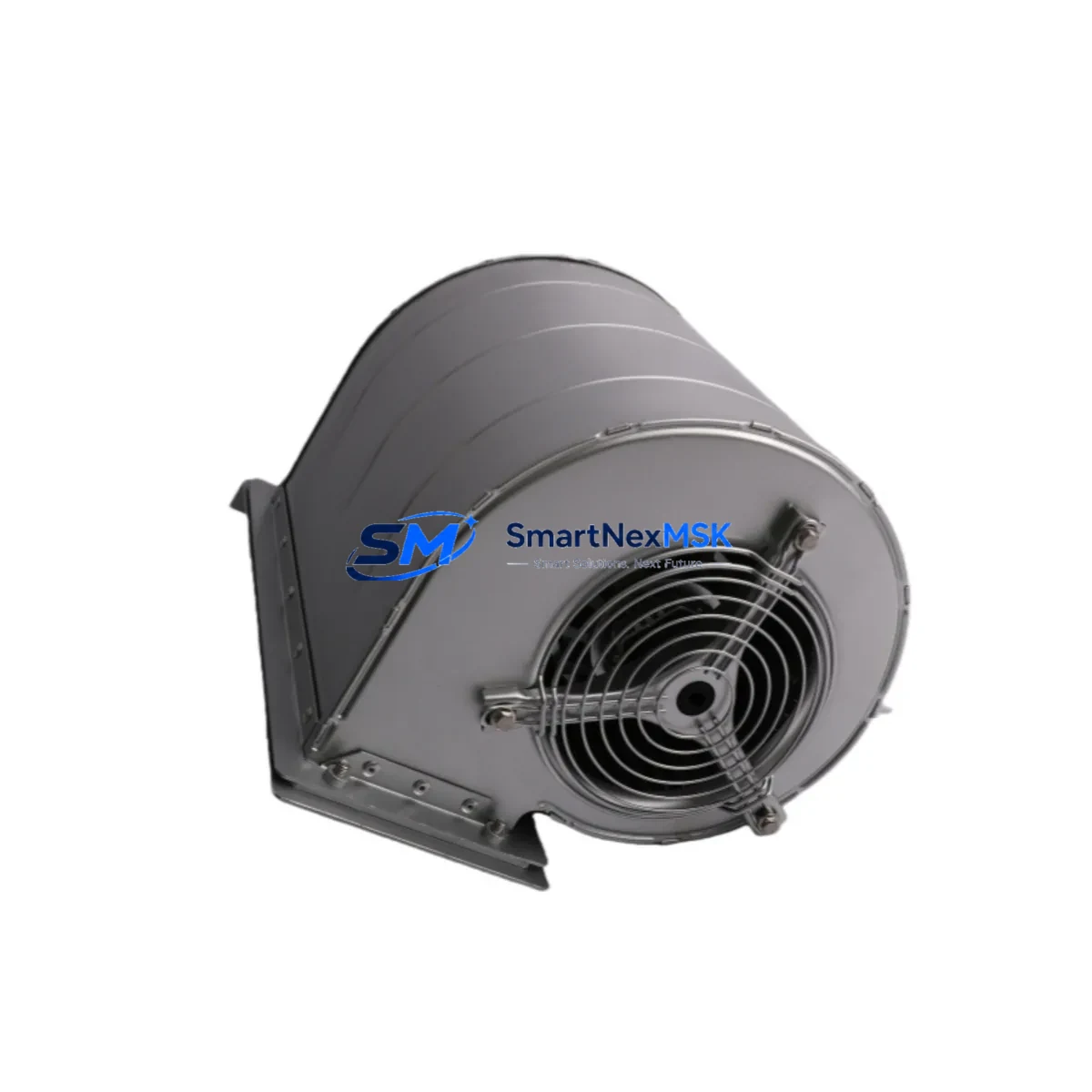

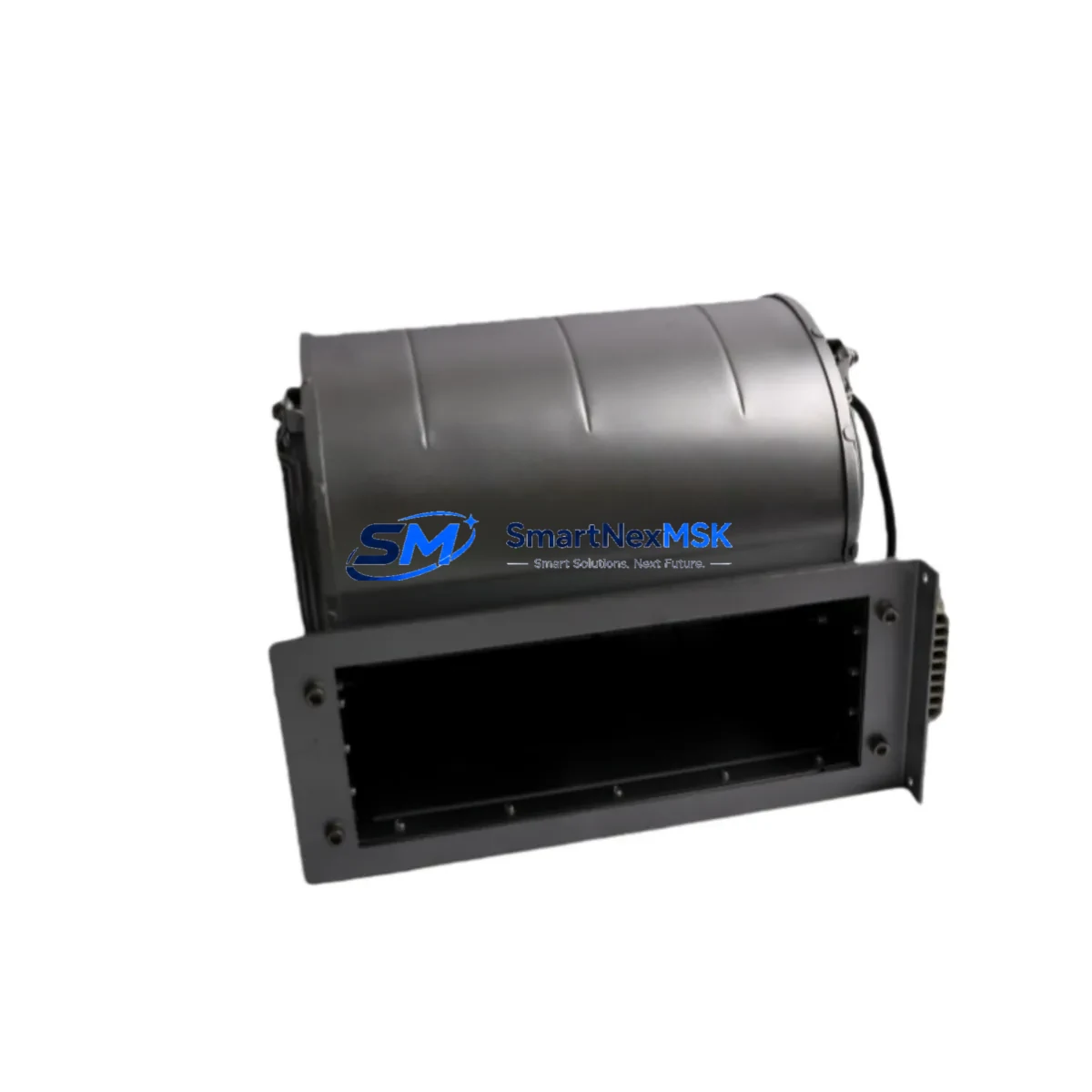

The ABB D2D160-CE02-16 is an original EC (electronically commutated) axial cooling fan engineered for continuous thermal management in ABB variable speed drives, control panels, and power conversion enclosures. As a genuine D2D Series spare part manufactured in Germany, it is the preferred replacement component for maintenance engineers managing ABB ACS, ACS800, ACS880, and related drive families where reliable airflow is critical to preventing thermal shutdown, IGBT overtemperature faults, and unplanned production stoppages.

In industrial environments where drives operate at high load cycles — such as pump stations, compressor rooms, conveyor systems, and HVAC plant rooms — cooling fan degradation is one of the most common causes of drive failure. The D2D160-CE02-16 uses EC motor technology to deliver precise, energy-efficient airflow with lower vibration and longer service life compared to conventional AC fans. Its brushless DC motor design eliminates the commutator wear that limits the lifespan of older fan types, making it the correct long-term replacement for aging cooling assemblies in legacy ABB drive cabinets.

For maintenance and procurement engineers responsible for keeping ABB drive systems operational, stocking the D2D160-CE02-16 as a critical spare is a straightforward risk mitigation strategy. A failed cooling fan can take a drive offline within minutes of the thermal protection threshold being exceeded — and in continuous-process industries, even a two-hour unplanned shutdown can result in significant production loss, product spoilage, or safety incidents. Having a verified, pre-tested replacement unit on the shelf eliminates the lead time risk associated with sourcing this component reactively.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the D2D160-CE02-16 cooling fan in an ABB drive system, a thorough maintenance inspection of the surrounding components is essential to prevent repeat failures and maximize the value of the planned downtime window. Maintenance engineers should treat a fan replacement as an opportunity to audit the full thermal and electrical health of the drive enclosure.

Begin by inspecting the drive’s internal power supply board and DC bus capacitors — components such as the ABB RINT-5611C rectifier interface board and associated DC link capacitor banks are subject to thermal stress from inadequate cooling and may show signs of electrolytic degradation if the fan has been underperforming for an extended period. Check the IGBT power module heatsink for dust accumulation and thermal compound degradation; in high-ambient-temperature environments, reapplying thermal interface material during the fan replacement is recommended practice.

On the control side, inspect the drive’s main control board — such as the RMIO-11C or RDCU-12C — for signs of overtemperature discoloration, connector oxidation, or capacitor bulging. These boards are sensitive to sustained elevated temperatures and may exhibit intermittent faults or communication errors if they have been operating near their thermal limits. The fiber optic communication cables connecting the control board to the RINT interface board should also be inspected for brittleness or connector contamination, as thermal cycling accelerates degradation of plastic fiber optic components.

Review the drive’s I/O terminal blocks and signal wiring for heat-induced insulation cracking, particularly on terminals adjacent to the power section. Replacing damaged terminal blocks — such as Phoenix Contact or Weidmüller DIN rail terminal strips — during the same maintenance window prevents future signal faults. Check the 24VDC auxiliary power supply feeding the control electronics; a weakened power supply can cause erratic drive behavior that is often misdiagnosed as a control board fault.

For drives equipped with fieldbus communication modules — such as the FPBA-01 PROFIBUS adapter or FENA-21 Ethernet/IP module — verify that the module seating and connector integrity are sound, as vibration from a failing fan can gradually loosen plug-in communication adapters. Inspect the drive’s input fuses and main contactor for signs of overheating or contact erosion, and verify that the EMC filter capacitors on the input side are not showing signs of leakage or swelling.

Finally, document the fan replacement in the site maintenance log with the date, unit serial number, and operating hours since last replacement. For drives in continuous-duty applications, a preventive replacement interval of 3–5 years (or per the drive manufacturer’s recommendation) is advisable regardless of apparent fan condition, as EC fan bearings degrade gradually and may not trigger a fault alarm before failure.

Site Replacement Workflow

Replacing the D2D160-CE02-16 in the field is a straightforward procedure when the correct spare is on hand, but the replacement process should follow a structured workflow to minimize downtime and ensure system compatibility.

Step 1 — Isolation and Lockout/Tagout: De-energize the drive and apply LOTO procedures per site safety requirements. Allow the DC bus to discharge fully before opening the drive enclosure — this typically requires a minimum of 5 minutes after power removal, and should be verified with a calibrated DC voltmeter before any internal access.

Step 2 — Fan Identification and Compatibility Verification: Confirm that the installed fan matches the D2D160-CE02-16 part number on the existing unit’s label. Note the connector type and cable routing before disconnecting. The D2D160-CE02-16 is a direct replacement for other D2D160 series variants with the same flange dimensions and connector pinout — verify against the drive’s spare parts list or service manual if any doubt exists.

Step 3 — Removal and Installation: Disconnect the fan power connector, remove the mounting screws (typically M4 or M5), and extract the fan assembly. Install the replacement D2D160-CE02-16 in the reverse sequence, ensuring the airflow direction arrow on the fan housing is oriented correctly relative to the drive’s internal airflow path. Incorrect airflow direction will result in inadequate cooling despite the fan operating normally.

Step 4 — Functional Verification: Re-energize the drive and verify that the fan starts correctly, that no overtemperature alarms are present, and that the drive’s thermal monitoring parameters return to normal operating range. For drives with fan feedback monitoring, confirm that the fan speed signal is being received correctly by the control board.

Step 5 — Documentation and Spare Stock Replenishment: Record the replacement in the maintenance management system and initiate a purchase order to replenish the consumed spare. Maintaining at least one D2D160-CE02-16 unit in site stock at all times is recommended for any facility operating multiple ABB drives of this type.

Spare Parts Support FAQ

Q1: What does the 12-month warranty cover for the D2D160-CE02-16?
The 12-month warranty covers all functional failures under normal operating conditions, including motor winding faults, bearing failure, and electronic commutation circuit defects. If the fan fails to operate within its specified performance parameters during the warranty period, we provide a replacement unit at no additional cost. The warranty period begins from the confirmed shipment date.

Q2: How do I verify that the D2D160-CE02-16 is compatible with my specific ABB drive model?
Compatibility is confirmed by matching the fan’s flange dimensions (160 mm), connector type, and airflow direction to the specifications in your drive’s service manual or spare parts catalog. The D2D160-CE02-16 is a standard D2D Series component used across multiple ABB drive families. If you provide your drive model number, our technical team can cross-reference the spare parts list to confirm direct compatibility before you place an order.

Q3: What pre-shipment testing is performed on each unit?
Every D2D160-CE02-16 unit is tested before dispatch. Testing includes power-on rotation verification, no-load current draw measurement against specification, vibration and noise assessment, and visual inspection of the motor housing, connector, and cable. Units that do not pass all criteria are not shipped. Test documentation is available upon request.

Q4: Can you support long-term supply for this part across multiple maintenance cycles?
Yes. We maintain dedicated stock of ABB D2D Series cooling fans to support customers with ongoing preventive maintenance programs. We can accommodate advance purchase agreements, reserved stock arrangements, and scheduled delivery programs for facilities managing large fleets of ABB drives. Our supply chain for D2D Series components is actively maintained to support both immediate replacement needs and long-term lifecycle management.
