ABB DASA110 3ASC25H705/7 Spare for Advant Automation

ABB DASA110 3ASC25H705/7 Spare for Advant Automation: Spare Replacement & Industrial Downtime Risk Control

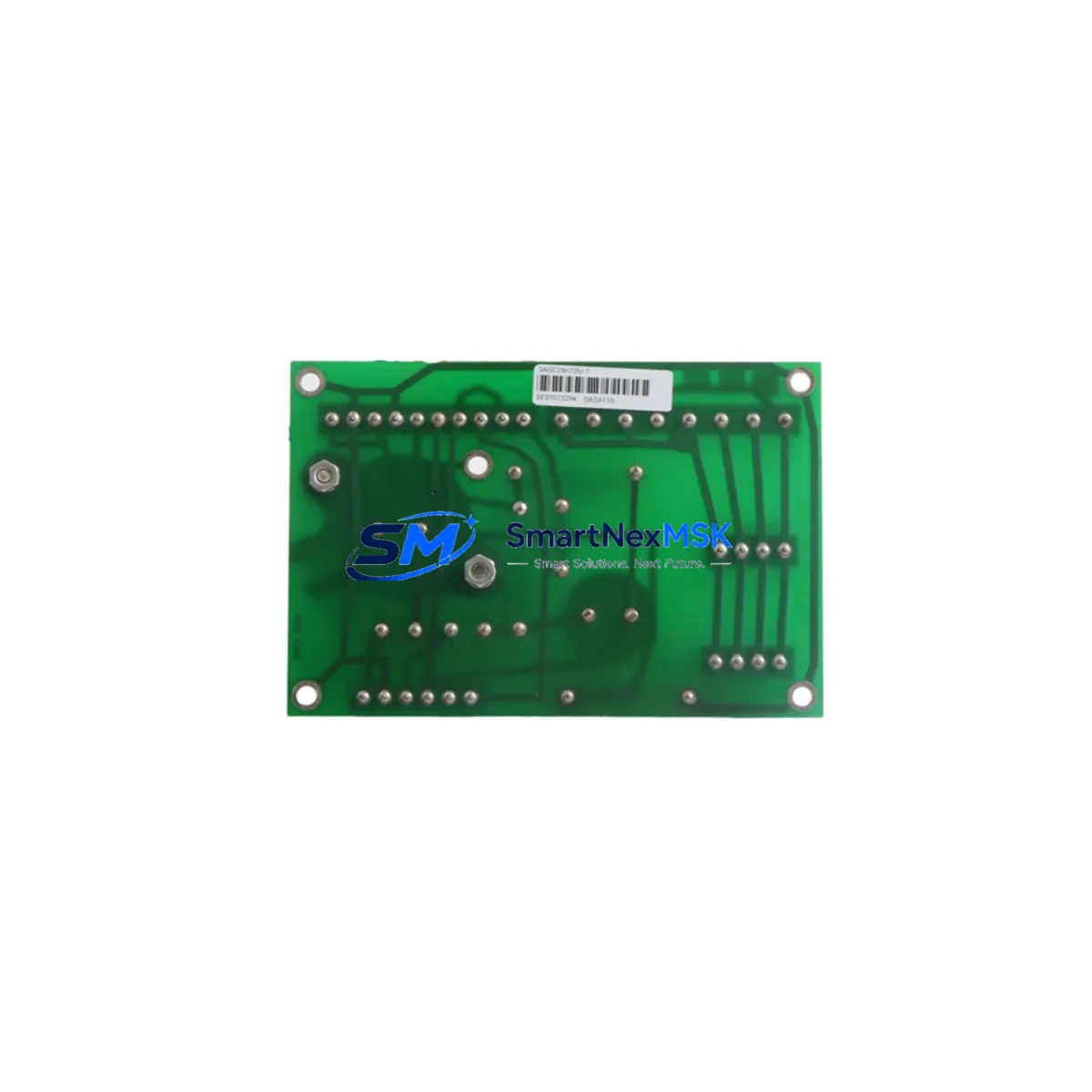

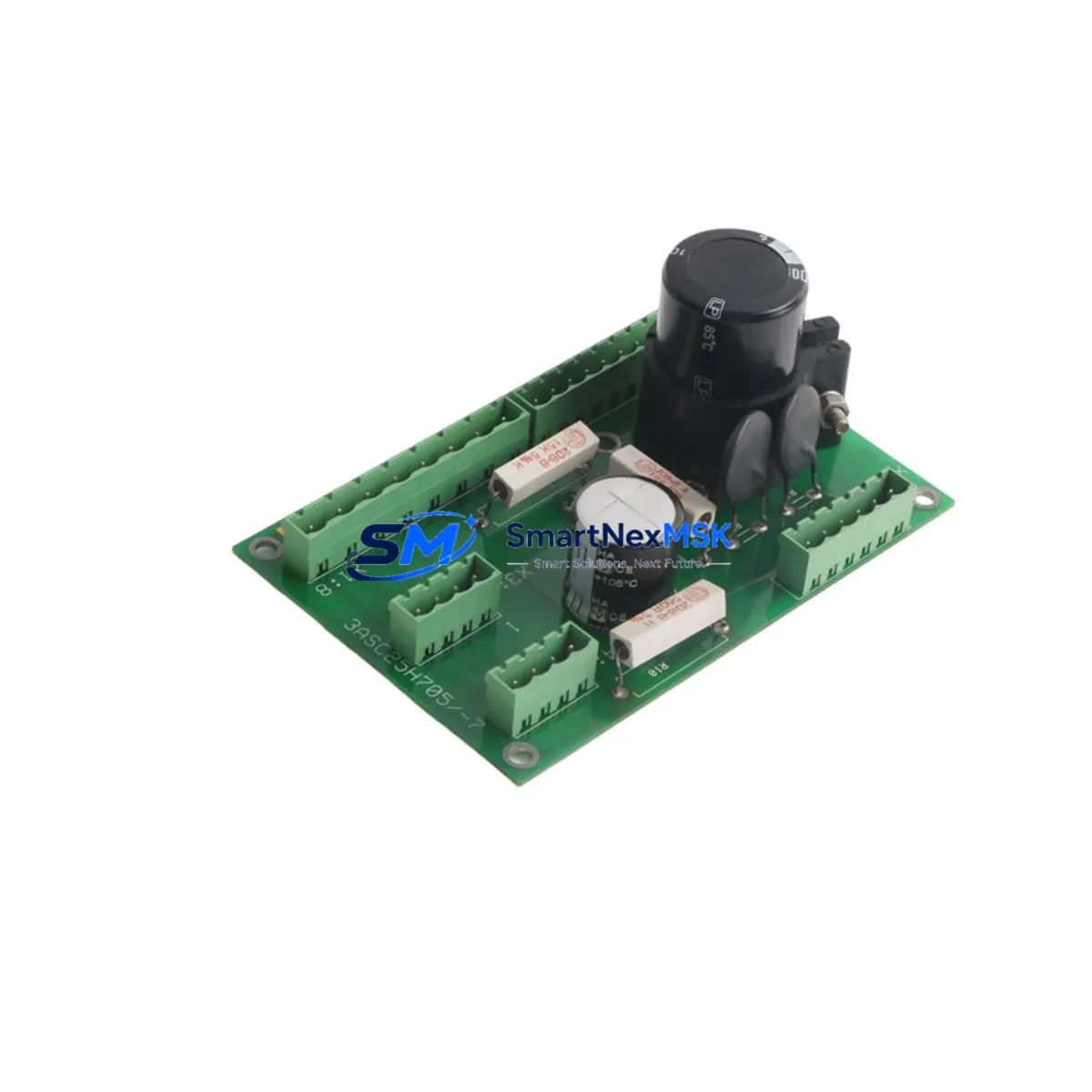

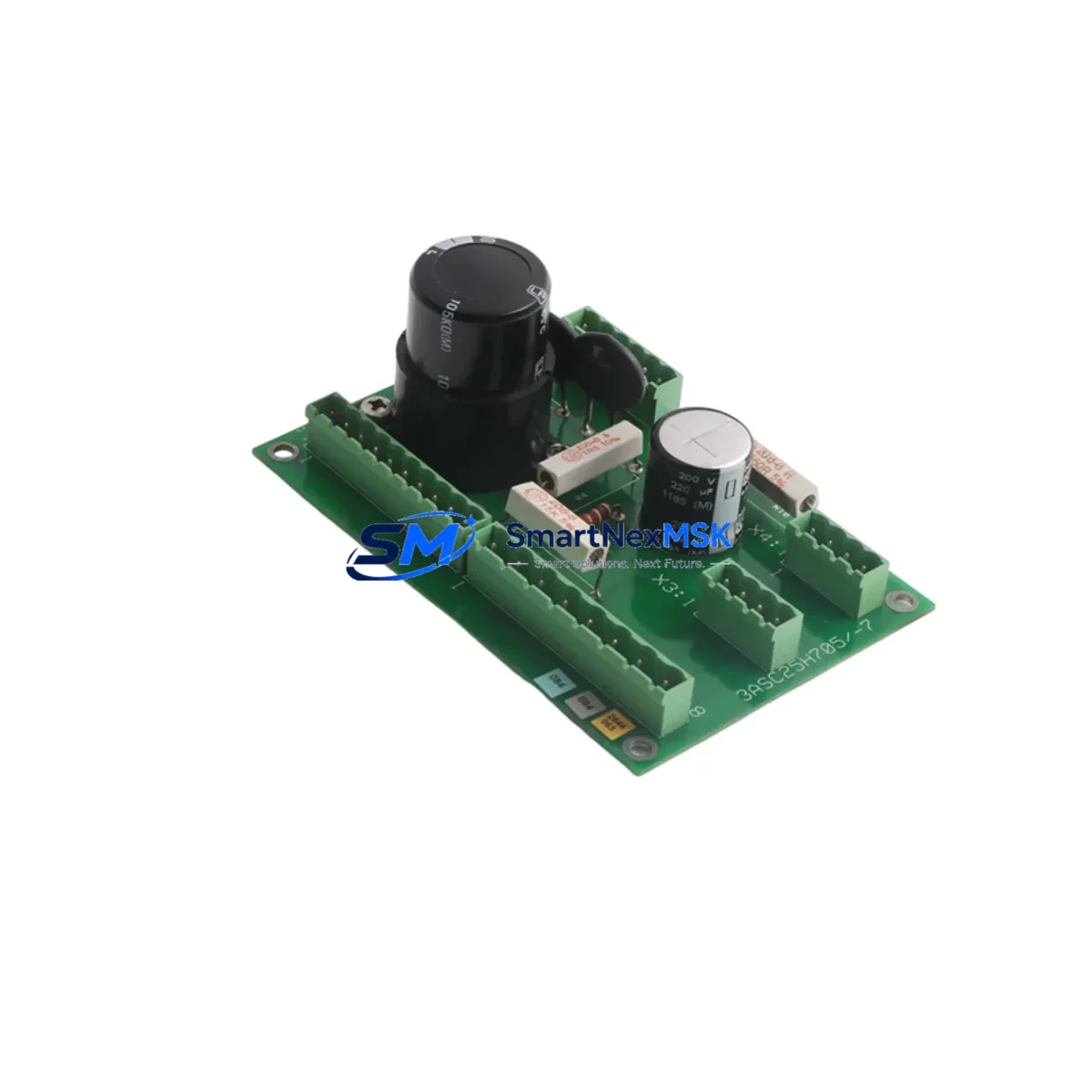

The ABB DASA110 (part number 3ASC25H705/7) is a serial communication module designed for the ABB Advant Controller series — one of the most widely deployed DCS platforms in process industries including oil & gas, pulp & paper, chemical processing, and power generation. As legacy Advant systems continue to operate well beyond their original design life, maintaining a verified stock of original spare modules such as the DASA110 is a critical element of any proactive maintenance strategy.

For maintenance engineers managing aging control infrastructure, the DASA110 serves as the communication backbone between the Advant Controller and field devices or supervisory systems. A failure of this module can result in complete loss of process visibility or control loop interruption — making rapid, like-for-like replacement essential. This listing provides an original, tested DASA110 3ASC25H705/7 module, sourced from verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty.

Procurement engineers sourcing long-lead or discontinued ABB Advant components will find this module available for immediate dispatch. Each unit undergoes functional verification before shipment to ensure it meets the original ABB factory specification. Whether you are executing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts buffer, this DASA110 is ready to support your operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DASA110 3ASC25H705/7 in an Advant Controller cabinet, a thorough site inspection should extend beyond the module itself. Maintenance engineers are advised to simultaneously inspect the following components to prevent repeat failures and ensure system stability after recommissioning:

The DSAI130 and DSAI155 analog input modules sharing the same S100 subrack should be checked for signal drift or connector corrosion, as communication faults are sometimes misdiagnosed when the root cause lies in upstream I/O degradation. The DSDO115 digital output module and DSDI110 digital input module in the same rack should be verified for proper termination and relay contact integrity.

The DSDP140 processor module — the CPU of the Advant Controller — should be inspected for firmware version compatibility with the replacement DASA110, particularly in systems running older MasterSoftware releases. The DSMB175 or DSMB176 memory backup module should also be checked to confirm that the controller configuration and application program are safely retained during the swap.

Power distribution within the cabinet deserves equal attention. The DSSB110 subrack power supply and associated 24 VDC bus fuses should be tested under load before the new DASA110 is inserted. A degraded power rail is a common cause of premature communication module failure. Terminal blocks and field wiring connected to the serial communication port should be inspected for loose terminations, insulation breakdown, or ground loops that could introduce noise on the RS-485 bus.

For systems interfacing with an Operator Station (OS) or Engineering Station (ES) via the Advant Fieldbus 100 (AF100) or MasterBus 300, the network repeaters and bus terminators should be verified. If the DASA110 is used as a gateway to a PROFIBUS or MODBUS network, the corresponding DSCS140 or DSCB110 communication boards should be inspected for configuration integrity. Signal isolators on any 4–20 mA loops connected through the communication chain should also be tested to rule out ground fault contributions.

Building a minimum two-unit spare buffer for the DASA110 is recommended for any facility running more than one Advant Controller node. Given the age of the platform and the declining availability of new-old-stock units, early procurement significantly reduces the risk of extended downtime during future fault events.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the DASA110 is the failed component using the Advant Controller diagnostic LEDs and MasterView 800 or Plant Explorer fault logs. Document the slot address and subrack position before removal.

Step 2 — Safe Isolation: Place the controller node in manual or backup control mode where process safety permits. Notify the control room of the planned module swap. Do not power down the entire subrack unless required — the Advant S100 system supports hot-swap on select configurations.

Step 3 — Module Removal: Disconnect the serial communication cable from the DASA110 front connector. Release the module locking levers and extract the card from the backplane. Avoid touching the PCB edge connectors.

Step 4 — Replacement Installation: Insert the new DASA110 3ASC25H705/7 into the same slot. Reconnect the serial cable. Confirm the module address DIP switches or jumper settings match the original configuration — photograph the original before removal if settings are not documented.

Step 5 — Recommissioning: Power the subrack and observe the DASA110 status LEDs. A solid green RUN indicator confirms successful initialization. Verify communication restoration in MasterView or Plant Explorer. Perform a loop check on all I/O channels served by the communication path before returning the node to automatic control.

Step 6 — Documentation: Update the maintenance log with the replacement date, module serial number, and post-swap test results. Flag the removed module for bench testing or disposal per site procedures.

Spare Parts Support FAQ

Q1: Is this DASA110 3ASC25H705/7 a direct drop-in replacement for the original ABB module?
Yes. This unit carries the identical ABB part number 3ASC25H705/7 and is fully compatible with the Advant Controller S100 I/O system. No firmware modification or hardware adaptation is required. Confirm the DIP switch address settings match your existing configuration before installation.

Q2: What pre-shipment testing is performed on this module?
Each DASA110 unit is functionally tested prior to dispatch to verify power-up, communication port operation, and LED status indication. A test report is available upon request. The module is shipped in anti-static packaging with protective end caps on all connectors.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions consistent with ABB’s published environmental specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize your downtime exposure.

Q4: Can you support long-term or blanket purchase orders for ongoing Advant system maintenance?
Yes. We support scheduled delivery agreements and strategic spare buffer programs for facilities managing multiple Advant Controller nodes. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments aligned with your planned maintenance calendar.
