ABB DCP02 Maintenance-Ready Spare for Advant 400 Automation

ABB DCP02 Maintenance-Ready Spare for Advant 400 Automation

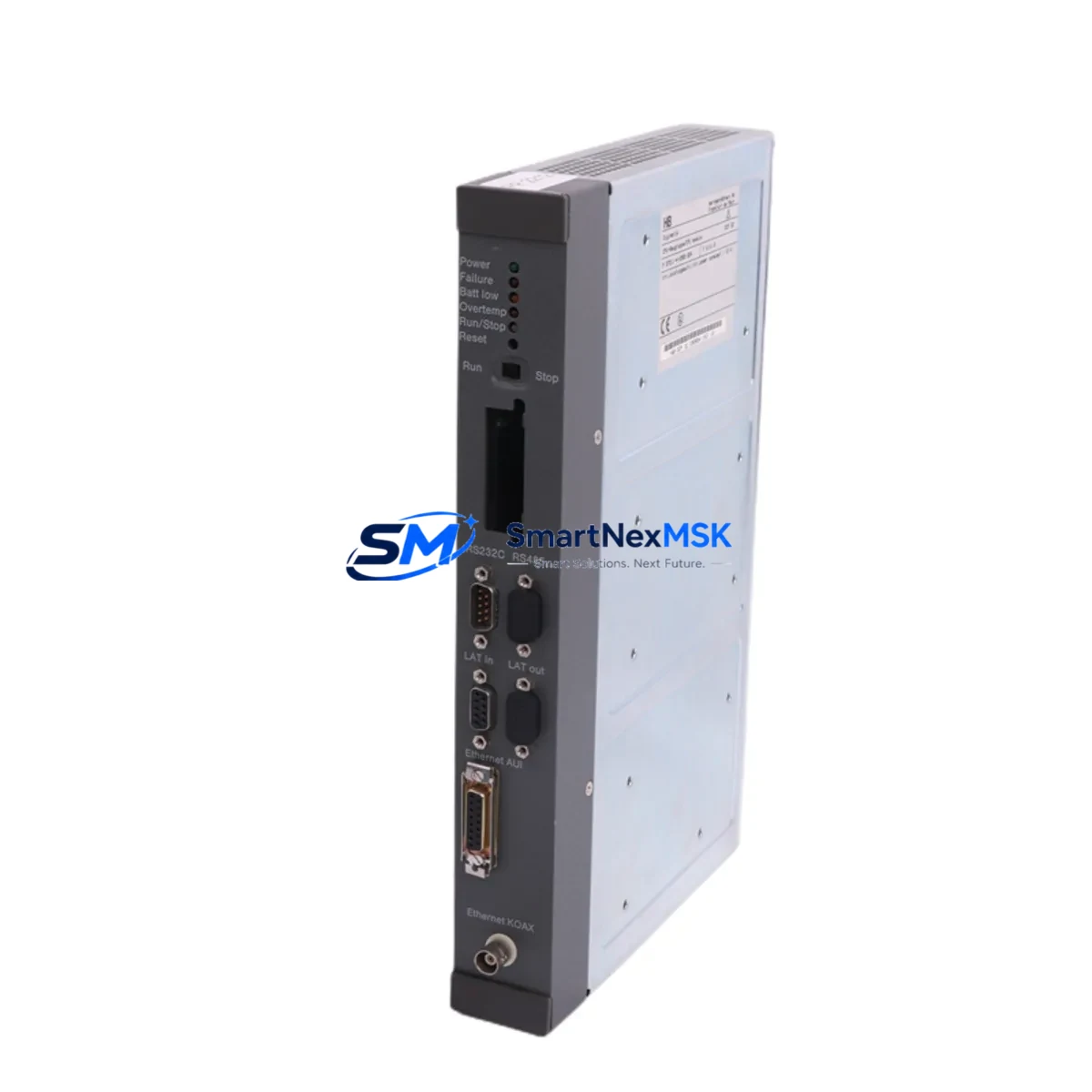

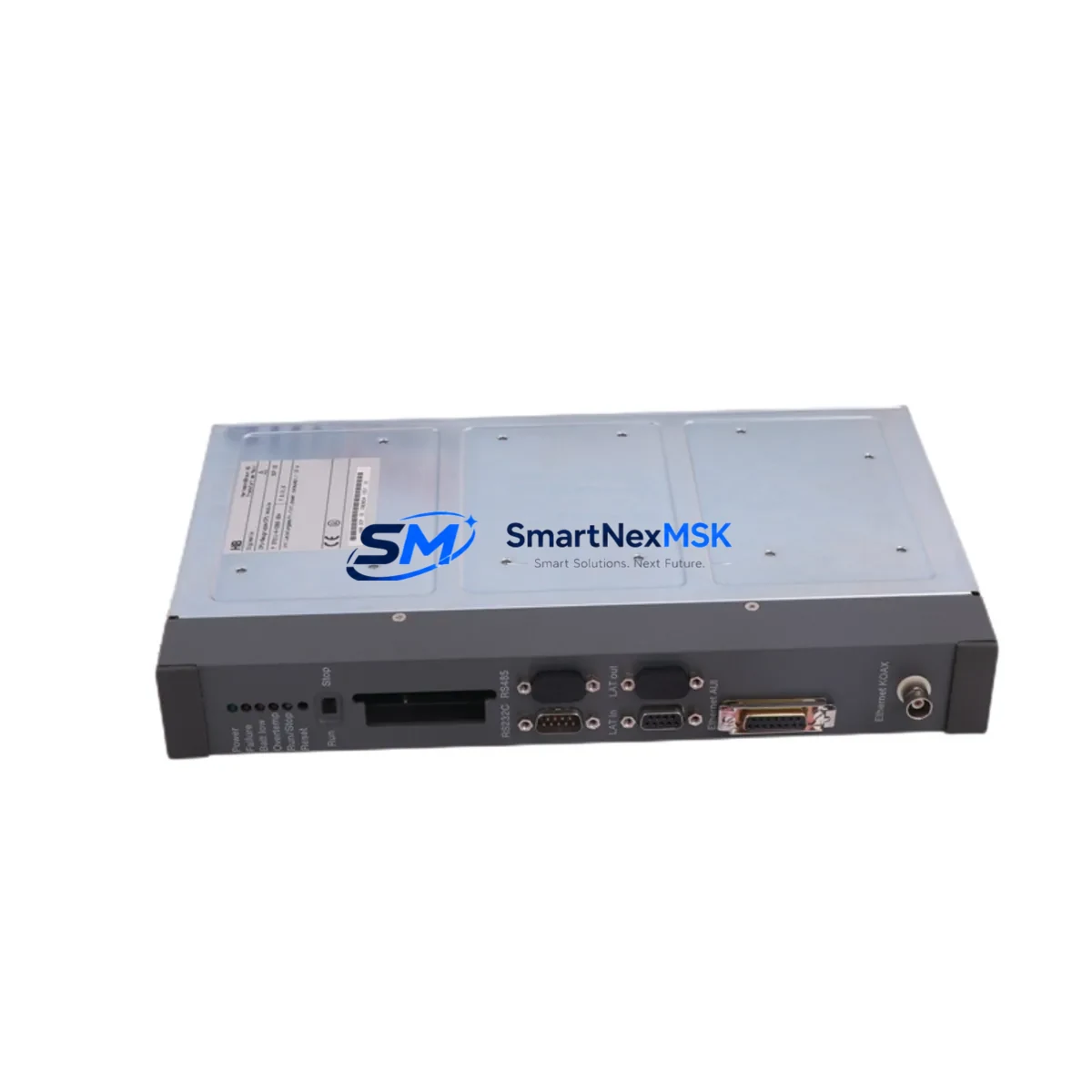

The ABB DCP02 is a central processor module designed for the Advant Controller 400 series distributed control system. In industrial facilities where continuous process control is non-negotiable — including power generation, pulp and paper, chemical processing, and oil & gas — an unplanned DCP02 failure can trigger immediate production shutdown. Holding a verified, tested spare on-site is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

This listing provides an original ABB DCP02 module, sourced from authorized channels, inspected prior to dispatch, and backed by a 12-month warranty. Each unit undergoes functional verification before shipment to ensure it meets ABB factory specifications. Whether you are executing a planned replacement during a scheduled outage or responding to an emergency fault, this spare is ready to install.

Maintenance engineers and procurement teams working with Advant Controller 400 infrastructure rely on the DCP02 as the system’s core execution unit. Its role in scan-cycle management, I/O coordination, and inter-module communication makes it a single point of failure that demands proactive spare management. A single stocked unit can mean the difference between a two-hour recovery and a multi-day production loss.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCP02 fault is detected — typically surfaced through an ABB Advant OCS alarm, a watchdog reset, or a loss of MasterBus 300 communication — the replacement workflow must be systematic to avoid secondary faults. Maintenance engineers should treat a DCP02 swap as a full control-loop audit opportunity, not merely a module exchange.

Before removing the DCP02, verify the integrity of the DSMB 110 or DSMB 120 MasterBus communication module, which handles inter-controller data exchange. A degraded communication module can cause symptoms that mimic CPU failure and will persist after a DCP02 replacement if not addressed. Similarly, inspect the DSDO 115 or DSDI 110 I/O modules in the same rack — loose backplane connectors or oxidized contacts on digital output and input cards are a common source of intermittent CPU faults in aging Advant 400 systems.

The DSDP 140 power supply module feeding the CPU rack should be load-tested during any planned DCP02 replacement. An under-voltage condition on the 24 VDC rail is a leading cause of premature CPU module failure and is frequently overlooked during fault isolation. Pair this with an inspection of the DSQC 500 series robot controller interface if the AC 400 system is integrated with ABB robotics, as cross-system communication errors can cascade into CPU alarms.

For facilities running PROFIBUS DP networks, confirm that the DP master configuration stored in the DCP02 is backed up before removal. The DSCS 140 communication supervisor or equivalent network management module should be checked for active fault logs that may indicate upstream network issues contributing to CPU stress. Relay output modules such as the DSDO 120 should also be inspected for contact wear, particularly in high-cycle applications where relay fatigue can introduce ground faults that affect CPU stability.

Terminal blocks and field wiring connected to I/O racks adjacent to the CPU slot should be torque-checked during the replacement window. Loose terminations on DSTD 190 or DSTD 150 terminal boards are a documented source of signal noise that can trigger spurious CPU interrupts. If the facility uses signal isolators between field instruments and the AC 400 I/O, verify isolator output levels are within specification — degraded isolators can inject noise that accelerates CPU module wear over time.

Finally, if the Advant 400 system interfaces with an ABB Operator Station (OS) or an Advant OCS HMI, confirm that the HMI communication link is re-established and all process displays are updating correctly after the DCP02 is seated and the system is restarted. Document the replacement in the site maintenance log with the module serial number, installation date, and post-replacement test results.

Site Replacement Workflow

Step 1 — Preparation: Download and archive the current DCP02 configuration using ABB’s Master software or the site’s DCS backup utility. Confirm the replacement DCP02 firmware version matches the installed system baseline. If the site runs a mixed firmware environment, consult the ABB AC 400 compatibility matrix before proceeding.

Step 2 — Safe Isolation: Place the affected controller in manual or fallback mode per site safety procedures. Notify the control room of the planned CPU swap. Do not power down the entire rack unless the site procedure requires it — many AC 400 configurations support hot-standby or bumpless transfer if a redundant CPU is present.

Step 3 — Module Exchange: Remove the faulty DCP02 by releasing the front-panel locking mechanism and sliding the module from the backplane. Insert the replacement unit, ensuring full backplane connector engagement. Secure the locking mechanism before applying power.

Step 4 — Configuration Restore: Load the archived configuration to the new DCP02. Verify all I/O point assignments, PID loop parameters, and communication node addresses are correctly restored. Perform a controlled scan-cycle test before returning the controller to automatic mode.

Step 5 — Post-Replacement Verification: Monitor the system for a minimum of 30 minutes in automatic mode. Confirm no new alarms are generated, MasterBus communication is stable, and all field I/O is responding correctly. Update the spare parts inventory to reflect the consumed unit and initiate a reorder to maintain minimum stock levels.

This workflow applies equally to planned maintenance windows and emergency replacements. The key difference in emergency scenarios is the absence of a pre-staged configuration backup — which underscores the importance of maintaining current DCS backups as a standing operational requirement.

Spare Parts Support FAQ

Q: Is this DCP02 compatible with all Advant Controller 400 variants?
A: The DCP02 is designed for the Advant Controller 400 series, including AC 410, AC 450, and AC 460 configurations. Compatibility depends on the firmware version and rack hardware revision at your site. We recommend confirming your system’s hardware revision against the ABB AC 400 compatibility documentation before installation. Our technical team can assist with compatibility verification prior to order.

Q: What testing is performed before shipment?
A: Each DCP02 unit undergoes functional power-on testing and communication interface verification before dispatch. Modules are shipped in ESD-safe packaging with a test report available on request. The 12-month warranty covers functional failure under normal operating conditions from the date of delivery.

Q: How should I manage DCP02 spare stock for long-term system support?
A: For facilities with a single AC 400 controller, a minimum of one DCP02 spare is recommended. Multi-controller sites should maintain one spare per two to three installed units, depending on system criticality and acceptable MTTR. Given that the Advant 400 series is a mature platform, sourcing lead times for original modules can be extended — maintaining on-site stock is strongly preferred over relying on spot-market availability.

Q: Can this module replace older DCP02 revisions currently installed in the field?
A: In most cases, yes. The DCP02 has maintained backward compatibility across hardware revisions within the AC 400 platform. However, firmware alignment is required — the replacement module must be loaded with the configuration and firmware version matching your installed system. We supply modules with the firmware version specified at order, and our team can advise on revision matching based on your system’s current baseline.
