ABB DCS400-PAN-A Spare for DCS400 Series Automation

ABB DCS400-PAN-A Spare for DCS400 Series Automation: Spare Replacement & Industrial Downtime Risk Control

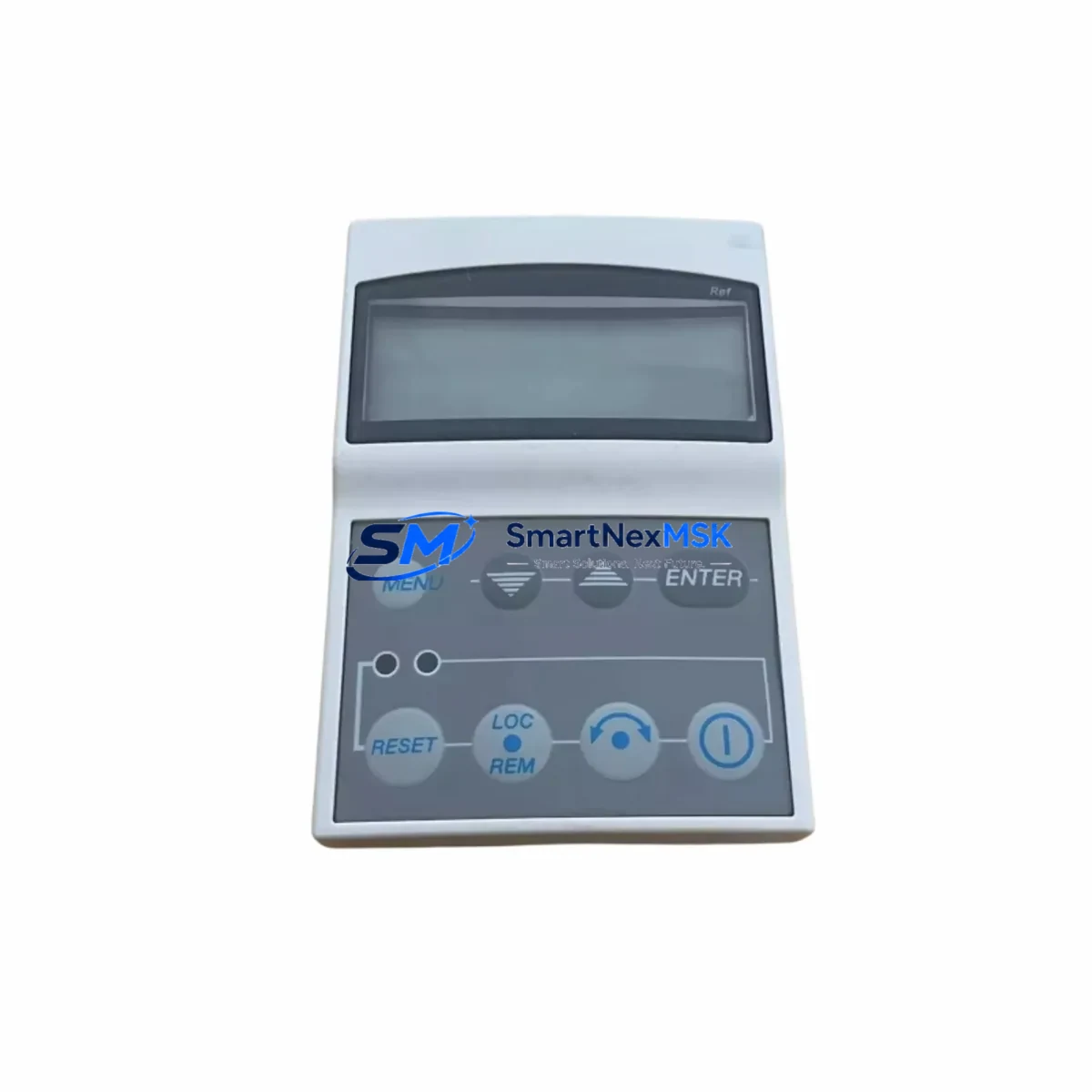

The ABB DCS400-PAN-A is the original remote operator panel designed for the ABB DCS400 series DC drive systems, widely deployed in heavy industrial environments including steel mills, paper machines, extruders, winding lines, and crane drive systems. When this panel fails or becomes unresponsive, operators lose local parameter access, fault diagnostics, and drive control visibility — making rapid spare replacement critical to restoring production continuity. Stocking a verified DCS400-PAN-A spare eliminates the risk of extended downtime caused by sourcing delays on this legacy-compatible component.

This unit ships fully tested, with all keypad functions, display output, and communication interface verified prior to dispatch. Each unit is backed by a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Our supply chain supports long-term procurement for maintenance teams managing aging DCS400 installations where OEM availability may be limited.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS400-PAN-A panel replacement is scheduled or triggered by a fault condition, maintenance engineers should treat the event as an opportunity to inspect the broader drive system and associated control cabinet components. The DCS400 drive’s control board — typically the DCS400 main control unit — should be checked for firmware version compatibility with the replacement panel, as mismatched firmware can cause communication errors after panel swap.

The power supply feeding the DCS400 drive cabinet deserves close attention during any panel replacement. A failing 24VDC auxiliary power supply can cause intermittent panel resets and display dropouts that are often misdiagnosed as panel hardware failure. Similarly, the field excitation circuit and armature feedback wiring should be inspected for loose terminal connections on the drive’s I/O terminal strip, as vibration-induced loosening is common in high-cycle industrial environments.

If the DCS400 installation includes a fieldbus communication module — such as a PROFIBUS or DeviceNet adapter card — verify that the module’s parameter settings are preserved after the panel replacement, since some drive configurations store communication node addresses locally on the panel. The DCS400’s digital I/O interface, including start/stop command wiring and speed reference signal inputs, should be continuity-tested to rule out wiring degradation as a contributing fault factor.

For installations where the DCS400 drives are integrated with a PLC or DCS supervisory system, the signal isolation modules handling analog speed references and feedback signals should be inspected for drift or calibration errors. Relay output modules used for drive fault signaling to the control system are also worth checking — a faulty relay can mask drive fault conditions from the SCADA layer, delaying fault response. Terminal blocks and cable ferrules throughout the drive cabinet should be torque-checked, particularly on high-current armature and field wiring. Fuse holders for the drive’s control circuit protection should be inspected for contact oxidation, which is a common cause of intermittent control power loss in older installations.

For sites running legacy DCS400 systems beyond their original design life, a proactive spare parts kit approach is strongly recommended. Alongside the DCS400-PAN-A operator panel, maintenance planners should consider stocking the DCS400 control board, the drive’s gate firing board, and the fan assembly as a coordinated spare set. This approach minimizes the risk of cascading failures where a single component fault leads to secondary damage during an uncontrolled shutdown.

Site Replacement Workflow

Step 1 — Isolation and Safety: Isolate the DCS400 drive from mains supply using the upstream isolator or circuit breaker. Verify zero voltage on the drive’s AC input terminals using a calibrated multimeter before opening the cabinet door. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after isolation).

Step 2 — Panel Disconnection: Disconnect the operator panel communication cable from the DCS400 control board connector. Note the cable routing and connector orientation before removal. Remove the panel from its mounting cutout by releasing the retention clips or screws as applicable to the installation.

Step 3 — Replacement Panel Installation: Mount the DCS400-PAN-A replacement panel into the cutout, ensuring the gasket seals correctly for IP-rated enclosures. Reconnect the communication cable, verifying correct connector seating. Restore control power and verify that the panel display initializes correctly and shows the drive’s parameter set.

Step 4 — Parameter Verification: Navigate through the DCS400 parameter menu to confirm that all critical parameters — motor nameplate data, speed reference scaling, current limits, and protection settings — are intact. If parameters were stored on the original panel, restore from a backup parameter file using the drive’s upload/download function or re-enter manually from the site commissioning record.

Step 5 — Functional Test: Perform a no-load test run to verify drive response to start/stop commands, speed reference tracking, and fault relay outputs. Confirm that the operator panel displays correct speed feedback, current readings, and drive status before returning the system to production service.

This replacement workflow is compatible with all standard DCS400 drive variants and supports a direct drop-in replacement without drive firmware modification in most installations, significantly reducing mean time to repair (MTTR) and minimizing production impact.

Spare Parts Support FAQ

Q1: Is the DCS400-PAN-A compatible with all variants of the ABB DCS400 drive series?
The DCS400-PAN-A is the standard operator panel for the ABB DCS400 series and is compatible with the full range of DCS400 drive ratings. Compatibility should be confirmed against the drive’s nameplate and existing panel part number before ordering. Our technical team can assist with compatibility verification based on your drive’s serial number or existing panel label.

Q2: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. Warranty claims are handled by contacting our sales team with the order reference and a description of the fault. Replacement or repair is arranged on a case-by-case basis with priority handling for production-critical sites.

Q3: How is the DCS400-PAN-A tested before shipment?
Each unit undergoes a full functional test prior to dispatch, including keypad response verification, display output check, and communication interface test. Units that do not pass the full test protocol are not shipped. A test report is available on request for quality-critical procurement processes.

Q4: Can you support long-term or repeat supply of DCS400-PAN-A panels for ongoing maintenance programs?
Yes. We support long-term supply agreements for maintenance teams managing multiple DCS400 installations or running planned replacement programs. Blanket orders and scheduled delivery arrangements are available. Contact our sales team to discuss volume pricing and lead time commitments for your maintenance inventory program.
