ABB DDO01 Retrofit-Ready Digital Output Module for AC500

ABB DDO01 Retrofit-Ready Digital Output Module for AC500 Control Systems

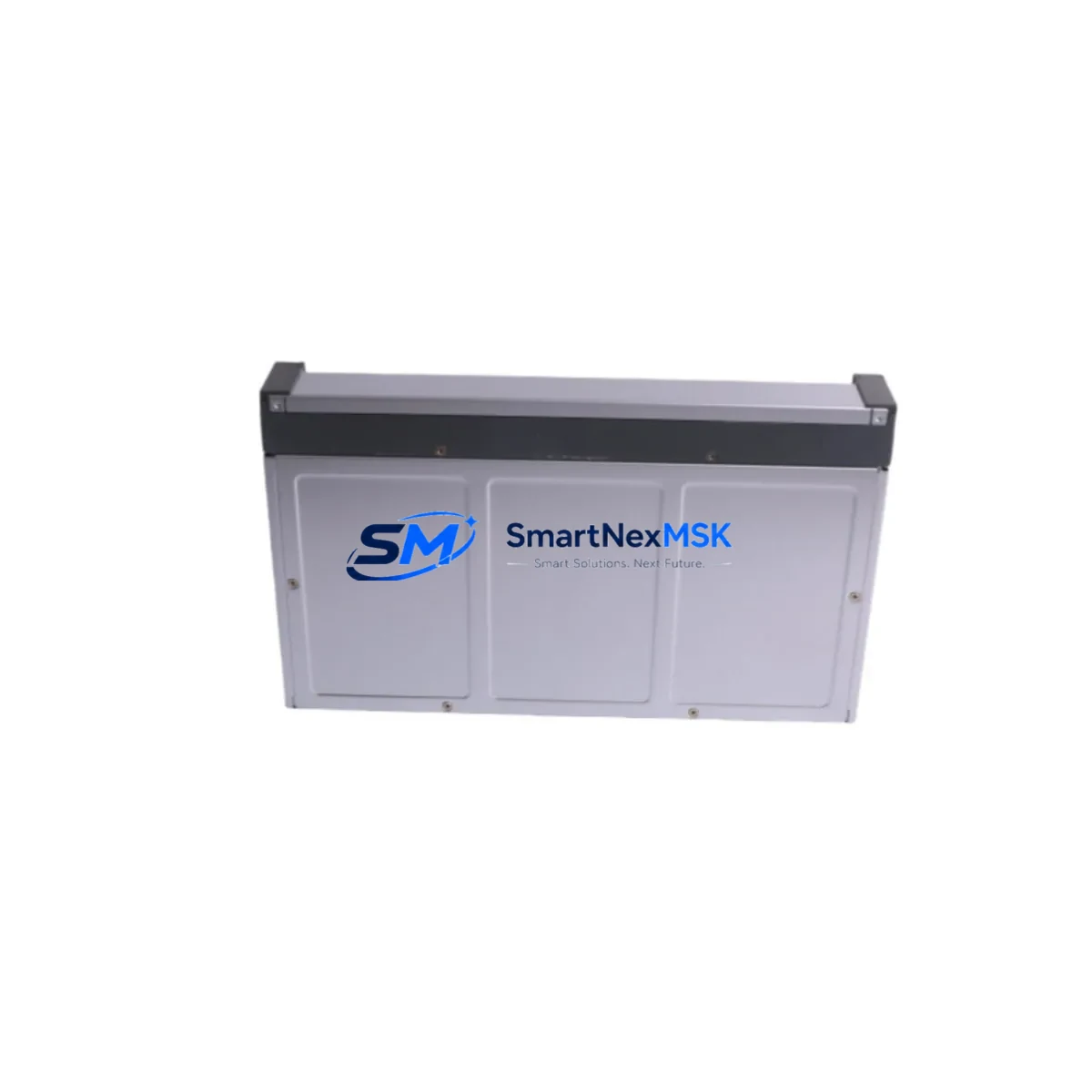

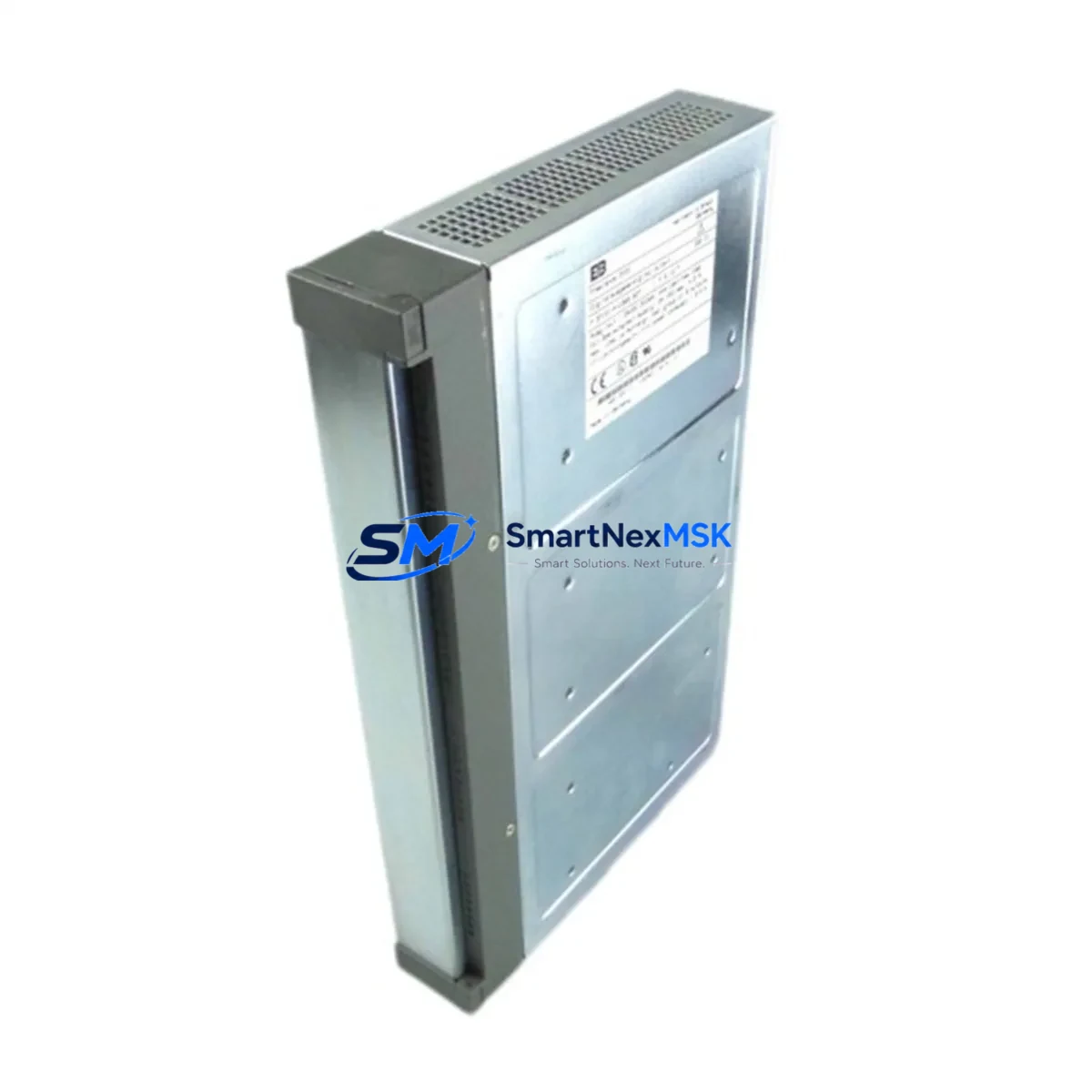

The ABB DDO01 is a 16-channel digital output module engineered for the ABB AC500 PLC platform, widely deployed across industrial process control, machine automation, power distribution, and building management systems. As legacy AC500 installations age and original DDO01 units reach end-of-life or become unavailable through standard distribution channels, sourcing a verified, tested replacement becomes a critical priority for maintenance engineers and system integrators. SMARTNEXMSK maintains ready stock of the ABB DDO01 to support retrofit projects, emergency replacements, and planned control system upgrades — with a 12-month warranty on every unit shipped.

The DDO01 module provides 16 digital output channels (24 VDC) compatible with the AC500 backplane architecture. It slots directly into standard AC500 rack assemblies using the TB521 or TB541 terminal base units, and communicates natively with AC500 CPUs including the PM554, PM564, PM573, and PM583 series. No firmware modification or address remapping is required when replacing a like-for-like DDO01 in an existing rack configuration, making it one of the most straightforward module swaps in the AC500 ecosystem.

For engineers managing aging control cabinets, the DDO01 is frequently encountered alongside companion modules including the DDI01 digital input module, DAI01 analog input module, DAO01 analog output module, and DCF522 communication module. When a full rack refresh is planned, these modules are typically replaced as a coordinated set to ensure consistent firmware compatibility and uniform warranty coverage across the control system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DDO01 retrofit begins well before the module arrives on site. Engineers should first audit the existing rack configuration to confirm the number of occupied slots, the terminal base variant in use, and the current firmware version running on the AC500 CPU. In most AC500 installations, the DDO01 shares a rack with power supply modules such as the PS501 or PS502, which should be inspected for output voltage stability before the new module is commissioned. Insufficient power supply headroom — particularly in densely populated racks combining DDO01, DDI01, DAI01, and DAO01 modules — is one of the most common causes of intermittent output faults after a module swap.

Terminal wiring on the DDO01 follows the standard AC500 screw-terminal layout defined by the TB521 or TB541 terminal base. Field cables connected to the original module can typically be transferred directly to the replacement unit without re-labelling, provided the terminal base remains in place and undamaged. If the terminal base itself shows signs of corrosion, heat stress, or mechanical damage, a replacement TB521 or TB541 should be ordered alongside the DDO01 to avoid scheduling a second maintenance window.

For systems where the AC500 communicates upstream via PROFIBUS DP or Modbus TCP using a CM572-DP or CM579-ETHCAT communication module, the DDO01 replacement has no impact on the fieldbus configuration. The communication module retains its node address and network parameters independently of I/O module changes. However, engineers should verify that the SCADA or DCS host — whether a Freelance DCS controller or a third-party HMI such as an ABB CP600 operator panel — correctly reflects the restored output channel status after the module is brought back online. Where the control system includes an HMI with hardcoded I/O tag references, a brief screen validation is recommended post-commissioning to confirm that all output status indicators, alarm triggers, and manual override functions respond correctly to the reinstated DDO01 channels.

Downtime Control During System Migration

Minimizing production downtime during a DDO01 replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, engineers should export the current Automation Builder project from the AC500 CPU and archive it to a secure location. This backup preserves all POU logic, variable declarations, I/O mapping, and communication configurations — including any PROFIBUS DP node assignments managed through the CM572-DP — ensuring that the program can be restored or re-downloaded within minutes if an unexpected issue arises during the swap.

The physical replacement procedure for the DDO01 is straightforward: with the rack powered down, the module is unclipped from the terminal base, the replacement unit is seated and locked, and power is restored. The AC500 CPU performs an automatic module recognition scan on startup and will flag any slot configuration mismatch in the Automation Builder diagnostic view. If the replacement DDO01 matches the hardware revision of the original, the CPU resumes normal operation without requiring a full program download — preserving output retention states and communication link continuity with upstream systems.

For systems that cannot tolerate a full rack power-down, a partial isolation strategy can be employed: the output channels driven by the DDO01 are placed in a safe state (de-energized or held at last value via the CPU’s output retention setting), the module is swapped using the terminal base’s mechanical release, and outputs are re-enabled channel by channel after the new module is confirmed online. This approach is particularly effective in continuous process environments where a full shutdown would trigger extended restart sequences on downstream equipment such as motor drives, solenoid valve banks, or safety relay circuits. SMARTNEXMSK ships all DDO01 units with a pre-shipment functional test report, and units are dispatched within 1–3 business days of order confirmation, with express freight options available for emergency breakdown situations.

Retrofit Support FAQ

Q1: Is the DDO01 a direct drop-in replacement for a failed unit in an existing AC500 rack?
Yes. The DDO01 is designed for direct replacement within any AC500 V2 or V3 rack. Provided the terminal base (TB521 or TB541) is undamaged, no wiring changes, address configuration, or program modifications are required. The AC500 CPU automatically recognizes the module on the next power cycle and resumes normal I/O operation.

Q2: What pre-commissioning checks are recommended before installing the replacement DDO01?
Verify the power supply output voltage (24 VDC ±10%) at the rack bus — particularly if the rack also houses DAI01 or DAO01 analog modules with higher current draw. Inspect the TB521 or TB541 terminal base connector pins for corrosion or mechanical damage. Confirm the slot position in the Automation Builder hardware configuration matches the physical rack layout, and back up the current CPU program before powering down. These steps eliminate the most common causes of post-replacement faults.

Q3: Can the DDO01 be used in a system that has been partially upgraded to a newer AC500 CPU generation?
Yes. The DDO01 is compatible across AC500 CPU generations including PM554, PM564, PM573, and PM583 variants. Mixed-generation racks — where older I/O modules coexist with a newer CPU — are a standard AC500 architecture and are fully supported by ABB’s Automation Builder engineering environment. No additional configuration is required beyond confirming the hardware catalog entry in the project.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Units that arrive damaged or non-functional (DOA) are eligible for express replacement within 30 days of delivery. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order reference, a description of the fault, and photographic evidence of the defect. Replacement units are dispatched upon fault confirmation, with no additional freight charge for verified warranty cases.
