ABB DI820 3BSE008512R1 Retrofit-Ready Digital Input for S800

ABB DI820 3BSE008512R1 Retrofit-Ready Digital Input for S800 Control Systems

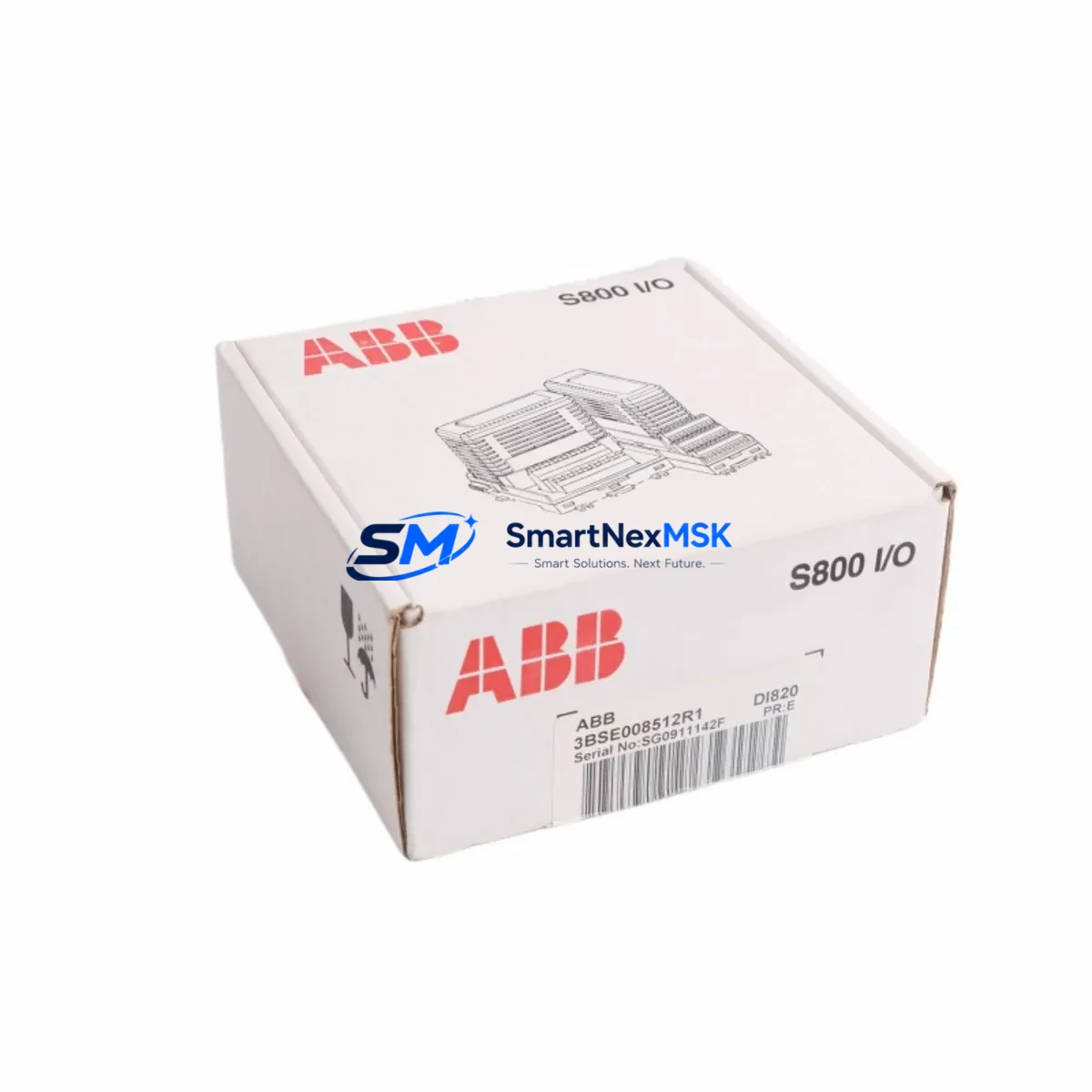

The ABB DI820 (catalog number 3BSE008512R1) is a 16-channel, 120VAC digital input module engineered for the ABB S800 I/O platform. Widely deployed across process automation, power generation, and continuous manufacturing environments, the DI820 remains one of the most requested retrofit components for aging AC800M and AC800F distributed control system architectures. Whether you are replacing a failed unit, upgrading a legacy rack, or migrating from an earlier S800 generation, the DI820 3BSE008512R1 provides a direct, wiring-compatible solution that minimizes engineering rework and reduces planned downtime to the shortest possible window.

SMARTNEXMSK maintains verified stock of the DI820 3BSE008512R1 sourced from authorized distribution channels. Every unit undergoes pre-shipment functional testing, and all sales are covered by a 12-month warranty against manufacturing defects and operational failure under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DI820 retrofit begins well before the module arrives on site. Engineers should start by auditing the existing S800 I/O rack configuration, confirming which terminal base — typically a TB820V2 or TB825 — is installed in the target slot. The terminal base determines field wiring compatibility: if the original module was mounted on a TB820V2, the DI820 3BSE008512R1 drops directly into position without touching a single field cable, preserving the 120VAC wiring harness that connects to field sensors, limit switches, and relay contacts.

Next, verify the communication path. The DI820 communicates over the S800 ModuleBus, which is managed by a communication interface module such as the CI810B, CI820F, CI830, or CI840. Confirm that the CI module firmware is at a revision level that supports the DI820 — this information is available in the ABB S800 I/O Release Notes document for your installed AC800M or AC800F controller version. In most installations running Control Builder M 5.1 or later, no firmware update is required.

Power budget verification is a critical step that is frequently overlooked. The S800 I/O bus draws module power from the PS800 power supply or from the integrated power rail of the S800 remote I/O station. Calculate the total current draw of all modules in the rack, including any newly added DO820, AO820, or AI820 analog input modules, and confirm the PS800 supply has sufficient headroom. A rack operating near its power limit may exhibit intermittent module faults after a replacement if the new module draws slightly more current during initialization.

For systems integrated with ABB 800xA or Symphony Plus, the HMI faceplate and alarm configuration associated with the DI820 channels should be reviewed before the swap. Channel tag assignments in the 800xA Aspect Directory are linked to the physical slot address, not the module serial number, so the HMI display will automatically reflect the new module once it is recognized on the ModuleBus. However, if the replacement involves moving the module to a different rack slot — for example, consolidating I/O after decommissioning adjacent modules — the slot address change must be reflected in the Control Builder M hardware configuration and downloaded to the controller before the new module is powered.

Field commissioning after installation should include a channel-by-channel input verification using the Force function in Control Builder M or the I/O test utility in 800xA. Activate each field device connected to the DI820 inputs — proximity sensors, pushbuttons, motor run contacts, valve limit switches — and confirm that the corresponding channel LED illuminates and the signal appears correctly in the controller’s I/O list. This step typically takes 20–40 minutes for a 16-channel module and is the most reliable method of confirming wiring integrity before returning the system to automatic control.

Alongside the DI820, common components sourced during the same retrofit window include the DO820 digital output module for 120VAC output circuits, the AI820 analog input module for 4–20mA process signals, the AO820 analog output module for control valve positioners, the TB820V2 terminal base when the original base shows signs of contact wear, and the PS800 power supply module when the rack power budget requires expansion. For systems with Profibus DP field devices, the CI840 Profibus DP communication interface is frequently upgraded in the same outage to improve network diagnostics and support modern HART pass-through functionality.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer authorizing a DI820 replacement. The S800 I/O platform supports hot-swap module replacement on most terminal base configurations, meaning the DI820 can be physically removed and replaced while the rack remains powered and the controller continues executing the application program. Before performing a hot-swap, confirm in the Control Builder M hardware configuration that the module slot is configured for redundant or non-critical I/O, and that the application program handles a temporary loss of input signals gracefully — typically through a hold-last-value or safe-state substitution configured in the function block.

For critical input channels — such as emergency stop circuits, motor protection relay contacts, or safety interlock signals — a planned outage window is strongly recommended. Coordinate with the operations team to place the affected control loop in manual mode, confirm that field devices are in a safe state, and document the current channel status before removing the module. This documentation serves as the baseline for post-installation verification and reduces the risk of missing a wiring fault that was pre-existing before the replacement.

Maintain the original program backup in Control Builder M before making any hardware configuration changes. If the replacement requires a configuration download to the AC800M controller, the download can be performed as a warm download in most cases, preserving the runtime state of unaffected function blocks and avoiding a full controller restart. A full cold restart should only be performed if the hardware configuration change cannot be applied as a warm download, and only after confirming that all field devices are in a safe state and operations personnel are informed.

SMARTNEXMSK ships the DI820 3BSE008512R1 with same-day or next-business-day dispatch for in-stock orders, supporting emergency replacement scenarios where minimizing the gap between module failure and restoration of full I/O capacity is critical. Express courier options are available for international shipments.

Retrofit Support FAQ

Q1: Is the DI820 3BSE008512R1 a direct replacement for the DI810 or DI811?
Yes. The DI820 is the current-generation replacement for the earlier DI810 and DI811 digital input modules in the S800 I/O family. It uses the same terminal base footprint and ModuleBus interface, so no rewiring or base replacement is required in the vast majority of installations. Confirm the terminal base model (TB820V2 or TB825) before ordering to ensure full mechanical compatibility.

Q2: Will the DI820 work with my existing AC800M controller without a firmware update?
In most cases, yes. The DI820 3BSE008512R1 is supported by AC800M firmware versions 5.0 and later. If your controller is running an earlier firmware version, consult the ABB S800 I/O compatibility matrix or contact SMARTNEXMSK for pre-sales technical support. We can verify compatibility based on your controller firmware version and Control Builder M release.

Q3: What pre-shipment testing is performed on the DI820 3BSE008512R1?
Every DI820 unit shipped by SMARTNEXMSK undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation, channel input signal verification across all 16 channels, and LED diagnostic status check. Units that do not pass testing are not shipped. All units are covered by a 12-month warranty from the date of shipment.

Q4: Can I install the DI820 while the S800 rack is powered (hot-swap)?
Hot-swap capability depends on the terminal base type and the controller configuration. The TB820V2 and TB825 terminal bases support hot-swap on non-safety-rated I/O channels. Before performing a hot-swap, verify in Control Builder M that the slot is not configured as a safety I/O channel and that the application handles a temporary signal loss without triggering an unplanned shutdown. For safety-rated circuits, always follow your site’s management of change procedure and perform the replacement during a planned outage.
