ABB DO880-2 3BSE028603R1 Maintenance-Ready Spare S800

ABB DO880-2 3BSE028603R1 Maintenance-Ready Spare for S800 Automation

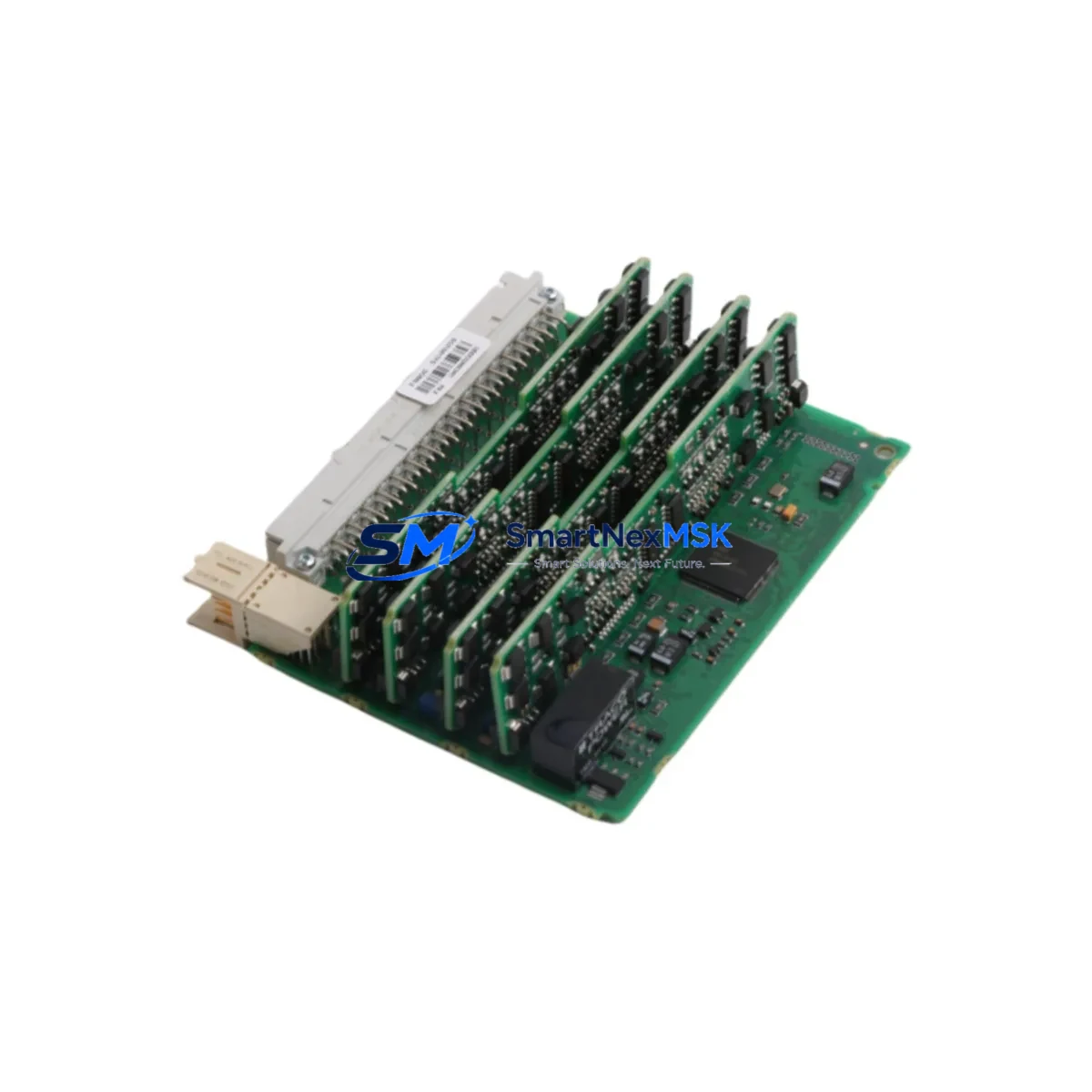

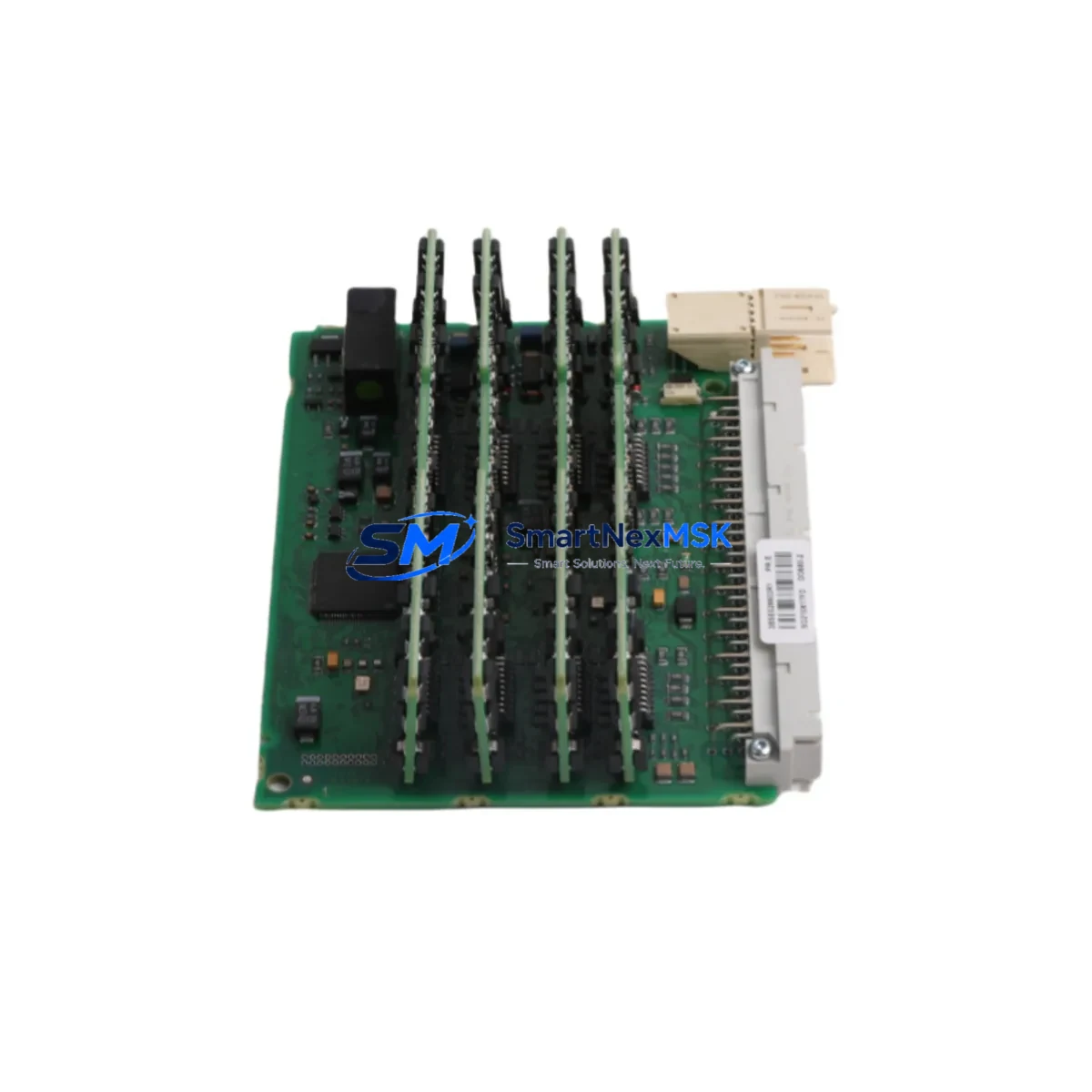

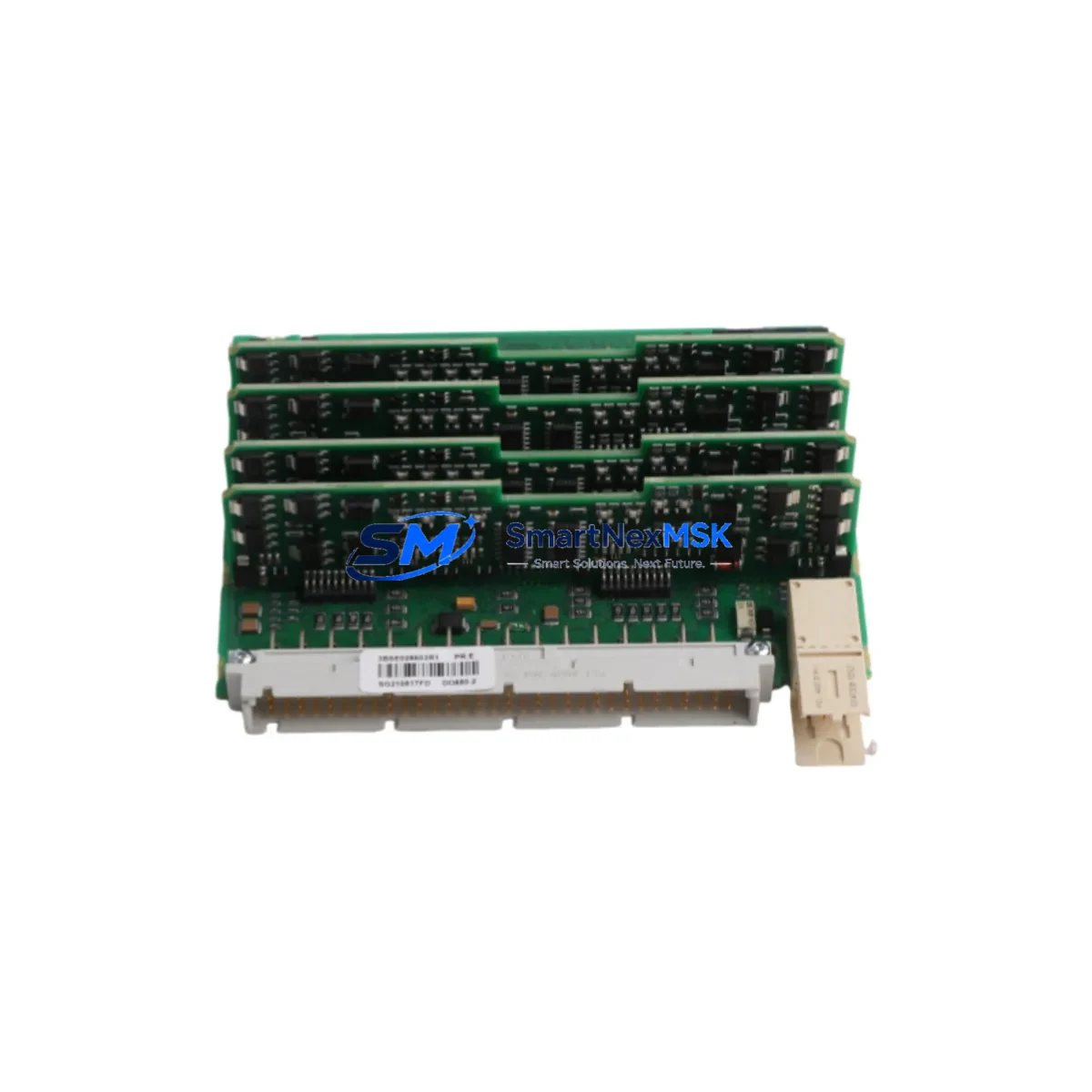

The ABB DO880-2 (3BSE028603R1) is a 32-channel digital output module engineered for the ABB S800 I/O system, widely deployed in AC800M-based DCS and process automation architectures across power generation, oil & gas, pulp & paper, and chemical processing industries. Holding an original ABB spare of this module is a cornerstone of any credible maintenance strategy for facilities running S800-based control cabinets.

When a DO880-2 fails in service, the downstream impact is immediate: field actuators lose command signals, control loops open, and process shutdowns follow within seconds. Maintenance engineers who have pre-qualified a replacement unit — verified against the 3BSE028603R1 part number, confirmed firmware compatibility, and bench-tested output channel integrity — can restore normal operation in under 30 minutes. Without a pre-staged spare, the same recovery can stretch to days of expedited sourcing, customs clearance, and re-commissioning.

This listing supplies an original ABB DO880-2 3BSE028603R1 module, sourced through verified industrial channels, individually tested for output channel continuity and communication handshake with the S800 backplane, and shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a DO880-2 in a live S800 cabinet is rarely an isolated task. A disciplined maintenance engineer will use the replacement event as a trigger for a broader cabinet inspection. Before powering down the affected I/O station, verify that the TB820 or TB840 baseunit terminal block connections are clean and torqued to spec — corroded or loose terminals are a common root cause of intermittent output faults that are misdiagnosed as module failure.

Inspect the SA811 or SA812 power supply module feeding the I/O station. A degraded power supply delivering marginal 24 V DC rail voltage will stress output drivers and shorten module life. If the DO880-2 failed prematurely, the power supply should be load-tested before the replacement module is installed.

Check the CI854 or CI858 PROFIBUS/PROFINET communication interface module for error counters. A communication module with elevated CRC errors or bus timeouts can cause the controller to flag output modules as faulted even when the module hardware is healthy. Clearing the communication fault first prevents unnecessary module swaps.

For cabinets with mixed digital and analog I/O, inspect adjacent AI810 or AI835 analog input modules and DI810 or DI880 digital input modules for signs of moisture ingress or vibration damage. A single-event cabinet inspection during a planned DO880-2 replacement is far more cost-effective than multiple unplanned outages.

If the control cabinet includes relay output modules such as the DO810 on lower-current interlock circuits, verify relay contact wear and coil resistance. Relay modules in the same cabinet often share the same maintenance cycle as solid-state output modules.

For facilities using S800 Remote I/O over ModuleBus Optical (MBR840), inspect the fiber optic connections and verify optical power margins. Degraded fiber links cause intermittent I/O faults that are difficult to distinguish from module hardware failures during initial troubleshooting.

Finally, review the AC800M processor module (PM864 or PM866) event log for any historical output channel fault records associated with the replaced DO880-2 address. Persistent address-specific faults after module replacement indicate a wiring or field device issue rather than a module defect.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement module part number (3BSE028603R1) matches the installed unit. Check the S800 I/O station address configuration on the baseunit — the DO880-2 address is set via DIP switches on the TB820/TB840 baseunit, not on the module itself. Document the current switch positions before removal.

Step 2 — Safe isolation: Place the AC800M controller in manual mode or transfer control to a redundant path if available. De-energize the 24 V DC field supply to the affected I/O station. Do not rely solely on software inhibit for field device isolation.

Step 3 — Module swap: The DO880-2 is hot-swap capable within the S800 architecture when the baseunit remains powered and the controller is in the appropriate operating mode. Slide the module out of the baseunit, insert the replacement, and verify the green RUN LED illuminates within 10 seconds. If the module enters fault state (red LED), check baseunit address settings and communication path before assuming module defect.

Step 4 — Functional test: Force each output channel from the AC800M engineering tool (Control Builder M) and verify field device response. Document channel-by-channel test results in the maintenance log.

Step 5 — Return to service: Restore controller to automatic mode, monitor process variables for 15 minutes, and confirm no residual alarms. Archive the replaced module with failure date and symptom description for reliability trend analysis.

This workflow minimizes mean time to repair (MTTR) and supports IEC 62443 maintenance documentation requirements for industrial control system environments.

Spare Parts Support FAQ

Q1: Is this DO880-2 an original ABB module or a compatible replacement?
This is an original ABB DO880-2 with part number 3BSE028603R1, sourced from verified industrial supply channels. It is not a third-party compatible or remanufactured unit. Each module is individually tested for output channel function and S800 backplane communication before shipment.

Q2: What is the warranty coverage and how is a claim handled?
All modules carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. In the event of a warranty claim, contact sales@smartnexmsk.com with the order number and fault description. Replacement or refund is processed within 5 business days of receiving the returned unit.

Q3: Can this module replace an older DO880 (without the -2 suffix)?
The DO880-2 (3BSE028603R1) is the current production revision of the DO880 family. It is backward compatible with S800 I/O basunits designed for the original DO880. Verify baseunit firmware version supports the -2 revision via the ABB S800 I/O compatibility matrix before installation in legacy systems running older AC800M firmware.

Q4: Do you support long-term or blanket spare parts orders for maintenance programs?
Yes. For facilities managing multi-site S800 installations or annual maintenance contracts, we support blanket purchase orders, reserved stock arrangements, and scheduled delivery programs. Contact sales@smartnexmsk.com or +86 18259474341 to discuss volume pricing and dedicated inventory allocation.
