ABB DP820 3BSE013228R1 Spare for AC500 Automation: Spare Replacement & Downtime Risk Control

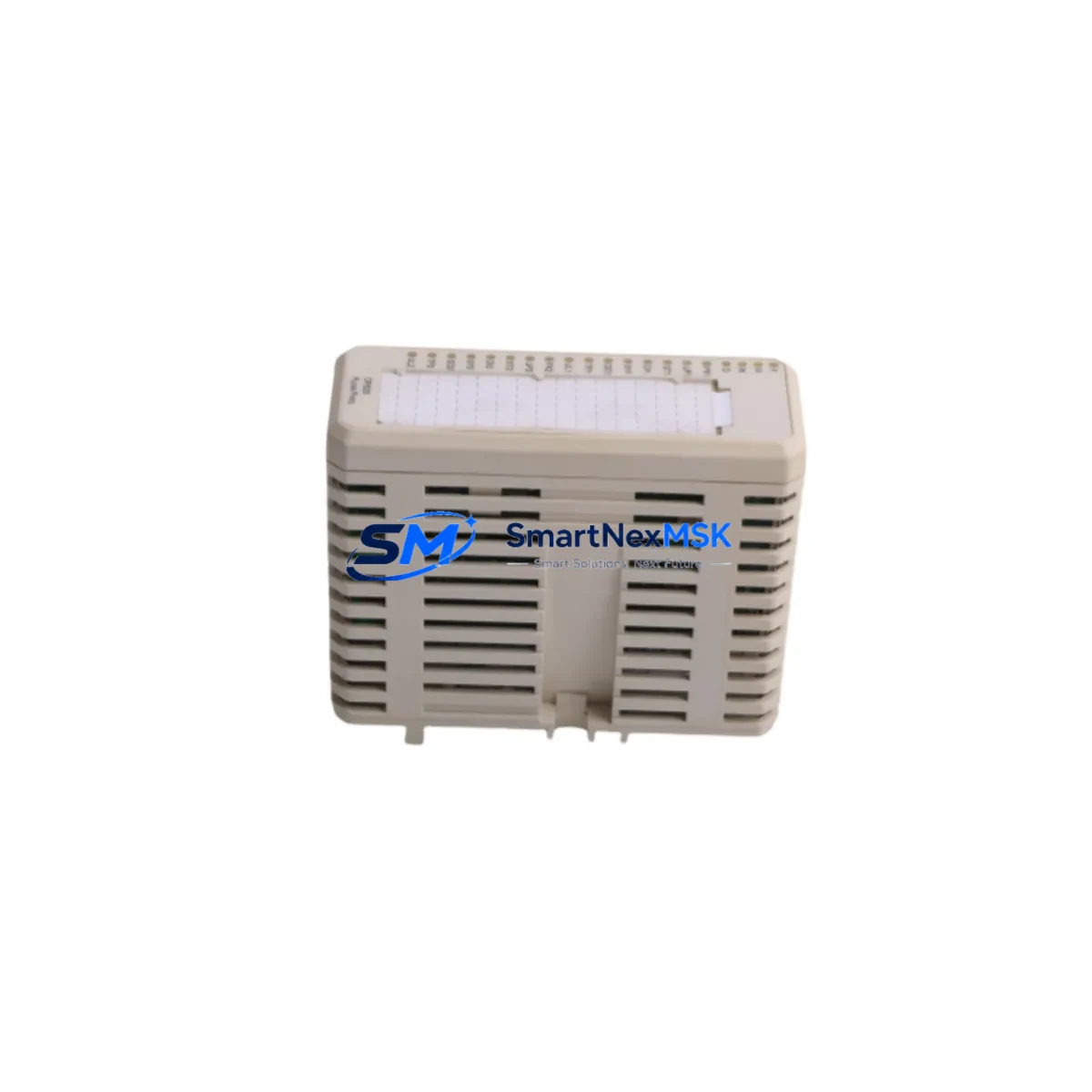

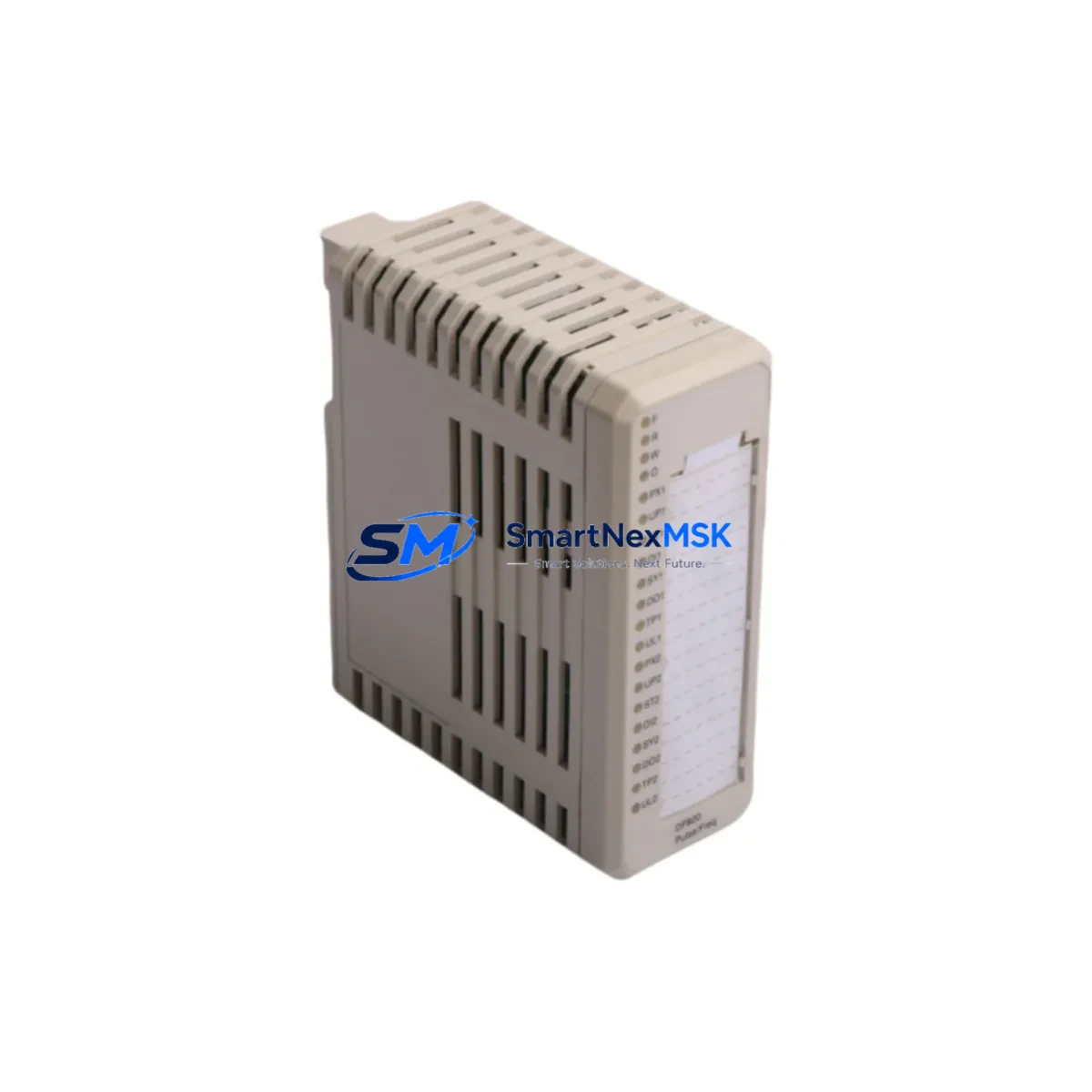

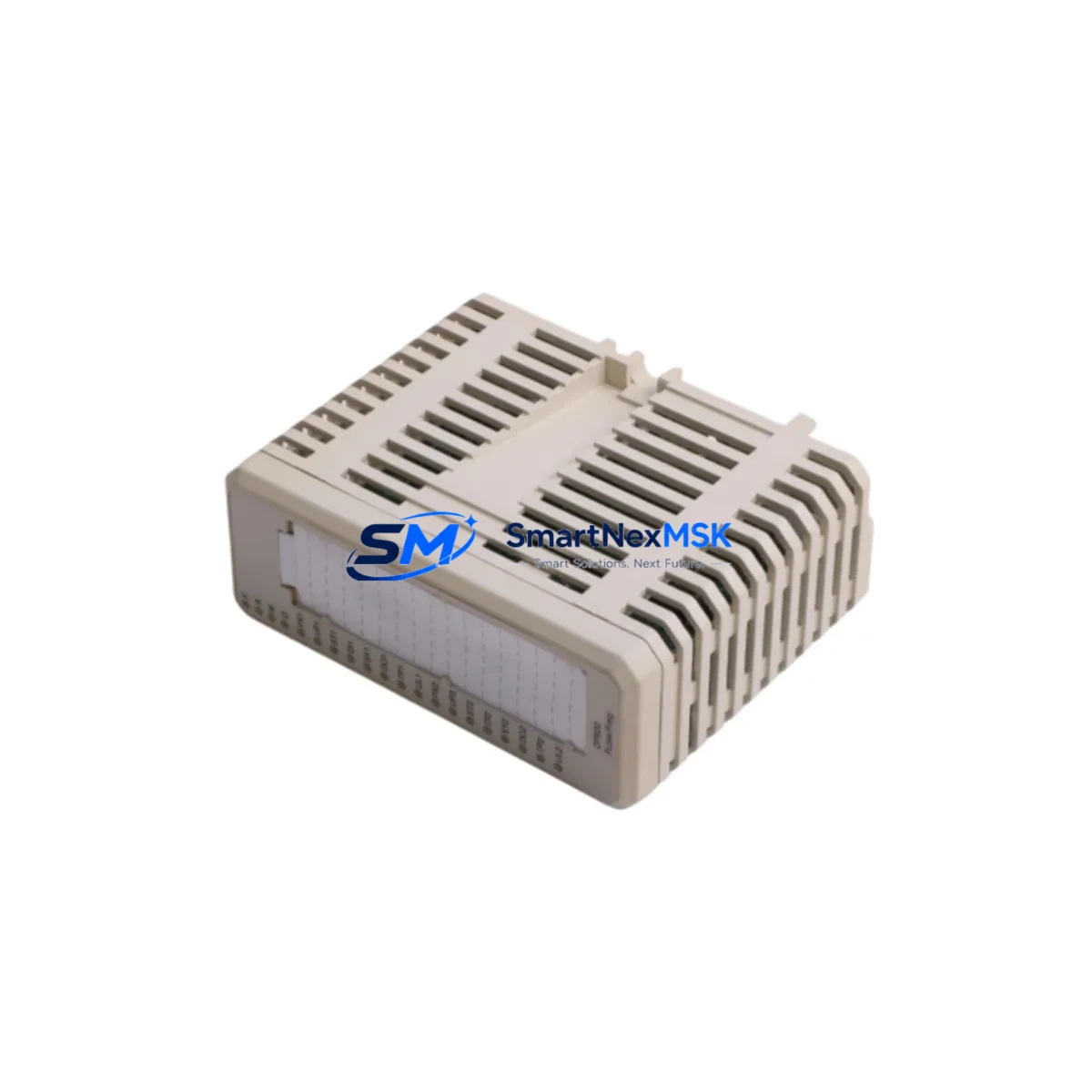

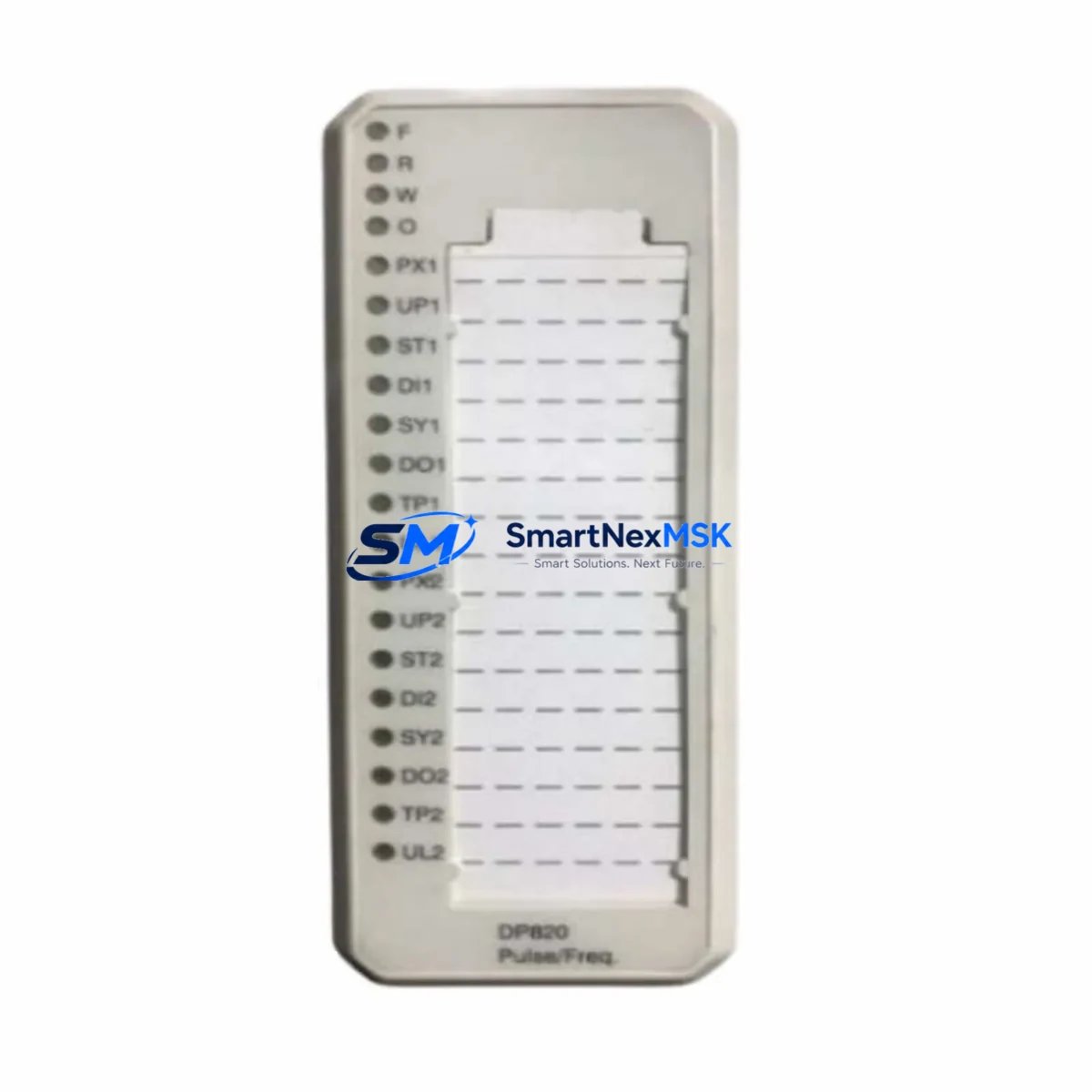

The ABB DP820 (catalog number 3BSE013228R1) is a dual-channel high-speed pulse counter module designed for the ABB AC500 PLC platform. Operating at up to 100 kHz per channel, it is widely deployed in motion control, flow metering, encoder feedback, and high-frequency event counting applications across process automation, packaging lines, and discrete manufacturing. When this module fails or degrades, the entire counting and positioning loop is disrupted — making fast, verified spare replacement essential to restoring production continuity.
At SMARTNEXMSK, we supply original ABB DP820 3BSE013228R1 units sourced from authorized distribution channels. Every unit undergoes functional verification and communication handshake testing before shipment, and is covered by a 12-month warranty. Our inventory is maintained to support both planned maintenance cycles and emergency breakdown recovery, with same-day dispatch available for in-stock orders.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | DP820 / 3BSE013228R1 |
| Brand | ABB |
| Series | AC500 |
| Module Type | High-Speed Pulse Counter Module |
| Channels | 2 (dual-channel independent) |
| Max Counting Frequency | 100 kHz per channel |
| Input Voltage | 24 VDC |
| Backplane Interface | AC500 S500 I/O bus |
| Compatible CPUs | PM571, PM581, PM591, PM595 and AC500 eCo series |
| Mounting | S500 I/O terminal unit (TB511, TB521 series) |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 |
| Origin | Germany |
| Warranty | 12 Months |
| Condition | Original, New |
| Pre-shipment Test | Functional verification + communication handshake |
| Compatibility | Direct drop-in replacement for DP820 3BSE013228R1 in all AC500 configurations |
| Maintenance Recommendation | Inspect every 24 months or after surge/fault events; verify channel calibration after replacement |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the DP820 3BSE013228R1, the scope of inspection should extend beyond the module itself. The DP820 interfaces directly with the AC500 backplane through the S500 I/O bus, meaning any degradation in the terminal unit — such as the TB511-ETH or TB521 terminal base — can cause intermittent counting errors that are misdiagnosed as module failure. Always inspect the terminal base contacts and locking mechanism before condemning the DP820.
On the signal input side, the DP820 receives pulses from encoders, proximity sensors, or flow transmitters via 24 VDC digital inputs. Engineers should verify the condition of the field wiring, shielding continuity, and the upstream 24 VDC power supply module (such as the ABB CP502 or equivalent DIN-rail PSU) before replacement. A marginal power supply that drops below 20 VDC under load can cause false counts or channel lockout, symptoms that mimic module failure.
In the same control cabinet, it is good practice to simultaneously inspect the adjacent DI524 digital input module and DO524 digital output module, which often share the same I/O rack and power bus. If the DP820 failed due to a surge event, these modules may have absorbed transient energy as well. Similarly, the AI523 analog input module used for process variable feedback should be checked for drift or offset errors that could indicate a broader power quality issue.
For systems using the DP820 in encoder feedback loops, the AC500 CPU module (PM581 or PM591) should be checked for firmware currency and program integrity after any I/O module swap. A module replacement that changes the I/O configuration may require a cold restart or parameter re-download to restore correct pulse counting behavior. Keep a backup of the PLC program and hardware configuration on a SD memory card or engineering workstation running ABB Automation Builder before performing any hot-swap or replacement procedure.
Communication integrity should also be verified. If the AC500 system uses PROFIBUS DP or Modbus TCP for supervisory communication, confirm that the CM572-DP PROFIBUS master module or Ethernet communication card is reporting the DP820 node correctly after replacement. A missing or faulted node in the network configuration can trigger system-wide alarms even when the replacement module is functioning correctly.
Finally, for cabinets in high-vibration or high-humidity environments, inspect the terminal block wiring (Phoenix Contact or Weidmüller type) connected to the DP820 input channels. Loose terminations are a leading cause of intermittent pulse loss in field installations and should be re-torqued to specification during any planned maintenance window.
Site Replacement Workflow
Step 1 — Compatibility Confirmation: Verify the installed module’s catalog number (3BSE013228R1) against the replacement unit. The DP820 has no hardware revision variants that affect pin-compatibility within the AC500 S500 I/O family, making it a direct drop-in replacement without firmware changes in most configurations.
Step 2 — Safe Isolation: Place the AC500 CPU in STOP mode via the programming tool or keyswitch. De-energize the 24 VDC I/O supply rail feeding the DP820 terminal unit. Do not remove the module under power — the S500 bus does not support hot-swap on standard terminal units.
Step 3 — Module Removal: Release the locking tab on the terminal base, slide the DP820 upward, and disconnect. Note the channel wiring labels before disconnecting field cables from the terminal base.
Step 4 — Installation: Seat the new DP820 3BSE013228R1 into the terminal base until the locking tab engages. Reconnect field cables per the original wiring diagram. Re-energize the I/O supply rail.
Step 5 — Verification: Bring the CPU back to RUN mode. Monitor the DP820 channel status in the diagnostic view of ABB Automation Builder. Confirm pulse counts are incrementing correctly against a known reference signal. Log the replacement date, module serial number, and test results in the maintenance record.
This workflow minimizes downtime to under 30 minutes for a trained technician and eliminates the risk of configuration mismatch that can occur when substituting non-original or cross-brand alternatives.
Spare Parts Support FAQ
Q1: Is the DP820 3BSE013228R1 still available as a new original part?
Yes. SMARTNEXMSK maintains stock of original ABB DP820 3BSE013228R1 units. Despite the AC500 platform’s maturity, we continue to source and supply this module to support long-running installations and system life extension programs. Contact us to confirm current stock levels and lead times.
Q2: How is the module tested before shipment?
Each DP820 unit undergoes a functional verification test that includes power-on self-test confirmation, dual-channel pulse input simulation at multiple frequencies, and I/O bus communication handshake with an AC500 CPU. Units that do not pass all test criteria are not shipped. A test report is available upon request.
Q3: Can the DP820 replace an older revision of the same module in an existing AC500 rack?
Yes. The DP820 3BSE013228R1 is backward-compatible within the AC500 S500 I/O family. No hardware configuration changes are required in the PLC program for a like-for-like replacement. If the system uses a hardware configuration file (HWC), a re-download may be required after replacement — consult your ABB Automation Builder project documentation.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the ABB DP820 datasheet. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the rated operating range. Warranty claims are processed with return shipment support and replacement dispatch within 5 business days of fault confirmation.
