ABB DSAX452 5712289-A Retrofit-Ready Analog I/O for Advant MOD 300 Control Systems

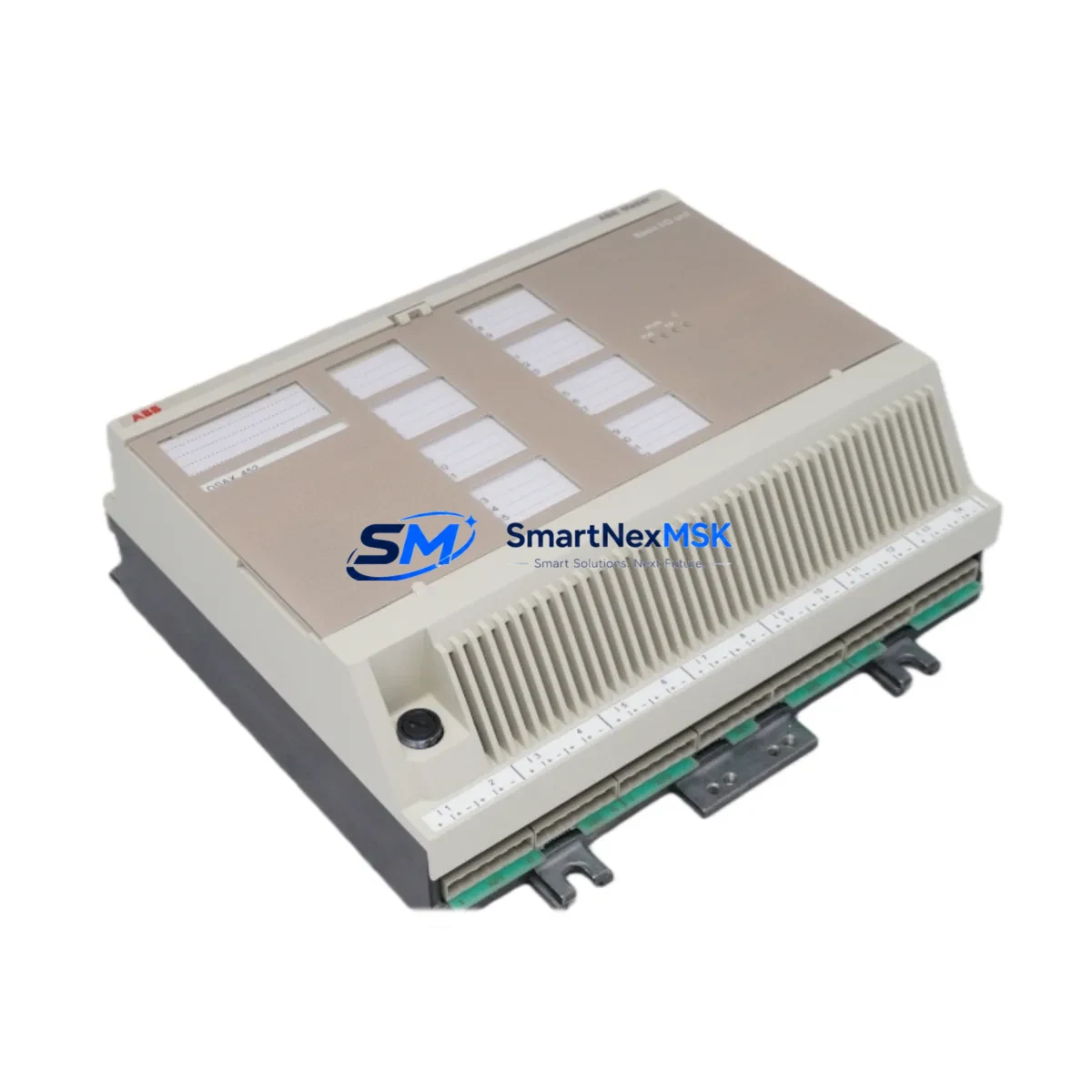

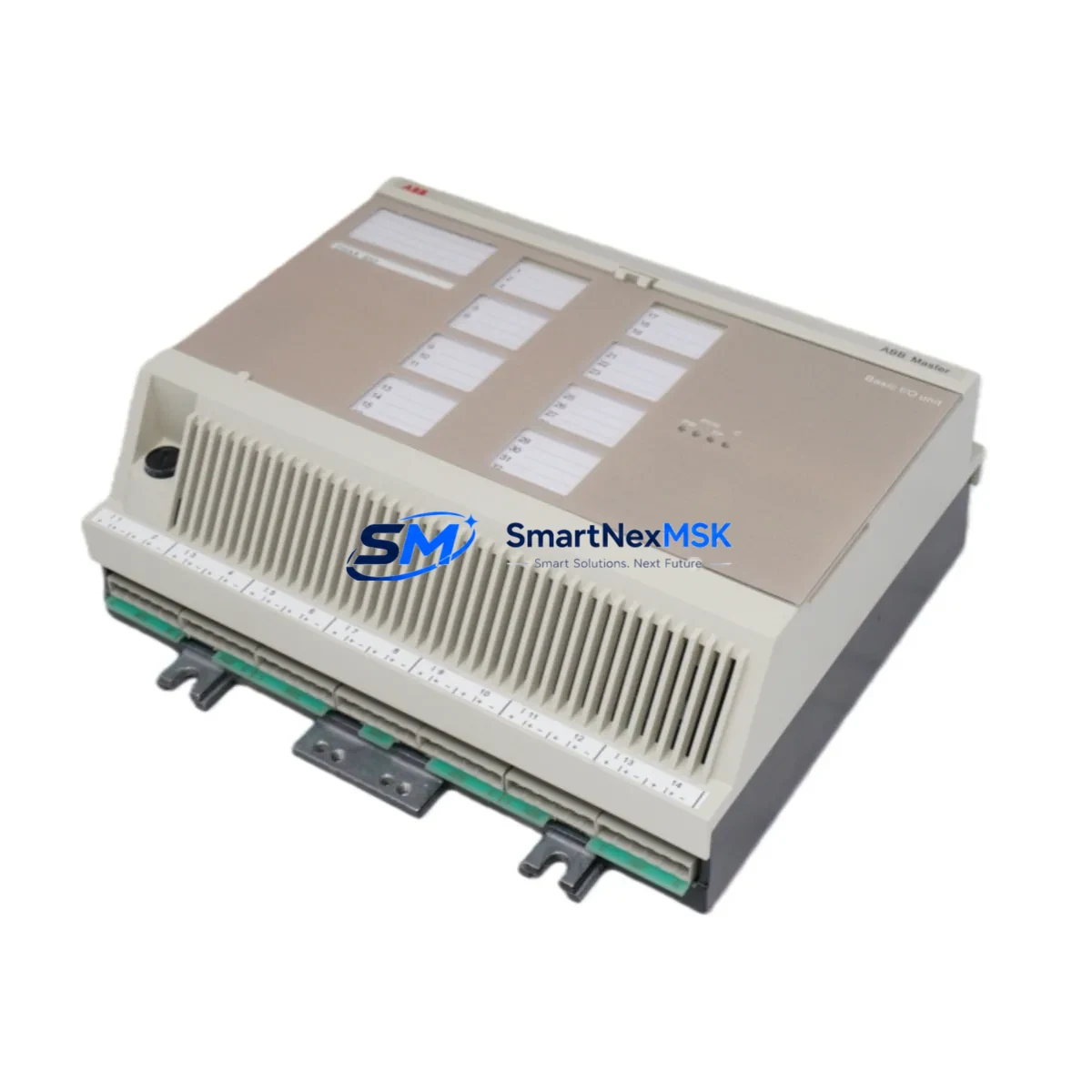

The ABB DSAX452 (part number 5712289-A) is a high-density analog input/output module originally designed for the ABB Advant MOD 300 Distributed Control System. As legacy MOD 300 installations approach end-of-life and OEM support is discontinued, the DSAX452 has become one of the most sought-after retrofit and replacement components for process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. SMARTNEXMSK maintains verified stock of the DSAX452 5712289-A, fully tested and backed by a 12-month warranty, to support your system migration and emergency replacement needs.

Whether you are executing a planned control system upgrade, responding to an unplanned module failure, or consolidating spare parts inventory ahead of a plant turnaround, the DSAX452 5712289-A delivers the signal conditioning, channel density, and backplane compatibility required to keep your MOD 300 architecture operational without forcing a full platform migration. Each unit is inspected, function-tested, and shipped with documentation to support your site acceptance and commissioning procedures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSAX452 5712289-A into an aging MOD 300 system requires a structured retrofit assessment before the module is physically installed. Engineers should begin by auditing the existing subrack configuration, confirming available slot positions, and verifying that the DSAX452 module address does not conflict with other installed modules such as the DSDI110A digital input module or the DSDO115A digital output module sharing the same rack segment.

Power budget verification is a critical pre-installation step. The MOD 300 subrack power supply — typically a DSDP140 or DSDP150 power supply unit — must have sufficient headroom to support the DSAX452’s operating current draw alongside other co-installed modules. If the existing power supply is already near capacity, a parallel power supply or subrack expansion may be required before the analog module can be safely commissioned.

Terminal block wiring should be documented and photographed before any module removal. The DSAX452 uses a dedicated field termination unit; confirm that the existing FTU (field termination unit) cabling matches the 5712289-A revision’s pinout. In cases where the original module was an earlier DSAX452 revision, minor terminal mapping differences may require short jumper adjustments at the marshalling cabinet rather than full rewiring of field instrumentation.

For systems where the MOD 300 communicates upstream to an ABB Advant Controller 450 (AC450) or interfaces with an ABB Advant OCS operator station, the analog channel configuration stored in the controller’s application program must be verified against the replacement module’s channel count and signal range. If the plant is simultaneously migrating from MOD 300 to an 800xA System 800xA architecture, the DSAX452 may serve as a bridging component during the phased migration, allowing field instruments to remain connected while the supervisory layer is upgraded.

HMI screen validation is often overlooked during module replacement. After the DSAX452 is installed and powered, operators should confirm that all associated process variables — flow, pressure, temperature, and level signals routed through the module — are displaying correctly on the MasterView 800 operator interface or any connected third-party SCADA system. Analog signal scaling, engineering unit conversion, and high/low alarm setpoints should be verified against the original loop documentation before the system is returned to automatic control.

For sites planning broader I/O expansion alongside the DSAX452 replacement, the DSMB175 communication module and DSBC172 bus connection module are commonly required to extend the S-bus segment and accommodate additional I/O subracks. Programming cable DSPG01 or equivalent is recommended for any on-site firmware verification or module configuration tasks performed with the ABB Advant Builder engineering tool.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a failed DSAX452 in a live production environment. SMARTNEXMSK ships verified stock units with same-day or next-business-day dispatch to support emergency replacement scenarios. Each module undergoes functional testing prior to shipment, reducing the risk of receiving a non-functional unit during a critical outage window.

For planned maintenance windows, the recommended approach is to pre-stage the replacement DSAX452 5712289-A in the control room, verify the module address configuration offline using the engineering workstation, and prepare a rollback procedure in case the replacement module reveals an underlying backplane or wiring fault. The original application program logic stored in the AC450 controller does not require modification for a like-for-like DSAX452 replacement, preserving control continuity and eliminating the risk of inadvertent program changes during the swap.

Where hot-swap capability is not available in the MOD 300 subrack, coordinate the module replacement with the process control team to identify the shortest safe shutdown window. Analog output channels connected to final control elements — control valves, variable speed drives, or positioners — should be placed in manual mode at the DCS before the module is removed, preventing uncontrolled process upsets during the swap interval. After the replacement DSAX452 is seated and powered, return each output channel to automatic control sequentially, monitoring process response at each step before proceeding.

For multi-subrack MOD 300 installations, replacing the DSAX452 in one subrack does not affect analog I/O in adjacent subracks, allowing partial system operation to continue during the replacement. This segmented approach is particularly valuable in continuous process plants where a full system shutdown carries significant production and safety implications.

Retrofit Support FAQ

Q1: Is the DSAX452 5712289-A a direct replacement for all DSAX452 revisions?
The 5712289-A is the primary production revision of the DSAX452 and is compatible with standard MOD 300 subrack slots. If your existing installation uses an earlier revision suffix, verify the terminal block pinout and firmware compatibility using the ABB Advant MOD 300 module documentation before installation. In most cases, the replacement is direct; minor wiring adjustments at the FTU are occasionally required for older revision mismatches.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm the module address in the engineering tool, verify that all analog input channels are reading within expected range, and check that analog output channels are responding correctly to controller commands. Validate alarm limits and engineering unit scaling against the original loop sheets. If the module is installed in a system undergoing migration to 800xA, additional configuration in the 800xA System may be required to map the DSAX452 channels to the new supervisory layer.

Q3: Can the DSAX452 5712289-A be used in a mixed-revision MOD 300 subrack alongside other module types?
Yes. The DSAX452 coexists with other MOD 300 I/O modules — including digital input modules such as the DSDI110A, digital output modules such as the DSDO115A, and communication modules such as the DSMB175 — within the same subrack, provided that module addresses are correctly assigned and the subrack power budget is not exceeded.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact SMARTNEXMSK at sales@smartnexmsk.com with your order reference and a description of the fault. A replacement unit will be dispatched after fault verification, and the defective module should be returned in its original packaging for inspection.
