ABB DSBC176 3BSE019216R1 Safety-Enhanced I/O Bus Extender

ABB DSBC176 3BSE019216R1 Safety-Enhanced I/O Bus Extender for Harsh Industrial Sites

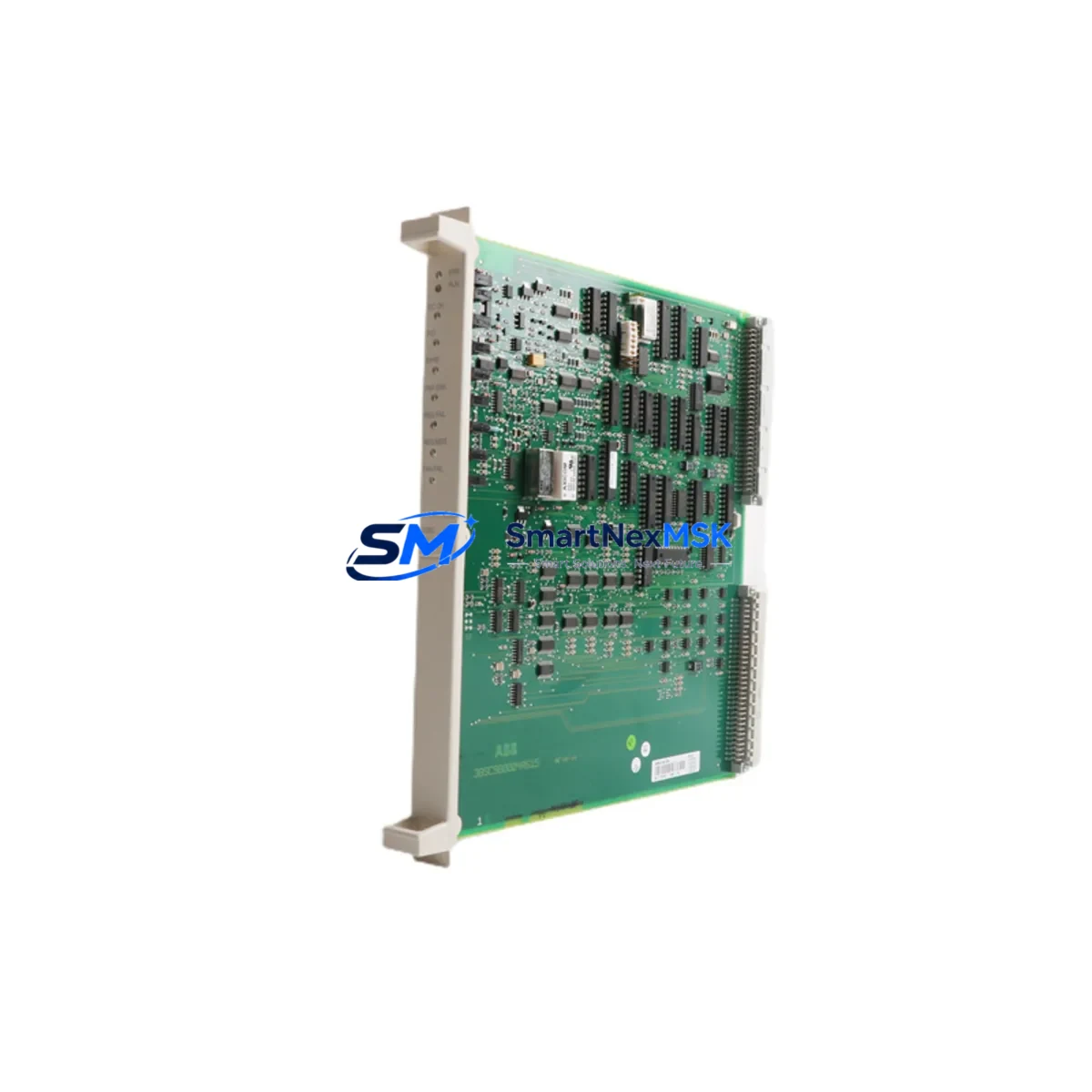

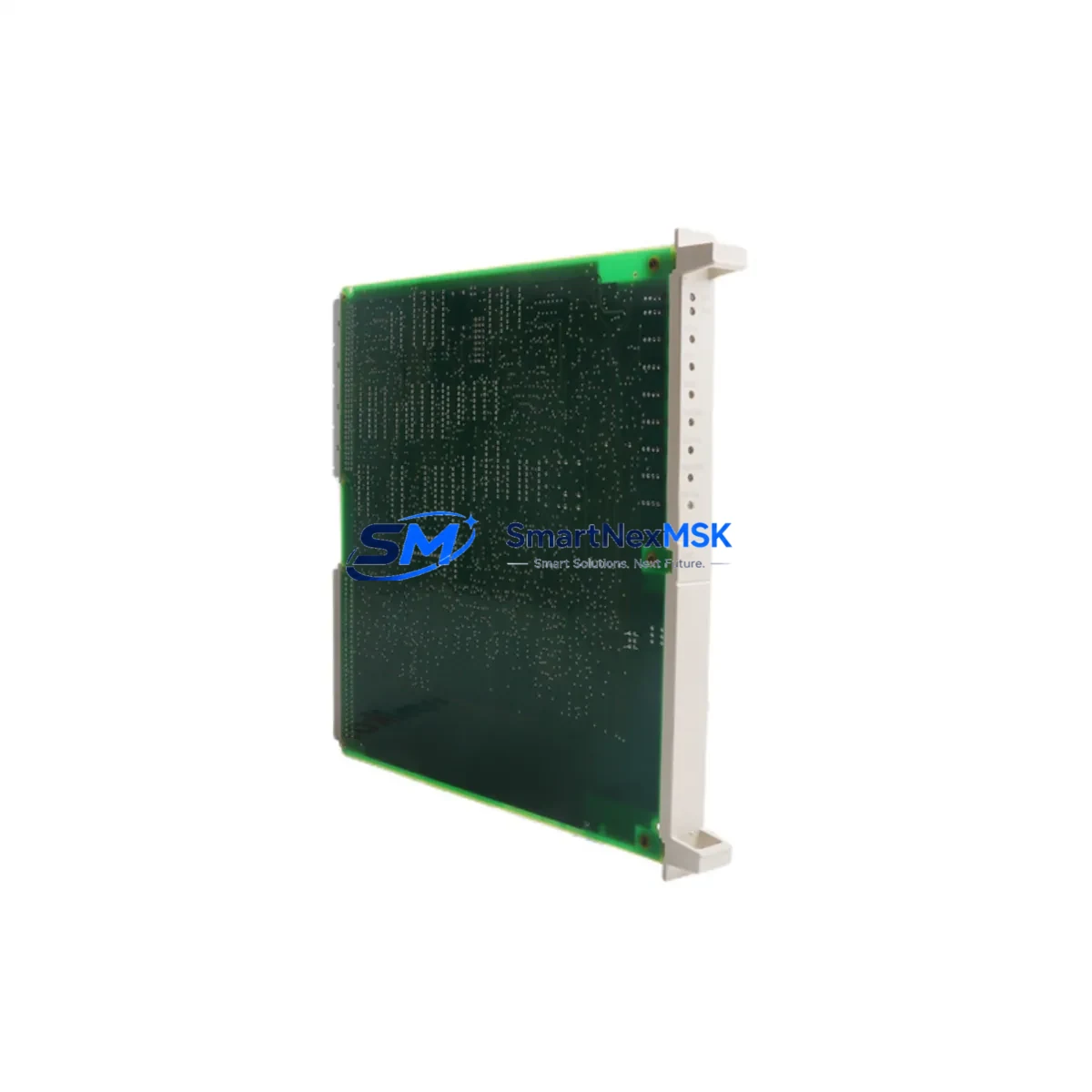

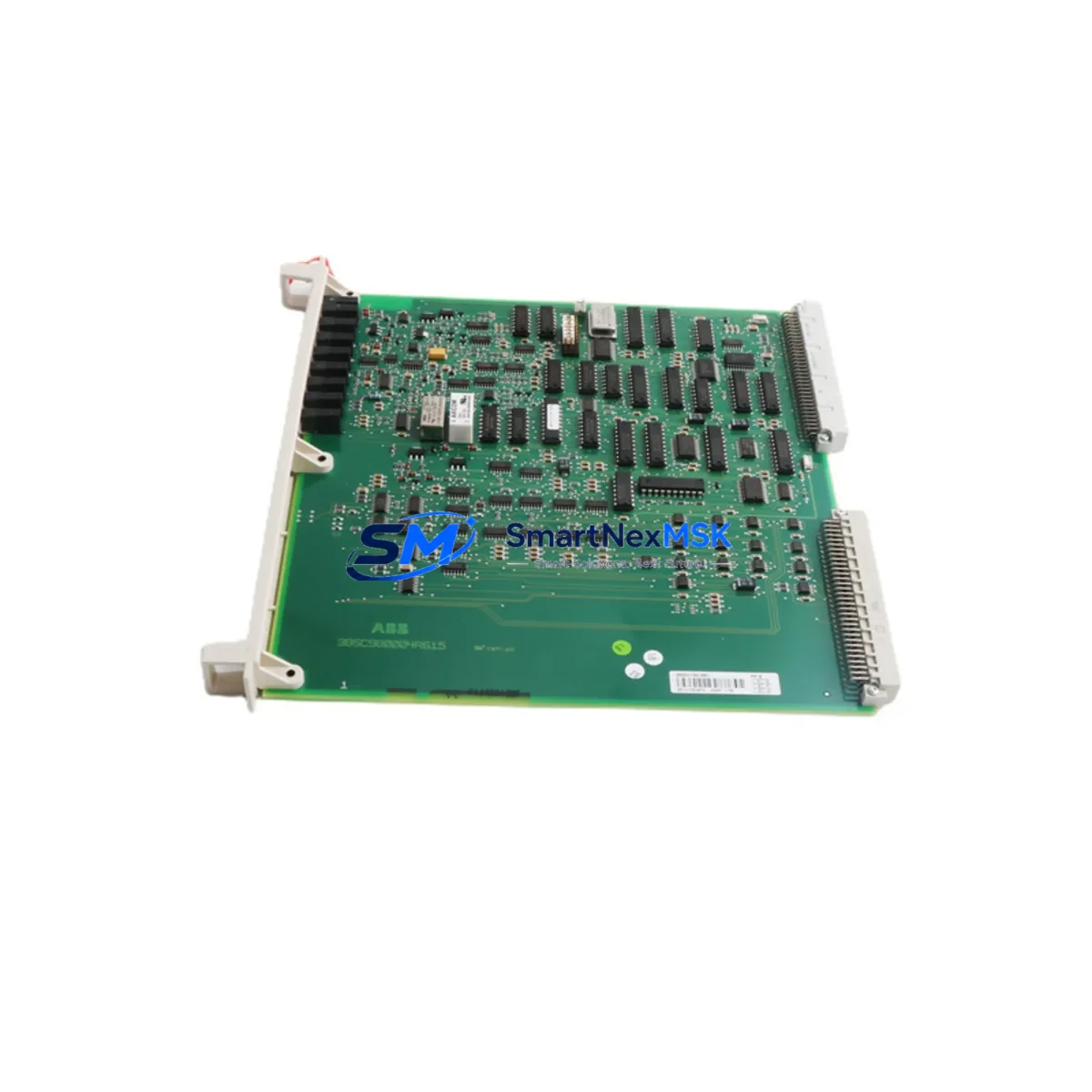

The ABB DSBC176 (3BSE019216R1) is a ruggedized S100 I/O Bus Extender Module engineered for the Advant Controller AC400 and AC450 series. Designed to operate reliably in high-load, high-interference industrial environments, this module extends the S100 I/O bus between controller racks and remote I/O stations without compromising signal integrity or control loop continuity. In petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical complexes, and continuous manufacturing lines, the DSBC176 serves as a critical backbone component — ensuring that every digital and analog I/O signal reaches its destination accurately, even under severe electromagnetic interference, voltage fluctuations, and mechanical vibration.

Industrial control cabinets operating in hazardous or demanding environments are exposed to a wide range of threats: surge impulses from motor starts, ground potential differences between remote I/O racks, high-frequency EMI from variable frequency drives such as the ACS800 or ACS880 series, and thermal cycling that degrades connector reliability over time. The DSBC176 addresses these risks through its hardened bus driver circuitry, robust PCB construction, and shielded signal path — maintaining stable communication between the AC400/AC450 processor module and downstream I/O boards such as the DSDI110A digital input module, DSDO115A digital output module, DSAI130A analog input module, and DSAO120A analog output module. When any of these I/O boards are installed in a remote rack connected via the DSBC176, the extender’s signal conditioning capability prevents data corruption that could otherwise trigger spurious trips or missed safety interlocks.

In critical interlock circuits — such as emergency shutdown (ESD) systems, burner management systems (BMS), or high-integrity pressure protection systems (HIPPS) — even a momentary bus communication error can cascade into a full process shutdown or, worse, a missed protective action. The DSBC176 eliminates this risk by providing a deterministic, low-latency bus extension path that maintains synchronization between the DSBC110 bus coupler, the DSMB170 motherboard, and the DSBC176 itself. This tightly integrated architecture ensures that the Advant controller’s scan cycle is not disrupted by bus contention, signal reflection, or impedance mismatch — common failure modes in improperly extended I/O systems.

Power supply stability is equally critical in these environments. The DSBC176 is designed to operate within the regulated 24 VDC power rail supplied by the DSPU110 or compatible power supply units in the Advant rack system. Transient voltage spikes — whether from inductive load switching, capacitor bank discharge, or utility grid disturbances — are handled by the module’s internal protection circuitry, preventing latch-up or permanent damage to the bus driver ICs. When paired with a properly specified surge protection device on the incoming power rail, the DSBC176 contributes to a layered protection strategy that keeps the entire control system online during electrical disturbances.

For facilities running continuous production processes where unplanned downtime carries significant financial and safety consequences, maintaining a verified spare of the DSBC176 in the site’s critical spare parts inventory is a recognized best practice. Each unit supplied by SMARTNEXMSK undergoes functional verification testing prior to shipment, confirming bus driver output levels, signal propagation delay, and connector integrity. This pre-shipment testing protocol ensures that replacement modules can be installed and commissioned rapidly during a planned or emergency maintenance window — minimizing mean time to repair (MTTR) and restoring full I/O visibility to the control system without extended troubleshooting.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable Advant-based control cabinet is built around a carefully coordinated set of components, and the DSBC176 sits at the heart of the I/O communication architecture. In a typical AC400 or AC450 control system, the processor module communicates with I/O boards through the S100 bus, with the DSBC110 bus coupler managing the local rack and the DSBC176 extending the bus to a remote I/O rack housing additional DSDI110A digital input boards and DSDO115A digital output boards. Analog process variables — temperatures, pressures, flow rates — are acquired through DSAI130A analog input modules and transmitted back to the controller via the same extended bus path.

To protect this communication chain from power-related disturbances, the rack power supply — typically a DSPU110 or equivalent — must be properly sized and protected. A dedicated surge protection device on the 24 VDC rail, combined with proper cabinet grounding and cable shielding practices, ensures that the DSBC176’s bus drivers are not exposed to destructive transients. In cabinets where variable frequency drives such as the ACS800 are installed in close proximity to the control rack, additional EMI filtering on the power supply input is recommended to prevent high-frequency noise from coupling into the S100 bus through the common power rail.

Communication integrity is further supported by the DSMB170 motherboard, which provides the physical backplane connections between the processor, bus coupler, and extender modules. Ensuring that all backplane connectors are clean, properly seated, and free from corrosion is a critical maintenance step — particularly in humid or chemically aggressive environments such as offshore platforms or chemical processing plants. When the DSBC176 is replaced as part of a planned maintenance cycle, inspecting the mating connector on the DSMB170 for pin damage or oxidation prevents recurring communication faults after the new module is installed.

Critical Industrial Safety Applications

The ABB DSBC176 3BSE019216R1 is deployed across a broad range of heavy industrial and process-critical environments where control system reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery operations, the DSBC176 extends the S100 I/O bus to remote I/O racks located in field junction boxes or satellite control panels, enabling the AC400/AC450 controller to monitor and control process variables — pressures, temperatures, valve positions, and flow rates — across large physical distances without introducing communication latency or signal degradation. This capability is essential for emergency shutdown systems where the controller must receive accurate field signals within the required response time to initiate a safe process shutdown.

In power generation and substation automation, the module supports the integration of protection relay status signals, circuit breaker position feedback, and transformer monitoring data into the Advant control system. The hardened bus architecture of the DSBC176 ensures that high-voltage switching transients — common in substation environments — do not corrupt the I/O data stream or cause the controller to misinterpret the state of critical protection devices.

In mining and mineral processing, where conveyor systems, crushers, and grinding mills generate significant electrical noise and mechanical vibration, the DSBC176’s robust construction ensures that the I/O bus remains stable even as the surrounding environment subjects the control cabinet to continuous mechanical stress. Reliable I/O communication in these applications is essential for monitoring motor overload conditions, conveyor belt alignment, and crusher feed rates — all of which are critical to preventing equipment damage and personnel injury.

In water and wastewater treatment, the module enables distributed I/O architectures where pump stations, chemical dosing systems, and filtration controls are managed from a central AC400/AC450 controller. The ability to extend the S100 bus reliably across the plant floor reduces the need for additional controllers and simplifies the overall system architecture, lowering both capital cost and long-term maintenance burden.

In metallurgical and steel production facilities, where furnace controls, rolling mill drives, and cooling system automation demand continuous, uninterrupted I/O scanning, the DSBC176 ensures that the controller maintains full visibility of all process inputs and outputs — even during the high-current switching events associated with large induction furnaces or DC arc furnaces.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DSBC176 3BSE019216R1?
The 12-month warranty covers any functional failure of the module under normal operating conditions, including bus driver failure, connector degradation, or PCB-level faults that prevent the module from performing its specified bus extension function. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize site downtime. Physical damage resulting from improper installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each DSBC176 unit?
Every DSBC176 unit undergoes a structured functional verification process before shipment. This includes confirmation of bus driver output signal levels, measurement of signal propagation delay within specification, visual inspection of all PCB components and solder joints, and mechanical verification of backplane connector pin integrity. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for each unit and is available upon request.

Q3: Is the DSBC176 3BSE019216R1 compatible with both the AC400 and AC450 Advant controllers?
Yes. The DSBC176 is designed for use within the ABB Advant S100 I/O system and is compatible with both the AC400 and AC450 controller families. It functions as a bus extender between the local controller rack and remote I/O racks populated with standard S100 I/O modules. Compatibility with specific system configurations should be verified against the ABB Advant system documentation for your installed firmware and hardware revision levels.

Q4: Can long-term supply of the DSBC176 be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated inventory of the DSBC176 3BSE019216R1 to support customers with long-term maintenance and spare parts programs. For facilities operating Advant AC400/AC450 systems that are no longer in active production by ABB, securing a verified supply of critical spare modules — including the DSBC176, DSBC110, and DSMB170 — is essential to sustaining system availability over the equipment lifecycle. We recommend contacting our sales team to discuss volume pricing and reserved stock arrangements for multi-year maintenance contracts.
