ABB DSDI120A Retrofit-Ready Digital Input for AC450 DCS

ABB DSDI120A Retrofit-Ready Digital Input Module for AC450 DCS: Compatible Modernization & Smooth System Upgrade

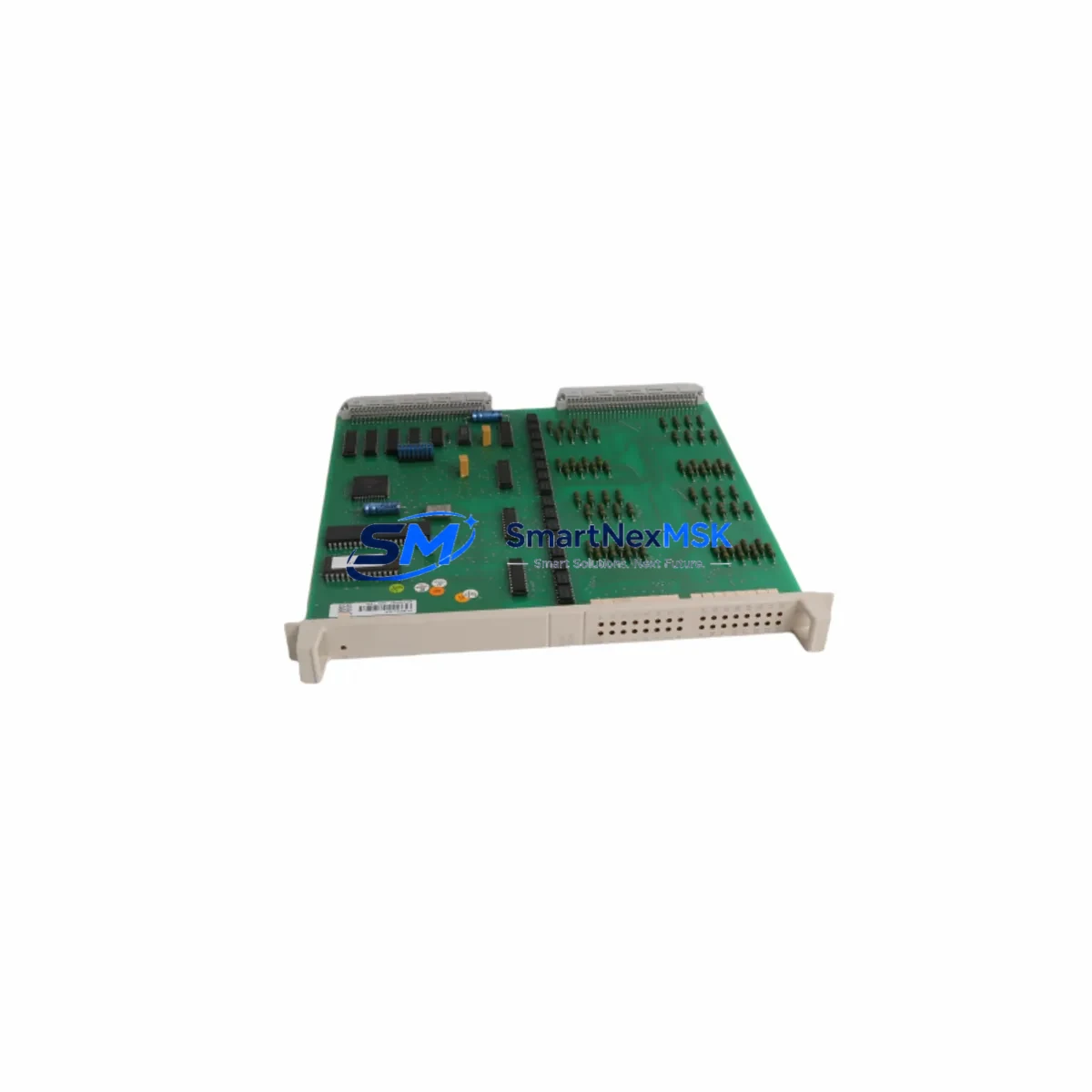

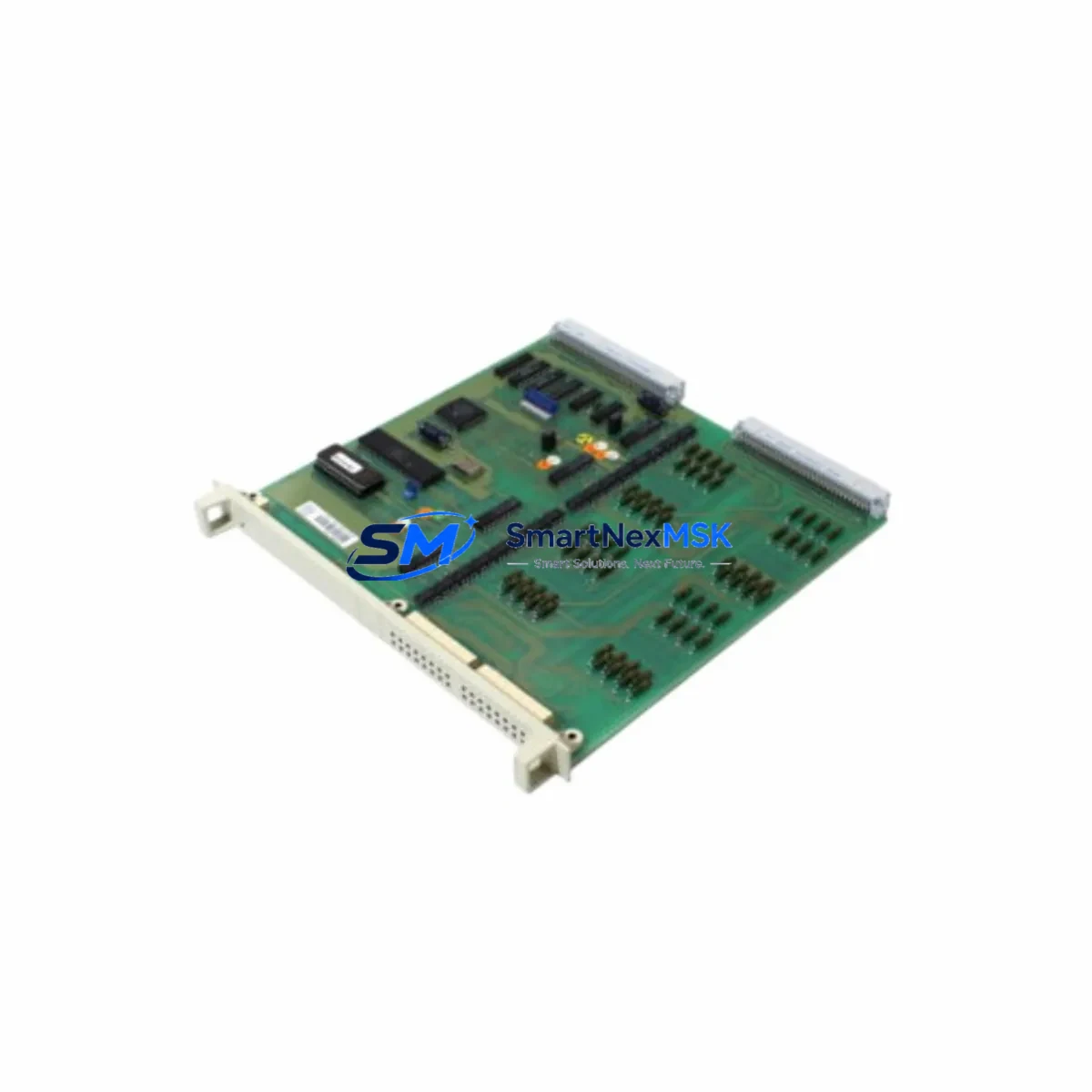

The ABB DSDI120A is a 32-channel digital input module originally designed for the Advant Controller AC450 Distributed Control System (DCS) platform. As legacy AC450 installations continue to operate across power generation, pulp and paper, chemical processing, and oil & gas facilities worldwide, the DSDI120A remains one of the most sought-after retrofit and replacement components for engineers managing aging control infrastructure. Whether you are replacing a failed unit, building a spare-parts inventory, or executing a phased modernization of your control cabinet, the DSDI120A provides a verified drop-in solution that preserves your existing wiring, backplane connections, and control logic without requiring a full system overhaul.

Sourced from authorized distribution channels and subject to full functional testing prior to shipment, every DSDI120A unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Our inventory is maintained to support urgent replacement scenarios, with same-day dispatch available for in-stock units and expedited freight options to minimize plant downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an AC450-based control system requires careful coordination across multiple hardware layers. The DSDI120A slots into the S100 I/O subrack, which is typically housed in a dedicated control cabinet alongside power supply modules such as the DSQC604 or DSDP140 24 V DC distribution boards. Before removing the failed module, engineers should document the current DIP switch address configuration — typically encoding the module’s slot position and I/O group assignment — to ensure the replacement unit is configured identically before reinsertion.

The field wiring connected to the DSDI120A arrives via a marshalling terminal board, most commonly the DSMB127 or DSMB133, which provides the physical interface between field cables and the module’s 32 input channels. These marshalling boards remain in place during module swap, meaning no field rewiring is required in a standard like-for-like replacement. However, if the retrofit involves migrating from an older DSDI110 or DSDI115 variant, terminal pin assignments should be cross-referenced against the original I/O list to confirm channel-to-signal mapping is preserved.

Communication between the DSDI120A and the AC450 controller is managed through the S100 I/O bus, supervised by a communication module such as the DSCS140 or DSCS150. These supervisors handle cyclic data exchange between the I/O subrack and the main processor board — typically a DSPC172 or DSPC176 CPU module. If the retrofit is part of a broader migration toward an ABB System 800xA environment, the S100 I/O bus can be retained via an S100 I/O gateway, allowing the DSDI120A to continue operating within the modernized architecture without immediate hardware replacement.

For sites upgrading their HMI layer from legacy Advant Station displays to modern ABB 800xA Operator Workplace or third-party SCADA systems, the digital input signals processed by the DSDI120A will need to be verified in the new graphic faceplates and alarm lists. Signal tag names, engineering units, and alarm limits defined in the original AC450 database should be exported and validated against the new HMI configuration before cutover. This step is particularly important when the DSDI120A is monitoring critical process interlocks, motor run feedbacks, or valve position signals that feed into safety logic.

Where the retrofit involves expanding I/O capacity — for example, adding new field instruments to an existing control loop — the DSDO120A digital output module and DSAI130A analog input module are commonly installed alongside the DSDI120A in the same subrack, sharing the S100 bus bandwidth. Subrack power budgets should be recalculated when adding modules, referencing the DSDP140 power supply capacity to confirm adequate margin for the expanded I/O count. Programming cables such as the DSSB146 or a standard RS-232 serial cable connected to the AC450 engineering port are required for any online configuration changes during the retrofit phase.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a DSDI120A in a live production environment. The recommended approach is a hot-standby swap procedure where the replacement module is pre-configured — DIP switches set, firmware version confirmed, and functional test completed — before the maintenance window begins. This reduces the in-cabinet intervention time to the physical swap and bus re-initialization cycle, typically under 15 minutes for an experienced technician.

Before initiating the swap, the AC450 controller should be placed in a controlled state: non-critical outputs held at their last known values, interlocks acknowledged, and the affected I/O group taken offline in the engineering tool. The original control program logic stored in the DSPC172 or DSPC176 processor is not affected by a module-level replacement — the program database resides in the CPU’s battery-backed RAM and flash memory, and will automatically re-scan the replaced DSDI120A upon bus re-initialization without requiring a program download.

For sites where continuous process control is mandatory — such as power plant auxiliary systems or continuous chemical reactors — a parallel wiring strategy can be employed: the replacement DSDI120A is wired in parallel with the failed unit using a temporary terminal bridge, allowing the new module to be verified online before the old unit is disconnected. This approach eliminates the control gap entirely but requires careful coordination with the DCS engineering team to avoid duplicate signal processing during the transition period.

Post-swap commissioning should include a full channel-by-channel I/O force test, confirmation of alarm and interlock signal states in the HMI, and a 30-minute observation period under normal process conditions before the maintenance window is formally closed. All activities should be documented in the site’s change management log, referencing the DSDI120A serial number, slot address, and test results for future audit compliance.

Retrofit Support FAQ

Q1: Is the DSDI120A a direct drop-in replacement for the DSDI110 or DSDI115 in an AC450 system?
The DSDI120A is functionally compatible with the AC450 S100 I/O bus and can replace earlier DSDI-series modules in most applications. However, terminal wiring assignments and DIP switch address configurations should be verified against the original module’s documentation before installation, as minor differences exist between sub-variants. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What commissioning steps are required after installing a replacement DSDI120A?
After physical installation, confirm the DIP switch address matches the original module’s slot assignment. Power up the subrack and verify the module’s status LED indicates normal operation. In the AC450 engineering tool (Advant Builder or Control Builder), perform an I/O scan to confirm all 32 channels are recognized. Execute a channel force test for critical signals — particularly interlocks and motor feedbacks — before returning the system to automatic control. Document all test results per your site’s commissioning procedure.

Q3: Can the DSDI120A be used in an ABB System 800xA migration project?
Yes. The DSDI120A can continue to operate within a System 800xA environment when connected via an S100 I/O gateway or S800 I/O migration interface. This allows a phased migration strategy where the existing S100 I/O hardware — including the DSDI120A — remains in service while the controller and HMI layers are upgraded, deferring the full I/O replacement to a later project phase and significantly reducing migration risk and capital expenditure.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, module serial number, and a description of the failure. Replacement units are dispatched within 3 business days of claim approval, with return freight covered by SMARTNEXMSK for confirmed warranty cases.
