ABB DSDO115A 3BSE018298R1 Spare for AC500 Automation

ABB DSDO115A 3BSE018298R1 Spare for AC500 Automation: Spare Replacement & Industrial Downtime Risk Control

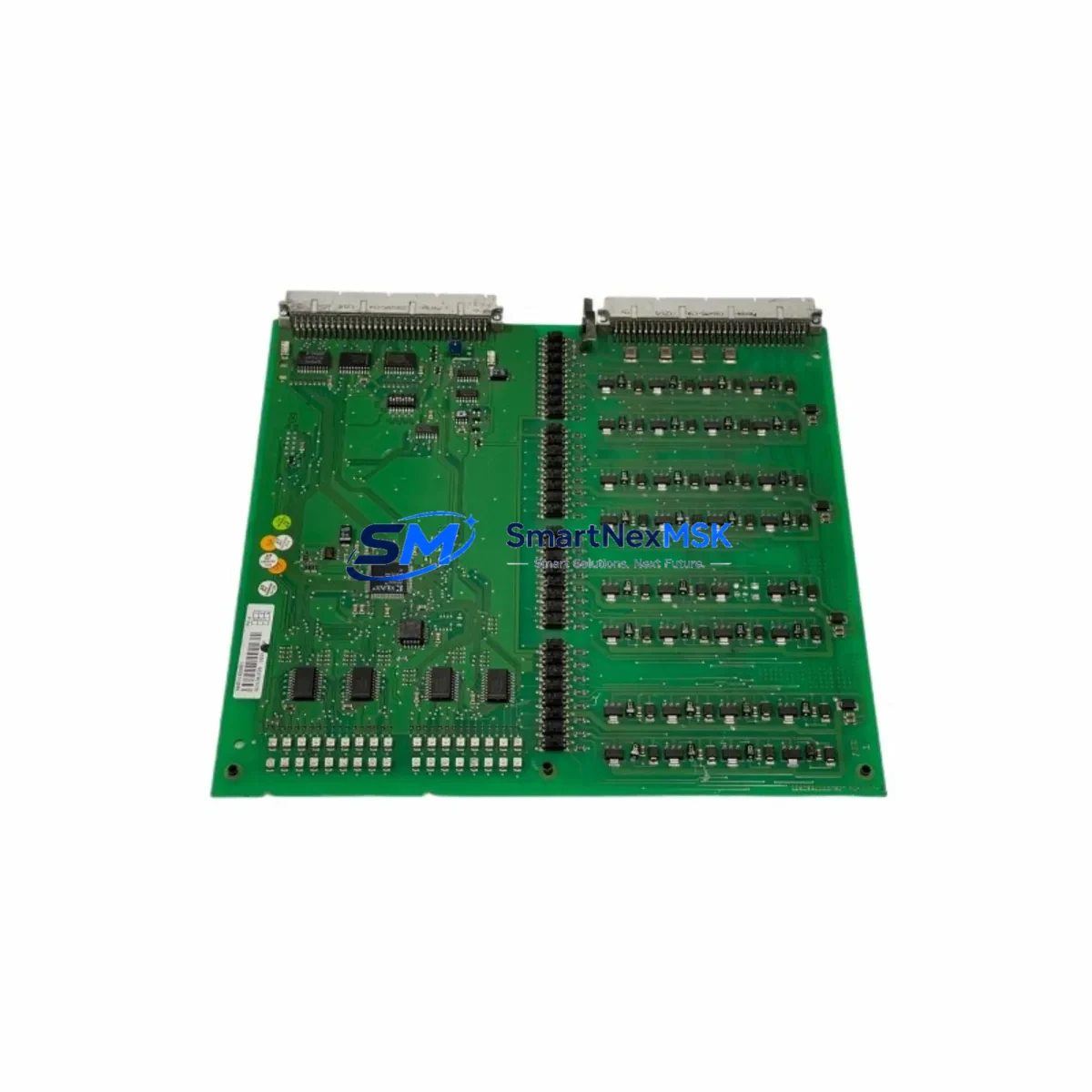

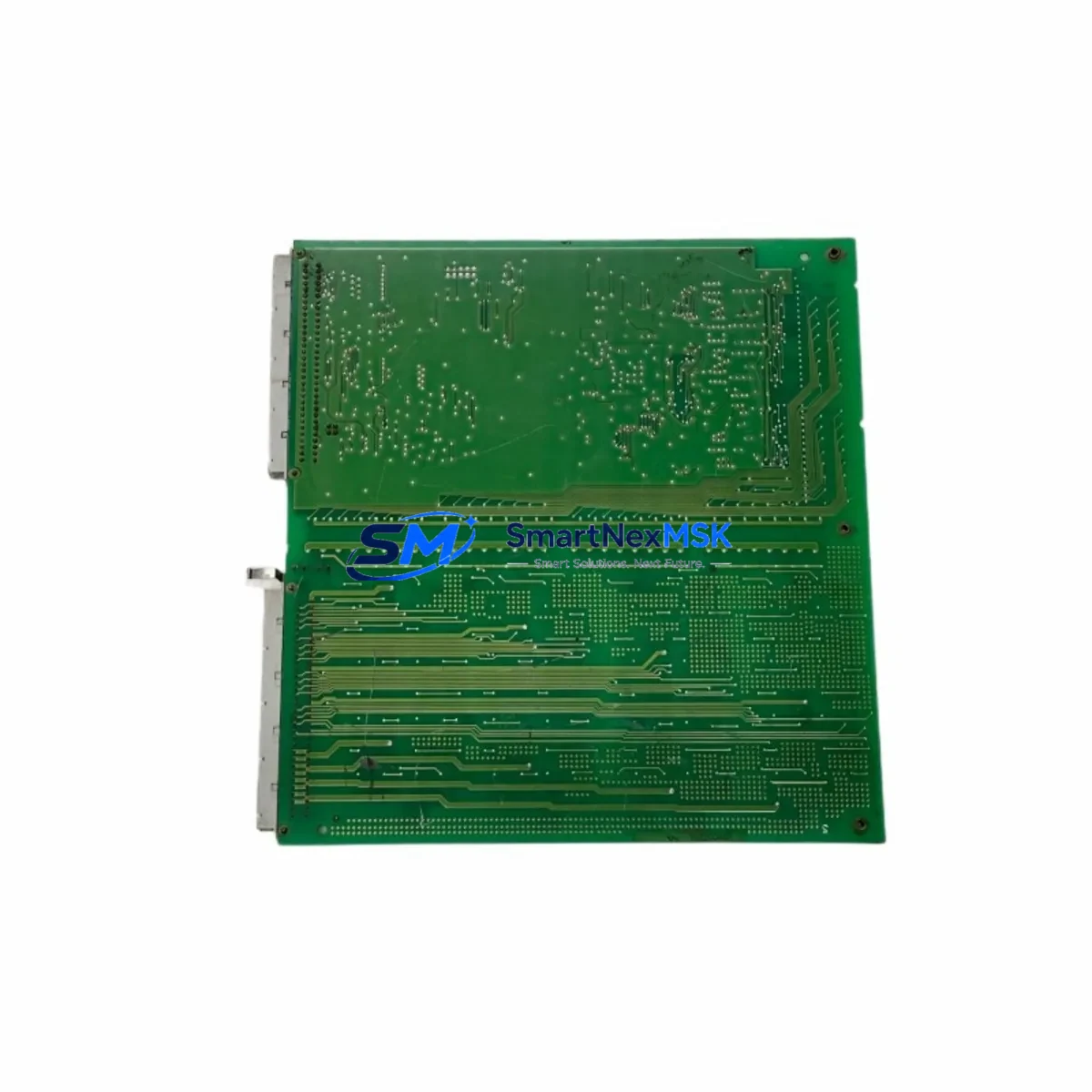

The ABB DSDO115A (catalog number 3BSE018298R1) is a 16-channel 24 VDC digital output module engineered for the ABB AC500 and Freelance DCS control platforms. In process-critical environments — from water treatment and power generation to chemical processing and discrete manufacturing — a failed digital output module can halt an entire production line within seconds. Maintaining a verified, tested spare of the DSDO115A on the shelf is one of the most cost-effective insurance policies a maintenance team can hold.

This listing supplies an original ABB DSDO115A 3BSE018298R1 sourced through authorized industrial channels, individually tested prior to dispatch, and backed by a 12-month warranty. Each unit ships with full functional verification to ensure it is ready for immediate installation upon arrival.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSDO115A fails or shows intermittent output faults, experienced maintenance engineers know that the root cause is rarely isolated to the module alone. A thorough site inspection should accompany any digital output module replacement to prevent repeat failures and ensure the restored system operates reliably.

Begin by auditing the 24 VDC field power supply feeding the output group — voltage sags or ripple above specification are a leading cause of premature transistor output failure. Check the AC500 PM5xx CPU module diagnostic logs for any recorded I/O bus errors or watchdog events that preceded the fault; these logs often reveal whether the DSDO115A failure was symptomatic of a wider bus issue. Inspect the TB511-ETH or TB521-ETH terminal base that the DSDO115A plugs into — corroded or loose contacts on the terminal base will cause the replacement module to fail just as quickly.

Review the S500 I/O backplane bus coupler (such as the DC505-FBP or DC532) for firmware currency and communication integrity. If the cabinet houses DSDI110A or DSDI115A digital input modules in the same I/O station, inspect their terminal connections simultaneously — shared field wiring faults can affect both input and output channels. For cabinets with mixed analog and digital I/O, verify that DSAO110A analog output modules and DSAI110A analog input modules are not sharing a noisy common ground with the digital output circuits.

Check all field-side fuse holders and miniature circuit breakers protecting the 24 VDC output loads — a blown fuse on a load circuit can mask as a module fault in some diagnostic tools. Inspect relay output expansion modules (such as the TA521 relay terminal assembly) if the DSDO115A drives intermediate relay coils; relay coil back-EMF without proper suppression diodes is a known cause of transistor output degradation. Finally, verify the PROFIBUS DP or Modbus communication link between the remote I/O station and the CPU — a degraded communication cable can cause the CPU to report false output faults even when the DSDO115A hardware is functional.

Stocking a DSDO115A alongside a spare TB511 terminal base, a replacement 24 VDC DIN-rail power supply, and a set of field terminal ferrules gives a maintenance team everything needed to execute a complete output station restoration in under 30 minutes.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the DSDO115A, use the AC500 engineering tool (Automation Builder or Control Builder Plus) to force all 16 output channels to the safe state (OFF). Record the current channel configuration, I/O address mapping, and any force overrides active in the CPU program. Photograph the field wiring on the terminal base for reference.

Step 2 — Remove the faulty module. The DSDO115A clips onto the TB511 or TB521 terminal base without tools. Release the locking tab, slide the module forward, and lift clear. The terminal base and field wiring remain in place — this is the key advantage of the AC500 S500 architecture for rapid spare replacement.

Step 3 — Inspect the terminal base. Before inserting the replacement DSDO115A, visually inspect the terminal base connector pins for corrosion, bent contacts, or debris. Clean with isopropyl alcohol if necessary. Verify that all field terminal screws are torqued to specification (typically 0.5–0.6 Nm for S500 terminal bases).

Step 4 — Insert the replacement module. Slide the new DSDO115A onto the terminal base until the locking tab clicks. No parameter download is required — the AC500 CPU automatically recognizes the module via the I/O bus and restores the configured channel parameters from the CPU project.

Step 5 — Verify and restore. Confirm all 16 output channels report correct status in the CPU diagnostic view. Remove any forced overrides applied in Step 1. Restore normal operation and monitor the first 15 minutes of operation for any recurrence of faults. Log the replacement in the site maintenance record with the module serial number and date.

This plug-and-replace architecture means a trained technician can restore a failed digital output station without a laptop or configuration download, minimizing mean time to repair (MTTR) and reducing the skill threshold for emergency response.

Spare Parts Support FAQ

Q1: Is this DSDO115A 3BSE018298R1 an original ABB module or a compatible replacement?
This is an original ABB DSDO115A carrying catalog number 3BSE018298R1. It is not a third-party compatible or clone. Each unit is sourced through industrial supply channels and individually tested for full functional compliance before shipment.

Q2: How do I verify compatibility with my existing AC500 system before ordering?
The DSDO115A is compatible with all AC500 S500 I/O stations using TB511 or TB521 terminal bases and any AC500 PM5xx or PM5xx-ETH CPU. It is also supported in Freelance DCS configurations using the S500 I/O bus. If your system uses an older TB500 terminal base, please confirm the base revision before ordering. Contact us with your CPU part number and terminal base type for a compatibility confirmation.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every DSDO115A is powered up and all 16 output channels are individually verified for correct switching, current capacity, and diagnostic response before dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or field wiring faults. Warranty claims are processed with return shipping support.

Q4: How quickly can I receive the module, and do you support long-term supply for ongoing maintenance contracts?
In-stock units typically ship within 1–2 business days. For maintenance contracts requiring guaranteed annual supply of DSDO115A modules, we offer reserved stock arrangements and priority dispatch agreements. Contact our sales team to discuss volume pricing and long-term spare parts support programs.
