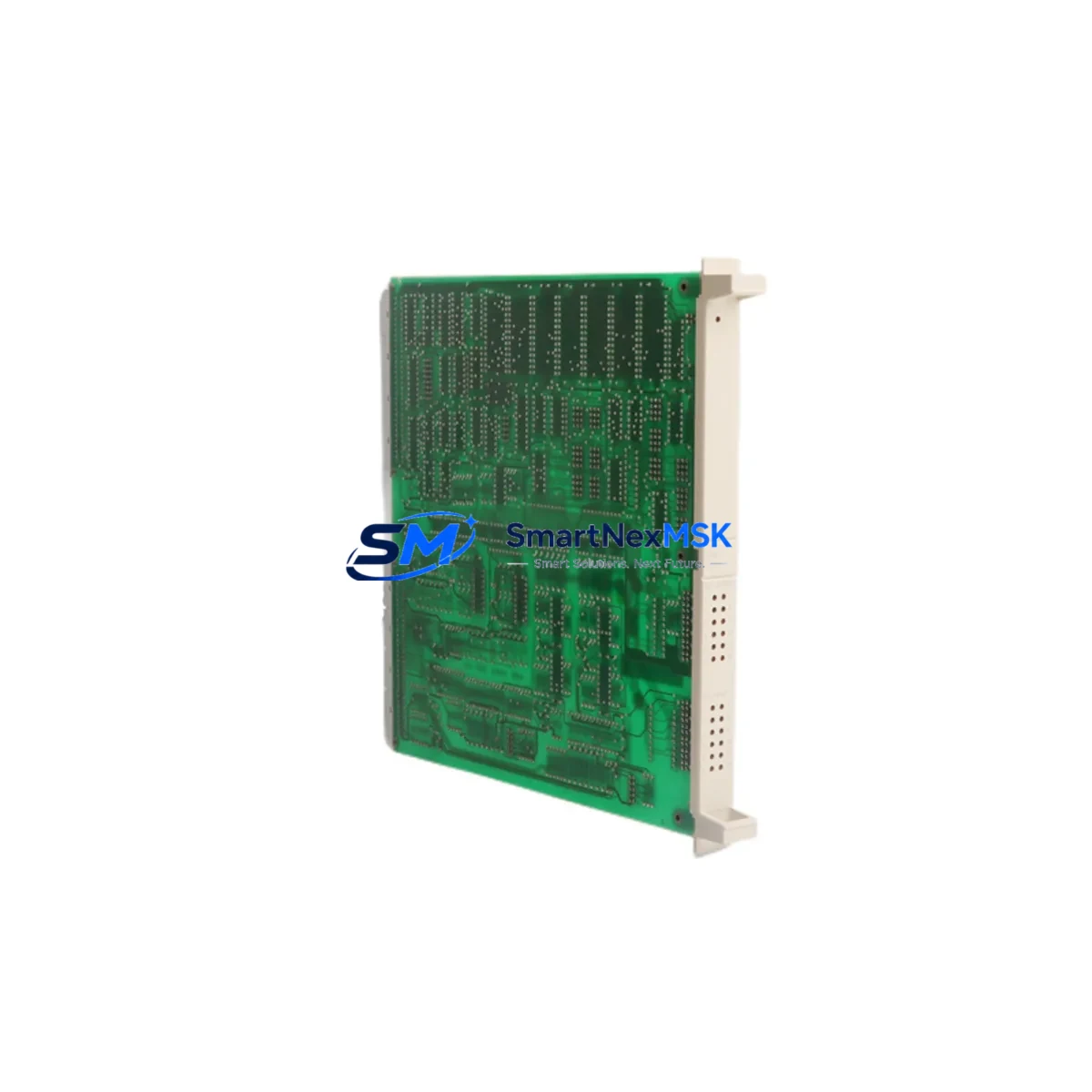

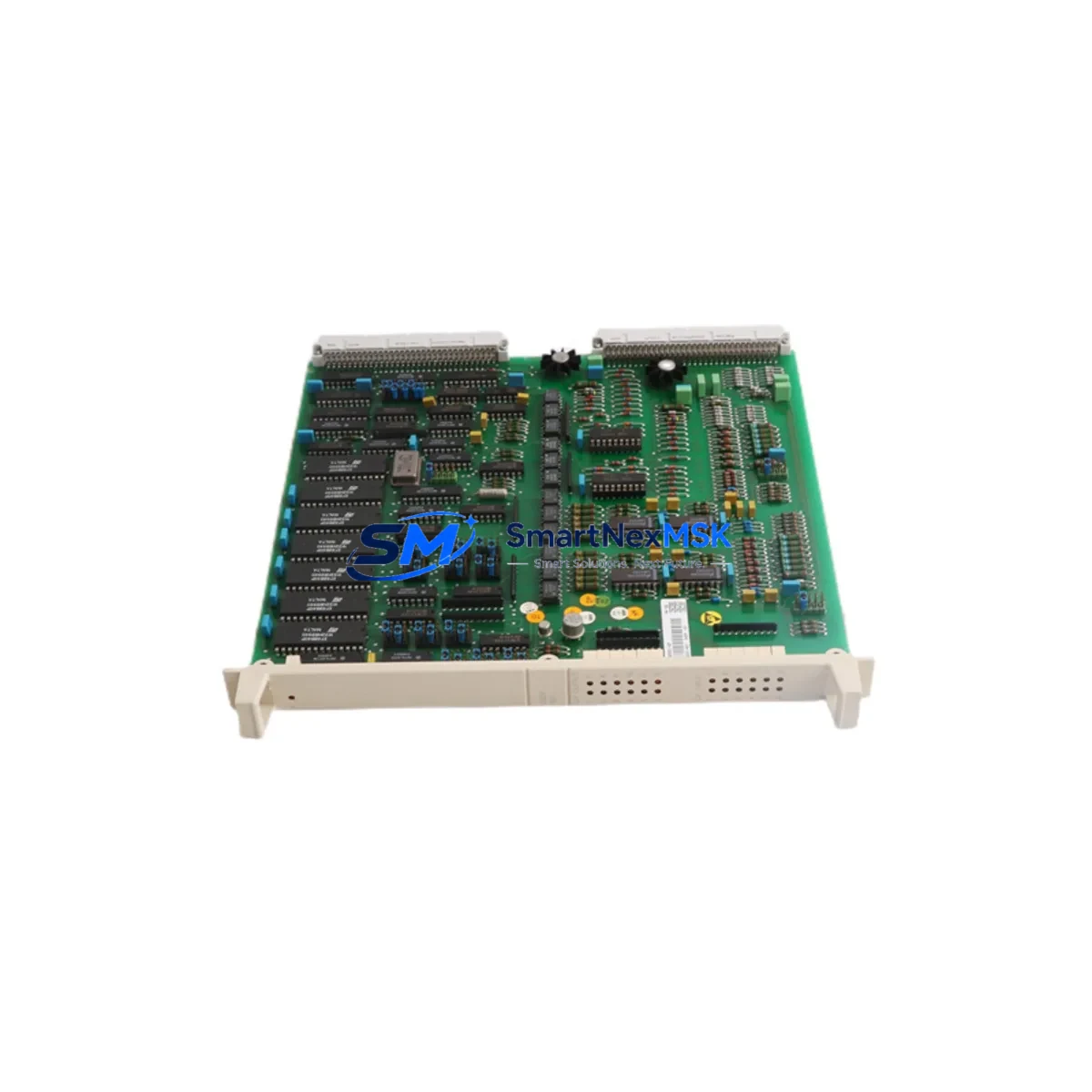

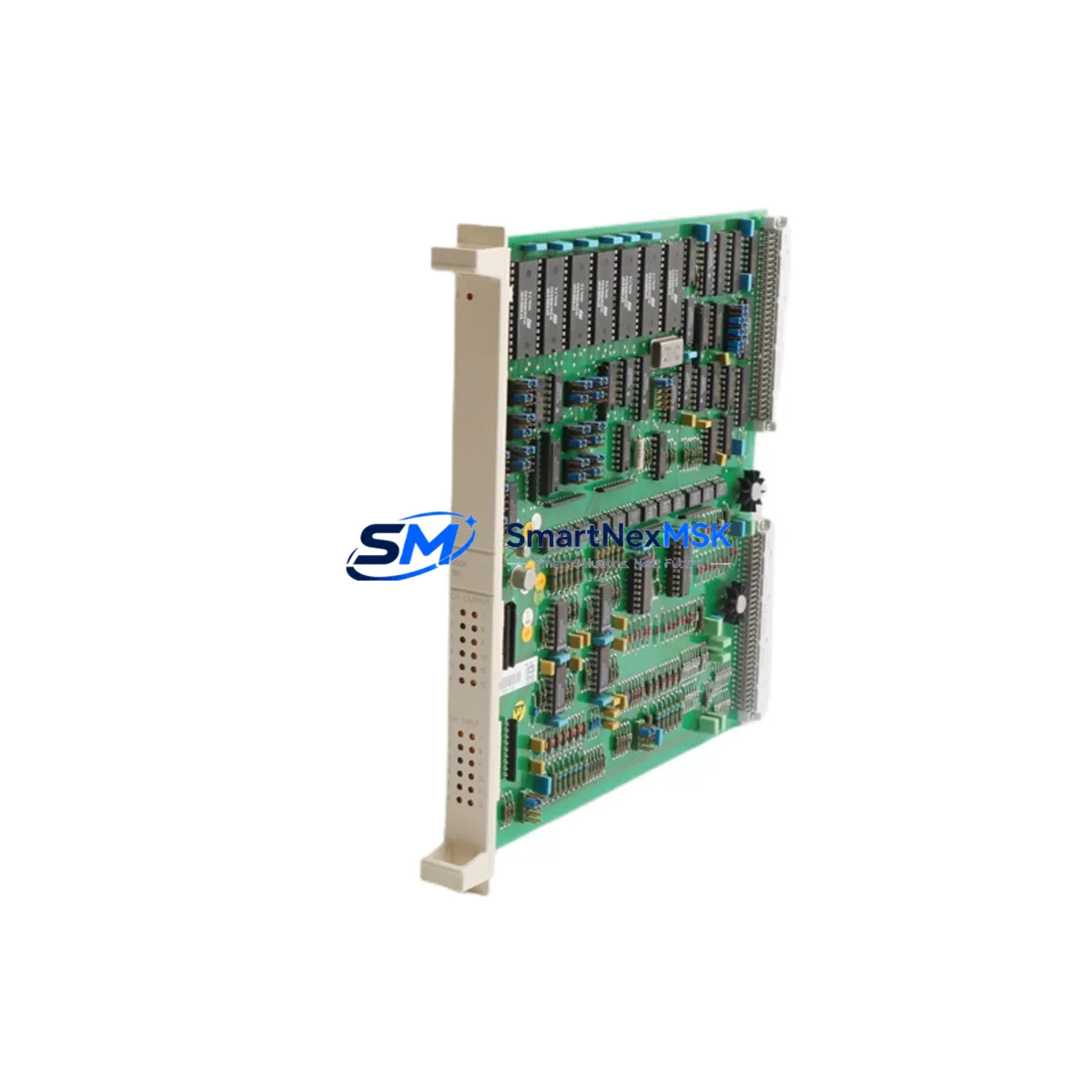

ABB DSDP150 57160001-GF Retrofit-Ready Pulse Counter for DSCS09 Control Systems
The ABB DSDP150 57160001-GF is a high-precision pulse counter and incremental encoder position module engineered for ABB’s Advant/Master DCS platform. As legacy DSCS09 installations reach end-of-service milestones, the DSDP150 57160001-GF has become the preferred retrofit-ready replacement for facilities seeking a direct drop-in upgrade without redesigning the control cabinet or rewriting core PLC logic. Whether you are modernizing a paper mill drive train, upgrading a petrochemical reactor control loop, or restoring a discontinued spare in a power generation plant, this module delivers the signal integrity and backplane compatibility your system demands.
Upgrade Compatibility Table
| Parameter | DSCS09 (Legacy) | DSDP150 57160001-GF (Retrofit) |
|---|---|---|
| Module Function | Pulse Counter / Position | Pulse Counter / Position |
| Backplane Interface | Advant S100 I/O Bus | Advant S100 I/O Bus (direct fit) |
| Encoder Input Type | Incremental TTL | Incremental TTL / HTL selectable |
| Max Count Frequency | 50 kHz | 100 kHz |
| Power Supply Requirement | 24 VDC via backplane | 24 VDC via backplane (same rail) |
| Communication Protocol | Advant Fieldbus 100 | Advant Fieldbus 100 (compatible) |
| Module Address Setting | DIP switch | DIP switch (same addressing scheme) |
| Mounting / Form Factor | S100 rack slot | S100 rack slot (no mechanical change) |
| Firmware / OS Compatibility | MasterPiece 200/1 | MasterPiece 200/1 & 51 series |
| Retrofit Recommendation | — | Direct replacement; verify DIP address |
| Commissioning Focus | — | Encoder wiring polarity, count mode |
| Warranty | — | 12-Month Warranty included |
Retrofit Planning for Existing Automation Systems
A successful DSDP150 57160001-GF retrofit begins well before the module arrives on site. Engineers should first audit the existing S100 rack configuration to confirm available slot positions and verify that the DSAI30 analog input modules and DSDO110 digital output modules sharing the same rack are not drawing the backplane power rail beyond its rated capacity. The 24 VDC supply feeding the rack — typically sourced from an DSPU110 or equivalent power unit — must be confirmed to have sufficient headroom for the DSDP150’s operating current draw.
Terminal wiring is the next critical checkpoint. The DSCS09 typically uses a 15-pin D-sub or screw-terminal adapter for encoder A/B/Z channel connections. The DSDP150 57160001-GF uses the same S100 front connector standard, but engineers must verify signal polarity and shielding continuity before powering up. HTL-to-TTL signal level mismatches are a common source of count errors during initial commissioning and should be resolved at the field device — often a servo drive or proximity sensor — rather than at the module terminal.
Module address assignment via DIP switch must mirror the DSCS09’s original address to ensure the MasterPiece controller’s I/O map recognizes the replacement without requiring a full program download. In most MasterPiece 200/1 installations, the address is documented in the system’s hardware configuration printout. If that documentation is unavailable, the address can be read from the existing DSCS09 before removal using the system’s engineering workstation and the MasterView 800 HMI interface.
Communication link integrity on the Advant Fieldbus 100 segment should be verified using the network diagnostic tools available in the MasterPiece engineering environment. Replacing a module mid-segment without checking bus termination resistance is a frequent cause of communication faults that appear unrelated to the swap. Confirm that the DSTC110 or DSTC190 communication controller at the head of the fieldbus segment is operating normally before and after the module exchange.
For facilities running parallel I/O expansion with DSAI110 or DSDI110 modules, ensure that the I/O scan cycle time configured in the controller is compatible with the DSDP150’s response latency at the target count frequency. High-speed positioning applications running above 50 kHz may require a scan cycle adjustment in the MasterPiece program to avoid missed counts during rapid acceleration phases.
Downtime Control During System Migration
Minimizing unplanned downtime during a DSDP150 57160001-GF swap requires a structured hot-swap protocol even though the S100 bus does not natively support live insertion. The recommended approach is to place the affected control loop in manual mode at the MasterView 800 operator station before removing the DSCS09. This preserves the last known output state on connected actuators — such as variable frequency drives or servo amplifiers — and prevents process upsets caused by a sudden loss of position feedback.
Before extraction, capture a full screenshot or printout of the current module diagnostic status from the engineering workstation. This provides a baseline for post-swap verification. After installing the DSDP150 57160001-GF and confirming DIP switch addressing, power the rack and allow the MasterPiece controller to complete its I/O initialization cycle — typically 3 to 8 seconds — before returning the loop to automatic mode.
If the application involves a multi-axis positioning system where the DSDP150 feeds position data to a coordinated motion sequence, it is advisable to perform a zero-reference or home-position routine on the affected axis before resuming automatic production. This eliminates accumulated position offset errors that can arise if the encoder was moved during the module exchange. The entire swap procedure, when pre-planned, can typically be completed within a 15-to-30-minute maintenance window, keeping production impact to a minimum.
Retrofit Support FAQ
Q1: Is the DSDP150 57160001-GF a direct drop-in replacement for the DSCS09?
Yes. The DSDP150 57160001-GF occupies the same S100 rack slot, uses the same backplane bus, and supports the same Advant Fieldbus 100 protocol as the DSCS09. The DIP switch address must be set to match the original module’s address before installation. No changes to the MasterPiece controller program are required in standard replacement scenarios.
Q2: What wiring checks are required before commissioning?
Verify encoder channel polarity (A, /A, B, /B, Z, /Z), confirm signal voltage level compatibility (TTL vs. HTL), and check that cable shielding is grounded at one end only to prevent ground loops. Use a multimeter to confirm 24 VDC supply voltage at the front connector before inserting the module.
Q3: How is compatibility with the MasterPiece 200/1 and MasterView 800 HMI verified?
After installation, use the MasterPiece engineering workstation to confirm the module appears in the I/O status list with no fault codes. On the MasterView 800 HMI, navigate to the relevant process display and verify that the position or count value updates correctly in real time. Any residual fault codes on the DSTC110 communication controller should be cleared and monitored for recurrence over the first 30 minutes of operation.
Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Every DSDP150 57160001-GF unit undergoes functional testing prior to shipment, including backplane communication verification, encoder input channel response, and power consumption measurement. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped in anti-static packaging with a test report. For warranty claims or technical support, contact sales@smartnexmsk.com.
